LEGRAND Niloe 6 647 03 User manual

Cat. No(s): 6 647 03 - 6 648 03

Technical data sheet: F02053EN/01 Updated: 07/04/2016 Created: 28/08/2015

1/3

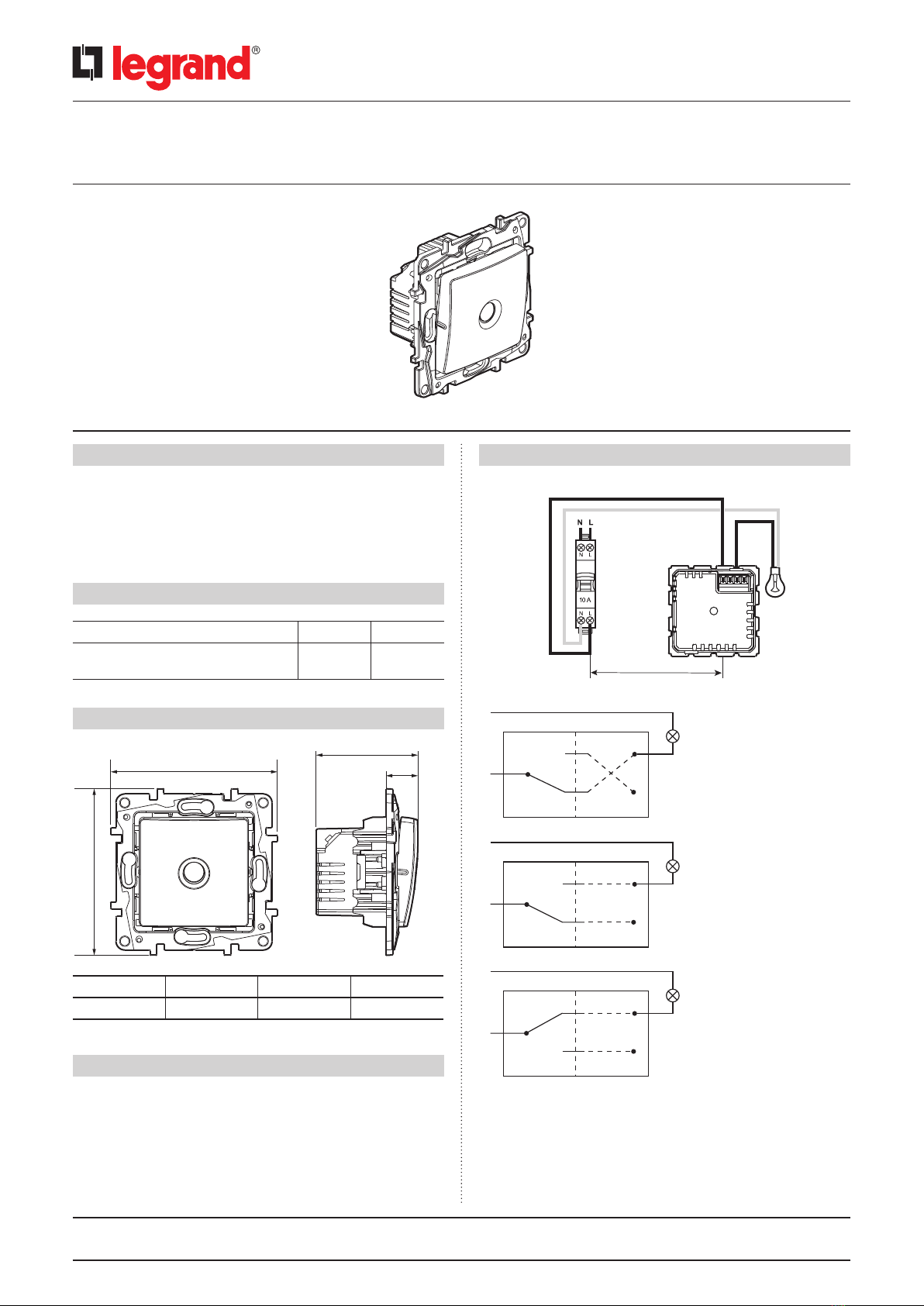

NiloéTM

Energy saving switch

128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex

Tel: 0 (+33) 5 55 06 87 87 - Fax: 0 (+33) 5 55 06 88 88

www.legrand.com

This device works as a standard 2-way switch, but in addition, it switches

o automaticaly the light after 10 minutes without movement detection.

Particularly adapted to rooms where a light can stay switched on a long

time when forgotten (basement, attic, laudry room, guest room) and

rooms where user forgets regularly to switch o (child room...).

3. DIMENSIONS

4. CONNECTION

Type of terminals: automatic

Terminal capacity: - L : 2 x 1.5 mm2

- L1 and L2 : 1 x 1.5 mm2

Stripping length: 8 mm

1. USE

2. RANGE

Description White Lin

Energy saving switch

To be equipped with a nishing plate 6 647 03 6 648 03

5. OPERATION

5.1 Energy saving switch used as a 1-way

A B C D

76 76 46.5 14.5

Manual switch ON

Automatic switch OFF

after 10 minutes

without movement detection

New manual switch ON

L1 2

100 m max.

2/3

Cat. No(s): 6 647 03 - 6 648 03

NiloéTM

Energy saving switch

Technical data sheet: F02053EN/01 Updated: 07/04/2016 Created: 28/08/2015

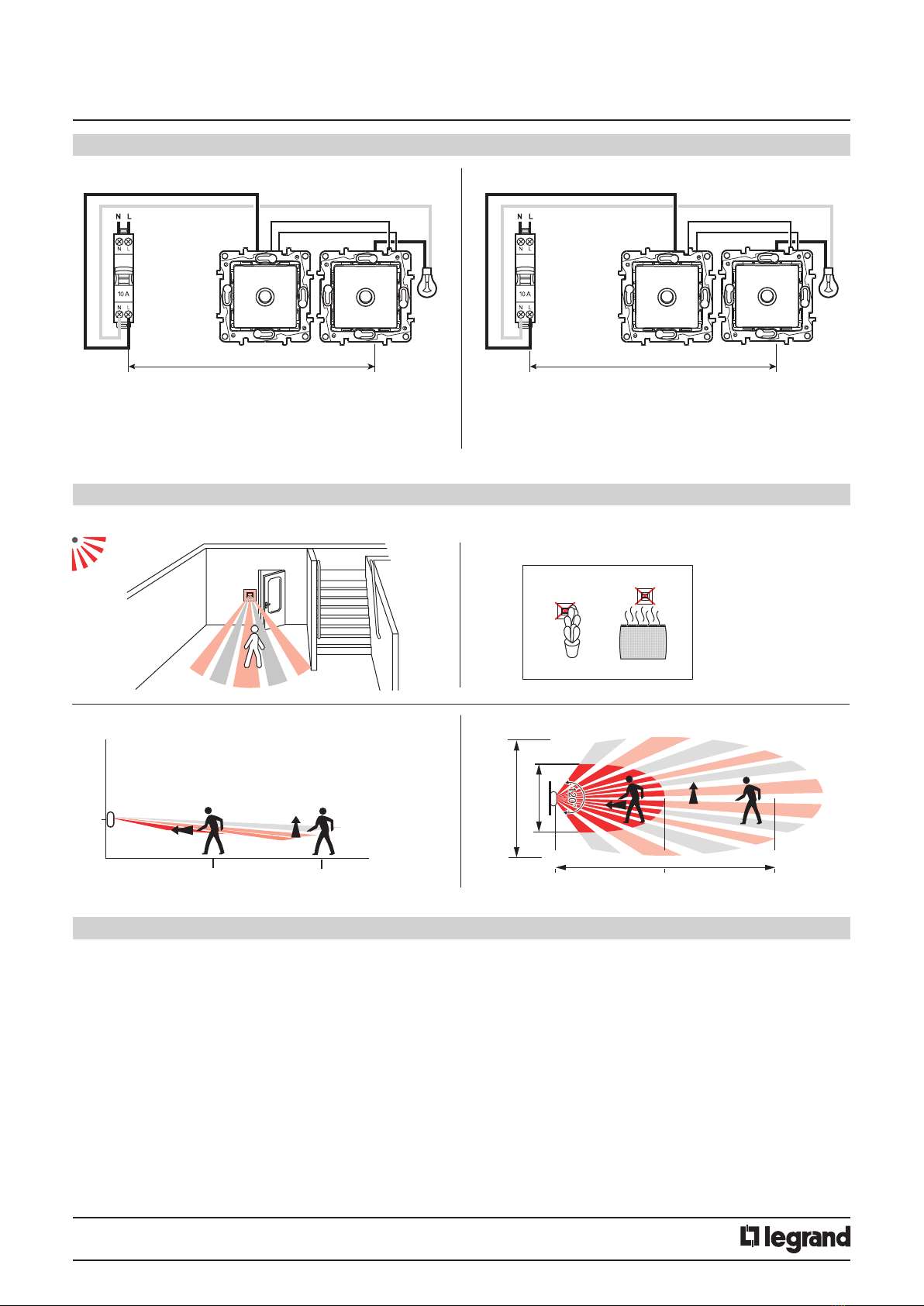

5. OPERATION (continued)

5.2 Two-way switch + energy saving switch

The IR sensor is activated when the light is switched on from one of the

two switches.

The energy saving switch opens the circuit after 10 minutes with no

movement detection.

100 m max. 100 m max.

5.3 Energy saving switch + energy saving switch

The IR sensor of the two switches are both activated when the light is

switched on.

The light will switch o when one of the two switches stays 10 minutes

with no movement detection.

6. INSTALLATION

Position

Height: 1.20 m Detection angle: 120°

7. TECHNICAL FEATURES

 7.1 Protection class

Protection against mechanical impact: IK 02

Protection against solid bodies and liquids: IP 40 (assembled product) - IP 20 (without rocker plate)

 7.2 Material characteristics

Case: PC

Rocker plate: ABS

Support: PC charged 10% glass fiber

Halogen-free

UV resistance

Self-extinguishing:

+ 850°C / 30 s for insulating components holding in place live parts.

+ 650°C / 30 s for the other insulating components.

1,2 m

4 m 8 m 4 m 8 m

3 m

5 m

3/3

Cat. No(s): 6 647 03 - 6 648 03

NiloéTM

Energy saving switch

Technical data sheet: F02053EN/01 Updated: 07/04/2016 Created: 28/08/2015

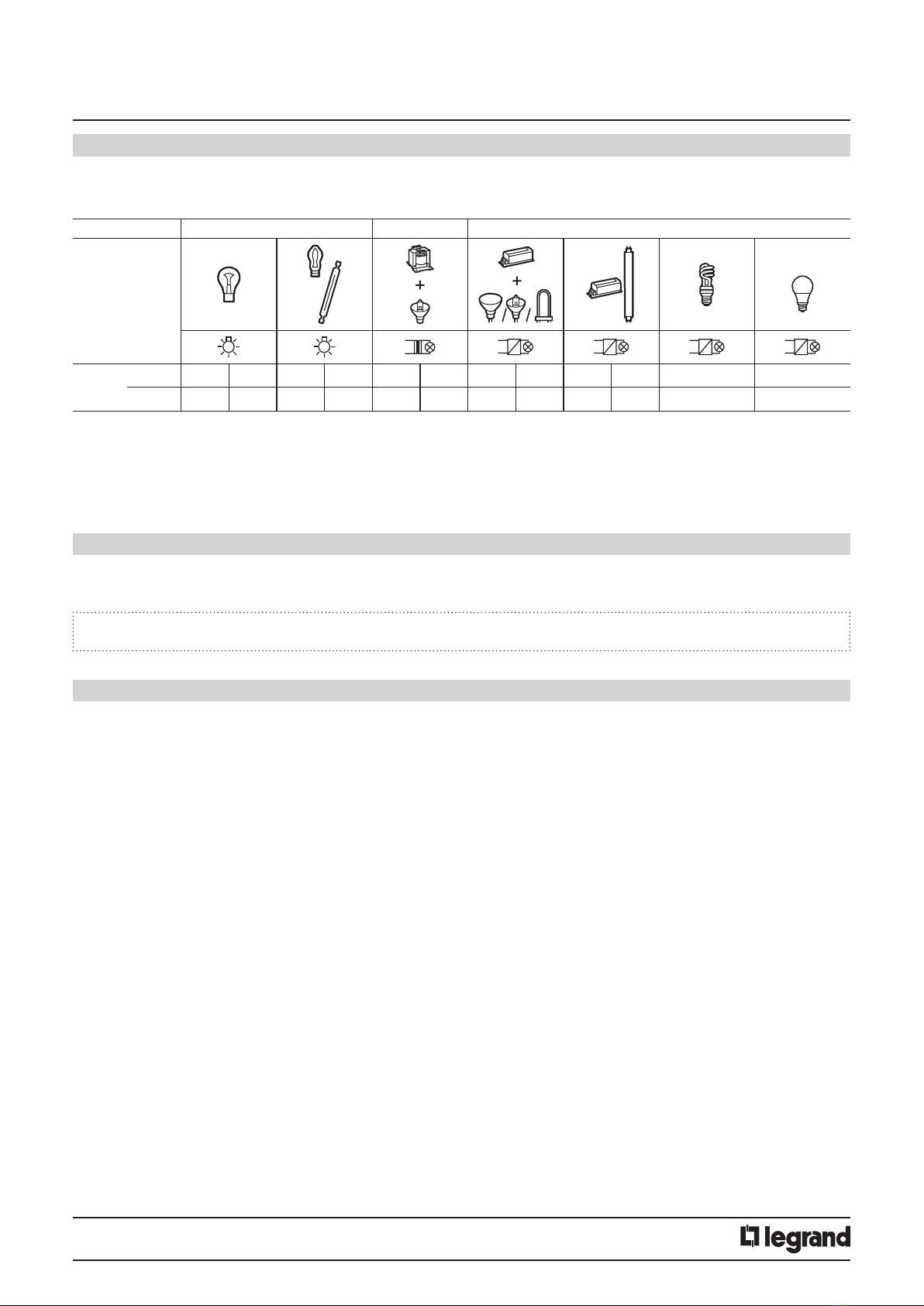

7. TECHNICAL FEATURES (continued)

 7.3 Electrical characteristics

Frequency: 50 Hz

Table of admissible loads:

Important : Take account of transformer losses when calculating power. Transformers must be loaded at more than 60 % of their power.

Note : Possibility to mix any type of load on the same circuit with a maximum total current of 650 mA.

 7.4 Climatic characteristics

Storage temperature: - 20° C to + 70° C

Usage temperature: - 5° C to + 45° C

Clean the surface with a cloth.

Do not use: acetone, tar-removing cleaning agents or trichloroethylene.

9. STANDARDS AND APPROVALS

Compliant with installation and manufacturing standards.

See e-catalogue.

8. MAINTENANCE

R L C/L

LED

230 V~

Max. 150 W 650 mA 150 W 650 mA 150 VA 650 mA 150 VA 650 mA 100 VA 650 mA 650 mA 650 mA

Min. 12 W 50 mA 12 W 50 mA 12 VA 50 mA 12 VA 50 mA 12 VA 50 mA 50 mA 50 mA

Caution: Always test before using other special cleaning products.
