LEGRAND 7 521 94 User manual

LE10666AA

This pack is a connected accessory which requires you to buy and install the Valena Life

with Netatmo connected starter pack first.

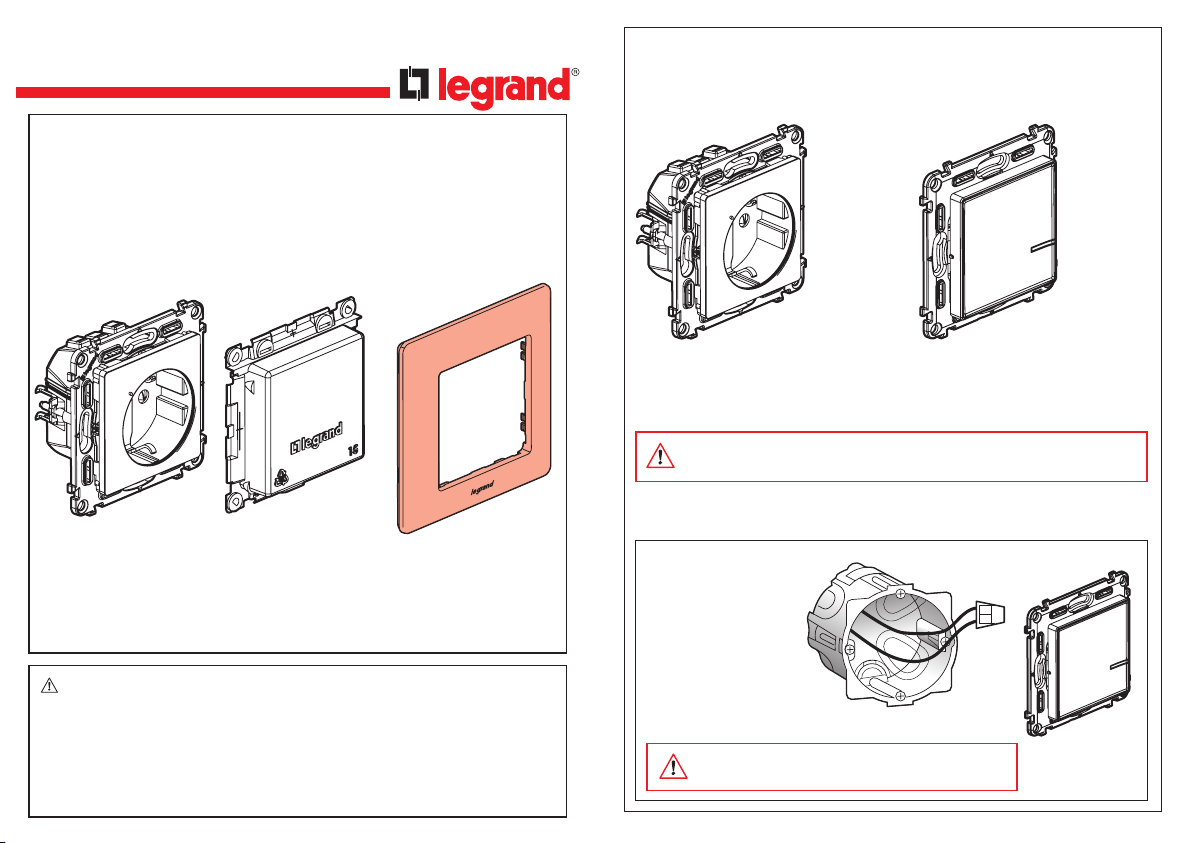

Pack contents

Finishing plateSite protectionConnected power outlet

Safety instructions:

This product should be installed according to the installation regulations and preferably by a qualified electrician. Incorrect installation and/or use can

entail risk of electric shock or fire. Before carrying out the installation, read the instructions and take account of the product’s specific mounting location.

Do not open, disassemble, alter or modify the device unless specified otherwise in the instructions. All Legrand products must be exclusively opened

and repaired by personnel trained and approved by Legrand. Any unauthorised opening or repair completely cancels all liabilities and the rights to

replacement and guarantees. Use only Legrand brand accessories.

Connected power outlet

7 521 94 - 7 522 94 - 7 523 94

To control a power outlet, only use the products:

x 1 x 1

or several

Wireless switches for all control

points (not included in this pack)

Connected power outlet

If you are replacing a power outlet controlled by a switch:

AND

The head protection must be 16A

Do not use: a connected switch (with dimmer option) to control

a connected power outlet or a traditional power outlet.

Before you start: wiring precautions

Tip if you are replacing

an old flush-mounted

switch (replaced with a

wireless switch)

Use a connector to

connect the two wires.

Necessary safety precautions

Install the connected power outlet

OFF

Switch off the power at the main circuit breaker

Wire the connected power outlet

2.5mm2 rigid wire

(recommended)

Remove the existing power

outlet

16 A - 230 V~

3680 W max

cos 0.8

N (neutral) = blue

L (live) = any except blue and green/yellow

(earth) = green/yellow

Frequency bands: 2.4 - 2.4835 GHz

Power level: <100mW

Make sure that the power

is off before continuing

with the installation.

To add a connected product to your connected installation,

you should follow the instructions:

- in the user guide in your connected starter pack

- in the Legrand Home + Control application (Settings/Add a new product section)

- or consult the user manual on legrand.fr

LEGRAND - Pro and Consumer Service - BP 30076

87002 LIMOGES CEDEX FRANCE • www.legrand.com

SIMPLIFIED EU DECLARATION OF CONFORMITY

The undersigned,

Legrand

declares that the radio-electric equipment referred to in these instructions

complies with directive 2014/53/EU.

The full text of the EU declaration of conformity

is available on the following website :

www.legrandoc.com

www.legrand.fr
