LEGRAND Arteor 5740 08/58 User manual
LE01813AE
•Setting of minimum and maxi-
mum thresholds for compact
fluorescent loads
•
•Product configuration
micro-switch:
- Default setting
- Description page 5
•
•Description •
+
-
•White
•
+
-
•Magnesium
•
5740 08 5740 58
+
-
•White
•
+
-
•Magnesium
•
5743 08 5743 58
ArteorTM
• Universal dimmer with neutral •
5740 08/58 - 5743 08/58
2

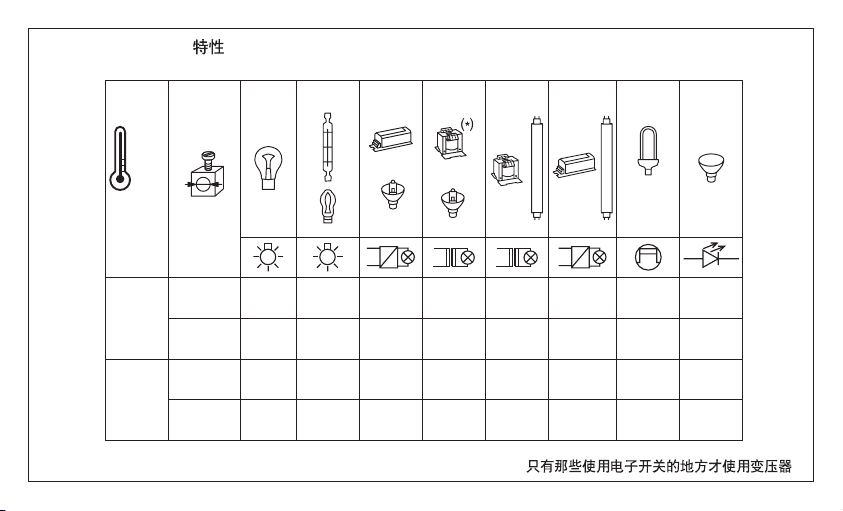

•Characteristics •
8
35°C
0°C
100 Vac
240 Vac
50/60 Hz
2 x 2.5 mm2
(*)
Dimmable
240 Vac
Max. 300 W 300 W 300 VA 300 VA 160 VA 160 VA 160 VA 160 VA
Min. 40 W 40 W 40 VA 40 VA 16 VA 16 VA 8 VA 8 VA
110 Vac
Max. 150 W 150 W 150 VA 150 VA 80 VA 80 VA 80 VA 80 VA
Min. 40 W 40 W 40 VA 40 VA 16 VA 16 VA 8 VA 8 VA
(*) •Use only with transformers designed to function with electronic switches. /
3

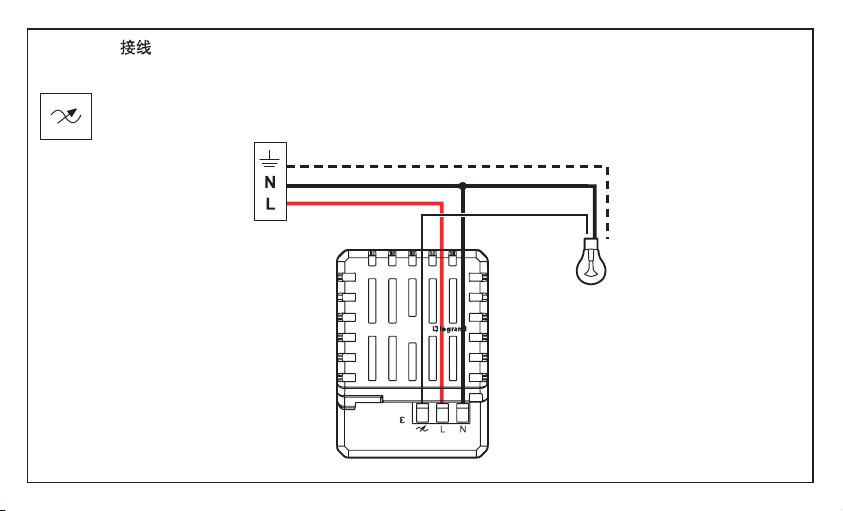

•Wiring •
4

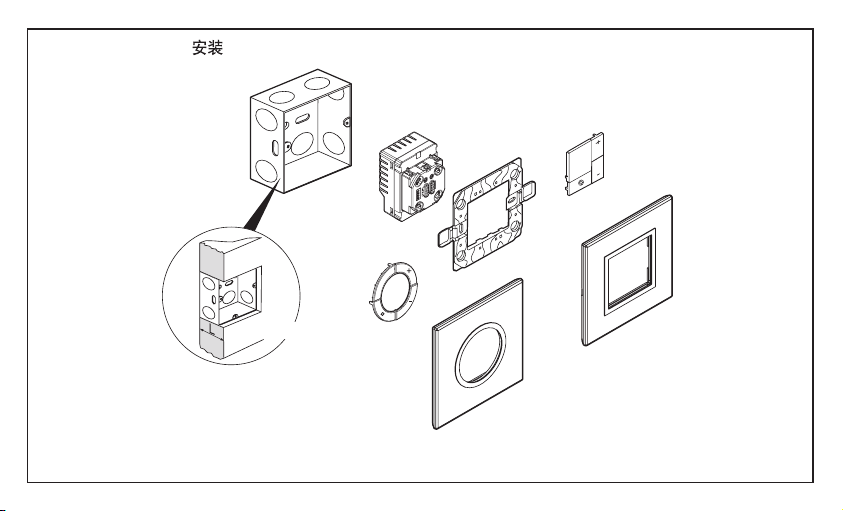

•Installation •
L 40 mm
5
•Configuration •
• Reserved for “After-sales Service”
•
• Product configuration (see detail § “End stop setting method” for type
lamps. / )
• Level memory activated • desactivated
• •
• Selection of the type of load
•
6
•Configuration (cont.) •
•Capacitive mode
•78
Dimmable
•(**) According to the lamp manufacturer
•(**)
(**)
7

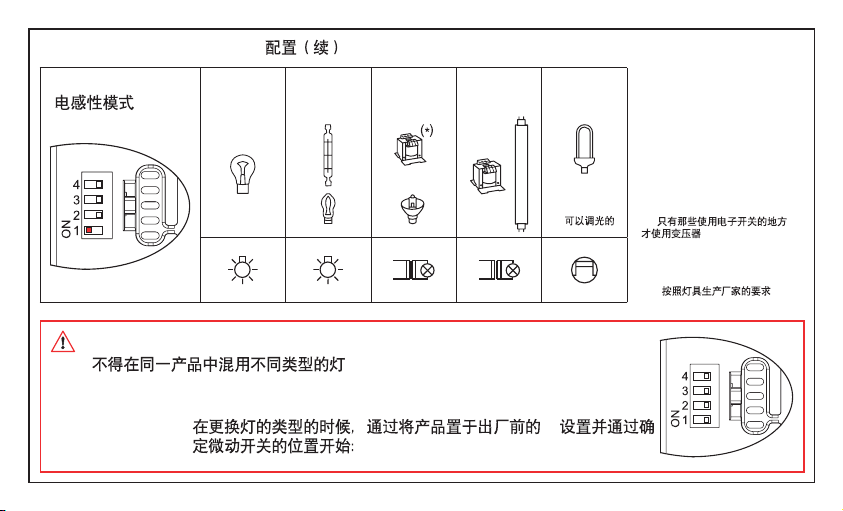

•Configuration (cont.) •
•Lamps of different types must not be mixed in the same product.
•
•When changing lamp type, start by placing the product in factory
configuration by positioning the micro-switches as follows:
•
•Inductive mode
•457
• (*) Use only with
transformers designed to
function with electronic
switches.
• (*)
• (**) According to the lamp
manufacturer.
• (**)
(*)
• Dimmable
•
(**)
8
•Configuration (cont.) •
•Fluorescent and compact fluorescent lamps: /
•Minimum and maximum lighting settings, recommended when the lamp flickers.
(Before setting, let the lighting stabilise by leaving the lamp lit for a few seconds).
•
•The right-hand buttons (+/-) can now be used to vary the level in the dimming range set using two
potentiometers. /
•Repeat steps 1 to 4 described above to modify the settings.
•
+
+
-
•Set the minimum level
of lighting sought
•
•Set the maximum level
of lighting sought
•
9
•Configuration (cont.) •
•When first switching on, if the load starts blinking then remains out:
•
• 1 - Check that the green and orange LEDs blink in succession.
•
• 2 - Reverse the position of switch 1.
•
• 3 - The LEDs stop blinking.
•
• 4 - The equipment is therefore working correctly.
•
10

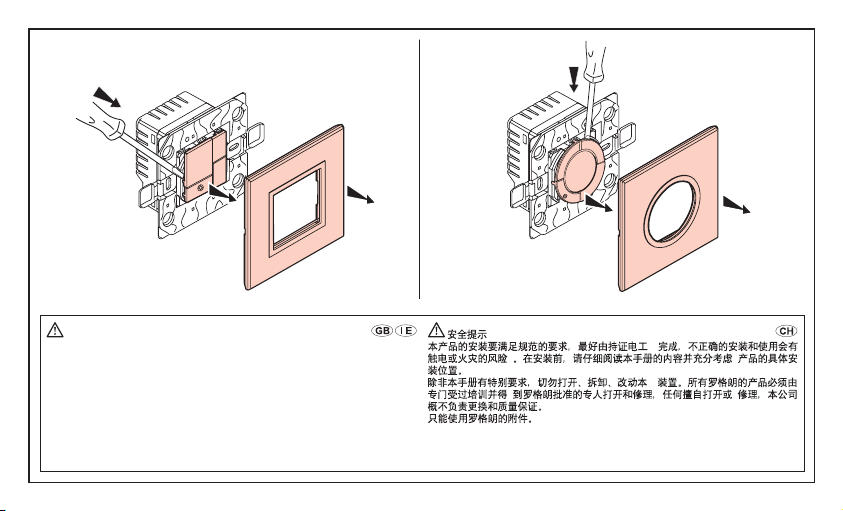

Safety instructions
This product should be installed in line with installation rules, preferably by a qualified
electrician. Incorrect installation and use can lead to risk of electric shock or fire.
Before carrying out the installation, read the instructions and take account of the
product’s specific mounting location.
Do not open up, dismantle, alter or modify the device except where specifically re-
quired to do so by the instructions. All Legrand products must be opened and
repaired exclusively by personnel trained and approved by Legrand. Any unautho-
rised opening or repair completely cancels all liabilities and the rights to replacement
and guarantees.
Use only Legrand brand accessories.
+
-
+
-
