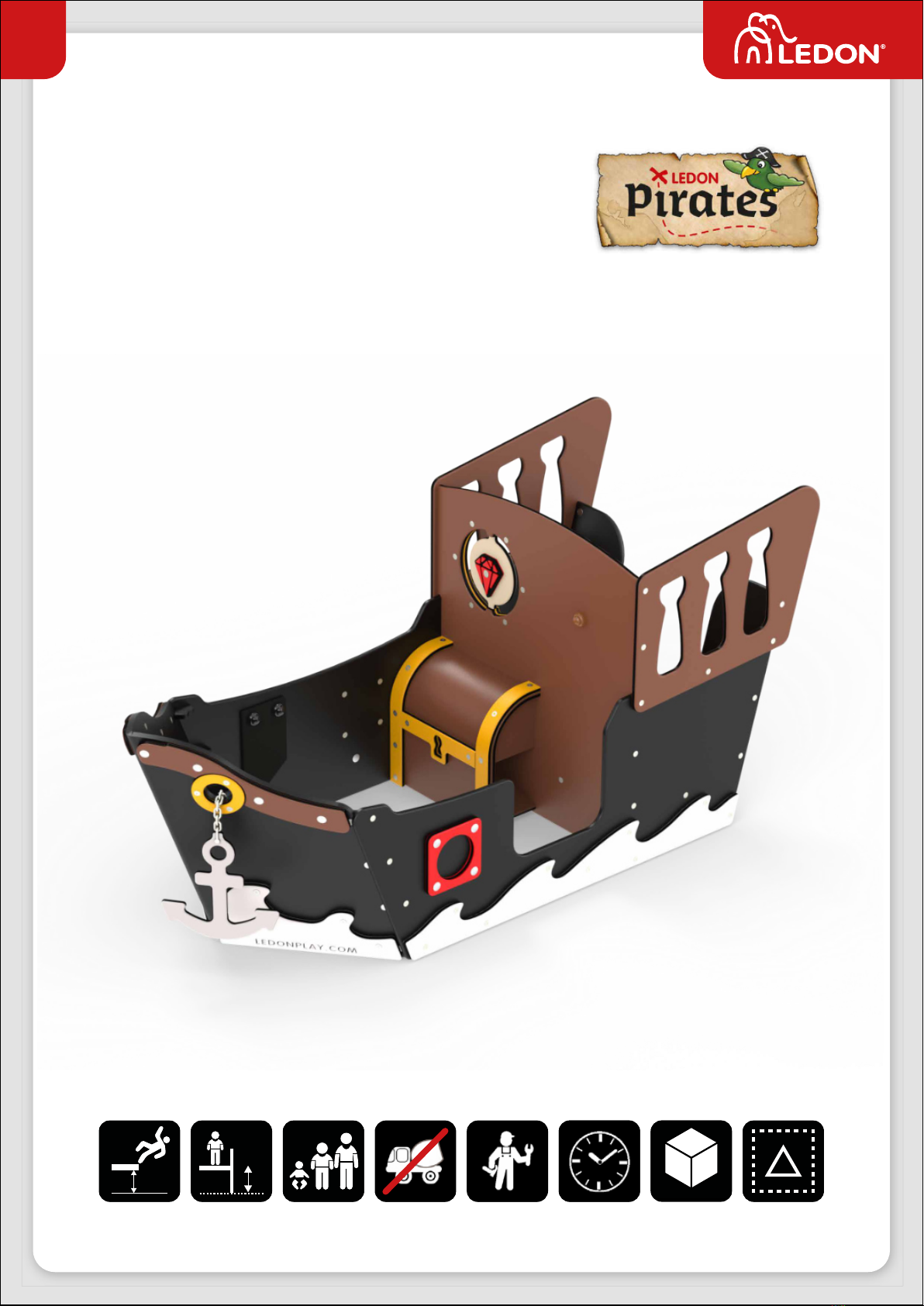

Ledon LP080C User manual

LP080C

20 cm 20 cm 2+ 2 1H 189 x 80 x 91 cm

(LxWxH)

489 x 380 cm

(LxW)

Assembly instructions

Montageanleitung • Montagevejledning

Sally

Revision: 1.0

Date: Marts 1, 2020

MAX

•Takeall components from the pallet and place them on the ground

•Comparewith components list – is everything there?

•Beat all times precise when measuring

•Unpack one component at a time and assembleit

•Usageof a water-level will increaseprecision

•Fallprotection is the very last thing to be installed – along with the producer’slabel

•Alle Bauteilevon der Palettenehmen und auf den Bodenlegen.

•Anhand der Bauteileliste überprüfen, ob alle Teilevorhanden sind

•Beim Abmessengenerell präzise arbeiten

•EinBauteil nach dem anderen auspackenund montieren

•Die Benutzung einer Wasserwaageerleichtert die Montage

•Die Fallschutzunterlage wird erst ganz zum Schlussverlegt – dann, wenn dasProduzenten-

etikett angebrachtwird

•Tag komponenterne af pallen og læg dem på jorden

•Checkefter komponentlisten om alle er med

•Væromhyggelig med afstande generelt

•Pakén komponent ud af gangen og gør denne færdig

•Væromhyggelig med brug af vatterpas

•Faldunderlag etableres til allersidst sammenmed påsætning af mærkning med producent

Good advice and tips

Einpaar gute Ratschläge und Tipps• Gode råd og vejledning

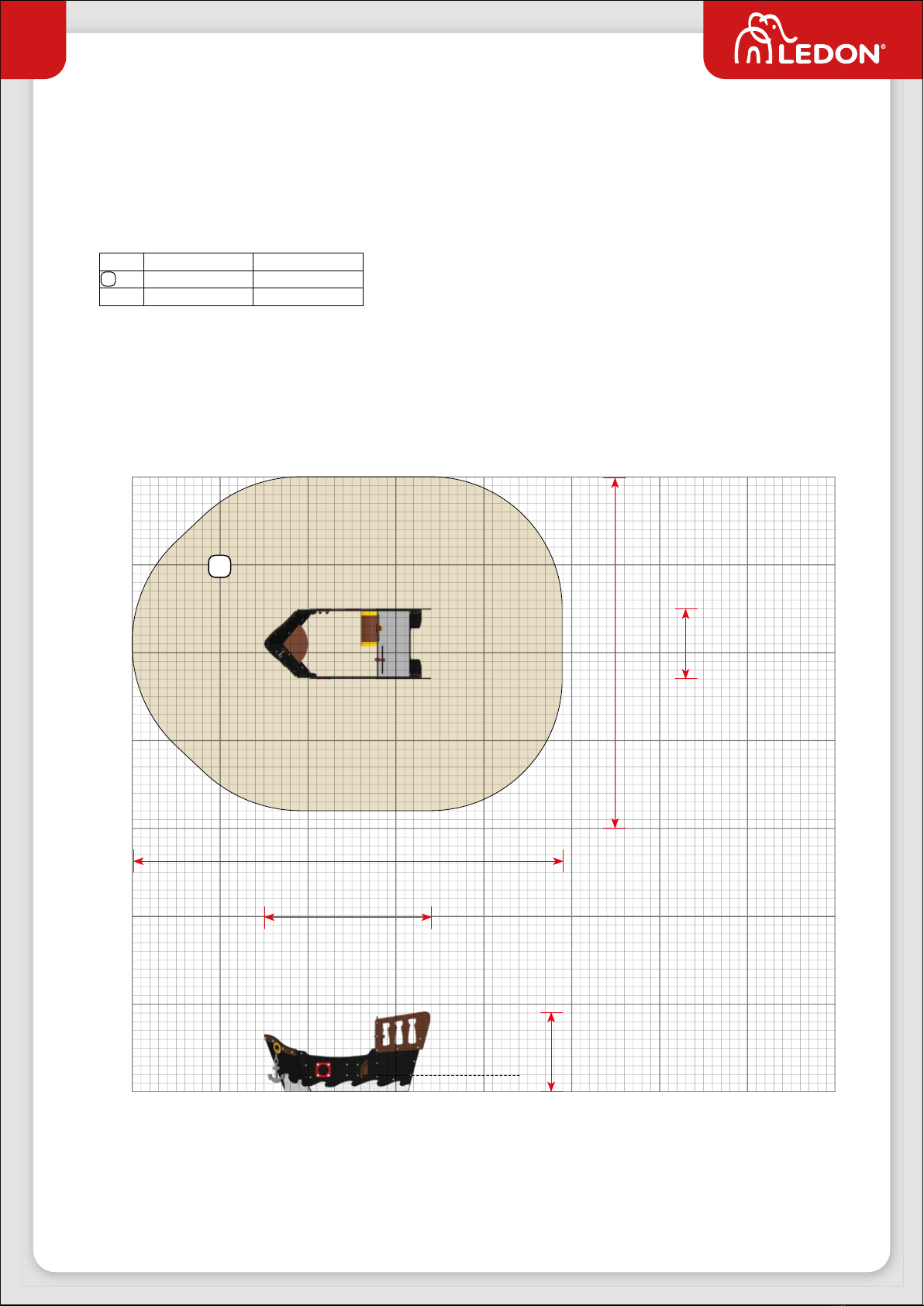

Clearance and safety surfaces

Platzbedarf und Fallschutzunterlage• Pladshensynog faldunderlag

Safetysurface in accordance with EN1176

Fallschutzunterlag gemäß EN1176

Faldunderlag i overensstemmelse med EN1176

(*) Areasareaccurately calculated valueswhich aredicult to achieve in practice.

Die Flächenhaben die genaue berechneten Werte, abersind schwer in Praxiszu erreichen.

Arealerneer nøjagtigt beregnede værdier,som er vanskeligeat opnå i praksis.

(**) Slideexit areasareequivalent to a height of 100 cm.

Der AuslaufsBereich der Rutsche,ist äquivalent eine Höhe von 100 cm.

Rutsjebaneudløbsområder svarertil en højde på 100 cm.

Height • Höhe •Højde (*)Area • Fläche• Areal

A ≤60 cm 15,86 m2

Total 15,86 m2

380 cm

80 cm

489 cm

189 cm

91 cm

Climb: 20 cm

Floor: 20 cm

Scale• Maßstab • Målstok 1:50

0 1 2 3 4 5 6 7 m

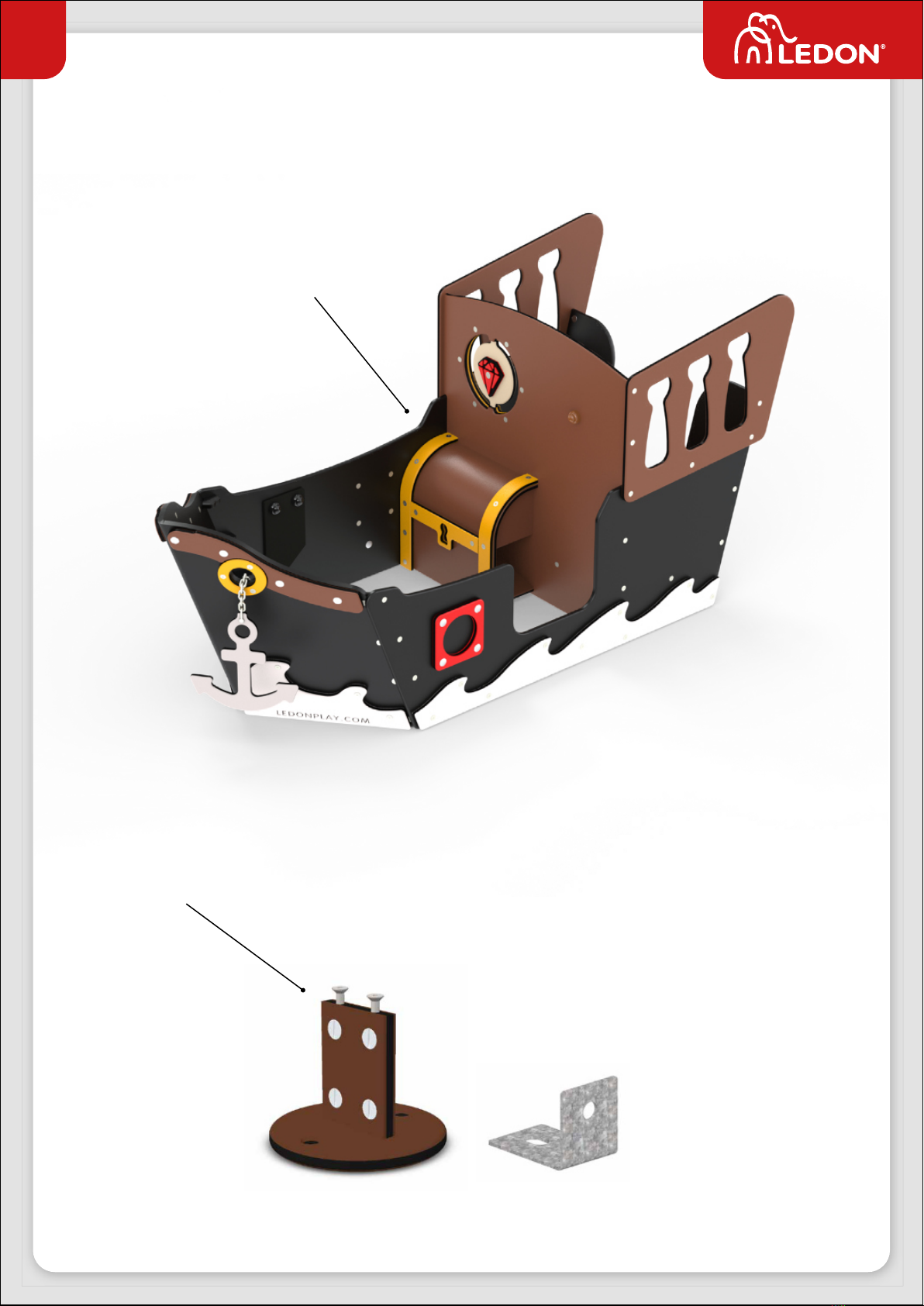

Components overview

Bauteileübersicht • Komponentoversigt

245194

245196

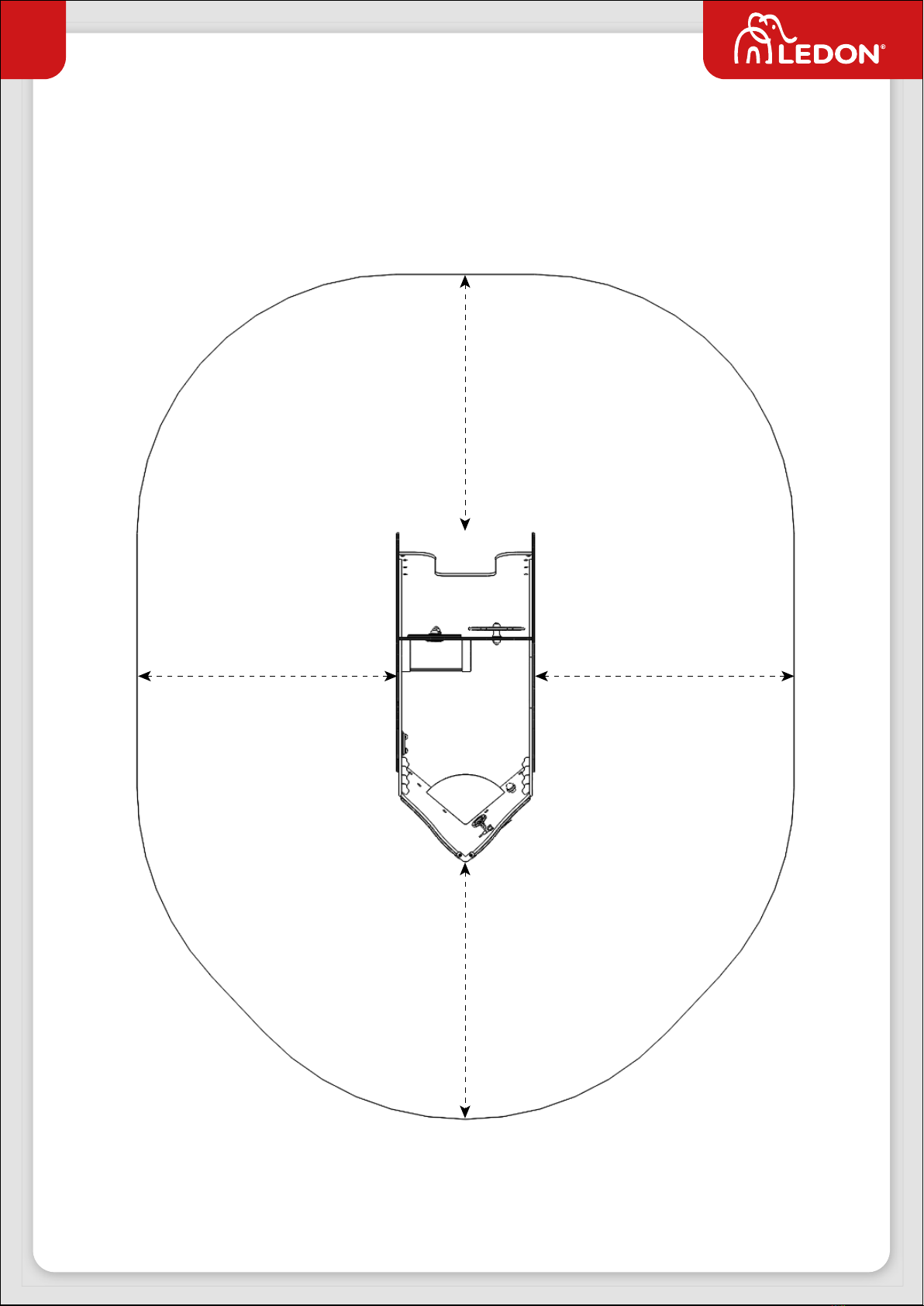

Site preparation

Vorbereitung • Pladsforberedelse

150 cm 150 cm

150 cm150 cm

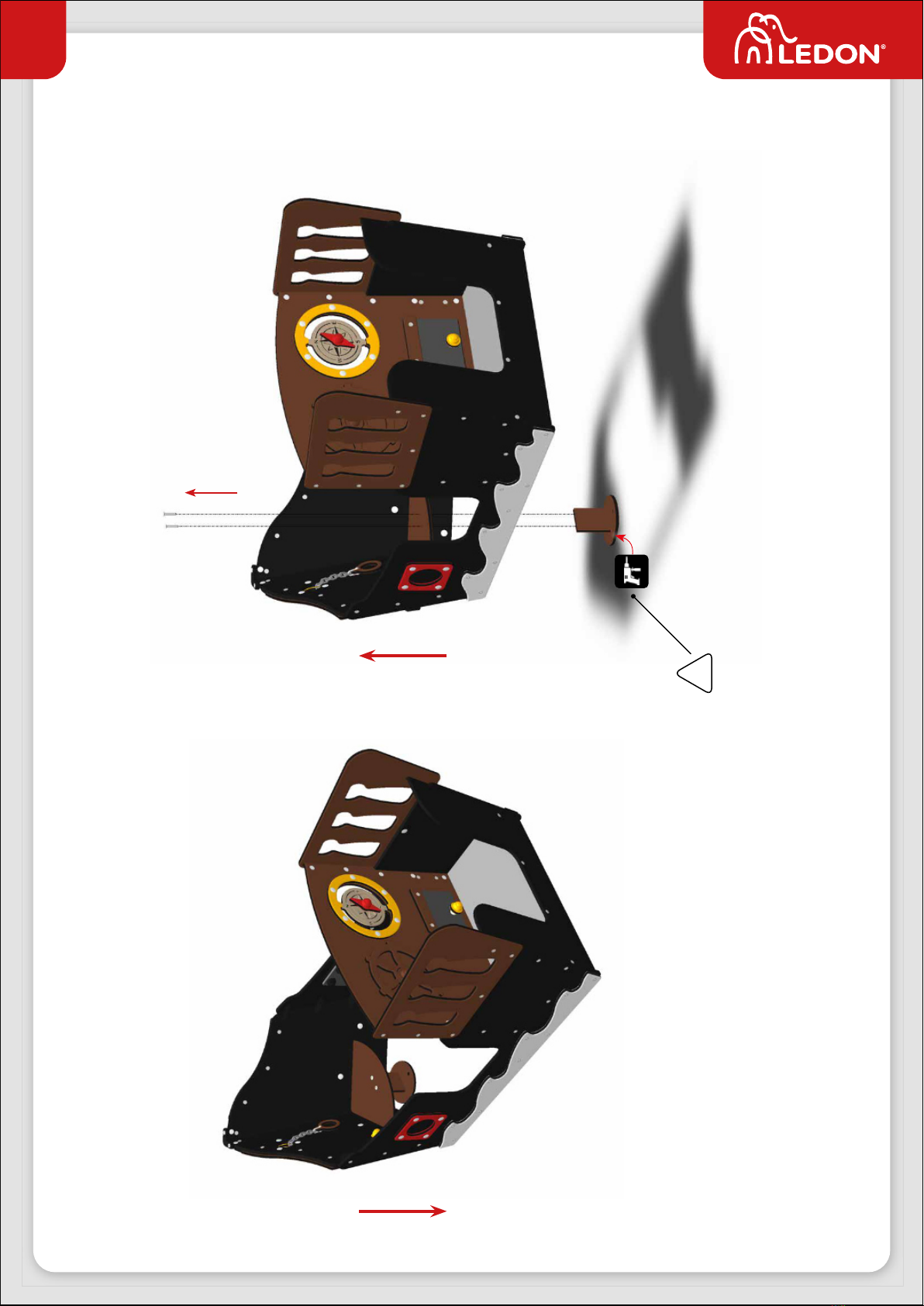

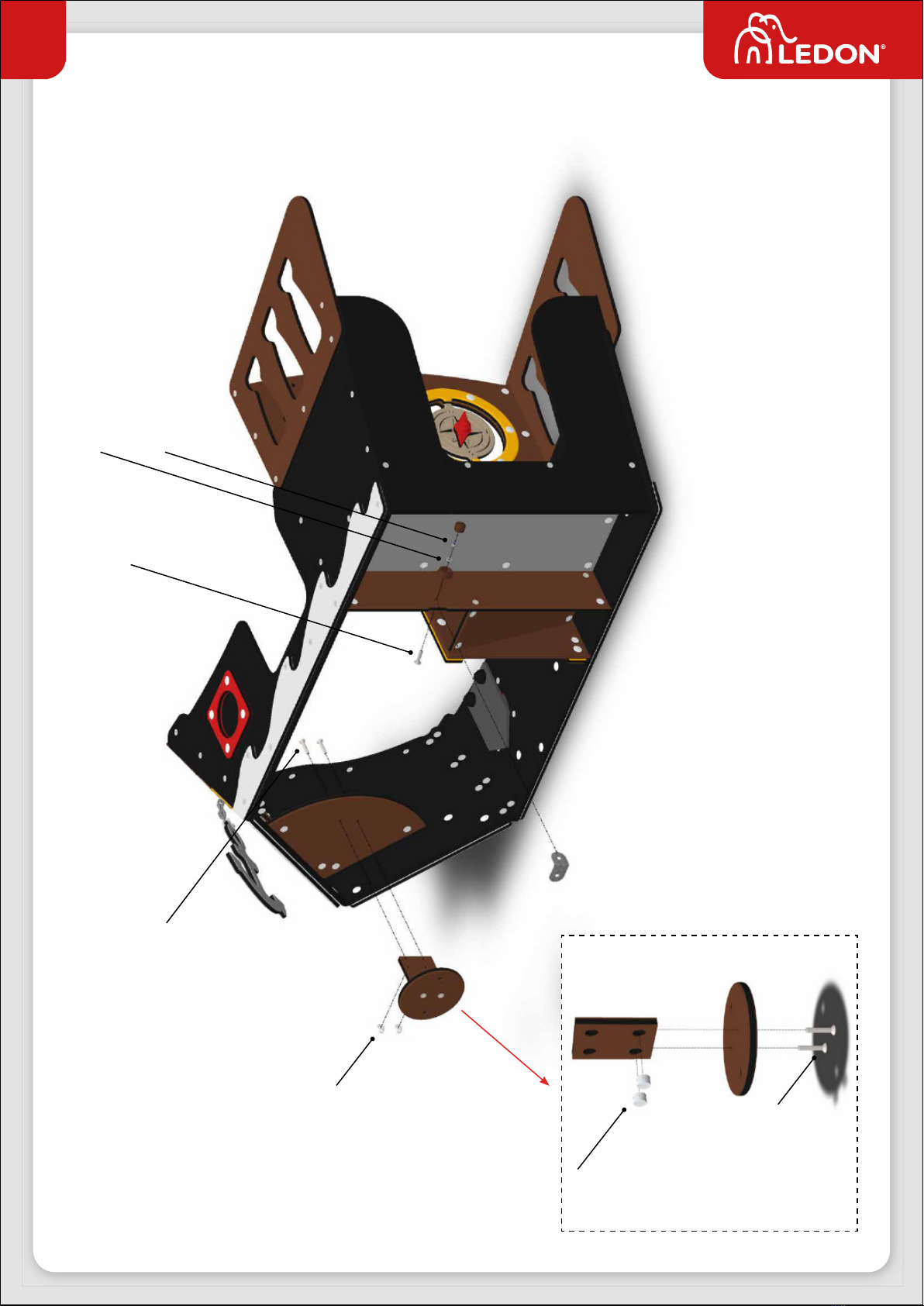

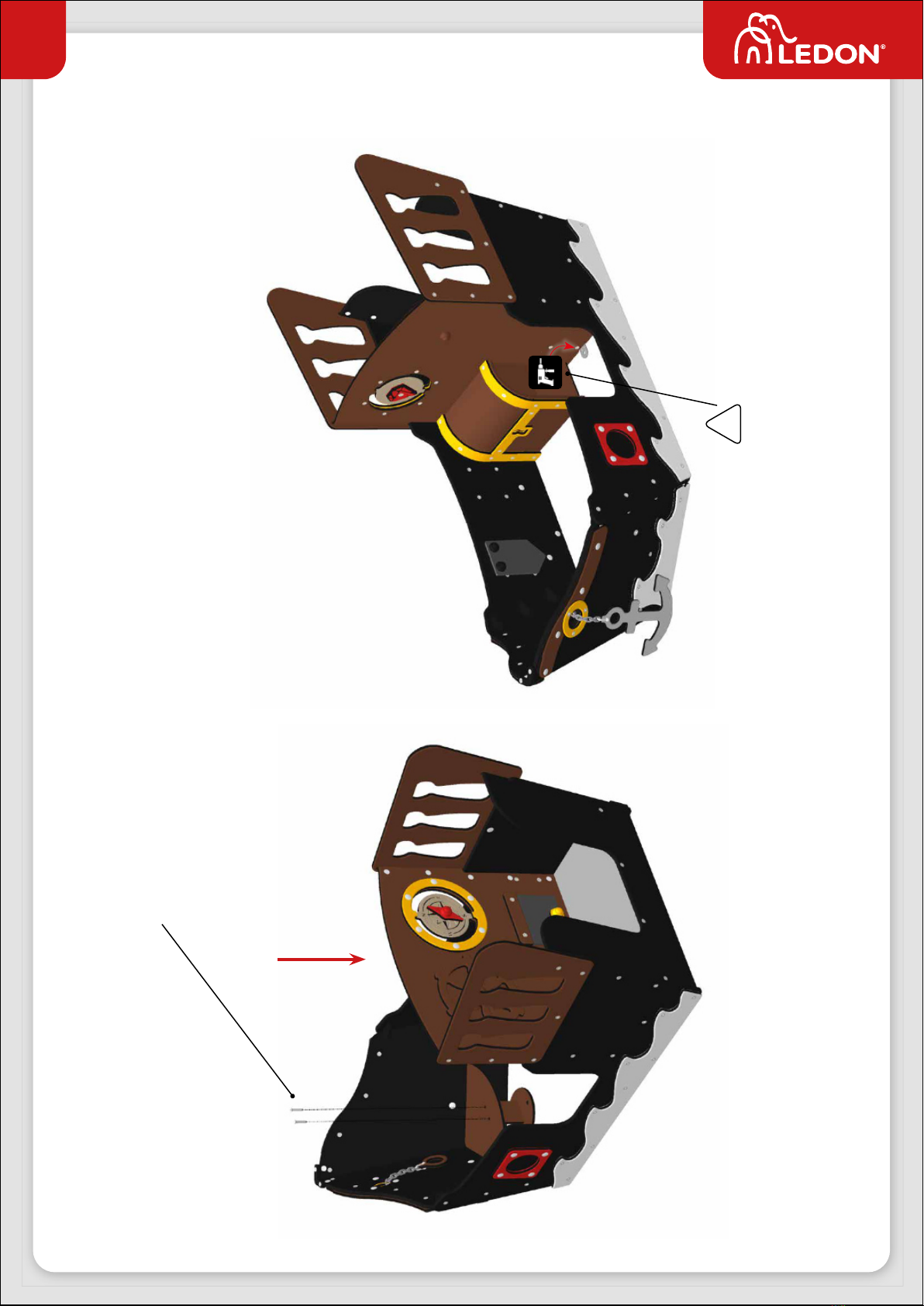

Assembly

Montage • Montage

CSM8 x 45 mm

Step 1

CSM8 x 45 mm

CSM8 x 35 mm

BS-S

LN M10

WSM8

Assembly

Montage • Montage

Step 1:Placein correct position Step 2: Removethe ship and keep the anchoring for concrete

in correctposition

Note

Keepthe correct position and

Install in accordancewith

oor type.

Fasteningsnot included.

Assembly

Montage • Montage

CSM8 x 45 mm

Note

Install in accordancewith

oor type.

Fasteningsnot included.

Assembly

Montage • Montage

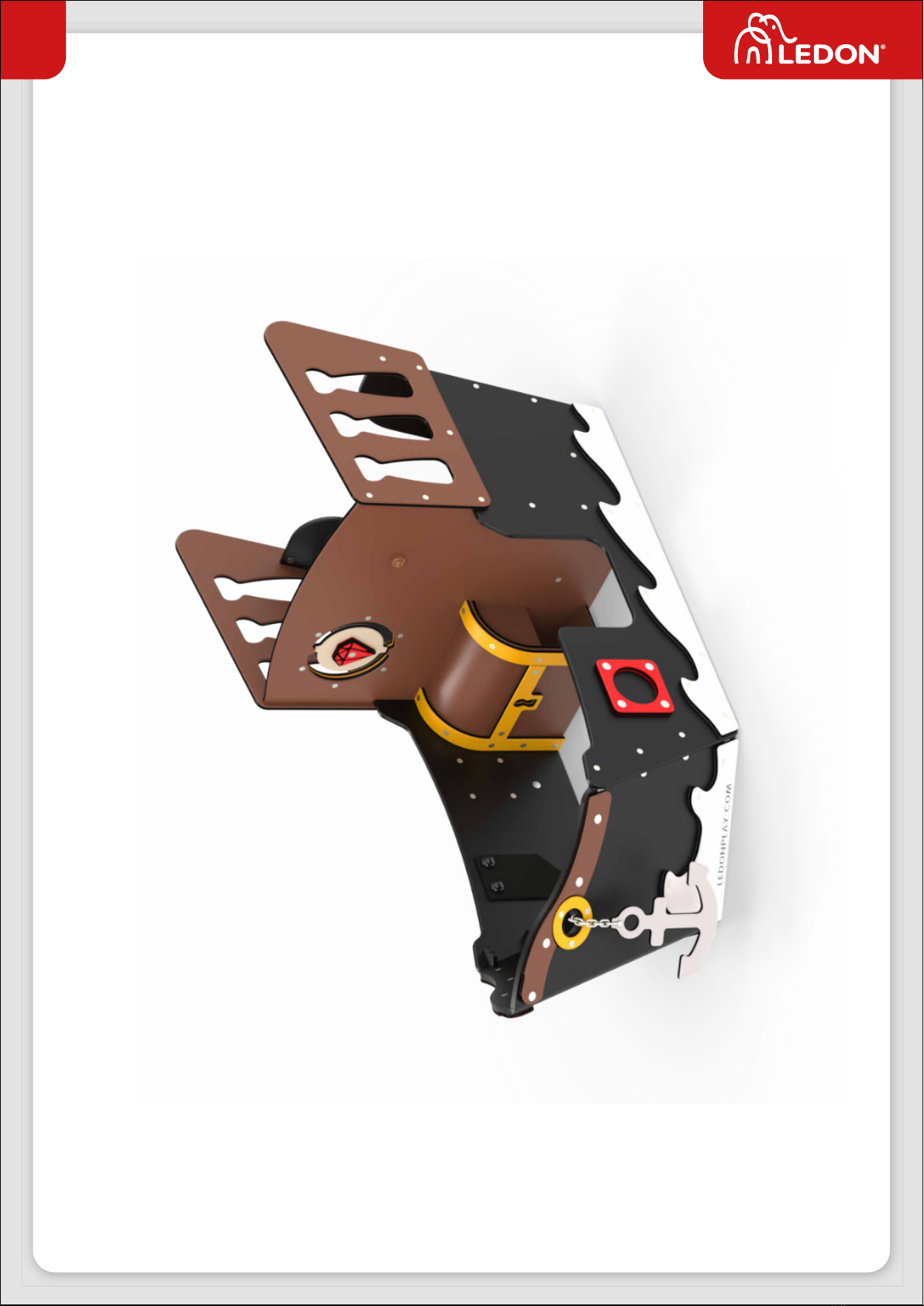

Ready

Fertig • Færdig
