LDR Canto Followspot
Service Manual
for:
Canto 250HR
Canto 575, 700 and 1200msd/msr
Canto 2000msr FF
Canto 1200TH and 2000TH
Issue 0612
TABLE OF CONTENTS
Section 1 Rear optical assembly page 3
Section 2 Front optical assembly page 7
Section 3 Dowser assembly page 10
Section 4 Ignition and ventilation page 12
1. Part sequences in this manual aregiven left to right, according to the pictures shown
and the assembly sequence i.e. from rear of the followspot to the front.
2. Screws nuts, bolts, washers and rivets are not indicated as they are not sold as spare
parts. In case they are needed for servicing, please add the note “with mounting parts”
to your order and proper parts will be supplied free of charge.
3. Optics have been calculated to the millimeter so each spacer and washer is
extremely important to obtain the optimum optical performance in each model. When
replacing any optical component, please make sure each spacer and each washer is re-
positioned exactly where it was. Failing to do so might result in poor performance after
servicing.
4. LDR declines any responsibility in case a wrong part is ordered. If you are not sure
about the part you need please contact the LDR sales staff first for confirmation
NOTES FOR THE USER
All rights reserved. No part of this publication may be reproduced, translated or scanned in any form or by any means without
permission in writing from LDR. LDR reserves the right to alter product specifications without prior notice
LDR Canto Followspots Service Manual
1
The rear optical group for Canto can be purchased as a complete assembly under following part numbers:
G80577800 for Canto 575msr + Canto 700msr at 230V and 250V
G80578001
G8085700 for Canto 1200TH 230V + Canto 250HR
G80857001 for Canto 1200TH at 120V
G80858000 for Canto 1200msr at 230V and 250V
G80858001 for Canto 1200msr at 100V and 120V + Canto 2000TH at all voltages
G80908000 for Canto 2000msr FF
for Canto 575msr + Canto 700msr at 100V and 120V
1
3
4
5
6
7
8
9
10
11
12
13
10
4
2
2

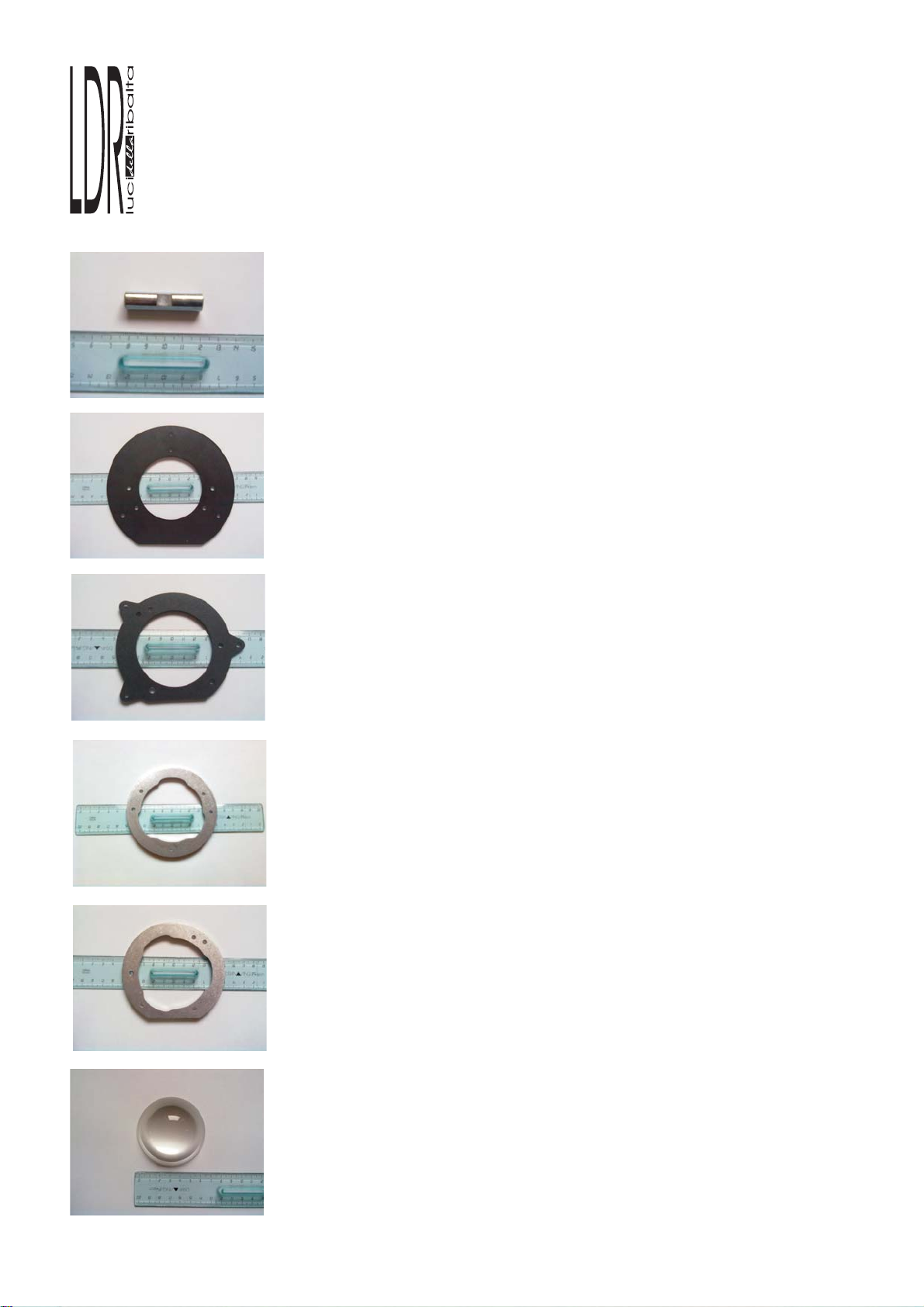

LDR Canto Service Manual
Section 1: Rear optical assembly
Item:
Models:
S80577016 Reflector + Aspherical lens holder
all models, all voltages
Except for Canto 2000 msr FF
Item:
Models:
R80577014 Glass reflector holding ring
all models, all voltages
Except for Canto 2000 msr FF
Item:
Models:
S80908016 Reflector + Aspherical lens holder
Canto 2000 msr FF
Item:
Models:
R80908014
Canto 2000 msr FF
Glass Reflector holding ring
Item:
Models:
R80MM5774 Spacer reflector/aspherical lens
F/F M4 L.48mm
Canto 1200msr, 2000TH, 2000msr, all voltages
Item:
Models:
Item:
Models:
R80SP0068 Glass reflector ø68mm R40
Canto 250 HR, 575msr, 700 msr, 1200TH, all voltages
L80SP0068: Borosilicate reflector ø68mm R40
Canto 1200msr, 2000msr, 2000TH, all voltages
1
1
2
3
3
4
3
LDR Canto Service Manual
Section 1: Rear optical assembly
Item:
Models
S80577016 Reflector + Aspherical lens holder
: all models, all voltages
Except for Canto 2000 msr FF
Item:
Models:
R80577015 Aspherical lens holder
all models, all voltages
except for Canto 2000 msr FF
Item:
Models:
R80MM5775 Spacer reflector/aspherical lens
F/F M4 L.42mm
Canto 250HR + Canto 575, 700, 1200TH all voltages
Item:
Models:
R80LE6068 Aspherical lens ø68mm F55
all models, all voltages
Item:
Models
S80908015 Aspherical lens holder
: Canto 2000 msr FF
5
5
6
6
7
4
4
Item:
Models:
S80908016 Reflector + Aspherical lens holder
Canto 2000 msr FF
LDR Canto Service Manual
Section 1: Rear optical assembly
Item:
Models:
R80908020
Canto 2000msr FF
Condenser lens holder
Item:
Models:
R80MM8522 Spacer aspherical/condensor lens
M/F 35mm - two per assembly
all models, all voltages
Item:
Models:
L80LE3100 Condenser lens BCX ø100mm R131 D4+4
all models at 100 and 120V
Item: R80577017 Condenser lens holder
Models: all models, all voltages
Except for Canto 2000 msr FF
8
9
10
11
11
12
Item: R80577050 Closing ring for aspherical lens blocking
spring
Models: all models at 100V and 120V
Canto 2000TH 230V
5
Item:
Models:
S80577049 Aspherical lens blocking spring
all models at 100V and 120V
Canto 2000TH 230V
LDR Canto Service Manual
Section 1: Rear optical assembly
Item:
Models:
S80577018 Condenser lens blocking ring
all models, all voltages
except for Canto 2000 msr FF
Item:
Models:
S80852015 Condenser lens blocking ring
Canto 2000 msr FF
13
13
6
LDR Canto Service Manual
Section 1: Rear optical assembly
The front optical group for Canto can be obtained as separate sub-assemblies without lenses. Lens-
holders assemblies are the same throughout the whole Canto range. Lenses must be ordered separately
depending on the model of Canto.
A G80PLE127 rear lens-holder assembly for ø127mm lenses
B G80PLE150 front lens-holder assembly for ø150mm lenses
7
A
B
1
2
3
4
3
5
26
78
9
9
4
4
LDR Canto range servicing manual
Section 2: front optical assembly
Item: R80MM8526 Zoom carriage teflon sleeve
Models: all models, all voltages
Item:
Models:
R80852032 Lens blocking ring ø127mm, rear zoom
assembly
all models, all voltages
Item: R80852033 Lens holding ring ø127mm, rear zoom
assembly
all models, all voltagesModels:
Item: R80MM8525 M4 spacer M/F L.20mm
Models: all models, all voltages
1
2
3
4
5
6
Item:
Models:
Item:
Models:
R80LE4127 PCX lens ø127mm, R262 +2D
all models, all voltages except for
L80LE4127 PCX lens R262 +2D, tempered
Canto 2000TH all voltages, Canto 2000msr FF
8
Item:
Models:
R80852031 Lens holder ø127mm - rear zoom assembly
all models, all voltages
LDR Canto range servicing manual
Section 2: front optical assembly
Item:
Models:
R80852035 Lens blocking arc for ø150mm, front zoom
assembly
all models, all voltages
7
8
9
Item:
Models:
R80LE4150 PCX lens ø150mm, R262 +2D
all models, all voltages
9
Item:
Models:
R80852034 Lens holder ø150mm - front zoom assembly
all models, all voltages
LDR Canto range servicing manual
Section 2: front optical assembly
This manual suits for next models
