Lava DSerial-PCI/LP Card User manual

Lava DSerial-PCI

Quick Installation Guide

/LP

Rev. B00

LAVA COMPUTERS

DSerial PCI_LP

P.N. MOKO L71.4P

MADE

CANADA

PN MOKO S-1

MADE IN JAPAN

0255351

Windows NT 4.0 Installation

1. With the power turned off, insert the DSerial-PCI/LP card into any

free PCI slot in your PC. Boot NT logging on as“Administrator”.

2. Place the DSerial-PCI/LP installation diskette into your floppy drive

and select Run from the Start Menu.When prompted type:

A:\NT4.0\Setup.

3. After the necessary files have been copied, select My Computer and

start Control Panel. A new icon will appear called“LavaPort”.This

applet should now be used to configure ALL Com Ports in your PC –

not just Lava serial ports.

Please note that Com 1 may not appear in this applet if you have your

mouse attached to Com 1.

DOS and Windows 3.x Installation

1. With the power turned off, insert the DSerial-PCI/LP card into any

free PCI slot in your PC.Turn your PC on.

2. Place the DSerial-PCI installation diskette into your floppy drive.

In the Win3.11\16550 subdirectory of this diskette you will find a file

called“Lavaconf.exe”. Copy this file to your hard drive and run it.

3. When run, Lavaconf.exe will display two I/O addresses and one IRQ.

These correspond to the addresses and IRQ chosen by your PC when

configuring the DSerial-PCI . Make a note of them.

4. If you are using Windows 3.x, start Windows and go to Control Panel

| Ports. Choose Com 3 for Port 1 and Com 4 for Port 2 on the DSerial-

PCI . Click the Advanced button and enter the I/O address and IRQ

for each port as reported by Lavaconf.exe. Reboot your PC for these

changes to take effect.

Note: DOS and Windows 3.X support a maximum

of four Com Ports in a PC.

/LP

Windows 95/98/Me/2000/XP Installation

1. With the power turned off, insert the DSerial-PCI card into any

free PCI slot in your PC. Make sure the card is well seated.Turn

your PC on and start Windows.

2. Windows will automatically detect the DSerial-PCI as a new

PCI Serial Controller and ask you to insert the Installation

Diskette.The installation files are located in the root directory of

this disk.

3. After the necessary files have been copied,Windows will

complete the full installation of the DSerial-PCI .To view the

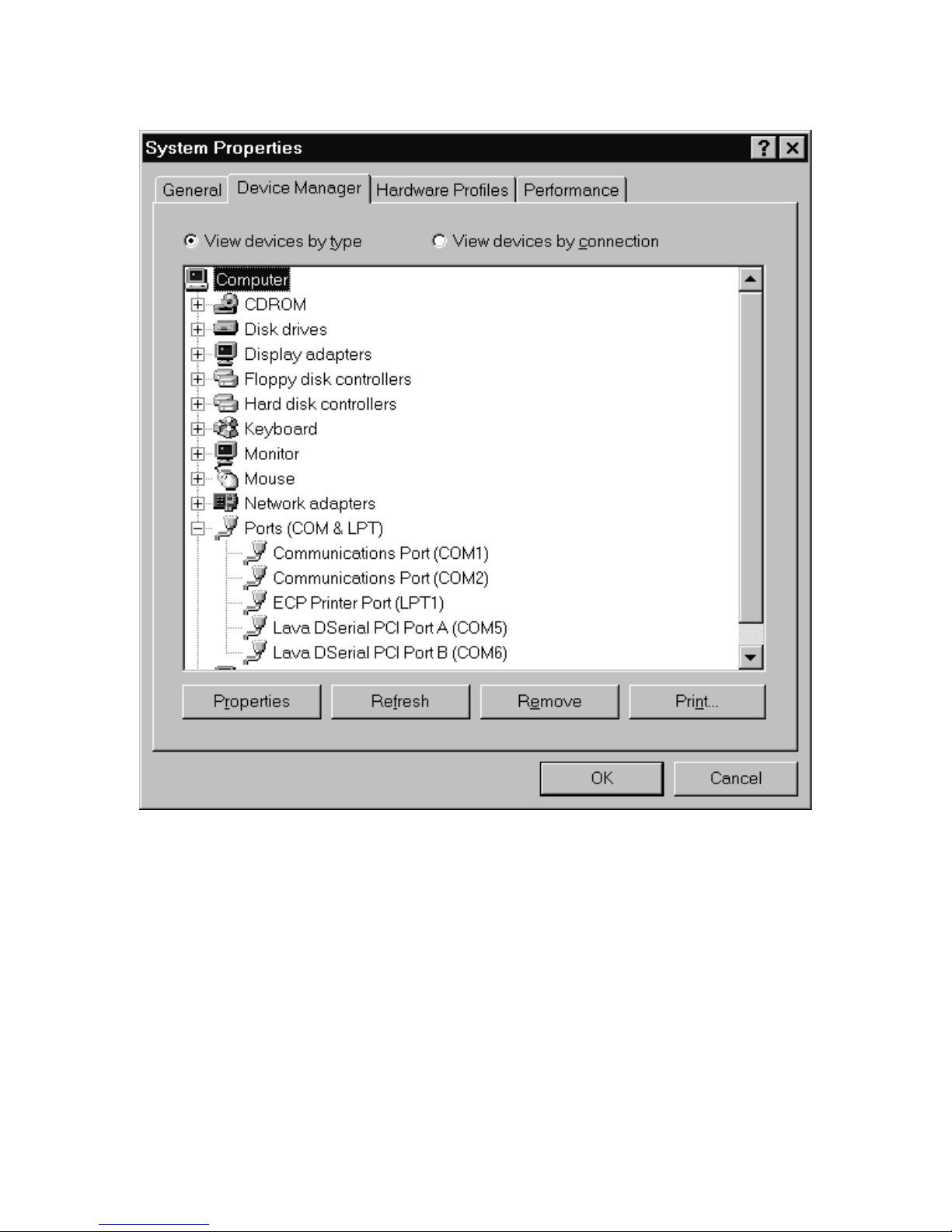

installed configuration, click Control Panel | System.The DSerial-

PCI will appear in the ports listing as follows:

/LP

NOTE: Modifying I/O Address and IRQ Resources is NOT

recommended.

Unless you already have more than 4 Com Ports installed in your

PC,Windows will by default configure the DSerial-PCI as Com5

and Com6. If you wish to change the Com number of either one

of the ports on the DSerial-PCI (e.g. Assign Port 1 to be Com 3),

please use the Lava Com Port Redirect Utility included in the

“Utils“ subdirectory of your Installation Diskette.This may be

necessary because some communications applications programs

do not recognize port designations beyond Com 4.The Lava Com

Port Redirect Utility will allow you to change the Com numbering

of your ports without changing I/O address resources.

To install the Lava Com Port Redirect Utility on your hard drive,

insert the Installation Diskette into your floppy drive, click Start,

Run and type A:\Utils\Setup.

/LP

Changing the Com numbering of your ports

in Windows 95/98/Me

In Windows 2000 and Windows XP, Com port numbering can be

changed by double-clicking the DSerial-PCI entry displayed in

Windows' Device Manager (as described earlier). Go to Settings |

Advanced, and choose the Com port number you want.

/LP

Changing the Com numbering of your ports

in Windows 2000/XP

Lava Computer MFG Inc.

Lava

Technical Support

9:00 am to 5:30 pm Monday to Friday (Eastern Time)

Tel: +416 674-5942

Fax: + 416 674-8262

E-mail: tech@lavalink.com

Internet: www.lavalink.com

This device complies with part 15 of the FCC Rules. Operation is subject

to the following conditions: (1) This device may not cause harmful interference,

and (2) this device must accept any interference received, including interference

that may cause undesired operation.

Lava Computer MFG Inc. 908 Niagara Falls Blvd. #629. North Tonawanda NY 14120-2060
