Larson Electronics EPS-PB20 User manual

EPS-PB20

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

This device complies with requirements of Underwriters Laboratories, Inc. for use in hazardous

locations, as listed on the device when used with suitable enclosures.

WARNING: To avoid risk of explosion, all flat machined surfaces must be kept clean and free from

scratches, dents, debris, paint, and corrosion. The flat machined surfaces are explosion proof joints, and

must be clean and undamaged on both the enclosure and cover.

INSTALLATION

1. The surfaces of the flat ground joint are precision machined to insure an explosion proof joint

and must be protected from scratches or damage during installation.

2. When switch is mounted in the enclosure, it must be mounted to agree with cover indication of

operation. That is, when the cover indicates ON, the switch must be in the ON condition.

3. Before the cover is installed, the flat ground joint surface must be thoroughly wiped clean of any

dirt, grit, or other foreign substances and a light thin coating of lubricant placed on the joint to

prevent possible corrosion.

The joint between the box and the cover has been made accurately to .0015” to prevent the

passage of this accuracy is destroyed.

4. ALL cover screws must be installed with at least five full threads engaged and must be securely

tightened. All cover openings must be closed with a suitable cover.

5. Gaskets must not be added to these devices. Only gaskets designed for and permanently

installed in these devices may be used.

6. In accordance with the hazardous location information specifying Class and Group listing marked

on the device, sealing fittings must be added that will comply with requirements in the latest issue

of the Canadian Electrical Code or National Electrical Code and any special requirements that are

stated in the instruction sheet with the enclosure.

MAINTENANCE

Before removing the cover from any such device for inspection or maintenance, the power supply circuit

must be OFF.

WARNING: To prevent risk of explosion, hammers and prying tools must not be used to remove covers

off enclosures. Damage to the explosion proof flat machined surfaces on cover and enclosure may

result. Handle covers carefully. Do not place them on surfaces that might damage or scratch the flat

machined surfaces.

Before replacing the cover, after it has once been removed, the flat ground joint surfaces must be

cleaned as described in step 3 under installation.

WARNING: To prevent risk of explosion, replace devices if the flat machined surface is damaged,

scratched, dented, or corroded. Field rework of flat machined surfaces is not possible.

Align the holes of the strap with the holes of the cover.

Use two screws to mount the switch onto the cover.

CAUTION: Use 12 AWG copper conductors only. Insert the bare

wire conductor(s) under terminal clamp and securely tighten the

screw(s). Note: Do not exceed 35 in-lbs. of torque.

Table of contents

Other Larson Electronics Switch manuals

Larson Electronics

Larson Electronics EPS-DCSW-50A-600V User manual

Larson Electronics

Larson Electronics EPS-PB10-2XC-M2-YR User manual

Larson Electronics

Larson Electronics EPS-2XPB-SG-600V-LKC User manual

Larson Electronics

Larson Electronics LM HZ-EW-SP1097-HV Series User manual

Larson Electronics

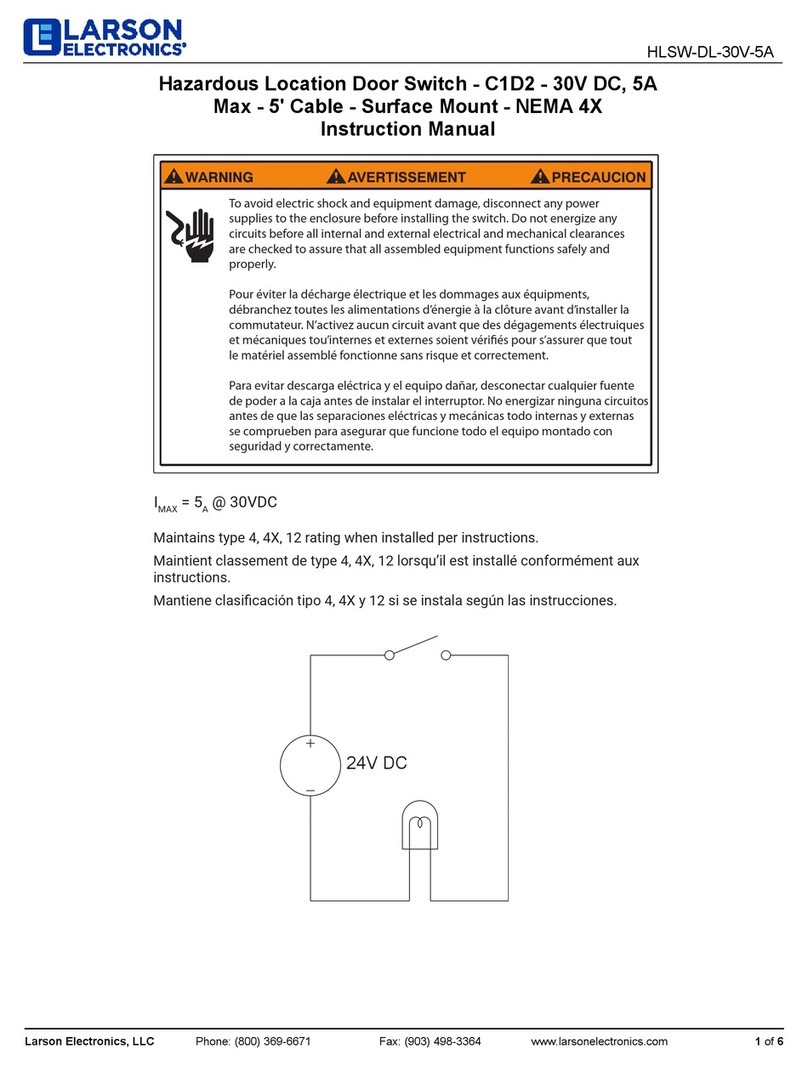

Larson Electronics C1D2 User manual
