Laney Concept CR410 Operating and installation instructions

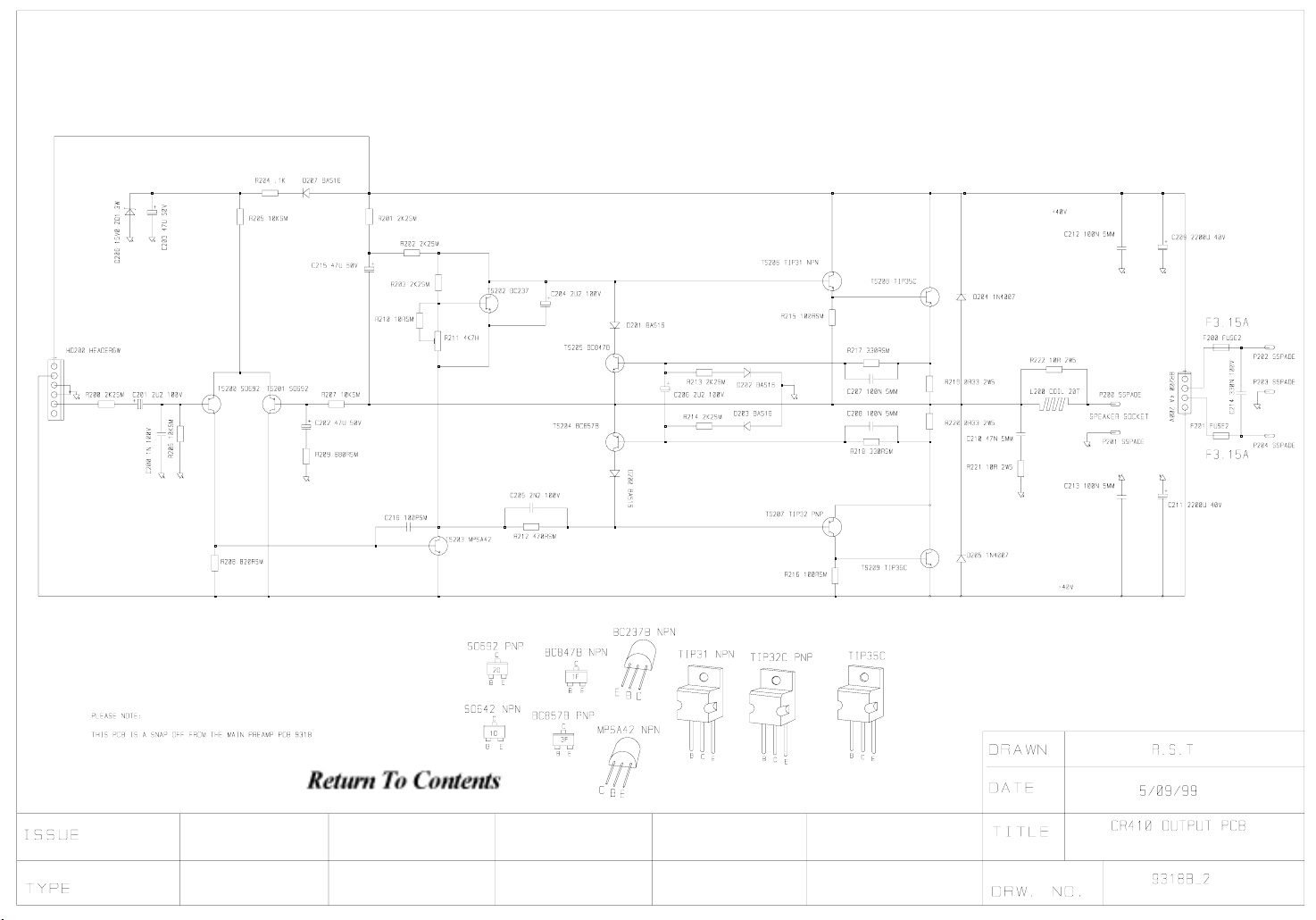

Assembly List For ( 006349 ) PCB Assembly
Stock Code Item Qty Req
1003 1K .25W RESISTOR 1
1300 ORO SHORTING LINK 23
1301 10R 5% RESISTOR 1
1303 100R 5% RESISTOR 4
1304 820R 5% RESISTOR 1
1305 2K2 5% RESISTOR 10
1306 10K 5% RESISTOR 21
1309 1M 5% RESISTOR 3
1310 100K 5% RESISTOR 15
1311 470R 5% RESISTOR 1
1312 4K7 5% RESISTOR 5
1314 8K2 5% RESISTOR 5
1316 22K 5% RESISTOR 1
1317 39K 5% RESISTOR 1
1326 3K3 5% RESISTOR 7
1327 1K 5% RESISTOR 8
1329 330R 5% RESISTOR 3
1334 150K 5% RESISTOR 1
1500 10R 2.5W RESISTOR 2
1706 330R 5W RESISTOR 2
1717 0R33 2.5W RESISTOR 2
1920 ZERO OHM RESISTOR 1
2004 47UF 50V RADIAL 5
2013 10UF 50V CAPACITOR 7
2020 470UF 16V RADIAL 2
2024 2.2UF 63V RADIAL 9
2026 .47UF 63V RADIAL 3
2034 2200UF 40V RADIAL 2
2200 220NF 100V 10MM 1
2405 330NF 100V 15MM 1
2413 1N5 100V 5mm 1
2415 2.2NF 100V 5mm 8
2419 100NF 63V 5mm 10
2420 22NF 100V 5mm 1
2425 47NF 100V 5mm 2
2426 15NF 100V 5mm 1
2602 47PF 50V 10% COG 5
2603 100PF 50V 10% COG 5
2604 270PF 50V 10% COG 2
2605 470PF 50V 10% COG 8
3000 1N4007 DIODE 2
3014 15V 1.3W ZENER 3
3025 BRIDGE 4A200V INLINE 1
3405 BC237 TRANSISTOR 1
3411 MPSA42/43 TRANSISTOR 1
3500 BAS16 TRANSISTOR 15
3502 SO692 TRANSISTOR 2
