La Crosse Technology WS1506 User manual

868MHz WEATHER STATION

Instruction Manual

INTRODUCTION:

Congratulations on purchasing this state-of-the-art weather station as an example of

excellent design and innovative measuring technique. Featuring time, date, calendar,

weather forecast, wind direction, wind gust and wind speed, rainfall, indoor/outdoor

temperature and outdoor humidity, air pressure and various alarm settings for

different weather conditions, this weather station will provide you with various weather

information and weather forecast. Pages after pages, you will discover that the

operation of your weather station is really simple !

« Instant Transmission+» is the up and coming state-of-the-art new wireless

transmission technology, exclusively designed and developed by LA

CROSSE TECHNOLOGY.

“IT +” offers you an immediate update of all your outdoor data measured

from the transmitters: follow your climatic variations in real-time!

FEATURES:

The Multifunctional Weather Station

•

Time display (manual setting)

•

12/24 hour time display

•

Calendar display (weekday, date, month, year)

•

Time alarm function

•

Weather forecasting function with 3 weather icons and weather tendency

indicator

•

Indoor temperature display in °C/ºF

•

Outdoor temperature display in °C/ºF

•

Outdoor Humidity display as RH%

•

Dew point displayed in °C or °F

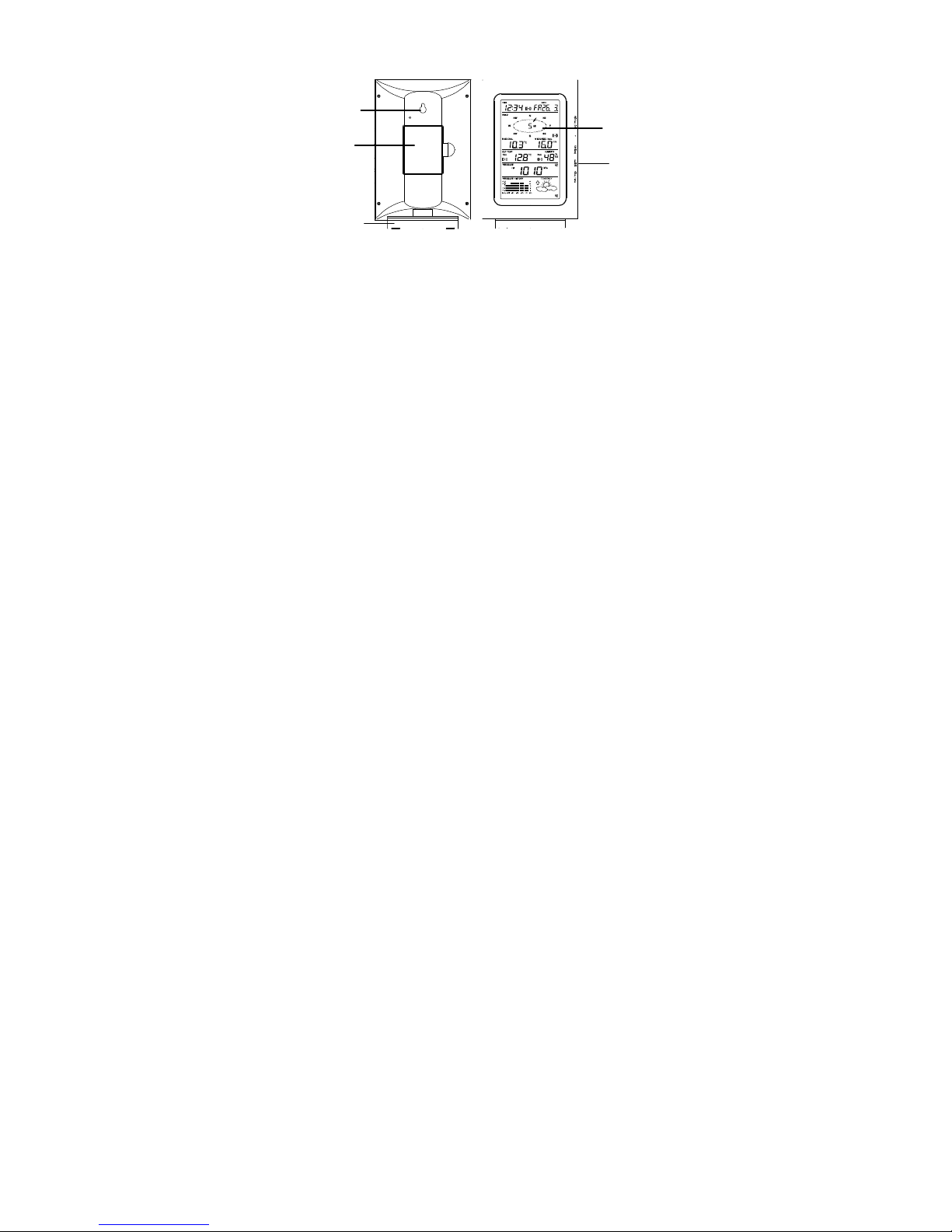

Function keys

Hanging hole

LCD display

Detachable stand

Battery

compartment

cover

•

Wind gust displayed in km/h, mph, m/s

•

24-hour and total rainfall displayed in mm or inch

•

Display Max / Min value of outdoor temperature, outdoor humidity, Dew point,

Wind chill, and Relative pressure, with time & date of recording

•

Display max wind speed, max gust, max 24h rainfall and total rainfall with time

& date of recording

•

Low/High outdoor temperature, outdoor humidity and high wind speed alarm

•

Relative air pressure displayed in hPa or inHg

•

Air pressure tendency indicator for the past 12 hour (bargraph format)

•

LCD contrast selectable

•

Low battery indicator

•

Wind direction displayed in 16 steps

•

Wind speed displayed in km/h, mph or m/s, and Beaufort scale

•

Wind chill displayed in °C of °F

•

Manual reset of outdoor temperature/ humidity, pressure, windchill, dew point,

wind speed, gust, 24h rainfall and total rainfall data

•

Storm warning alarm

•

Buzzer on/ off selectable

•

Storage of 140 sets of history weather data recorded in 3-hour intervals

•

Wireless transmission at 868 MHz

•

Transmission range up to 100 metres

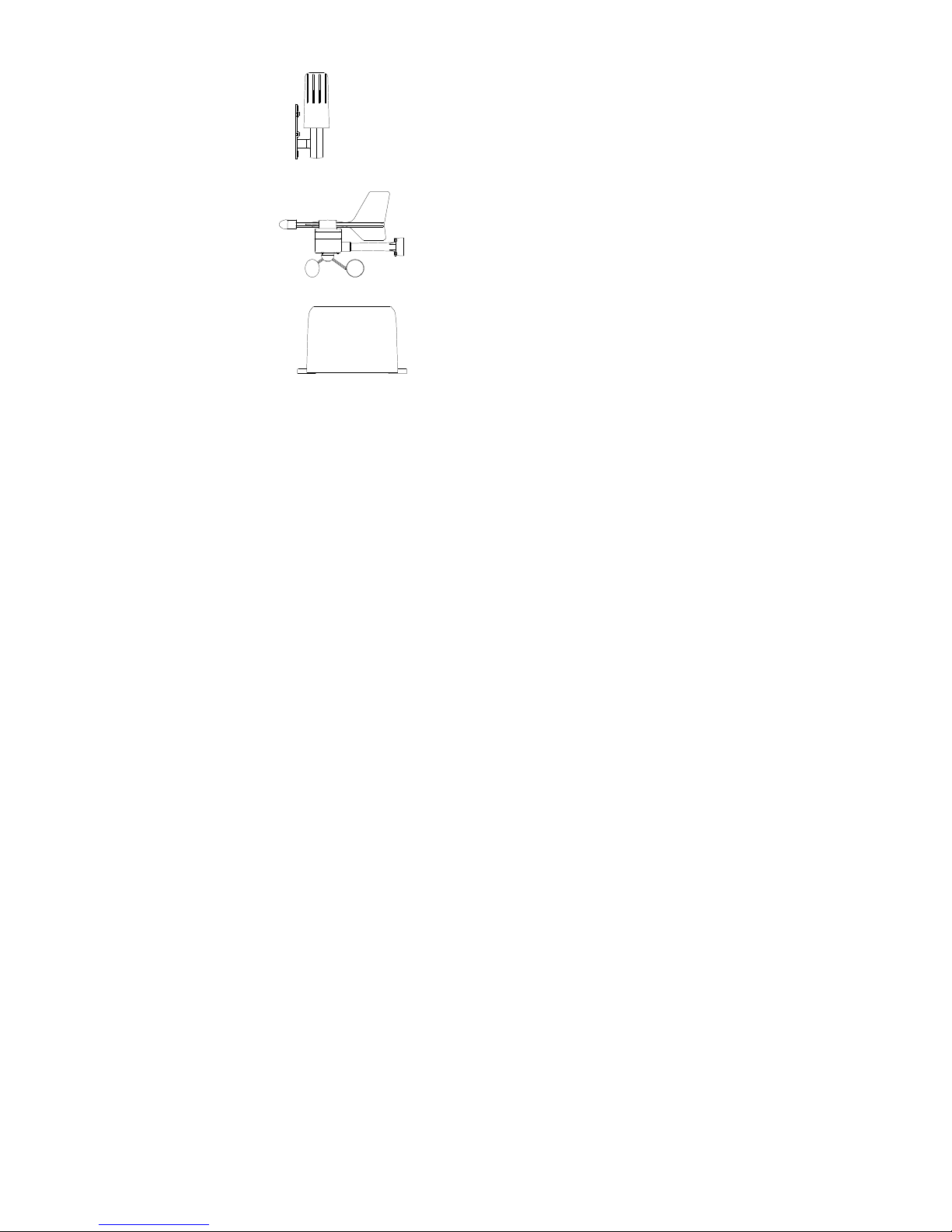

The Thermo-HygroTransmitter

•

Remote transmission of the outdoor temperature and humidity to

the Weather Station at 868 MHz

•

Showerproof casing

•

Wall mounting case (to be mounted in a sheltered place. Avoid

direct rain and sunshine)

The Wind Sensor

•

Connected to the thermo-hygro transmitter by

cable

•

Can be installed onto a mast or a horizontal panel

The Rain Sensor

•

Remote transmission of the rainfall data to

the Weather Station at 868 MHz

•

To be mounted onto a horizontal panel

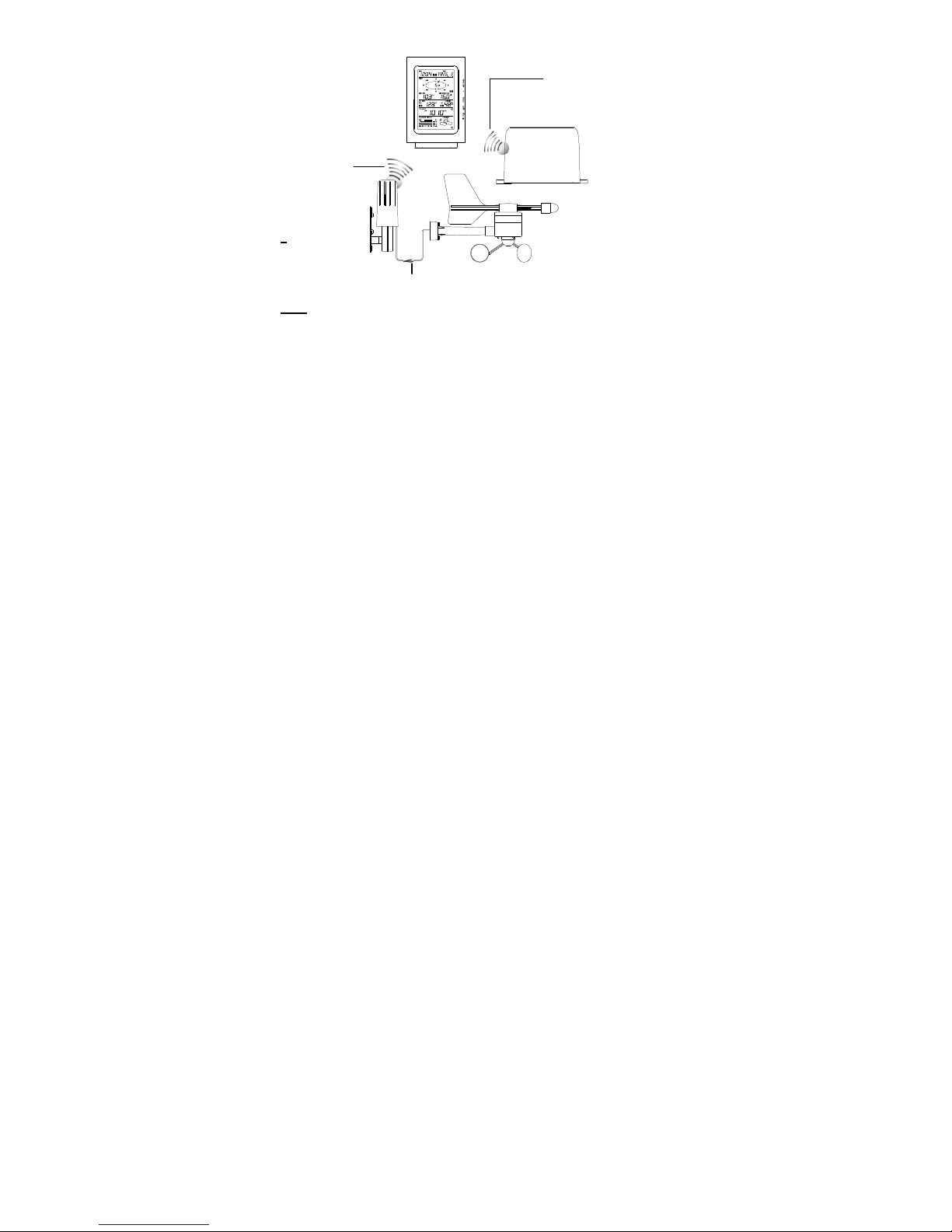

ireless

transmission at

868 MHz

thermo-

hygro

transmitter to

weather

station

Cable connection between the wind sensor

and the thermo-hygro transmitter

Wireless transmission at

868 MHz – Rain sensor

to weather station

Weather station

Wind sensor

Rain sensor

hermo

hygro

transmitter

SETTING UP:

Note:

When putting the Weather Station into operation, it is important to perform in close

proximity (e.g. on a table) a complete wiring and set-up of the system. This step is

important to test all components for correct function before placing and mounting

Socket for wind

sensor

them at their final destinations (See Positioning below). Spin the wind vane and tip

the rain gauge to test.

1. Unwind the cables of the Wind sensor. Connect the Wind sensor to the Thermo-

hygro transmitter by plugging the connector heads into the sockets of the

Thermo-hygro transmitter. Cord should “click” into place.

2. First insert the batteries into the Thermo-hygro transmitter and Rain sensor (see

“How to install and replace the batteries into the Thermo-hygro

transmitter“ & How to install and replace batteries into the Rain sensor

below).

3. Then insert the batteries into the Weather Station (see “How to install and

replace the batteries into the Weather Station”below). Once the batteries are

installed, all segments of the LCD will light up briefly and a short signal tone will

be heard. It will then display the time as 00:00, the date as 1.1.05, the weather

icons, and air pressure value. "- - -" will be shown for outdoor data.

4. Afterwards, the Weather Center will start receiving data from the transmitter.

The transmission reception icon will be blinking to indicate that the station is

trying to get the thermo-hygro transmitter data. The outdoor temperature,

humidity, wind data should then be displayed on the Weather Center. If this

does not happen after 45 seconds, the batteries will need to be removed from

all units. You will have to start again from step 2.

5. The transmitter reception icon is now blinking again to indicate that the station is

trying to get the rain sensor data. It will stop blinking once the rain sensor has

been detected. If this does not happen after 45 seconds, you will need to start

again from step 2.

6. You may need to check the cable for correct connection and all the components

for correct function by manually turning the wind-gauge by moving the wind-

vane; tilting the rain sensor to hear the impact of the internal moving seesaw,

etc. (see Positioning below).

7. Time and date shall be manually set (See Manual Setting below).

8. After the Weather Station has been checked for correct function with regard to

the above points and found fit, the initial set up of the weather station system is

finished and the mounting of the system components can take place. It must be

ensured however that all components work properly together at their chosen

mounting or standing locations. If e.g. there appear to be problems with the 868

MHz radio transmission, they can mostly be overcome by slightly changing the

mounting locations.

Note:

The radio communication between the receiver and the transmitter in the open field

reaches distances of max 100 metres, provided there are no interfering obstacles

such as buildings, trees, vehicles, high voltage lines, etc.

9. Radio interferences created by PC screens, radios or TV sets can in some

cases entirely cut off radio communication. Please take this into consideration

when choosing standing or mounting locations.

Note :

•

After batteries are installed in the transmitter, install the batteries in the weather

center to receive the signal from the transmitters as soon as possible. If the

weather center is powered more than 5 hours after the transmitter is powered,

the weather center will never receive signal successfully from the transmitters.

In this case, user will need to reinstall the batteries from all the transmitters to

redo set-up procedure.

•

After batteries are installed, there will be synchronization between weather

center and the transmitters. At this time, the signal reception icon will be blinking.

When the signal is successfully received by the weather center, the icon will be

switched on. (If it is not successful, the icon will not be shown in LCD) So the

user can easily see whether the last reception was successful (icon on) or not

(icon off). On the other hand, the short blinking of the icon shows that a

reception is in progress.

Transmitter signal

reception icon

HOW TO INSTALL AND REPLACE THE BATTERIES INTO THE

WEATHER STATION

The Weather Station works with 3 x AA, IEC LR6, 1.5V

batteries. When the batteries need to be replaced, the

low battery symbol will appear on the LCD.

To install and replace the batteries, please follow the

steps below:

1. Remove the battery compartment cover.

2. Insert the batteries observing the correct polarity

(see the marking in the battery compartment).

3. Replace the battery cover.

HOW TO INSTALL AND REPLACE BATTERIES INTO THE RAIN

SENSOR

The rain sensor works with 2 x AAA, IEC LR3, 1.5V Alkaline batteries. To install and

replace the batteries, please follow the steps below:

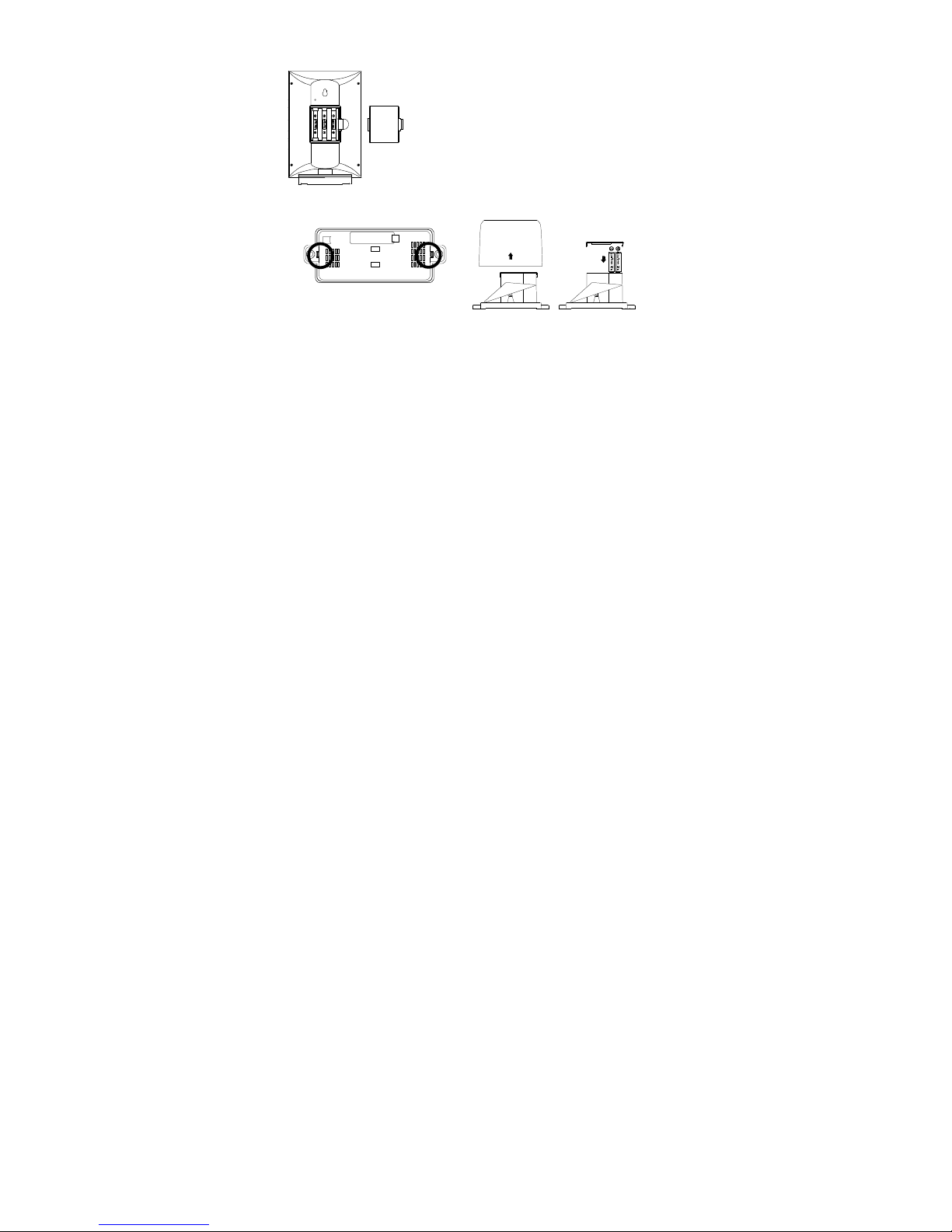

1. Press tabs back to unlock rain sensor cover. (Figure 1)

Figure 1

Figure 2 Figure 3

2. Lift rain sensor cover to access battery compartment. (Figure 2)

3. Insert the batteries, observing the correct polarity (see the marking in the battery

compartment). (Figure 3)

4. Replace the battery cover and the rain cover onto the unit.

Note:

In the event of changing batteries in any of the units, all units need to be reset by

following the setting up procedures. This is because a random security code is

assigned by the rain sensor at start-up and this code must be received and stored by

the Weather Center in the first several minutes of power being supplied to it.

HOW TO INSTALL AND REPLACE THE BATTERIES INTO THE

THERMO-HYGRO TRANSMITTER

The outdoor Thermo-hygro transmitter works with 2 x AA IEC

LR6, 1.5V batteries. To install and replace the batteries, please

follow the steps below:

1. Uninstall the rain cover of the transmitter.

2. Remove the battery compartment cover.

3. Insert the batteries, observing the correct polarity (see the

marking in the battery compartment).

4. Replace the battery cover and the rain cover onto the unit.

Note:

In the event of changing batteries in any of the units, all units

need to be reset by following the setting up procedures. This is

because a random security code is assigned by the transmitter and rain sensor at

start-up and this code must be received and stored by the Weather Station in the first

several minutes of power being supplied to it.
