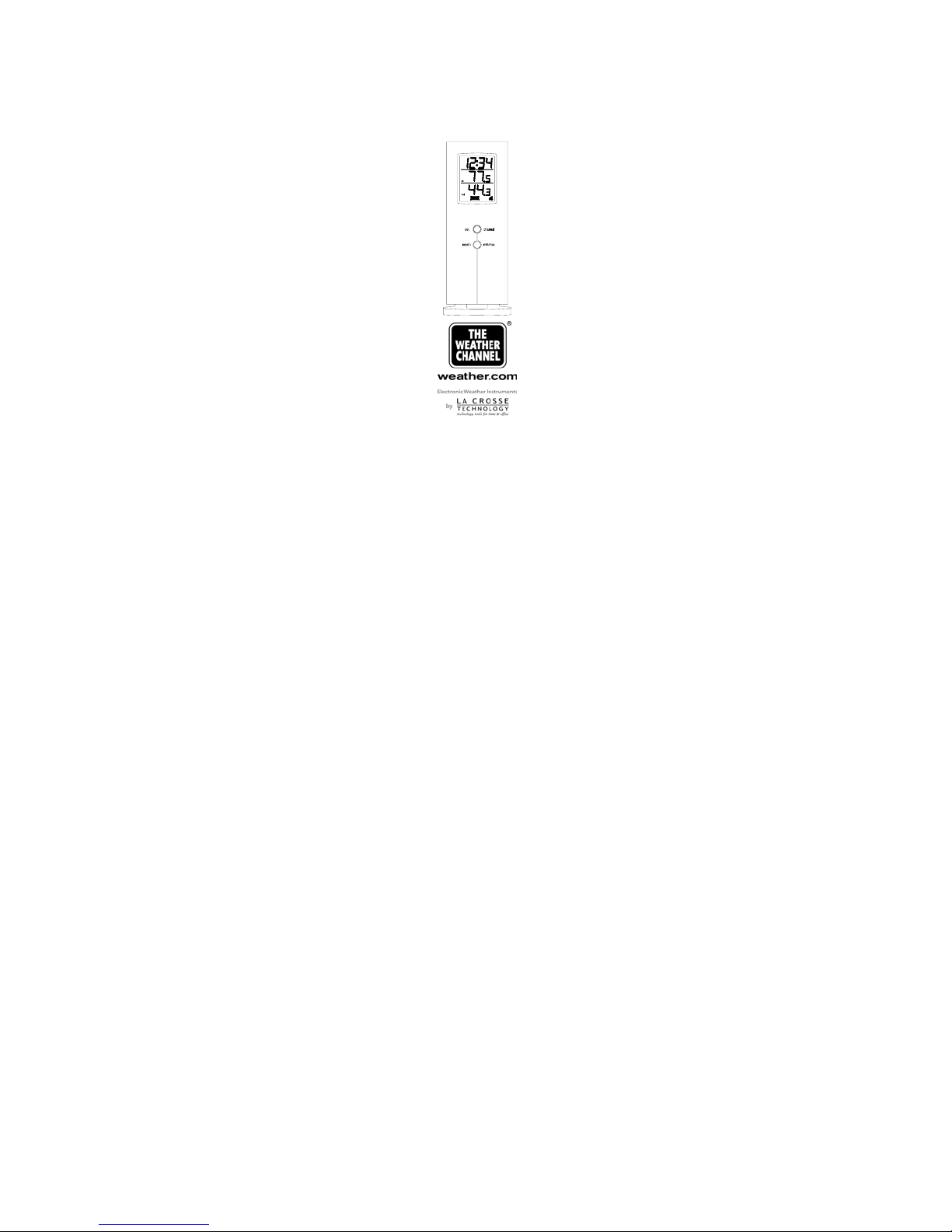

La Crosse Technology WS-9014TWC User manual

WS-9014TWC

Wireless 433 MHz

Temperature Station

Instruction Manual

TABLE OF CONTENTS

Topic Page

Inventory of Contents 3

Quick Setup 4-8

Detailed Setup Guide

Battery Installation 9-10

Setting the Time 11-12

Selecting Units of

Measurement

12-13

Features

Minimum and Maximum

Temperatures

Resetting Minimum and

Maximum Temperatures

Additional remote

temperature sensors

(optional)

14-17

Mounting 17-18

Troubleshooting 19-21

Maintenance and Care 21

Specifications 22-23

Warranty Information 24-27

INVENTORY OF CONTENTS

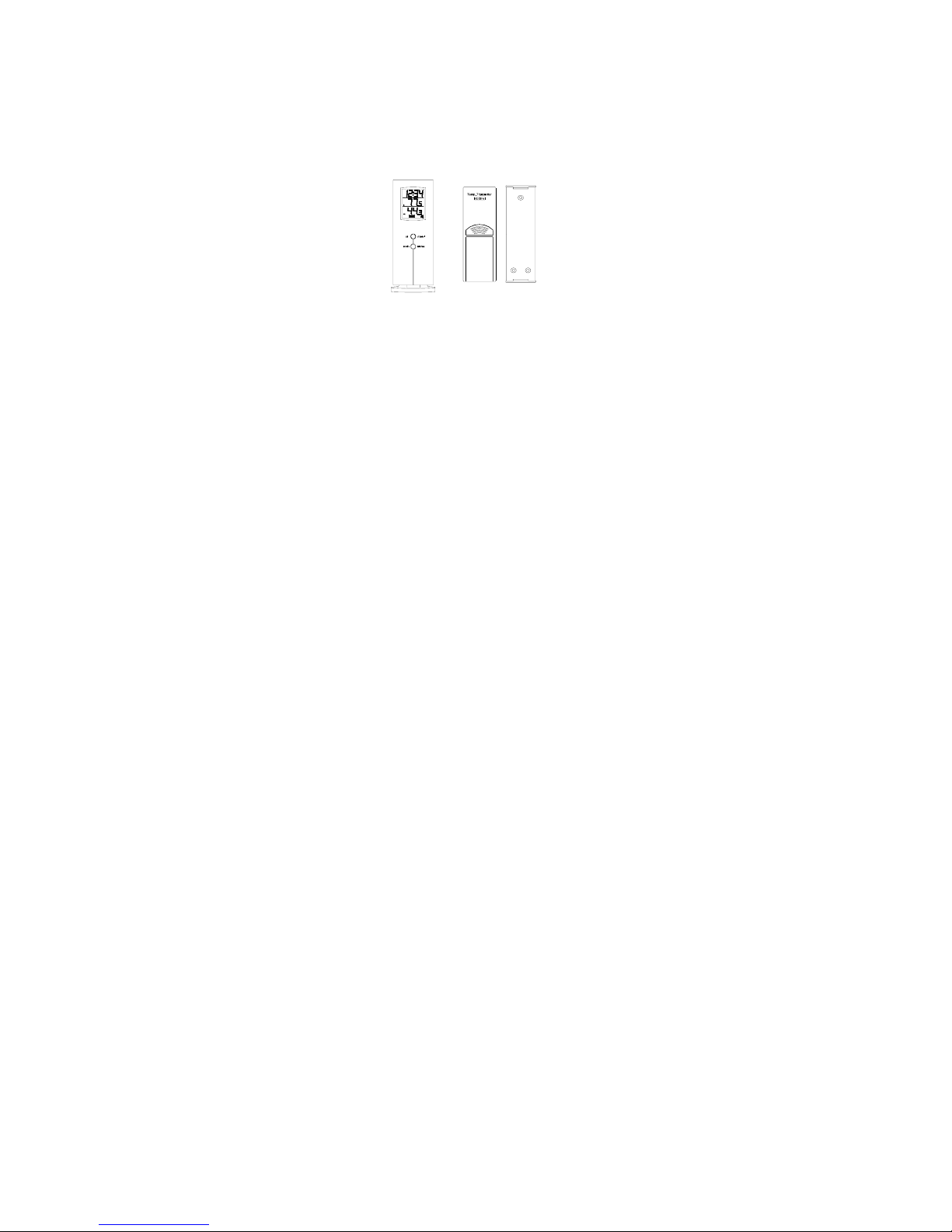

1. The indoor temperature station (Figure

2. The remote temperature sensor (TX6U)

and mounting bracket. (Figure 2)

3. 3 each, 1/2” Philips screws.

4. One strip of double sided adhesive tape.

5. Instruction Manual and Warranty Card.

Figure 1

Figure 2

ADDITIONAL EQUIPMENT

(not included)

1. 1 Philips screwdriver.

2. 2 Fresh AA 1.5V batteries.

3. 2 Fresh AA 1.5V batteries.

QUICK SETUP

Hint: Use good quality Alkaline

Batteries and avoid rechargeable

batteries.

1. Have the indoor

temperature station and

remote temperature sensor

3 to 5 feet apart.

2. Batteries should be out of

both units for 10 minutes.

3. Place the batteries into the

remote temperature

sensor first then into the

indoor temperature station.

(All remote temperature sensors must be

started before the indoor temperature

station)

4. DO NOT PRESS ANY

BUTTONS FOR 10

MINUTES.

In this time the indoor temperature

station and remote temperature sensor

will start to talk to each other and the

display will show both the indoor

temperature and an outdoor temperature.

If the indoor temperature station does

not display both temperatures after the

10 minutes please retry the set up as

stated above. After both indoor and

outdoor temperatures are displayed for

10 minutes you can place your remote

temperature sensor outdoors and set

your time.

The remote temperature sensor should

be placed in a dry, shaded area. The

remote temperature sensor has a range

of 80 feet. Any walls that the signal

will have to pass through will reduce

distance. An outdoor wall or window

will have 20 to 30 feet of resistance and

an interior wall will have 10 to 20 feet

of resistance. Your distance plus

resistance should not exceed 80 ft. in a

straight line.

NOTE: Fog and mist will not harm

your remote temperature sensor but

direct rain must be avoided.

To complete the set up of your indoor

temperature station after the 10 minutes

have passed please follow the steps

below.

1. Press and hold the “SET” button

for 5 seconds.

Note: A “12h” or “24h” will appear

on the top line. (“12h” for AM/PM,

“24h” for military time)

a. To change between “12h”

and “24h” press and

release the “MIN/MAX”

button.

b. When you have your

choice shown on the

display press and release

the “SET” button once.

2. Degree Fahrenheit will now show.

a. To change between

Fahrenheit and Celsius,

press and release the

“MIN/MAX” button.

b. When you have your

choice shown on the

display press and release

the “SET” button once.

3. An hour will now be flashing.

a. Press and release the

“MIN/MAX” button until

the correct hour is shown.

Note: When in the 12h mode

there is “PM” displayed under

the word TIME when in the

PM hours. During the AM

hours this area will be blank.

b. When the correct hour is

shown, press and release

the “SET” button once.

4. A minute will now be flashing.

a. Press and release the

“MIN/MAX” button until

the correct minutes are

displayed.

Press and release the SET button

once more and you are done.

DETAILED SETUP GUIDE

I. BATTERY INSTALLATION

A. REMOTE TEMPERATURE

SENSOR

1. Remove the mounting bracket.

2. Remove battery cover

3. Observing the correct polarity, install

2 AA batteries—make sure they do not

spring free, or start-up problems may

occur. Replace cover.

B. INDOOR TEMPERATURE

STATION

Note: After the batteries are installed, DO

NOT press any buttons. This may interfere

with the signals, causing temperatures to

1. Remove the battery cover on the

backside. To do

this, push up and

pull out.

2. Observing the

correct polarity,

install 2 AA

batteries.

3. Replace battery

cover.

4. Wait 10 minutes

or until both the indoor and outdoor

temperatures are shown on the indoor

temperature station.
