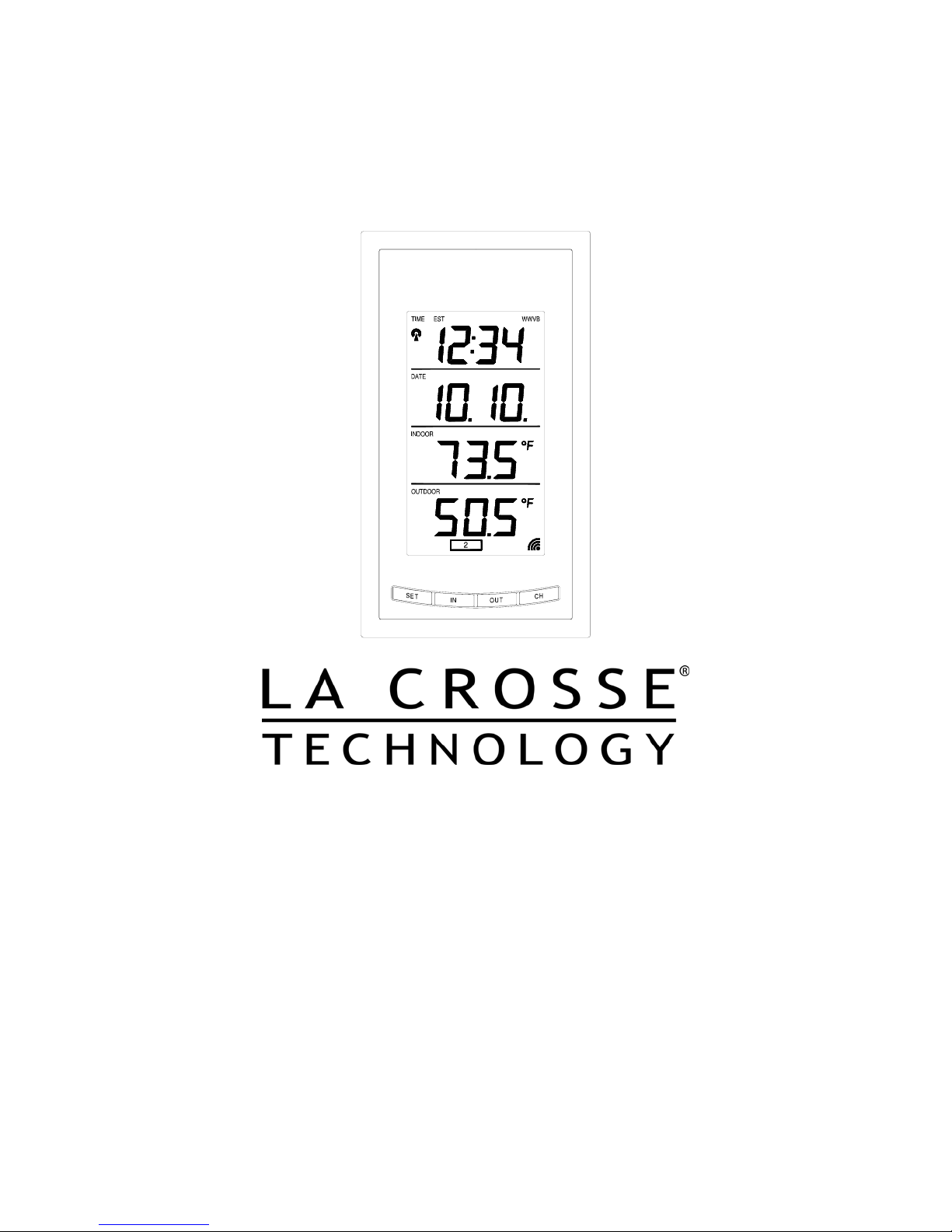

La Crosse Technology WS-9013U User manual

WS-9013U

Wireless 433 MHz

Radio-controlled Weather Station

Instruction Manual

Topic Page

Inventory of Contents/Additional Equipment 3

About WWVB 4

Quick Set-Up Guide 5

Detailed Set-Up Guide

Battery Installation 6-7

Program Mode

Programming Sequence 7

Function Keys 8

12/24 Hour Time Setting 8

Time Zone Setting 8-9

Daylight Saving Time Setting 9-10

Time Setting (WWVB & Manual) 10-11

Setting Day, Date and Year 11-12

Selecting °F or °C 12

Setting the LCD Contrast 13

Features

Indoor Temperature 14

Outdoor Temperatures 14

Minimum & Maximum Records (Indoor,

Outdoor & Resetting) 15-16

Additional Remote Temperature Sensor

Units (Set-Up, Viewing & Operation) 16-17

Mounting 18-19

Troubleshooting 20

Maintenance & Care 20

Specifications 21

Warranty Information 22-23

Table Of Contents

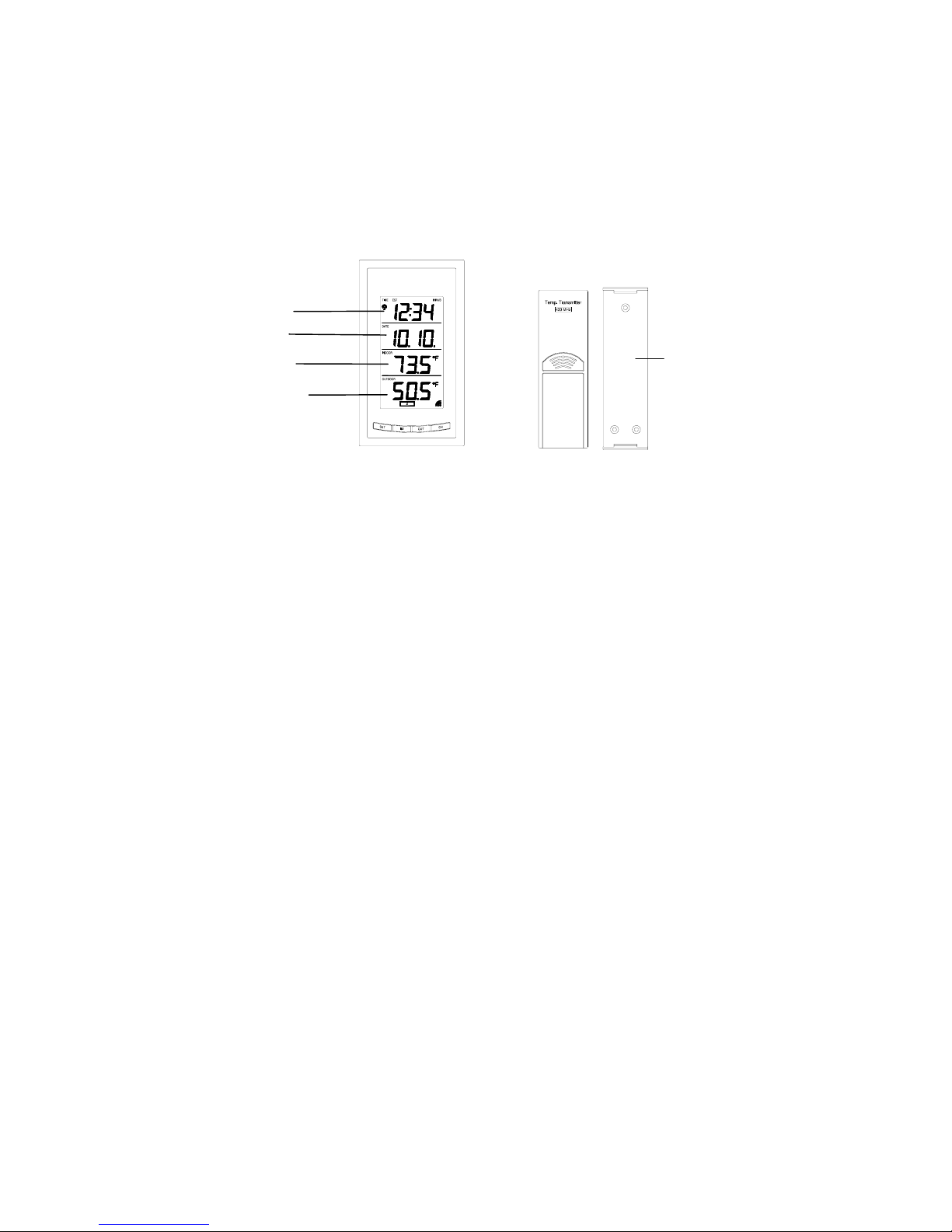

INVENTORY OF CONTENTS

1. The weather station (Figure 1).

2. One TX6U remote temperature sensor with mounting bracket

(Figure 2).

3. Three each, ½” Philips screws.

4. One strip double-sided adhesive tape.

5. Instruction Manual and Warranty Card.

ADDITIONAL EQUIPMENT (not included)

1. Two, fresh AA 1.5V batteries for indoor weather station.

2. Two, fresh AA 1.5V batteries for remoter temperature sensor.

3. One, Philips screwdriver for mounting.

Figure 2

Time LCD

Date LCD

Ind

oor LCD

Outdoor LCD

ure 1

Mounting

Bracket

ABOUT WWVB (Radio Controlled Time)

The NIST (National Institute of Standards and Technology—Time and Frequency

Division) WWVB radio station is located in Ft. Collins, Colorado and transmits the

exact time signal continuously throughout the United States at 60 kHz. The signal

can be received up to 2, 000 miles away through the internal antenna in the weather

station. However, due to the nature of the earth’s ionosphere, reception is very

limited during daylight hours. The weather station will search for a signal every

night when reception is best. The WWVB radio station derives its signal from the

NIST Atomic clock in Boulder, Colorado. A team of atomic physicists is

continually measuring every second, of every day, to an accuracy of ten billionths of

a second per day. These physicists have created an international standard measuring

a second as 9,192,631,770 vibrations of a Cesium-133 atom in a vacuum.

For more information on WWVB and the atomic clock please see the NIST website

at http://www.boulder.nist.gov/timefreq/stations/wwvb.htm.

QUICK SET-UP GUIDE

Hint: Use good quality Alkaline Batteries and avoid rechargeable batteries.

1. Have the indoor weather station and remote temperature sensor 3 to 5

apart.

2. Batteries should be out of both units.

3. Place the batteries into the remote temperature sensor first then into

the indoor weather station.

(All remote temperature sensors must be started before the indoor

weather station)

4. DO NOT PRESS ANY BUTTONS FOR 15 MINUTES.

In this time the indoor weather station and remote temperature sensor will start to

talk to each other and the indoor weather station will show both the indoor

temperature and an outdoor temperature. If the indoor weather station does not

display both temperatures after the 15 minutes please retry the set up as stated above.

After both indoor and outdoor temperatures are displayed for 15 minutes you can

place your remote temperature sensor outdoors and set your time.

The remote temperature sensor should be placed in a dry, shaded area. The remote

temperature sensor has a range of 80 feet. Any walls that the signal will have to pass

through will reduce distance. An outdoor wall or window can have up to 30 feet of

resistance and an interior wall can have up to 20 feet of resistance depending upon

the type of construction. Your distance plus resistance should not exceed 80 ft. in a

straight line.

NOTE: Fog and mist will not harm your remote temperature sensor but direct rain

must be avoided.

To complete the set up of your indoor weather station after the 10 minutes have

passed please follow the steps on pages 8 and 9.

Note: The remote temperature sensor transmits a signal every 3 minutes;

after the batteries have been installed, the indoor weather station will

search for the signal for a duration of 5 minutes. If there is no temperature

reading in the OUTDOOR LCD after 5 minutes, make sure the units are

within range of each other or repeat the battery installation procedure.

DETAILED SET-UP GUIDE

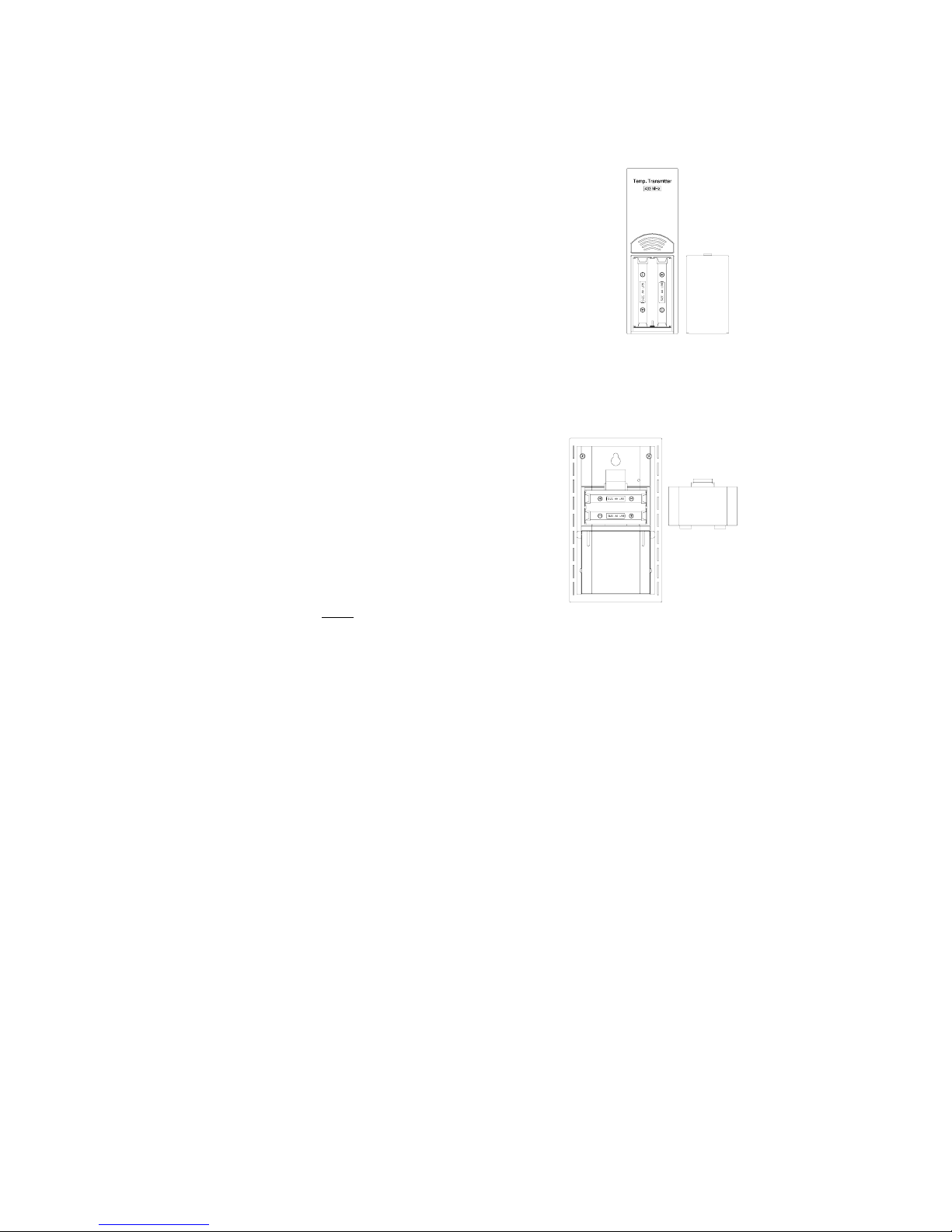

I. BATTERY INSTALLATION

A. REMOTE TEMPERATURE SENSOR

1. Remove the mounting bracket. The

bracket snaps on and off easily.

2. Remove the battery cover, by sliding the

cover down.

3. Observing the correct polarity install 2

AA batteries. The batteries will fit

tightly (to avoid start-up problems make

sure they do not spring free).

4. Replace the battery cover by sliding

upwards. Be sure battery cover is on

securely.

B. INDOOR WEATHER STATION

1. Remove the battery cover. To

do this, insert a solid object in

the space provided at the lower-

central position of the battery

cover, then push up and pull out

on the battery cover.

2. Observe the correct polarity,

and install 2 AA batteries.

3. Replace the battery cover.

Note: Immediately after the batteries

have been installed, each LCD (Liquid Crystal Display) will flash. Within

a few seconds the indoor temperature will be displayed. If not, then

remove the batteries for 10 seconds and reinstall. If the outdoor

temperature is not displayed within four minutes, remove batteries from

both units, wait 10 seconds, and reinstall. The time will show -:-- and

start searching for the WWVB signal. If it successfully receives the time

signal (usually at night), it will display the correct time (default is

Eastern).

Battery

Cover

PROGRAM MODE

Programming Note: If 30 seconds are allowed to pass or either the IN or

the OUT button is pressed during programming modes, the unit will set the

last information entered—the display will stop flashing and return to

normal time-date readings. If you don’t leave the program mode during the

programming of sections III through VIII, you can advance to step 3 of the

next program setting. If you do leave the program setting (or want to

program a specific setting) follow each instructional step to program that

setting.

I. PROGRAMMING SEQUENCE

The sequence for programming the indoor weather station and the default

(factory) settings are:

1. 12/24 hour time setting 12 hour

2. Time Zone Zo -5 (eastern)

3. Daylight Saving Time 1 (on)

4. Time – hour 12

5. Time – minute 00

6. Date – day of the week mo (Monday)

7. Date – month 1 (January)

8. Date – day of the month 1

9. Date – Year 1999

10. Temperature °F

11. LCD (liquid crystal display) contrast 5

12. End of sequence

The programming instructions are given in a manner so that each setting is

done separately. On initial set-up and after inserting new batteries to

program all functions simply disregard the first two steps of each section

starting with the Time Zone Setting.

II. FUNCTION KEYS

The function keys are operated by pressing

the key corresponding to the operation that

you want to perform.

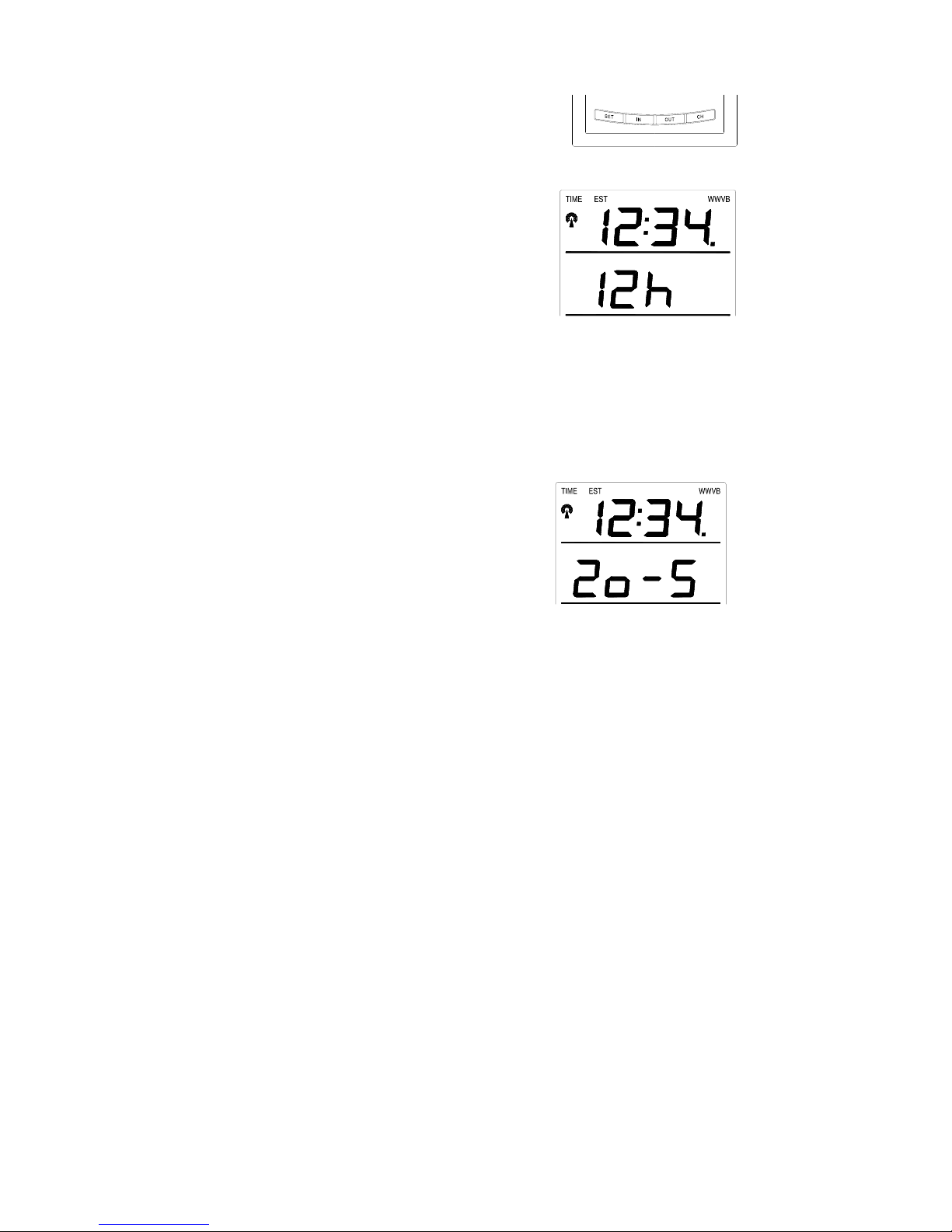

II. 12 OR 24 HOUR TIME SETTING

1. Press and hold the “SET”

button for 3 seconds or until

“12 h” flashes in the DATE

LCD.

2. Press and release the “CH”

button to toggle between 12

and 24-hour time.

3. Press and release the “SET” button to confirm the 12/24-hour

setting and to advance to Time Zone Setting.

III. TIME ZONE SETTING

The default time zone is EST, “Zo -5” (Eastern Standard Time), to

change this setting:

1. Press and hold the “SET” button for 3 seconds or until “12 h”

OR “24 h” flashes in the

DATE LCD.

2. Press and release the “SET”

button 1 more time to enter

the Time Zone setting mode.

3. The default Time Zone “Zo-

5” will flash in the DATE

LCD.

4. Select your appropriate

time zone using the

“CH” button. During

selection of the Time

Zone, the 3 letter

abbreviations for the time

zones found in North

America will flash across

the top of the TIME

LCD. Observe the chart

below, showing the

corresponding

abbreviations, time zones, and codes.

Note: There are more time zones represented by numbers than there are

represented by 3 letter abbreviations. If you live in North America you

need only be concerned with the ones in the chart above.

5. Press and release the “SET” button to confirm and advance to

the Daylight Saving Time setting.

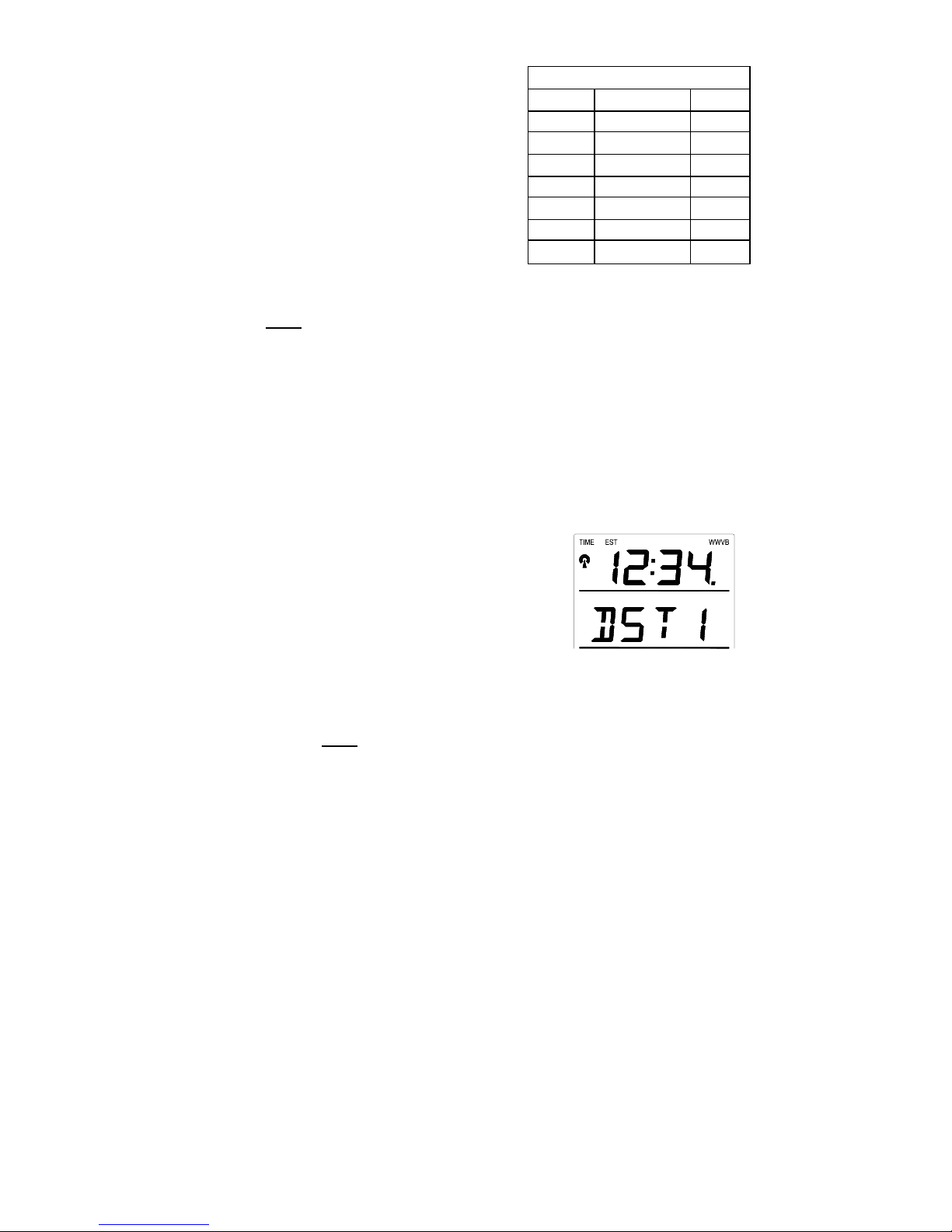

IV. DAYLIGHT SAVING TIME (DST) SETTING

1. Press and hold the “SET” button for 3 seconds or until “12 h”

or “24 h” flashes in the DATE LCD.

2. Press and release the “SET” button 2 more times to reach the

DST selection mode.

3. “DST 1” is the default setting

and will be flashing in the

DATE LCD.

4. Press and release the “CH”

button to select “DST 0” or

“DST 1.”

5. “DST 0” indicates that the feature is off and the WWVB will

not change times automatically. “DST 1” indicates that the

feature is on and the WWVB will change times automatically.

Time Zones

GMT 0

Atlantic -4

EST; Eastern -5

CST; Central -6

MST; Mountain -7

PST; Pacific -8

ALA; Alaska -9

HAW; Hawaii -10

Note: Some locations (Arizona and parts of Indiana) do not

follow Daylight Saving Time and should select “DST 0.”

6. Press and release the “SET” button to confirm and advance to

the Time setting mode.

V. TIME

There are two methods by which the time can be set:

A) Automatically via WWVB reception or

B) Manually.

A. WWVB (Remote Control Time)

This method requires you to do nothing except wait for the signal

to be received and to select a time zone. Reception usually takes

approximately 6-10 minutes during optimal conditions. The best

conditions for reception is at night, between midnight and 6:00

AM—when there is less atmospheric interference. To keep your

time as accurate as possible, the weather station conducts a

WWVB search every night between these hours and overrides any

manually set time. The WWVB tower icon (appearing in the TIME

LCD) will flash when a signal-search is in progress, will remain

steady when the signal has been received and nothing will be

displayed in all other situations. If the WWVB time has not been

received after 10 minutes of battery installation, you may manually

set the time or leave the time function alone (once reception has

occurred the WWVB time will over ride the manual time and set

automatically).

B. MANUAL TIME SETTING

1. Press and hold the “SET” button for 3 seconds or until “12h”

flashes in the DATE LCD.

2. Press and release the “SET” button 3 more times.

3. The hour digit (default of “12” should be flashing in the

TIME LCD).

4. Press and release the “CH” button to change the hour. Press

the “CH” button once and the hour will increase by one,

twice and the hour will increase by two, etc.

Other manuals for WS-9013U

Table of contents

Other La Crosse Technology Weather Station manuals

La Crosse Technology

La Crosse Technology WS-3610-CH User manual

La Crosse Technology

La Crosse Technology WS-1517U User manual

La Crosse Technology

La Crosse Technology T83646v2 User manual

La Crosse Technology

La Crosse Technology 308-1412-3TX Dimensions

La Crosse Technology

La Crosse Technology WS-1912 User manual

La Crosse Technology

La Crosse Technology C80758-UK User manual

La Crosse Technology

La Crosse Technology C87030 Operating and maintenance manual

La Crosse Technology

La Crosse Technology WS-3610-SAL User manual

La Crosse Technology

La Crosse Technology 308-2316 User manual

La Crosse Technology

La Crosse Technology WS-8035 User manual

La Crosse Technology

La Crosse Technology 308-1415BW User manual

La Crosse Technology

La Crosse Technology 724-2310 Operating and maintenance manual

La Crosse Technology

La Crosse Technology S85807 Dimensions

La Crosse Technology

La Crosse Technology 308-1451v2 User manual

La Crosse Technology

La Crosse Technology WS-2308AL User manual

La Crosse Technology

La Crosse Technology WS-2813U-IT Specification sheet

La Crosse Technology

La Crosse Technology Bonus Station User manual

La Crosse Technology

La Crosse Technology WS-8120U-IT Installation guide

La Crosse Technology

La Crosse Technology WS-9043U User manual

La Crosse Technology

La Crosse Technology WS-2317U User manual

La Crosse Technology

La Crosse Technology 328-1414 User manual

La Crosse Technology

La Crosse Technology Wireless Weather Station User manual

La Crosse Technology

La Crosse Technology 308-1415FCT User manual

La Crosse Technology

La Crosse Technology WA-1240U User manual

Popular Weather Station manuals by other brands

Auriol

Auriol AHFL 433 A1 operating instructions

NexSens

NexSens G2-HYDROMET quick start

Hyundai

Hyundai WS 2202 instruction manual

IROX

IROX HBVR761 UV-X user manual

ADE

ADE WS 1711 operating instructions

Auriol

Auriol z29592 Operation and safety notes

Auriol

Auriol 296289 Operation and safety notes

Hyundai

Hyundai WS 2266 instruction manual

Ventus

Ventus W177 owner's manual

National Geographic

National Geographic VA Colour RC instruction manual

Renkforce

Renkforce 1208067 operating instructions

Levenhuk

Levenhuk Discovery Report WA40 quick start guide

Instant Transmission

Instant Transmission MA 10410 instruction manual

Lutron Electronics

Lutron Electronics PHB-318 Operation manual

WAREMA

WAREMA EWFS Weather station eco Operating and installation instructions

TFA

TFA 30.3013.IT instruction manual

Alecto

Alecto WS-1200 user manual

Oregon Scientific

Oregon Scientific RMR966PA instruction manual
