La Crosse Technology WS-7047U User manual

WS-7047U

Wireless 433 MHz

Weather Station

With Rainfall and Temperature

Instruction Manual

TABLE OF CONTENTS

Topic Page

Inventory of Contents 2

Additional Equipment 2

Quick Setup 3

Detailed Setup Guide

Battery Installation 4

Mounting 5-7

Operation of the Wireless Weather

Station

Troubleshooting 8

Maintenance and Care 9

Specifications 9

Warranty Information 10-11

INVENTORY OF CONTENTS

1. The digital indoor weather station.

2. The remote temperature sensor and mounting bracket.

3. The remote rain sensor.

4. Instruction manual and warranty card.

ADDITIONAL EQUIPMENT (not included)

1. 1 Philips screwdriver

2. 2 Fresh AA Alkaline batteries (for indoor weather station)

3. 2 Fresh AA Alkaline batteries (for remote temperature sensor)

4. 2 Fresh AA Alkaline batteries (for remote rain sensor)

QUICK SETUP OF THE WIRELESS WEATHER STATION

Hint: Use good quality Alkaline Batteries and avoid rechargeable batteries.

1. Have the indoor weather station, remote temperature sensor and remote rain sensor 3 to 5

feet apart.

2. Batteries should be out of all units for 10 minutes.

3. Place the batteries into the remote rain sensor first then into the remote temperature

sensor and finally into the indoor weather station.

4. DO NOT PRESS ANY BUTTONS FOR 10 MINUTES.

In this time the indoor weather station and remote sensors will start to talk to each other and the

display will show the indoor temperature, the outdoor temperature and the rainfall. If the indoor

weather station does not display both temperatures after the 10 minutes please retry the set up as

stated above. After both indoor and outdoor temperatures are displayed for 10 minutes you can

place your remote temperature sensor and remote rain sensor outdoors and set your time.

The remote temperature sensor should be placed in a dry, shaded area. The remote rain sensor

should be placed in an area where it will receive direct rainfall from all directions. The remote

sensors have a range of 80 feet. Any walls that the signal will have to pass through will reduce

distance. An outdoor wall or window will have 20 to 30 feet of resistance and an interior wall

will have 10 to 20 feet of resistance. Your distance plus resistance should not exceed 80 ft. in a

straight line.

NOTE: Fog and mist will not harm your remote temperature sensor but direct rain must be

avoided.

To complete the set up of your indoor weather station after the 10 minutes have passed please

follow the steps on pages 4 to 6.

DETAILED SET-UP GUIDE FOR THE WIRELESS WEATHER STATION

I) Battery Installation

Note: Batteries will fit tightly. To avoid start-up problems make sure that the batteries do

not spring free.

A) Remote Rainfall Sensor

1. Remove the flat-head screw and

battery cover located on the

underside of the base.

2. Observing the correct polarity

install two AA batteries.

3. Make sure the rubber weather seal

is in place and replace the battery

cover and screw.

4. Separate the base by turning the rainfall

collector in a counter-clockwise direction.

5. Remove the tape from the teeter-totter.

Teeter-

Totter

Battery coverBattery compartment

6. Replace the cover.

B) Remote Temperature Sensor

1. Remove the mounting bracket. The bracket snaps on and off

easily.

2. Remove the battery cover by sliding the cover down.

3. Observing the correct polarity install 2 AA batteries.

4. Replace the battery cover by sliding upwards making sure that

the battery cover is on securely.

C) Indoor Weather Display

1. Remove the battery cover. To do this, insert a solid object in the space provided

at the lower-central position of the battery cover, then push up and pull out on the

battery cover.

2. Observing the correct polarity install 2 AA batteries.

3. Replace the battery cover.

MOUNTING THE WIRELESS WEATHER STATION

Note: To achieve a true temperature reading, avoid mounting in direct sunlight. We recommend

that you mount the remote temperature sensor on a North-facing wall. The sending range is 80ft;

obstacles such as walls, concrete, and large metal objects will reduce the range. Place both units

in their desired location before permanently mounting.

I) The Rainfall Sensor

The rainfall sensor can be mounted in two ways:

•simply placing it in a desired location

•mounting it to a surface with screws

Ensure that the rainfall sensor is completely horizontal and stable.

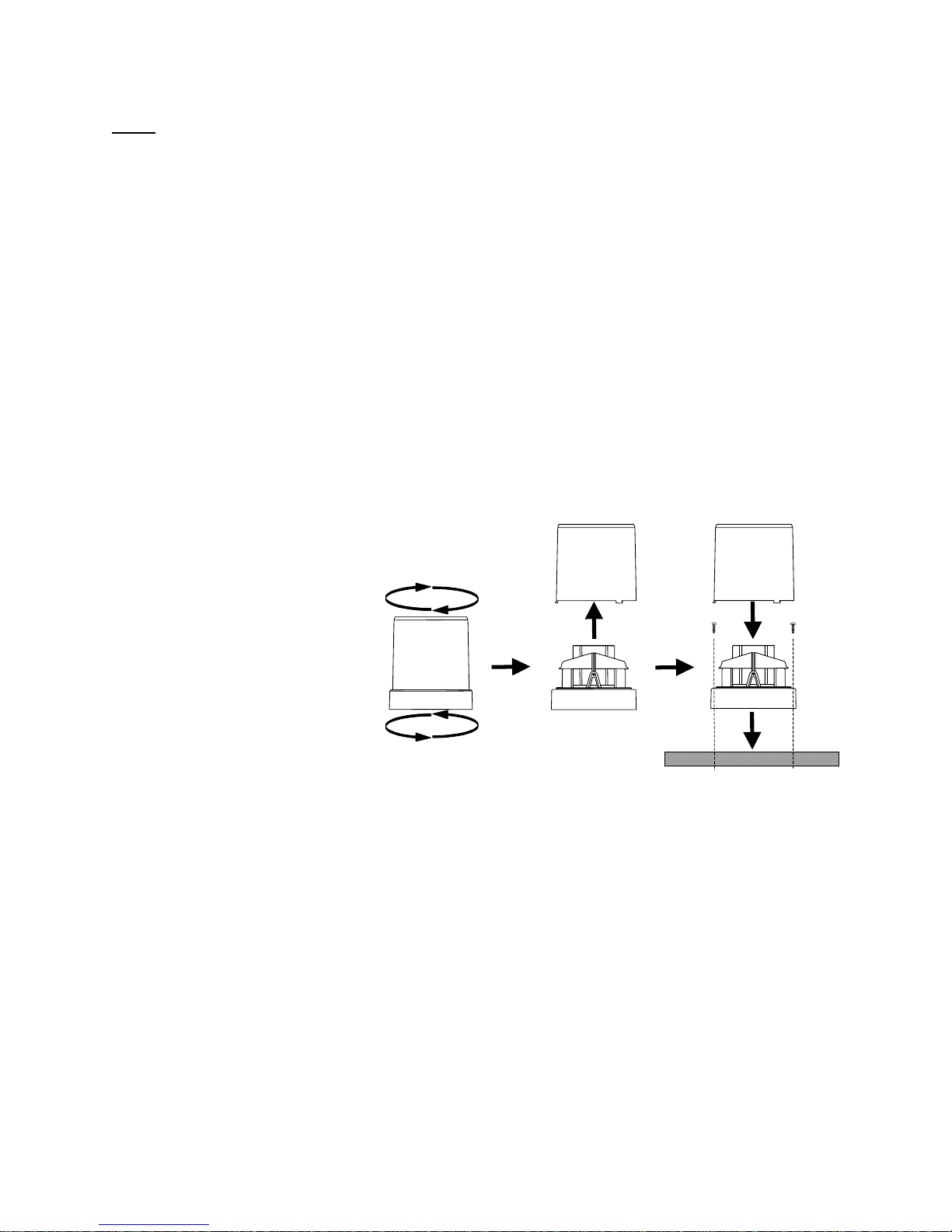

1. Rotate the rainfall collector separating it from the base.

2. There are two cylindrical holes in the base to guide the mounting screws.

3. Place the base over a desired mounting surface.

4. With a pencil mark the mounting surface through the cylindrical holes.

5. Where marked

start the screws.

6. Place the base over

mounting surface.

7. Install screws

through the

cylindrical holes

and into the started

holes on the

mounting surface.

8. Secure the screws,

ensuring that no

part of the base

can lift off the mounting surface.

9. Remove the manufacturers tape from the teeter-totter on the base. If this is not

done there will be no way to measure rainfall, and no measurement will display

on the indoor weather display.

10. Place the rainfall collector onto the base.

11. Place the 3 tabs (on the rainfall collector) into the tab slots (on the base) and turn

counter-clockwise.

II) The Remote Temperature Sensor

The remote temperature sensor can be mounted in two ways:

•with the use of screws

•using the adhesive tape

A. Mounting with Screws

1. Remove the mounting bracket from the remote temperature sensor.

2. Place the mounting bracket over the desired location. Through the three screw

holes of the bracket, mark the mounting surface with a pencil.

3. Where marked, start the screw holes into mounting surface.

4. Screw mounting bracket onto the mounting surface. Ensure that the screws are

flush with the bracket.

B. Mounting with Adhesive Tape

1. With a nonabrasive solution, clean and dry the back of the mounting bracket and

the mounting surface to ensure a secure hold. The mounting surface should be

smooth and flat.

2. Remove the protective strip from one side of the tape.

3. Adhere the tape to the designated area on the back of the mounting bracket.

4. Remove the protective strip from the other side of the tape.

5. Position the remote temperature sensor in the desired location, ensuring that the

indoor temperature station can receive the signal.

III) The Indoor Weather Station

The indoor weather station can be mounted in two ways:

•with the table stand

•on the wall with the use of a wall hanging screw (not included).

A. Using the Table Stand

The indoor weather station comes with the table stand already mounted. If you wish to

use the table-stand all that is required is to place the indoor weather station in an

appropriate location.

B. Wall Mounting

1. Remove the table stand.

2. To do this, pull down on the stand from the rear and rotate forward.

3. Fix a screw (not included) into the desired wall leaving approximately 3/16 of an

inch (5mm) extended from the wall.

4. Place the indoor temperature station onto the screw using the hanging hole on the

backside.

5. Gently pull the station down to lock the screw into place.

OPERATION OF THE WIRELESS WEATHER STATION

A) Viewing the Temperature (Remote and Indoor)

1. The indoor temperature will display in the Temperature portion of the LCD.

2. To View the remote temperature press and release the “RESET” button.

3. Press and release the “RESET” button to return to the indoor temperature.

B) Viewing the Rainfall

1. The rainfall total will be displayed in the Rainfall portion of the LCD.

2. To reset the rainfall total to 0.00 press and hold the “RESET” button for 3

seconds.

TROUBLESHOOTING

NOTE: For problems not solved please contact RadioShack.

Problem: The LCD is faint

Solution: Replace batteries

Problem: No outdoor temperature is displayed.

Solution:

1. Remove all batteries, reinsert into remote rain sensor first, then into the remote

temperature sensor and then into the indoor temperature station.

2. Place remote temperature sensor closer to the indoor weather station.

3. Be sure all batteries are fresh.

4. Place remote temperature sensor and indoor weather station in a position so the

straight-line signal is not passing through more than two or three walls.

Problem: Temperatures do not match if units are placed next to each other.

Solution:

Each temperature sensor is manufactured to be accurate to within 1 degree plus or

minus and under normal conditions; so two sensors could be as much as 2 degrees

different. However, the difference can be exaggerated further because the sensors are

designed for different working environments. The indoor sensor is less responsive to

ambient air currents because of the shielding effect of the display's case. In addition,

the case can act as a heat sink to absorb and store heat from external sources (i.e.

handling of the case or radiant heat). Also, the much greater range of the outdoor

temperature sensor requires a different calibration curve than the indoor range. Error

is usually greater at the extreme ends of a range, making it harder to compare different

ranges with different curves. Under non-laboratory conditions, it is difficult to

compensate for the above factors and obtain an accurate comparison.

Problem: “OFL” appears in LCD.

Solution: Follow Reset directions (total rainfall accumulation has exceeded 999.99in.).

Problem: “---” Appears in the LCD (indoor weather display has lost signal from remote rain

sensor).

Solution:

1. Follow reset directions and restart the units.

2. Ensure the distance the indoor weather display remote rain sensor is at least 6 feet

(2m) away from interfering sources on a 433 MHz signal such as computers, TV

sets, headphones, speakers, etc.

3. Move indoor weather display away from metal window frames.

MAINTENANCE AND CARE INSTRUCTIONS

•Extreme temperatures, vibration, and shock should be avoided to prevent damage to the

units.

•Clean displays and units with a soft, damp cloth. Do not use solvents or scouring agents;

they may mark the displays and casings.

•Do not submerge in water.

•Do not subject the units to unnecessary heat or cold by placing them in the oven or freezer.

•Opening the casings invalidates the warranty.

SPECIFICATIONS

Transmitting Frequency 433MHz

Measuring Temperatures

Indoor weather station

32°F to 156.2°F with 0.2 °F resolution

(0°C to 69.0°C with 0.1°C resolution)

Remote temperature sensor -21.8 °F to 156.2°F with 0.2°F resolution

(-29.9°C to 69.0°C with 0.1°C resolution)

Temperature accuracy +/- 1°F (+/- .5°C)

Transmitting range Maximum 80 feet (25m) open space

Temperature check

Indoor Every 10 seconds

Outdoor Three times in 10 minutes

Batteries—(Alkaline recommended)

Indoor weather station 2 x AA, 1.5V

Remote temperature sensor 2 x AA, 1.5V

Remote rain sensor 2 x AA, 1.5V

Dimensions: (L x W x H)

Indoor weather station

2.36 x .88 x 5.90 in. (excluding table stand)

(60 x 22.5 x 150 mm)

Remote temperature sensor

2.32 x 0.86 x 2.55 in.

(59 x 22 x 65 mm)

Remote rain sensor 5.19in diameter x 7.20in high

(132mm diameter x 183mm high)

Battery life Approximately 1 year

WARRANTY INFORMATION

La Crosse Technology provides a 1-year warranty on this indoor weather station. Contact La

Crosse Technology immediately upon discovery of any defects covered by this warranty.

Before sending the indoor weather station in for repairs, contact La Crosse Technology. The

indoor weather station will be repaired or replaced with the same or similar model.

This warranty does not cover any defects resulting from improper use, unauthorized repairs,

faulty batteries, or the indoor weather stations inability to receive a signal due to any source of

interference.

LA CROSSE TECHNOLOGY WILL NOT ASSUME LIABILITY FOR INCIDENTAL,

CONSEQUENTIAL, PUNITIVE OR OTHER SIMILAR DAMAGES ASSOCIATED WITH

THE OPERATION OR MALFUNCTION OF THIS INDOOR WEATHER STATION. THIS

PRODUCT IS NOT TO BE USED FOR MEDICAL PURPOSES OR FOR PUBLIC

INFORMATION. THIS PRODUCT IS NOT A TOY. KEEP OUT OF CHILDRENS’ REACH.

This warranty gives you specific legal rights. You may also have other rights specific to your

state. Some states do no allow the exclusion of consequential or incidental damages therefore

the above exclusion of limitation may not apply to you.

For warranty work, technical support or information contact:

La Crosse Technology

1116 South Oak Street

La Crescent, MN 55947

Phone: 507.895.7095

Fax: 507.895.8000

e-mail:

[email protected]

(warranty work)

[email protected]

(information on other products)

web:

www.lacrossetechnology.com

FCC ID: OMO-01RX (Receiver), OMO-01TX (transmitter)

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS

SUBJECT TO THE FOLLOWING TWO CONDITIONS:

1. THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND

2. THIS DEVICE MUST ACCEPT INTERFERENCE RECEIVED, INCLUDING

INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

Other manuals for WS-7047U

Table of contents

Other La Crosse Technology Weather Station manuals

La Crosse Technology

La Crosse Technology WS-2811U-IT Specification sheet

La Crosse Technology

La Crosse Technology WS-9047UIT-CA User manual

La Crosse Technology

La Crosse Technology WS6890 Operating and maintenance manual

La Crosse Technology

La Crosse Technology S75617 User manual

La Crosse Technology

La Crosse Technology 327-1417V2 Operating and maintenance manual

La Crosse Technology

La Crosse Technology 308-1412-3TXV2 User manual

La Crosse Technology

La Crosse Technology T83653v2 User manual

La Crosse Technology

La Crosse Technology Bonus Station User manual

La Crosse Technology

La Crosse Technology WS-9740U-IT-NRC User manual

La Crosse Technology

La Crosse Technology C84612 User manual

La Crosse Technology

La Crosse Technology WS-2510 User manual

La Crosse Technology

La Crosse Technology WS-7390U User manual

La Crosse Technology

La Crosse Technology WS-7048U User manual

La Crosse Technology

La Crosse Technology WEATHER DIRECT WD-3105U User manual

La Crosse Technology

La Crosse Technology C85845v4 User manual

La Crosse Technology

La Crosse Technology TX231RW User manual

La Crosse Technology

La Crosse Technology WS-9066U-IT User manual

La Crosse Technology

La Crosse Technology Wireless Weather Station User manual

La Crosse Technology

La Crosse Technology WS-7013U-IT User manual

La Crosse Technology

La Crosse Technology 308-1414B User manual

La Crosse Technology

La Crosse Technology WS-9133U-IT User manual

La Crosse Technology

La Crosse Technology T83653v2 User manual

La Crosse Technology

La Crosse Technology WS-1913U-IT User manual

La Crosse Technology

La Crosse Technology 308-1425BV3 User manual

Popular Weather Station manuals by other brands

Auriol

Auriol AHFL 433 A1 operating instructions

NexSens

NexSens G2-HYDROMET quick start

Hyundai

Hyundai WS 2202 instruction manual

IROX

IROX HBVR761 UV-X user manual

ADE

ADE WS 1711 operating instructions

Auriol

Auriol z29592 Operation and safety notes

Auriol

Auriol 296289 Operation and safety notes

Hyundai

Hyundai WS 2266 instruction manual

Ventus

Ventus W177 owner's manual

National Geographic

National Geographic VA Colour RC instruction manual

Renkforce

Renkforce 1208067 operating instructions

Levenhuk

Levenhuk Discovery Report WA40 quick start guide

Instant Transmission

Instant Transmission MA 10410 instruction manual

Lutron Electronics

Lutron Electronics PHB-318 Operation manual

WAREMA

WAREMA EWFS Weather station eco Operating and installation instructions

TFA

TFA 30.3013.IT instruction manual

Alecto

Alecto WS-1200 user manual

Oregon Scientific

Oregon Scientific RMR966PA instruction manual
