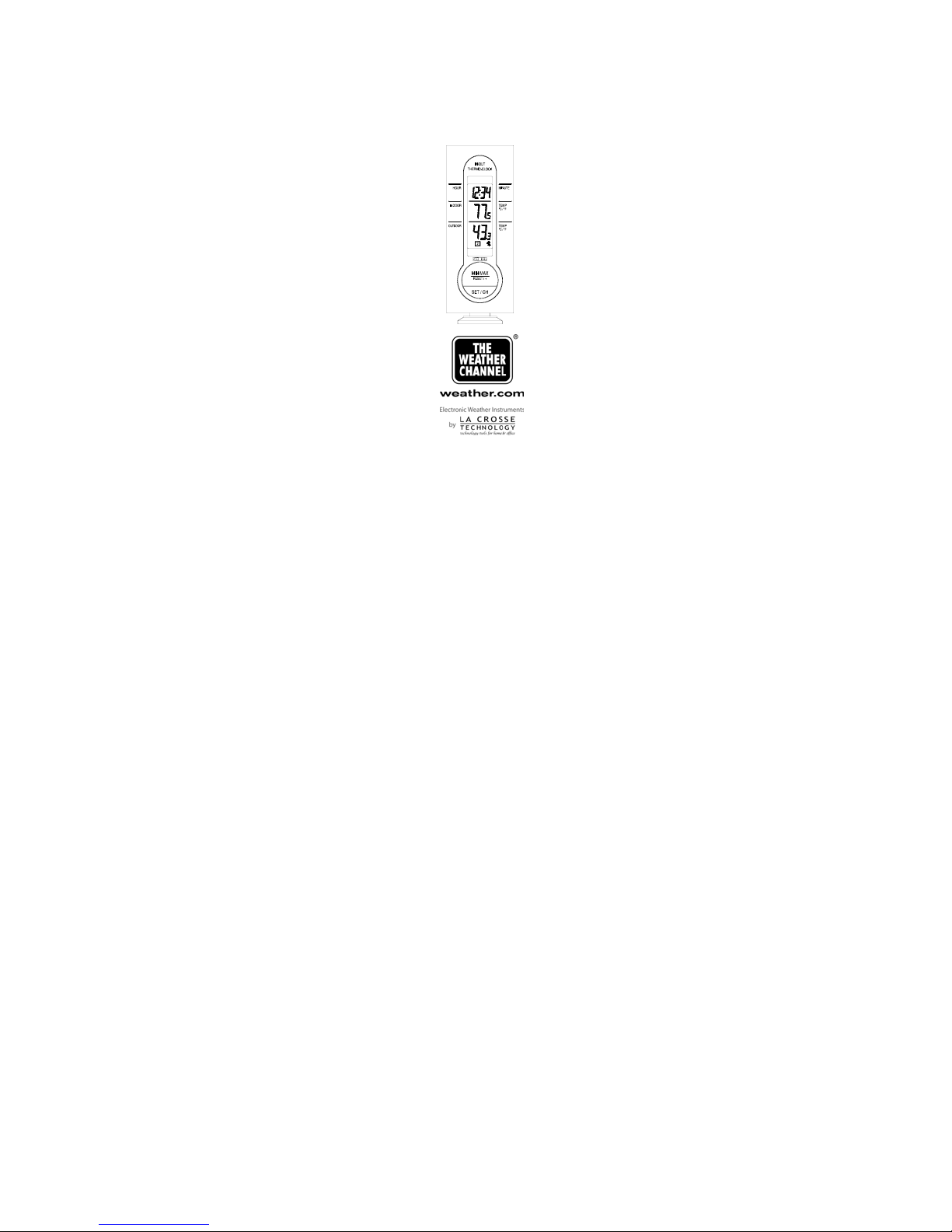

La Crosse Technology WS-7034TWC User manual

WS-7034TWC

Wireless 433 MHz

Temperature Station

Instruction Manual

TABLE OF CONTENTS

Topic Page

Quick Setup 3-5

Inventory of Contents 6-7

Detailed Setup Guide

Battery Installation 8

Setting the Time 9-10

Selecting Units of

Measurement

Features

Minimum and Maximum

Temperatures

Resetting Minimum and

Maximum Temperatures

Adding additional remote

temperature sensors

(optional)

13-14

Mounting 15-16

Troubleshooting 17-18

Maintenance and Care 19

Specifications 20-21

Warranty Information 22-25

QUICK SETUP

Hint: Use good quality Alkaline

Batteries and avoid rechargeable

batteries.

1. Have the indoor temperature station

and remote temperature sensor 3 to

5 feet apart.

2. Batteries should be out of both

units for 10 minutes.

3. Place the batteries into the remote

temperature sensor first then into

the indoor temperature station.

(All remote temperature sensors must be

started before the indoor temperature

station)

4. DO NOT PRESS ANY BUTTONS

FOR 10 MINUTES.

In this time the indoor temperature

station and remote temperature sensor

will start to talk to each other and the

display will show both the indoor

temperature and an outdoor temperature.

If the indoor temperature station does

not display both temperatures after the

10 minutes please retry the set up as

stated above. After both indoor and

outdoor temperatures are displayed for

10 minutes you can place your remote

temperature sensor outdoors and set

your time.

The remote temperature sensor should

be placed in a dry, shaded area. The

remote temperature sensor has a range

of 80 feet. Any walls that the signal

will have to pass through will reduce

distance. An outdoor wall or window

will have 20 to 30 feet of resistance and

an interior wall will have 10 to 20 feet

of resistance. Your distance plus

resistance should not exceed 80 ft. in a

straight line.

NOTE: Fog and mist will not harm

your remote temperature sensor but

direct rain must be avoided.

To complete the set up of your indoor

temperature station after the 10 minutes

have passed please follow the steps on

pages 8-9.

INVENTORY OF CONTENTS

1. The indoor temperature station (Figure

2. The remote temperature sensor (TX6U)

and mounting bracket. (Figure 2)

3. 3 each, 1/2” Philips screws.

4. One strip of double sided adhesive tape.

5. Instruction Manual and Warranty Card.

Figure 1

Holder

Figure 2

DDITIONAL EQUIPMENT

crewdriver.

batteries.

(not included)

1. 1 Philips s

2. 2 Fresh AAA Alkaline

3. 2 Fresh AA Alkaline batteries

Battery

DETAILED SETUP GUIDE

attery Installation

ure

cur.

ure

1. Install 2 AA

batteries in th

remote temperat

sensor. Make sure

they do not spring

free, or start-up

problems may oc

Install 2 AAA

batteries in the

indoor temperat

station. Do not

press any butto

for at least ten

minutes.

Cover

Setting the Time

ld the

2e the “MIN/MAX”

3“SET” button 2

4lease the “MIN/MAX”

5ET” button to

6/MAX”

7”button to

ote: When in 12h mode, there is only a

.”

1. Press and ho

“SET” button for 5

second, “12h” will

appear in the TIME

LCD.

. Press and releas

button to select either 12h time

(am/pm) or 24h time

. Press and release the

times, the hour will flash in the upper

left corner.

. Press and re

button to set the hours

. Press and release the “S

move to the minute setting

. Press and release the “MIN

button to set the minutes.

. Press and release the “SET

activate the clock.

“PM” display, which appears under “TIME

If there is no display here it is AM. Make

sure you set the time accordingly.

Selecting Units of Measurement

1. Press and hold the “SET” button for 5

second until “12h” or “24h” appears

in the TIME LCD.

2. Press and release the “SET” button

again, “°F” will appear in the TIME

LCD.

3. Press and release the “MIN/MAX”

button to shift between °F and °C.

4. Press and release the “SET” button

twice to activate settings.
