La Crosse Technology WS-7013U User manual

WS-7013U

Wireless 433 MHz

Temperature Station

Instruction Manual

7,0(

TABLE OF CONTENTS

Topic Page

Inventory of Contents 1

Quick Setup 2

Detailed Setup Guide

Battery Installation 3-4

Setting the Time 5

Selecting Units of

Measurement

Features

Minimum and Maximum

Temperatures

6-7

Resetting Minimum and

Maximum Temperatures

Additional remote control

senders (optional)

7-10

Mounting 10-11

Troubleshooting 12-14

Maintenance and Care 14-15

Specifications 15-16

Warranty Information 17-19

INVENTORY OF CONTENTS

1. The Indoor Temperature Station (Figure

2. The Remote Control Sensor (TX2U)

and mounting bracket. (Figure 2)

3. 3 each, 1/2” Philips screws.

4. One strip of double sided adhesive tape.

5. Instruction Manual and Warranty Card.

ADDITIONAL EQUIPMENT

(not included)

ure 1

Figure 2

1. 1 Philips screwdriver.

2. 2 Fresh AAA 1.5V batteries.

3. 2 Fresh AAA 1.5V batteries.

QUICK SETUP

1. Insert two AAA batteries into the

Remote Control Sender.

2. Insert two AAA batteries into the

Indoor Temperature Station.

3. Wait 5-6 minutes, or until the outdoor

temperature is displayed in the

OUTDOOR LCD of the Temperature

Station.

4. Set the Time

5. Mount units.

(See complete instructions for details).

Note: The Remote Control Sender transmits

a signal every 3 minutes. After the batteries

have been installed, the Indoor Temperature

Station searches for these signals for a

duration of 6 minutes. If there is no

temperature reading in the OUTDOOR LCD

after 6 minutes, make sure the units are

within range of each other, or repeat battery

installation process.

DETAILED SETUP GUIDE

I. BATTERY INSTALLATION

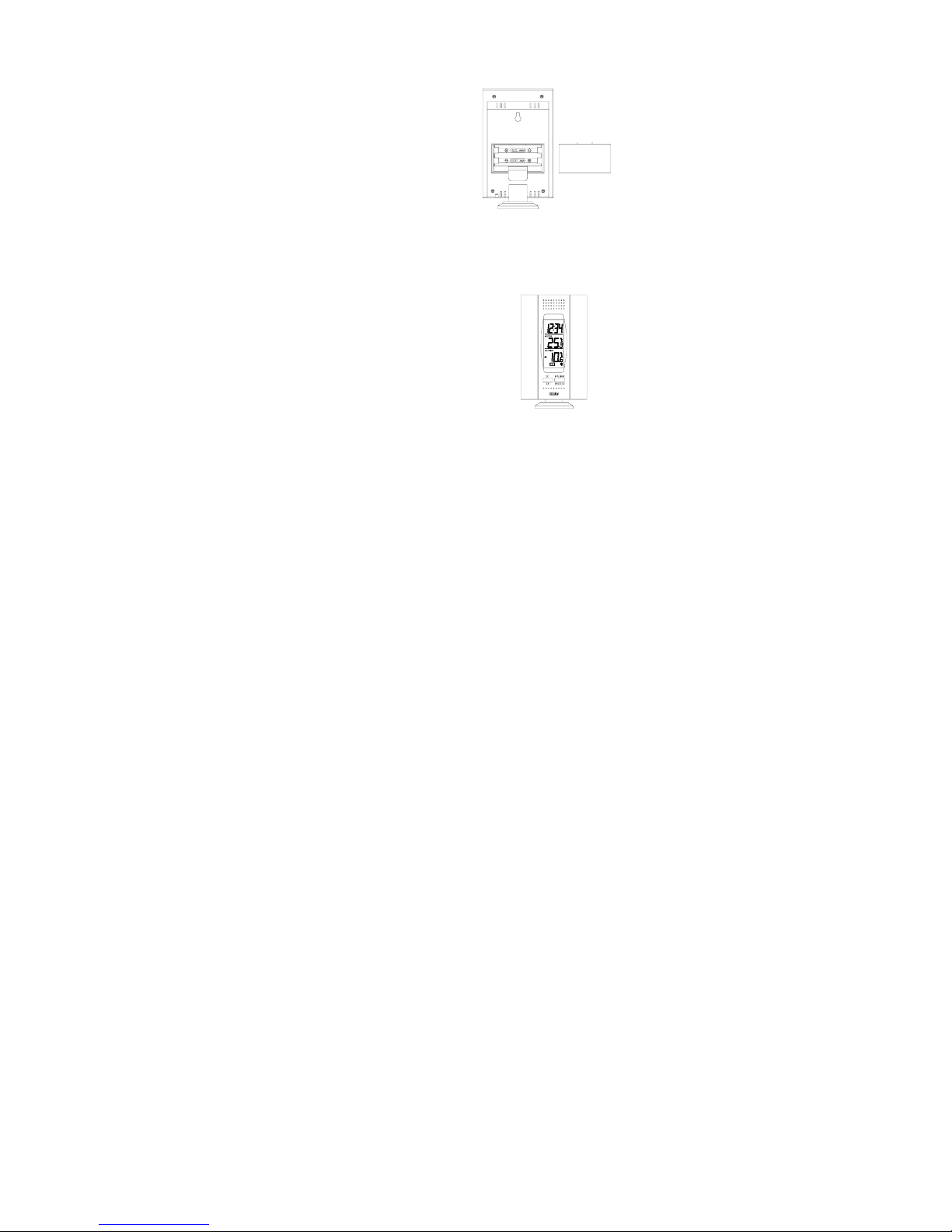

A. REMOTE CONTROL SENDER

Battery cover

Battery compartment

1. Remove the mounting bracket.

2. Remove battery cover

3. Observing the correct polarity, install

2 AAA batteries—make sure they do

not spring free, or start-up problems

may occur. Replace cover.

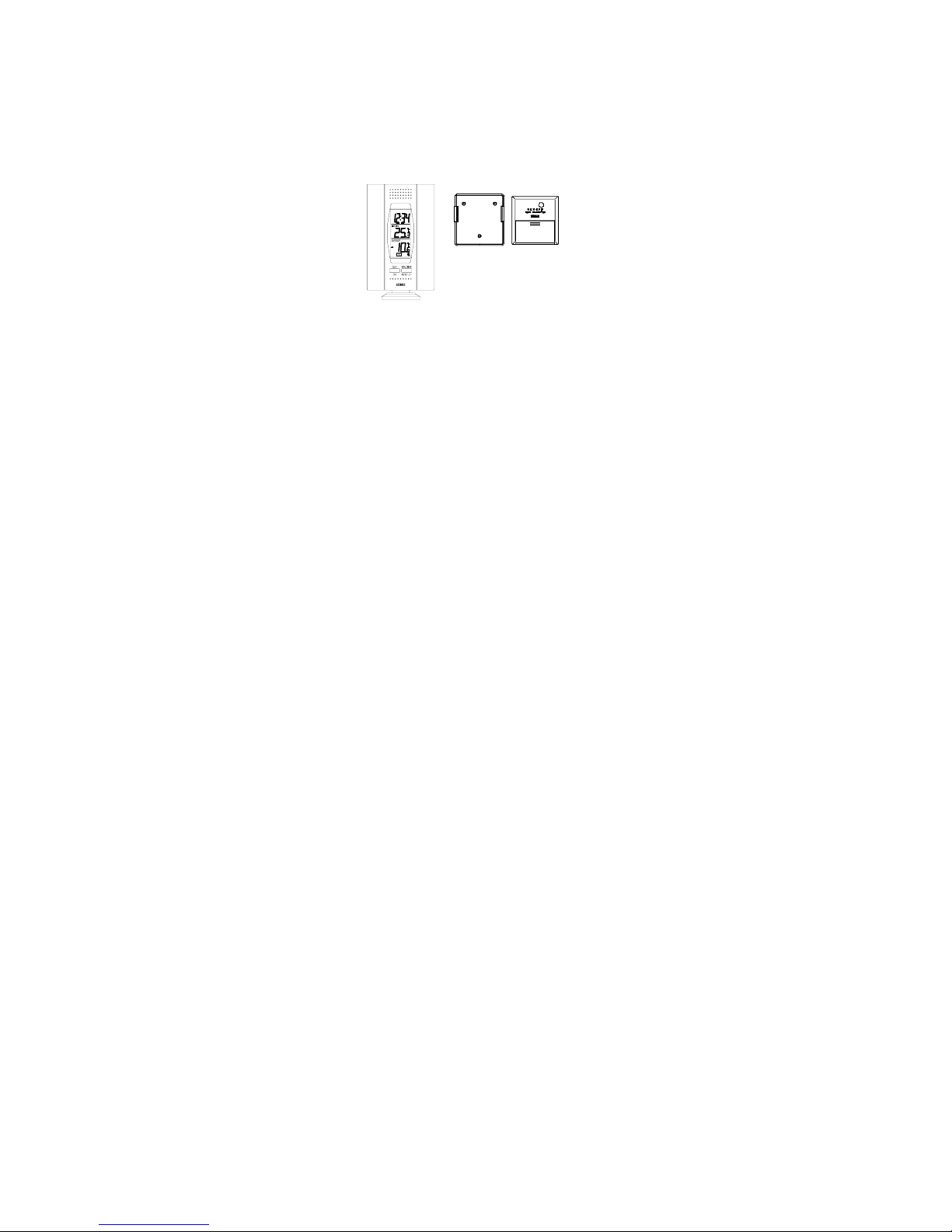

B. TEMPERATURE STATION

Note: After the batteries are installed, DO

NOT press any buttons. This may interfere

with the signals, causing temperatures to

1. Remove the battery cover on the

backside. To do this, push up and pull

out.

2. Observing

the correct

polarity,

install 2 AA

batteries.

3. Replace

battery

cover.

4. Wait 5-6 minutes or until both indoor

and outdoor temperatures are shown

on the Indoor Temperature Station.

Battery

Cover

5. The Temperature

Station should now

show: “-:- -” in the

TIME LCD, and

temperatures in the

INDOOR and

OUTDOOR

LCD’s.

7,0(

II. TIME

A. SETTING THE TIME

1. Press and

hold the SET

button for 1

second. “12h”

will appear in the TIME LCD.

2. Use the MIN/MAX button to select

either 12h time (am/pm) or 24h time

3. Press the SET button 2 times, the hour

will flash in the upper left corner.

4. Press the MIN/MAX button to set the

hours, press the SET button, and press

the MIN/MAX button to set the

minutes.

5. Press the SET button to activate the

clock.

Note: When in 12h mode, there is only a

“PM” display, which appears under “TIME.”

If there is no display here it is AM. Make

sure you set the time accordingly.

III. UNITS OF TEMPERATURE

MEASURE

A. SELECTING UNITS OF

MEASUREMENT

1. Press and hold the SET button for 1

second.

2. Press the SET button again. “°F” will

appear in the TIME LCD.

3. Press the MIN/MAX button to shift

between °F and °C.

4. Press the SET button twice to activate

settings.

IV. FEATURES

A. MINIMUM AND MAXIMUM

TEMPERATURES

1. Press the MIN/MAX button. “MIN”

appears in the temperature LCD’s and

the recorded minimum temperatures

are displayed.

2. Press the MIN/MAX button to toggle

to the maximum temperatures. The

time of occurrence of the value for

outdoor temperature will also flash.

B. RESETTING THE MINIMUM AND

MAXIMUM TEMPERATURES

1. To reset both the minimum and

maximum temperatures—press and

hold the RESET/+ button for 4

seconds.

C. ADDING ADDITIONAL

REMOTE CONTROL SENDERS

(OPTIONAL)

1. The WS-7013U is able to receive

signals from 3 different Remote

Control Senders. Following are some

brief instructions for the basic set-up

of Remote Control Sender units with

the WS-7013U. These extra sensors

can be purchased through the same

dealer as this unit, or by contacting

La Crosse Technology directly. A

TX2U will monitor temperature only,

a TX3U will monitor temperature and

display the temperature on its LCD,

and the TX3UP will monitor the

temperature via a probe for use in

pools, spas, etc.

2. Note: When setting up multiple

units it is important to remove the

batteries from all existing units in

operation, then to insert batteries first

into all the Remote Control Sender

units, and in numeric sequence.

Second, install batteries into the

Indoor Temperature Station.

Transmission problems will arise if

this is not done correctly and if the

total time for set-up exceeds 6

minutes.

3. It is necessary to remove the batteries

from all units currently in operation.

4. Remove the battery covers to all

Remote Control Sender units.

5. Place all Remote Control Sender units

in a numeric sequential order.

6. In sequential order, install batteries

(follow the same battery installation
