La Crosse Technology S88907V2 User manual

WIRELESS COLOR WEATHER STATION 1 | PAGE

WIRELESS COLOR

WEATHER STATION

INSTRUCTION MANUAL

MODELS: S88907V2

DC: 011020

For more product information visit: bit.ly/laxtech_support

WIRELESS COLOR WEATHER STATION 2 | PAGE

TABLE OF CONTENTS

3. Power Up

3. Settings Menu

4. WWVB Atomic Time Signal

5. Alarm

5. Adjustable Backlight

5. Temperature Alerts

6. Weather Forecast Icons

6. Forecast Tendancy Arrows

7. Indoor Comfort Indicator

7. Heat Index & Dew Point

7. MIN/MAX Records

7. Temperature Trend Arrows

8. Sensor Search

8. Change Batteries

8. Sensor Weather Shield

9. We’re Here to Help!

9. Join the Conversation

9. Care and Maintenance

10. Speciﬁcations

10. Warranty Info

11. FCC Statement

WIRELESS COLOR WEATHER STATION 3 | PAGE

POWER UP

1. Insert 2-AA batteries into your Outdoor Sensor.

2. Insert the 5 volt power cord into an outlet, then into your Weather Station. Optional: Insert 3-AAA batteries

for backup.

3. Adjust time and date settings on your display.

4. Once the Outdoor Sensor is reading to your station, place it outside in a shaded location.

Watch sensor mounting video: http://bit.ly/TH_SensorMounting

Outdoor Sensor

TX141TH-Bv3

Weather Station

S88907v2

SETTINGS MENU

It is best to press one button at a time when setting your station.

1. Hold the TIME SET button to enter the Settings Menu.

2. Press the ARROW buttons to adjust the values. Hold to adjust quickly.

3. Press the TIME SET button to conﬁrm and move to the next

menu item.

Settings Menu Order:

• WWVB ON/OFF

• Time Zone

• DST ON/OFF

• 12/24 Hour

• Hour

• Minutes

• Year

• Month

• Date

• Fahrenheit or Celsius

Note: Your weekday will set automatically after year, month, and date are set.

Time Zones

AST = Atlantic

EST = Eastern

CST = Central

MST = Mountain

PST = Paciﬁc

AKT = Alaska

HAT = Hawaii

WIRELESS COLOR WEATHER STATION 4 | PAGE

To begin:

1.WWVB ON/OFF: Hold the TIME SET button ﬁve seconds so WWVB and the word ON will ﬂash. Press and

release either ARROW button to turn this to OFF if you do not wish WWVB time reception. Conﬁrm with

the TIME SET button and move to time zone.

2.TIME ZONE: EST will ﬂash. Press and release the ▲ or ▼ buttons to select a dierent Time Zone:

AST=Atlantic, EST= Eastern, CST= Central, MST= Mountain, PST= Paciﬁc, AKT= Alaska, HAT=Hawaiian

time zone. Conﬁrm with the TIME SET button and move to DST.

3. DAYLIGHT SAVING TIME: DST will ﬂash and the word ON. Press and release the ▲ or ▼ buttons to turn

this to OFF if you do not observe DST. Conﬁrm with the TIME SET button and move to 12/24 hour time.

4. 12/24 HOUR TIME: 12H will ﬂash. Press and release the ▲ or ▼ buttons to select 24H. Conﬁrm with the

TIME SET button and move to the hour.

5.HOUR: The hour will ﬂash. Press and release the ▲ or ▼ buttons to select the correct hour. Conﬁrm with

the TIME SET button and move to the minutes.

6.MINUTES: The minutes will ﬂash. Press and release the ▲ or ▼ buttons to adjust the minutes. Conﬁrm with

the TIME SET button and move to the year.

7. YEAR: The year will ﬂash. Press and release the ▲ or ▼ buttons to select the correct year. Conﬁrm with

the TIME SET button and move to the month.

8.MONTH: The month will ﬂash. Press and release the ▲ or ▼ buttons to select the correct month. Conﬁrm

with the TIME SET button and move to the date.

9. DATE: The date will ﬂash. Press and release the ▲ or ▼ buttons to select the correct date. Conﬁrm with

the TIME SET button and move to F/C.

Note: The Day of the Week will set automatically when the year, month and date are set.

10. FAHRENHEIT/CELSIUS: °F will ﬂash. Press and release the ▲ or ▼ buttons to select Fahrenheit or

Celsius. Conﬁrm with the TIME SET button and exit.

Note: When no buttons are pressed for ten seconds, the weather station will save the last change and

default back to normal mode.

WWVB ATOMIC TIME SIGNAL

• Press and release the TIME SET button to manually search for the WWVB Atomic Time Signal. Tower

Icon will ﬂash while searching.

• Press and release the TIME SET button to stop a search.

• For information about WWVB Atomic Time visit: http://bit.ly/AtomicTime

WIRELESS COLOR WEATHER STATION 5 | PAGE

Set Alarm:

1. Hold the ALARM button until the Alarm Hour begins to ﬂash.

2. Press the ARROW buttons to adjust values, hold to adjust quickly.

3. Press the ALARM button to conﬁrm and move to the Alarm Minutes.

4. Use the ARROW buttons again to adjust, and press ALARM to conﬁrm and activate the alarm.

This station uses a crescendo alarm, which will increase in volume over time. If no buttons are pressed

within 2 minutes, it will shut o automatically.

Activate/Deactivate Alarm:

• Press and release the ALARM button to deactivate or activate the alarm. The alarm time will show for 2

seconds.

• Alarm Icon (bell) and ALARM ON will show when active.

• ALARM OFF will show when inactive.

Snooze:

• When alarm sounds, press the SNOOZE/LIGHT button to silence alarm for 10 minutes.

• The Alarm Icon Zz will ﬂash

• Press any button except SNOOZE/LIGHT to silence the alarm for 24 hours

ALARM

ADJUSTABLE BACKLIGHT

Your Backlight may be turned OFF and adjusted to 2 levels of brightness.

To adjust brightness:

•Press and release the HI/LOW/OFF button to adjust backlight brightness.

TEMPERATURE ALERTS

Set Alerts:

1. Hold the ALERTS button for 3 seconds.

2. The temperature alert value will blink in set mode.

3. Press and release the ▼ or ▲ buttons to adjust alert values.

4. Press and release the ALERTS button to conﬁrm & move to the next alert.

The temperature alert order:

1. Outdoor High 2. Outdoor Low 3. Indoor High 4. Indoor Low

Press and release the ALERTS button to exit, or wait 20 seconds without pressing buttons to return to nor-

mal time display

WIRELESS COLOR WEATHER STATION 6 | PAGE

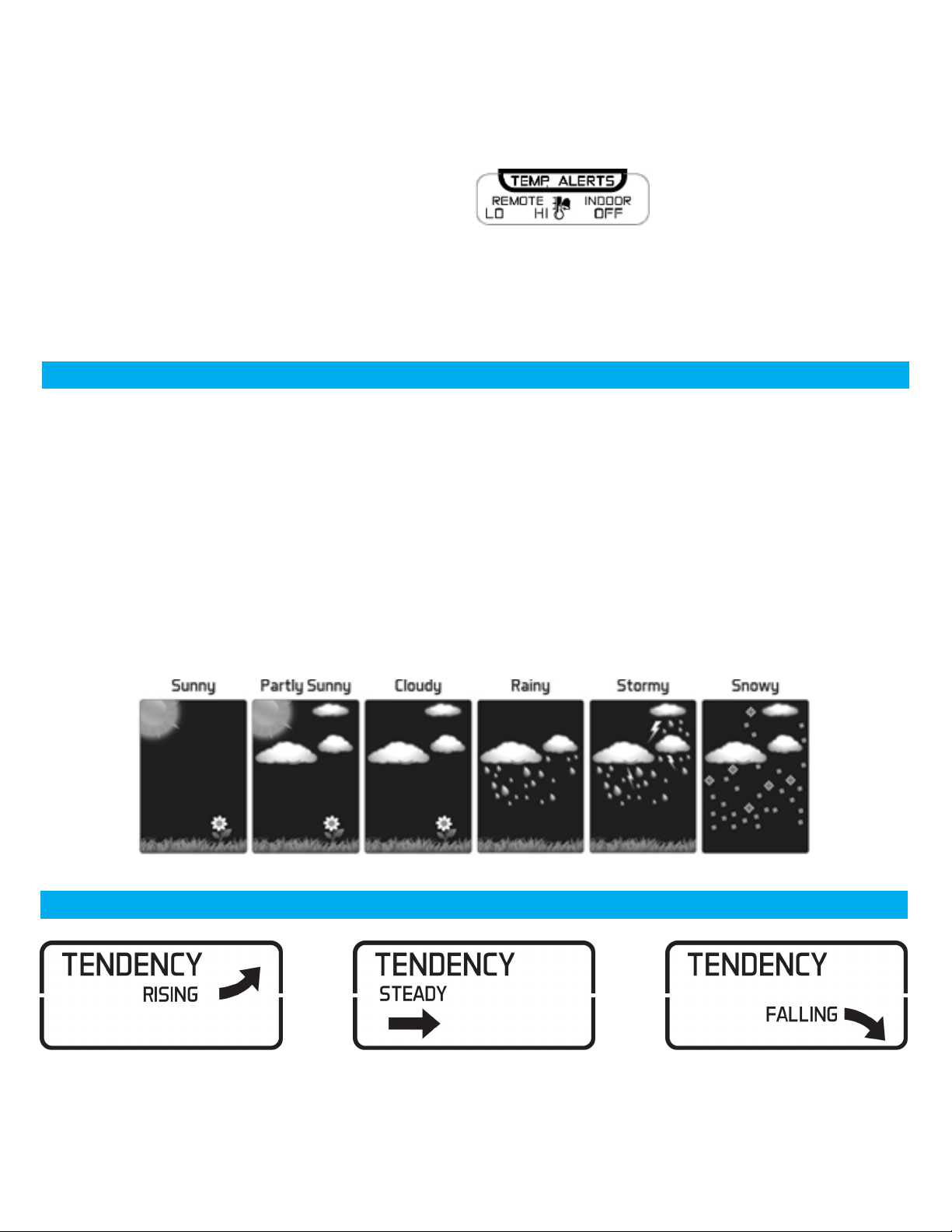

Arm/Disarm Alerts:

Press and release the ALERTS button to toggle between the alerts Outdoor HI / Outdoor LOW / Indoor HI /

Indoor LOW

• Arm the alert with the ▲button.

• Disarm the alert with the ▼ button.

• ALERT BELL ICON appears when armed.

Active Temperature Alert:

• Beeps once per minute with ﬂashing alert bell icon.

• Press any button to stop the alert.

WEATHER FORECAST ICONS

• The Weather Forecast Icons are determined by the station’s barometric pressure reading. Please allow

7-10 days for barometric calibration.

• This is your pressure at your stations’ location and may vary slightly from your local reporting station.

• Six forecast icons use changing atmospheric pressure to predict weather conditions for the next 12-hours

with 70-75% accuracy.

• When Outdoor temperature is below 32˚F and the forecast is RAIN or T-STORM, the station will display

SNOW.

FORECAST TENDANCY ARROWS

The Forecast Tendancy Arrows tell you at a glance if the pressure is rising, falling or steady.

Rising pressure indicates the weather will improve. Falling pressure indicates the weather will worsen.

WIRELESS COLOR WEATHER STATION 7 | PAGE

HEAT INDEX & DEW POINT

MIN/MAX RECORDS

• Press the HEAT/DEW button once to view Heat Index.

• Press the HEAT/DEW button again to view Dew Point Temperature.

The station automatically resets minimum and maximum values daily at midnight (12:00 AM).

• Press and release the ▼ button to view minimum values.

• Hold the ▼ button for 5 seconds to reset minimum values.

• Press and release the ▲ button to view maximum values.

• Hold the ▲ button for 5 seconds to reset maximum values.

TEMPERATURE & HUMIDITY TREND ARROWS

• The UP and DOWN arrows indicate changes in temperature and humidity over the past 3 hours. The

STEADY arrow indicates no change in the past 3 hours.

• The arrows will update every 30 minutes and compare data from exactly 3 hours prior.

Temperature: Arrow changes every 2 degrees Fahrenheit.

Humidity: Arrow changes every 3% RH

INDOOR COMFORT INDICATOR

The indoor comfort display reads the indoor humidity to determine comfort level.

The weather station will display one of ﬁve indicators:

WIRELESS COLOR WEATHER STATION 8 | PAGE

CHANGE BATTERIES

We designed this station for convenience, so that a simple change of batteries does not lose your data or

require you to power down your station.

Sensor:

1. When Battery Indicator shows next to the Outdoor Temperature, replace batteries in your Outdoor

Sensor.

2. Then hold the HEAT/DEW button for 3 seconds and your station will search for your sensor.

Station:

1. When Battery Indicator shows next to the Indoor Temperature, change batteries in the station.

2. When changing the batteries in the station, continue using the power cord. After replacing the batteries,

no other action is needed. The batteries in the station only maintain time/date in the event of a power

outage.

SENSOR SEARCH

• If you are seeing dashes in place of outdoor temperature, ﬁrst check your sensor batteries.

• Hold the HEAT/DEW button for 3 seconds to search for the sensor. Sensor Reception icon will ﬂash while

searching and be solid when sensor signal is received.

• If you regain connection while the sensor is mounted, great. If you do not regain connection, bring the

sensor within 10 feet of the station and search again.

Note:

• If the signal is lost, the station will display the last data recorded from sensor for 10 minutes.

• After that 10 minutes if the signal does not come back then you will see dashes “--”.

• After 30 minutes, start looking for the sensor signal automatically.

SENSOR WEATHER SHIELD-NOT INCLUDED

The Sensor Weather Shield is designed to protect your outdoor sensor from rain and snow. This shield will

oer limited protection from the sun’s heat. Purchase at: http://bit.ly/925-1418

Sold separately

WIRELESS COLOR WEATHER STATION 9 | PAGE

If you require additional support, get in touch with our friendly customer support team based out of La

Crosse, WI.

Phone: 1-608-782-1610

Online: bit.ly/contact_techsupport

Our knowledgeable customer support team is available:

Monday-Friday, 8am-6pm CST.

WE’RE HERE TO HELP!

JOIN THE CONVERSATION

CARE AND MAINTENANCE

• Do not mix old and new batteries.

• Do not mix Alkaline, Standard, Lithium, or Rechargeable batteries.

• Always purchase the correct size and grade of battery most suitable for intended use.

• Replace all batteries of a set at the same time.

• Clean the battery contacts and also those of the device prior to battery installation.

• Ensure the batteries are installed with correct polarity (+ and -).

• Remove batteries from equipment which is not to be used for an extended period of time.

• Promptly remove expired batteries.

Ask questions, watch detailed setup videos, and provide feedback on our social media outlets!

WIRELESS COLOR WEATHER STATION 10 | PAGE

SPECIFICATIONS

La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of purchase) on this product

relating to manufacturing defects in materials & workmanship.

La Crosse Technology, Ltd, 2830 S. 26th St., La Crosse, WI 54601

For Full Warranty Details, Visit: www.lacrossetechnology.com/support

WARRANTY INFO

Indoor:

Temperature Range: 32°F to 122°F (0°C to 50°C)

Humidity Range: 10% - 99% RH

Outdoor:

Temperature Range: -40°F to 140°F (-40°C to 60°C)

Humidity Range: 10% - 99% RH

Transmission Range: over 330 feet (100 meters) in open air RF 433MHz

Power Requirements:

S88907v2: 5-volt power adapter (included) AC6: GPU280500150WA00

Optional: 3 “AAA” LR6 Batteries (not included)

TX141TH-Bv3: 2 “AA” LR6 Batteries (not included)

Battery Life:

S88907v2: over 36 months with power cord as primary power

TX141TH-Bv3: over 12 months with reputable batteries

Dimensions:

S88907v2: 8.34” L x 1.03” W x 5.48” H (21.18cm L x 2.62cm W x 13.92cm H)

TX141TH-Bv3: 1.57” L x 0.82” W x 5.11” H (3.98cm L x 2.08cm W x 12.98cm H)

Other manuals for S88907V2

Table of contents

Other La Crosse Technology Weather Station manuals

La Crosse Technology

La Crosse Technology WS6827 User manual

La Crosse Technology

La Crosse Technology CA86515 User manual

La Crosse Technology

La Crosse Technology WW85777 Operating and maintenance manual

La Crosse Technology

La Crosse Technology 9730IT User manual

La Crosse Technology

La Crosse Technology 308-1412-3TX Dimensions

La Crosse Technology

La Crosse Technology WS-8035U-IT User manual

La Crosse Technology

La Crosse Technology WS-9125TWC-IT User manual

La Crosse Technology

La Crosse Technology WS-3610-SAL User manual

La Crosse Technology

La Crosse Technology WS-2317 Specification sheet

La Crosse Technology

La Crosse Technology 308A-146 User manual

La Crosse Technology

La Crosse Technology WS-9611U-IT Manual

La Crosse Technology

La Crosse Technology C85845 User manual

La Crosse Technology

La Crosse Technology 308-146 User manual

La Crosse Technology

La Crosse Technology C84428 User manual

La Crosse Technology

La Crosse Technology C79790V2-BBQ1 Installation guide

La Crosse Technology

La Crosse Technology T83646 User manual

La Crosse Technology

La Crosse Technology Wireless Weather Station User manual

La Crosse Technology

La Crosse Technology C84343 Operating and maintenance manual

La Crosse Technology

La Crosse Technology S84107V2 User manual

La Crosse Technology

La Crosse Technology K86319 User manual

La Crosse Technology

La Crosse Technology 919-186-60WH Dimensions

La Crosse Technology

La Crosse Technology WS-7390U User manual

La Crosse Technology

La Crosse Technology WS-9032U User manual

La Crosse Technology

La Crosse Technology 328-47577 User manual

Popular Weather Station manuals by other brands

Auriol

Auriol AHFL 433 A1 operating instructions

NexSens

NexSens G2-HYDROMET quick start

Hyundai

Hyundai WS 2202 instruction manual

IROX

IROX HBVR761 UV-X user manual

ADE

ADE WS 1711 operating instructions

Auriol

Auriol z29592 Operation and safety notes

Auriol

Auriol 296289 Operation and safety notes

Hyundai

Hyundai WS 2266 instruction manual

Ventus

Ventus W177 owner's manual

National Geographic

National Geographic VA Colour RC instruction manual

Renkforce

Renkforce 1208067 operating instructions

Levenhuk

Levenhuk Discovery Report WA40 quick start guide

Instant Transmission

Instant Transmission MA 10410 instruction manual

Lutron Electronics

Lutron Electronics PHB-318 Operation manual

WAREMA

WAREMA EWFS Weather station eco Operating and installation instructions

TFA

TFA 30.3013.IT instruction manual

Alecto

Alecto WS-1200 user manual

Oregon Scientific

Oregon Scientific RMR966PA instruction manual
