Kyocera KM-4800w User manual
Print Client KM
User’s Manual
1
Regarding this manual
This manual explains how to install Print Client KM and how to use it.
Print Client KM can be used with Microsoft Windows 2000 and Windows XP.
The intended user of this manual is whom already is aware of Windows 2000 and Windows XP
basic operation of “start button”, “task bar”, “mouse”, and “keyboard”.
If a user does not have such a background, please refer to operation manual included in the
Windows 2000 and Windows XP.
2
Index
1. CONFIGURATION............................................................................. 3
2. INSTALLATION METHOD................................................................. 4
3. REGISTRATION OF PLOTTER ........................................................ 8
4. BASIC OUTPUT PROCEDURE FROM PRINT CLIENT KM ........... 11
4.1. STEP 1: Selection of Output printer ............................................................................... 11
4.2. STEP 2: Output Setting .................................................................................................. 11
4.3. STEP 3: Registration of output file. ................................................................................ 11
4.4. STEP 4: Print starts........................................................................................................ 12
5. OPERATING PRINT CLIENT KM.................................................... 13
5.1. Explanation of Main Window ........................................................................................... 13
5.2. Explanation of Custom Size Dialog Box.......................................................................... 27
5.3. Explanation of Stamp Setting Dialog Box........................................................................ 28
5.4. Explanation of Image Placement Dialog Box .................................................................. 31
5.5. Explanation of HPGL Setting Dialog Box ........................................................................ 32
5.6. Explanation of Calcomp Setting Dialog Box.................................................................... 34
5.7. Explanation of Header Setting Dialog Box ...................................................................... 36
3
1. Configuration
PC Hardware requirement to install Print Client KM is as follows.
OS (Operation System)
Operation guaranteed models, which are equivalent to IBM PC-AT (DOS/V machine), such as
Microsoft Windows 2000 and Microsoft Windows XP.
CPU
Celeron 400 MHz or faster is recommended.
System Memory
256 MB or more is recommended.
Hard Disk
10 GB or more is recommended.
4
2. Installation Method
Install KM-4800w Printer Driver prior to install Print Client KM.
Installation Procedure of Print Client KM
1. Insert Installation Disk in CD-ROM driver.
2. Double click ”Print Client KM.exe”, which is included in the following shown directory of the
disk, and then installation starts.
\Software\Print Client KM\

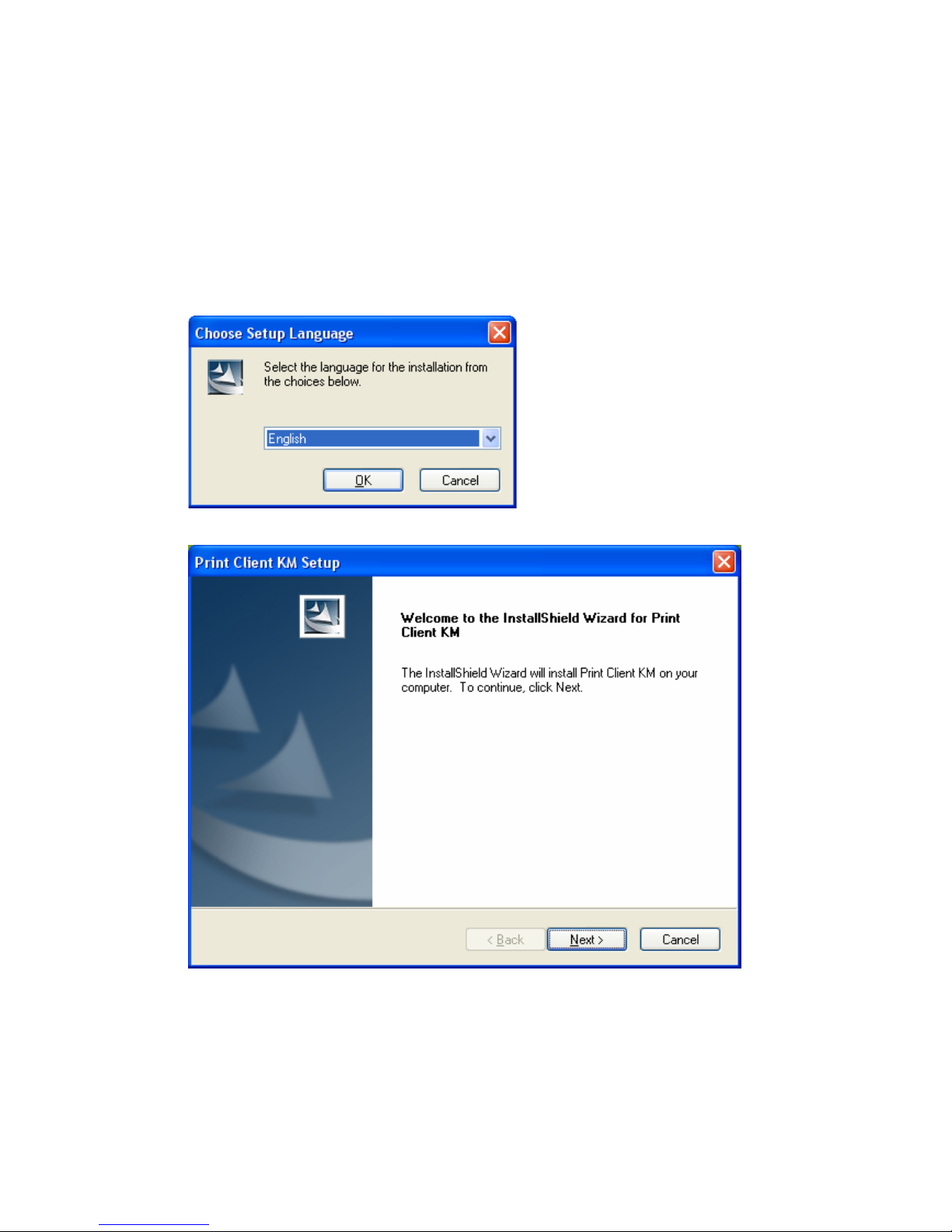

3. Select Setup Language, and click [OK]
4. Click [Next]
5

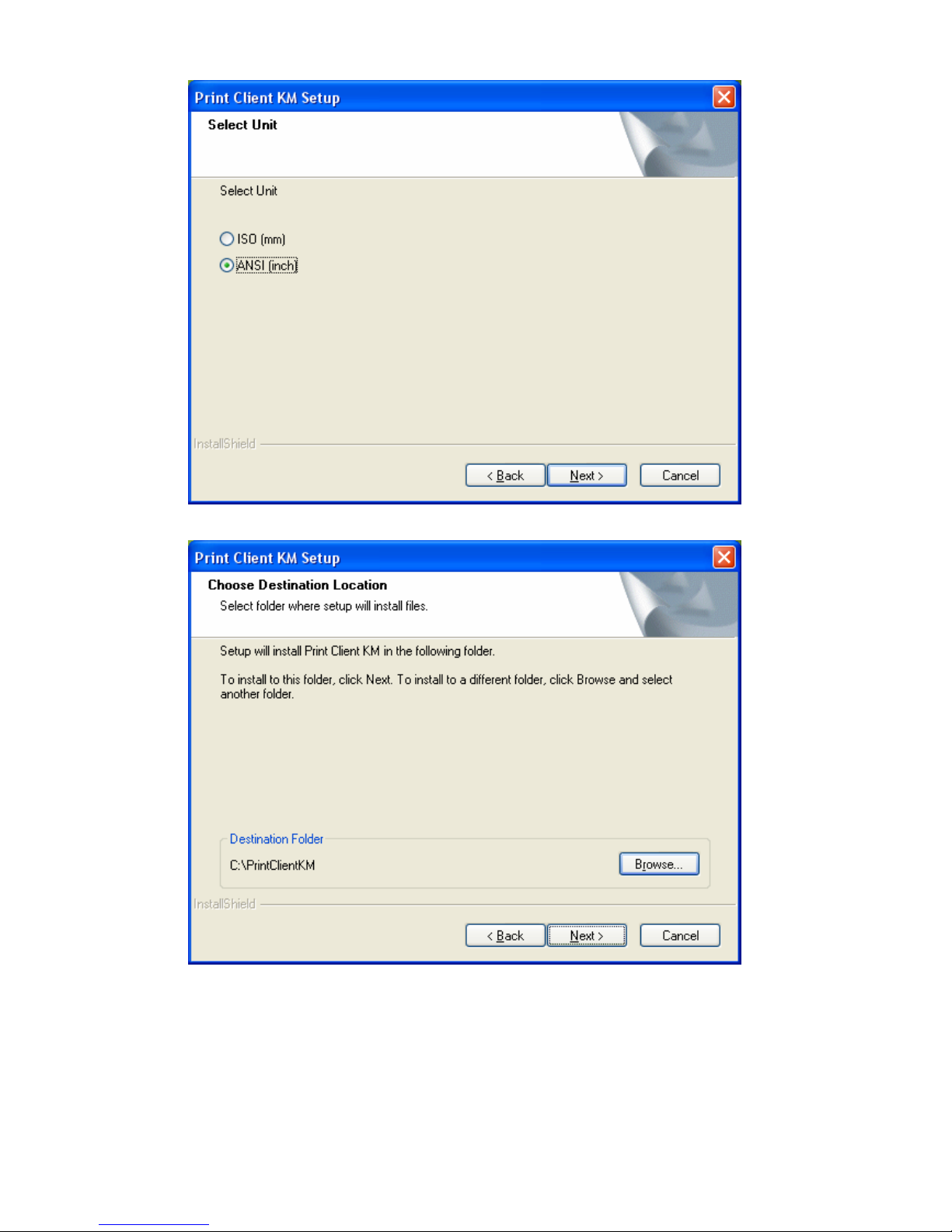

5. Select Unit, and then click [Next].
6. Select the folder to be installed, and then click [Next].
6

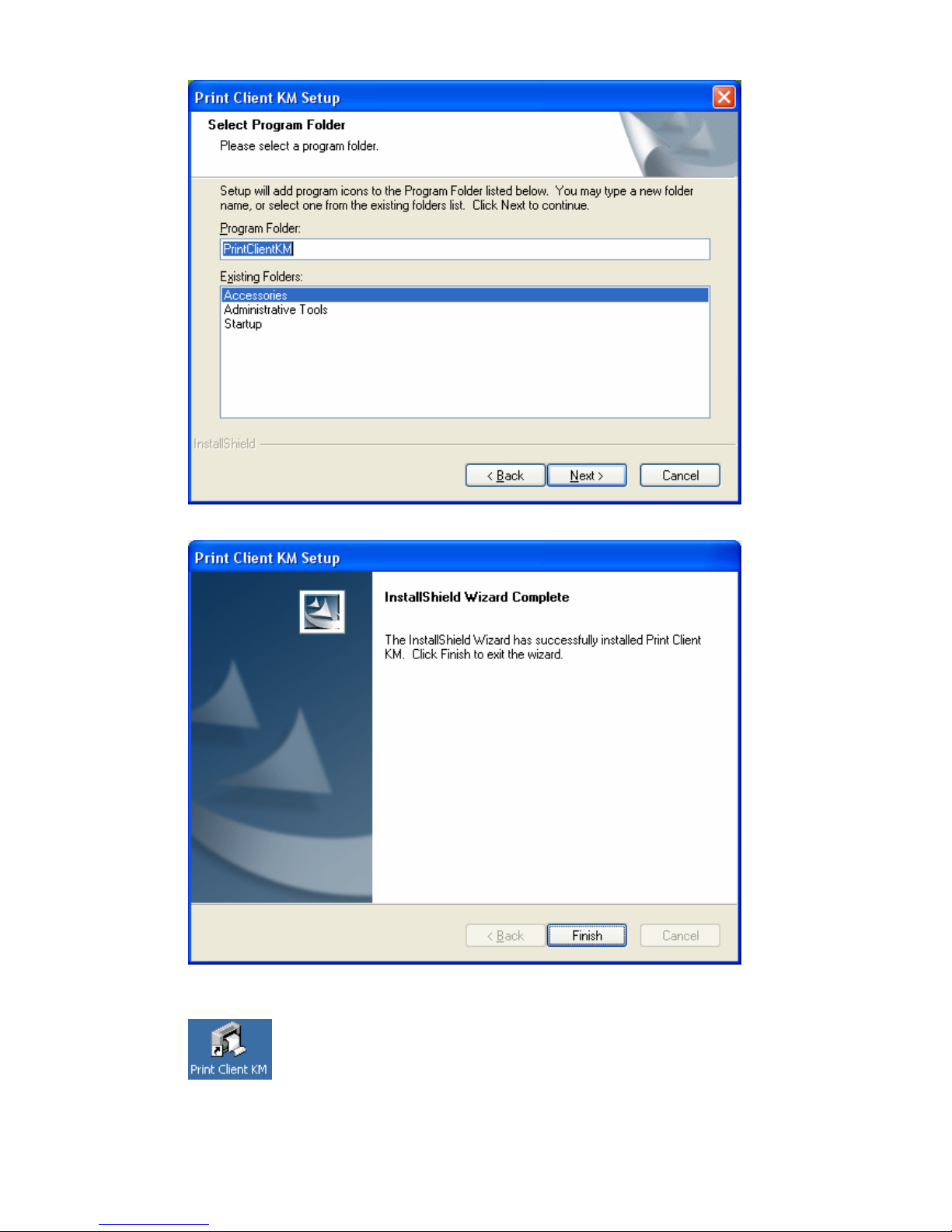

7. Select Program Folder, and then click [Next].
8. Click [Finish], and finish the installation.
9. “Print Client KM” Icon is created on Desk Top.
Installation of Print Client KM is completed.
7

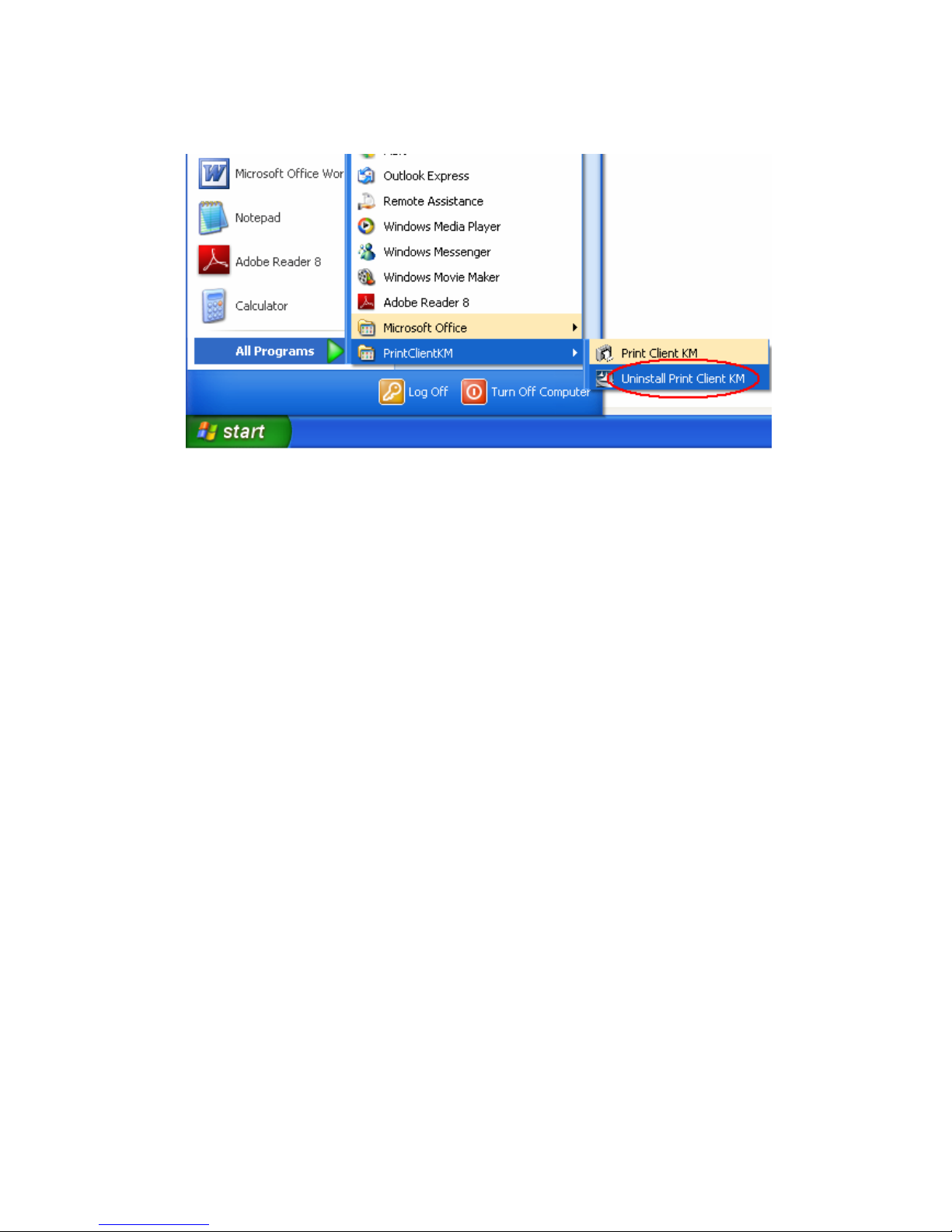

To update the Print Client KM, uninstall the Print Client KM by “Uninstall Print Client KM”,
and install the update version of Print Client KM.
* Note
If you install Print Client KM to a PC which has already installed one, Install Shield Wizard
will attempt to uninstall the existing Print Client KM, and will not setup the new one.
Reinstall Print Client KM after that in this case.
8
3. Registration of Plotter

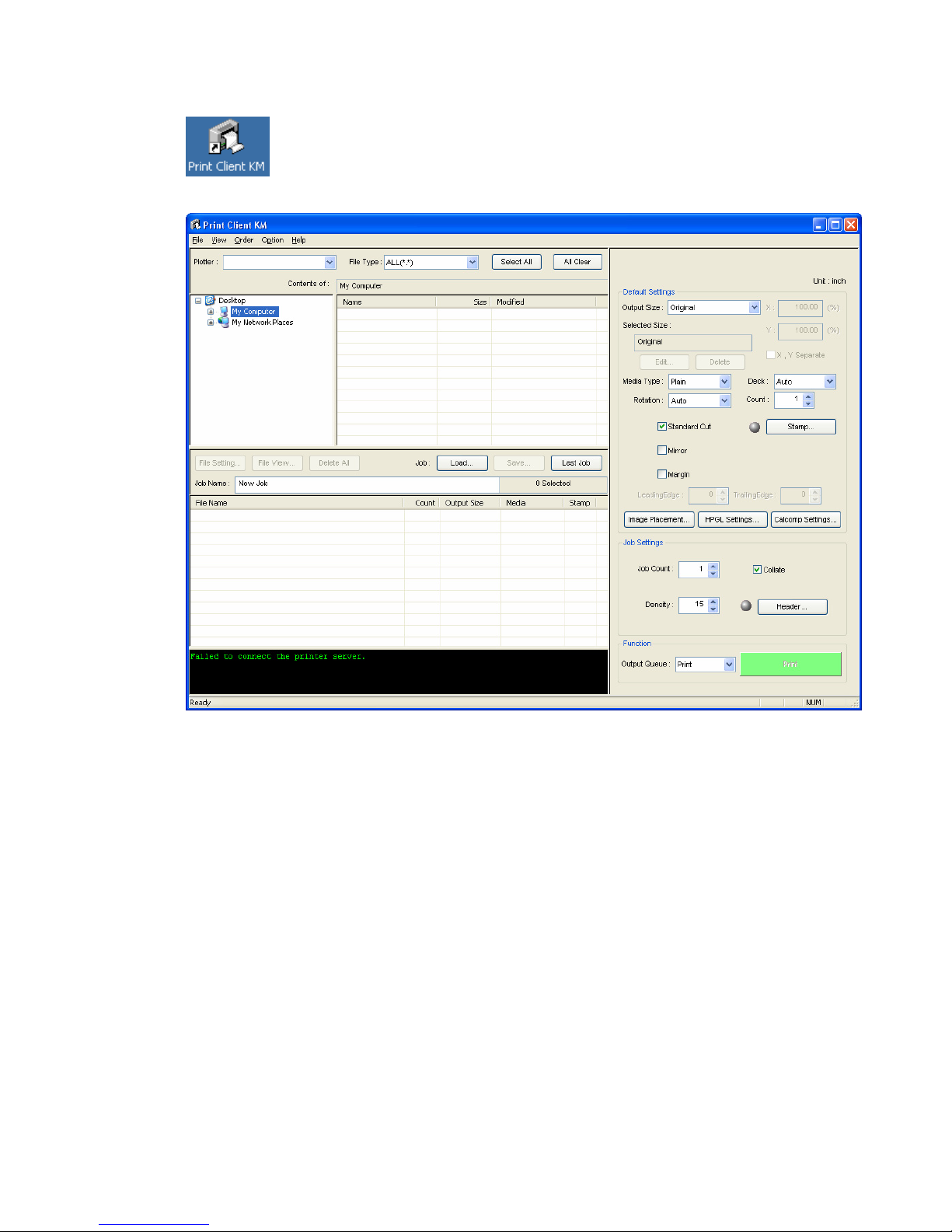

1. Double click “Print Client KM” icon on Desk Top to start the following program.
9

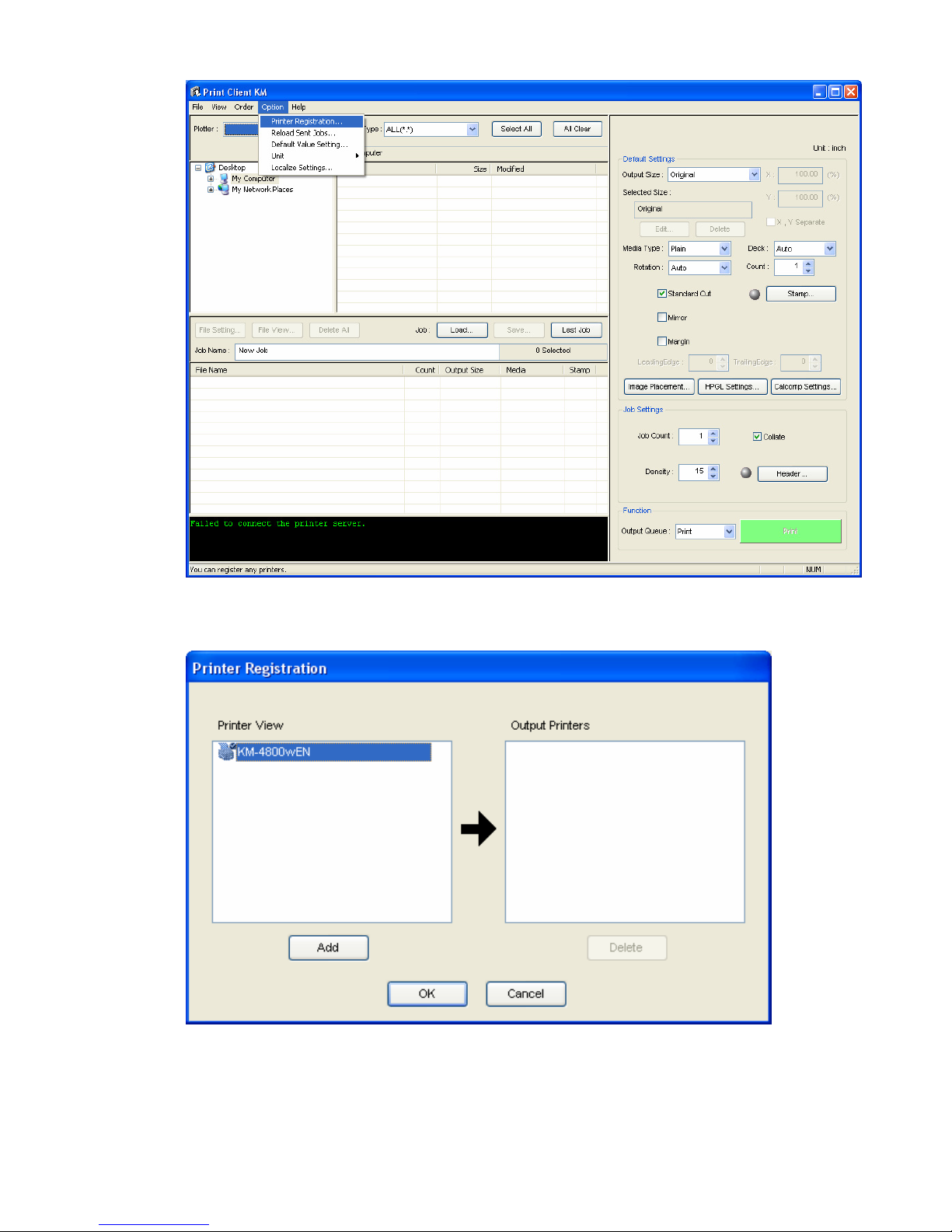

2. Select “Plotter Registration” from the pull-down menu of “Option” on the Menu Bar.
3. Select KM-4800w in “Printer View”, and click [Add].
