KWG GEMINIE11201 User manual
STEP BY STEP
INSTALLATION
GUIDE
case & radiator fan
e1
1201
Gemini
Package Contents
Package Contents
Ax1
Bx 4
日本語
◆ システムがオフになっており、プラグを抜いていることを確認
してください。
English
◆ Make sure that your system is turned off and unplugged.
Deutsch
◆ Stellen Sie sicher, dass Ihr System ausgeschaltet und alle
Stromkabel gezogen sind.
Français
◆ Assurez-vous que le système est éteint et débranché.
Español
◆ Asegúrese de que el sistema está apagado y desenchufado.
Italiano
◆ verificare che il sistema sia spento e scollegato.
Русский
◆ Убедитесь, что система выключена и отключена от
электросети.
Português
◆ Certifique-se que o seu sistema está desligado e sem corrente
eléctrica.
Türk dili
◆ Sisteminizin kapalı olduğundan ve fişinin takılı olmadığından
emin olun.
繁體中文
◆ 請確定系統已關閉且已斷電。
简体中文
◆ 请确保系统已关闭，并已拔出插头。
01
02
b
aa
a
If your motherboard has 5V 3-Pin addressable (digital)
LED header, you can customize RGB lighting via mother-
board manufacture sync software
03
VDG
A
f
+5V D
ADD_HEADER
+5V D - G
JRAINBOW ADDR_LED v d g VDG
VDG
5v d gnd
5V_LED

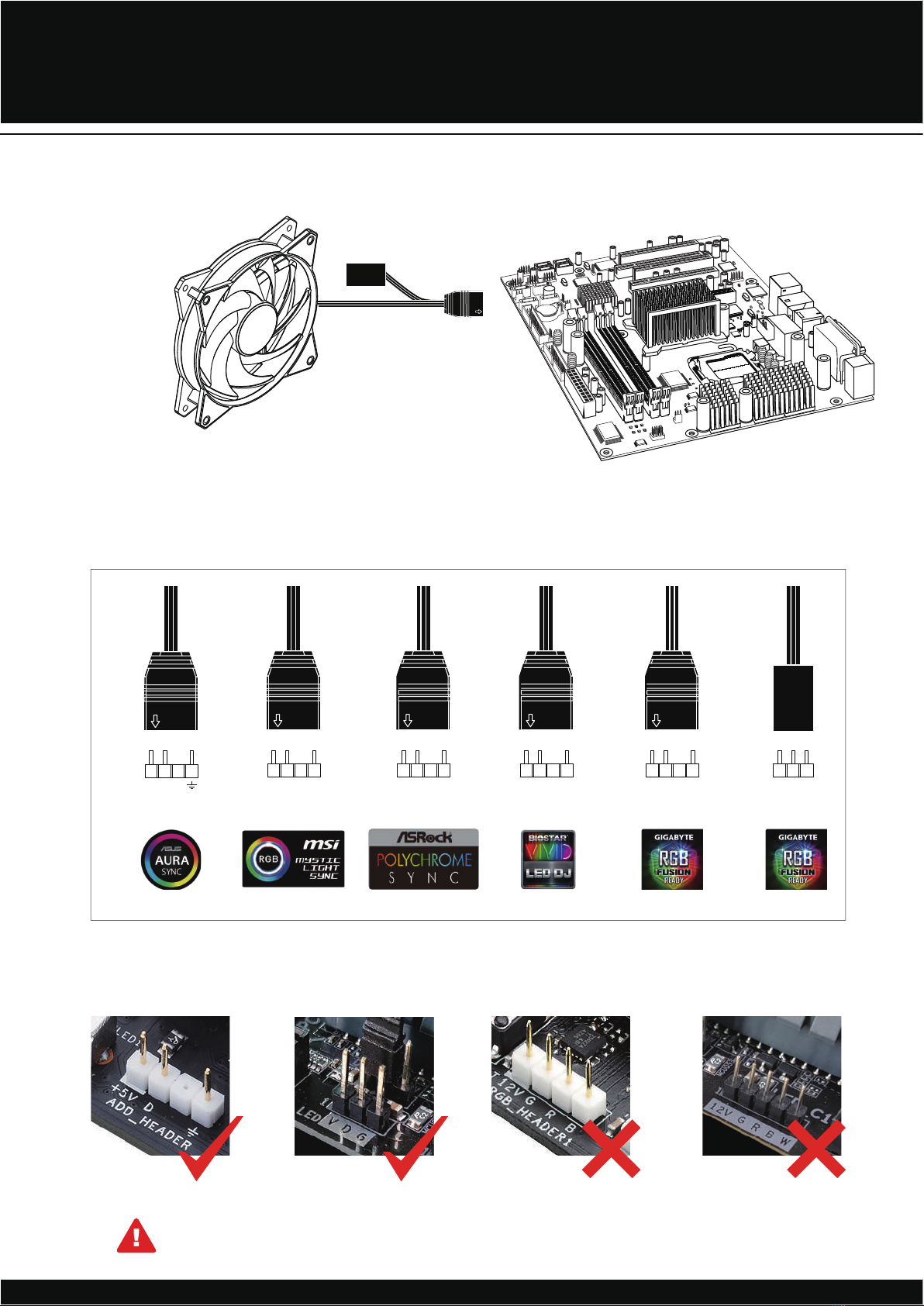

GEMINI E1-1201 only support 5V addressable (digital) RGB header
Two methods to control build-in RGB Lighting
Method 1. Use included button
04
If the motherboard RGB sync
function is used, the button func-
tion will be automatically disabled.
A
Two methods to control build-in RGB Lighting
Method 2. If your case has “RESET SW”, you can use
case button to change lighting modes
2
1
REMOVE
RESET LED
or
A
A
RESET SW
RESET SW
05
If the motherboard RGB sync
function is used, the button func-
tion will be automatically disabled.
06
12
A
1 2

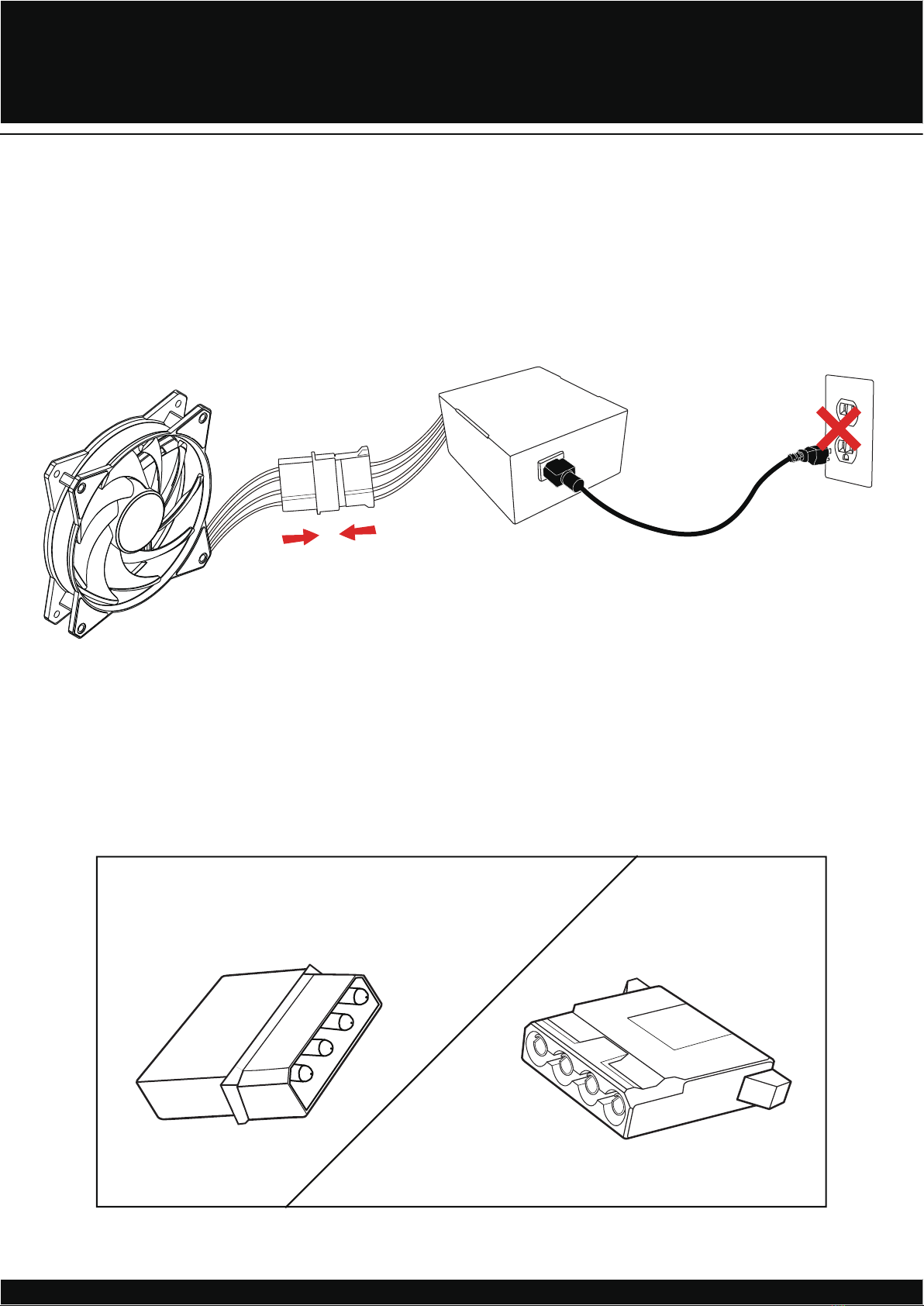

The design of male and female Molex to deal with
insufficient socket
07
1 2
2121
A
Turn on the computer after installing
08
