Kubota WSM OC60-E2 Instruction manual

OC60-E2,OC95-E2

WORKSHOP MANUAL

DIESEL ENGINE

TO THE READER

This Workshop Manual has been prepared to provide servicing personnel with information on the mechanism,

service and maintenance of OC60-E2, OC95-E2. It is divided into three parts, "General", "Mechanism" and

"Servicing".

Information on the engine identification, the general precautions, maintenance check list, check and maintenance

and special tools are described.

Information on the construction and function are included. This part should be understood before proceeding with

troubleshooting, disassembling and servicing.

Refer to Diesel Engine Mechanism Workshop Manual (Code No. 97897-01873) for the one which has not been

described to this workshop manual.

Information on the troubleshooting, servicing specification lists, tightening torque, checking and adjusting,

disassembling and assembling, and servicing which cover procedures, precautions, factory specifications and

allowable limits.

All information illustrations and specifications contained in this manual are based on the latest product information

available at the time of publication.

The right is reserved to make changes in all information at any time without notice.

Due to covering many models of this manual, information or picture being used have not been specified as one

model.

KUBOTA Corporation 2005

General

Mechanism

Servicing

February 2005

0000009675E

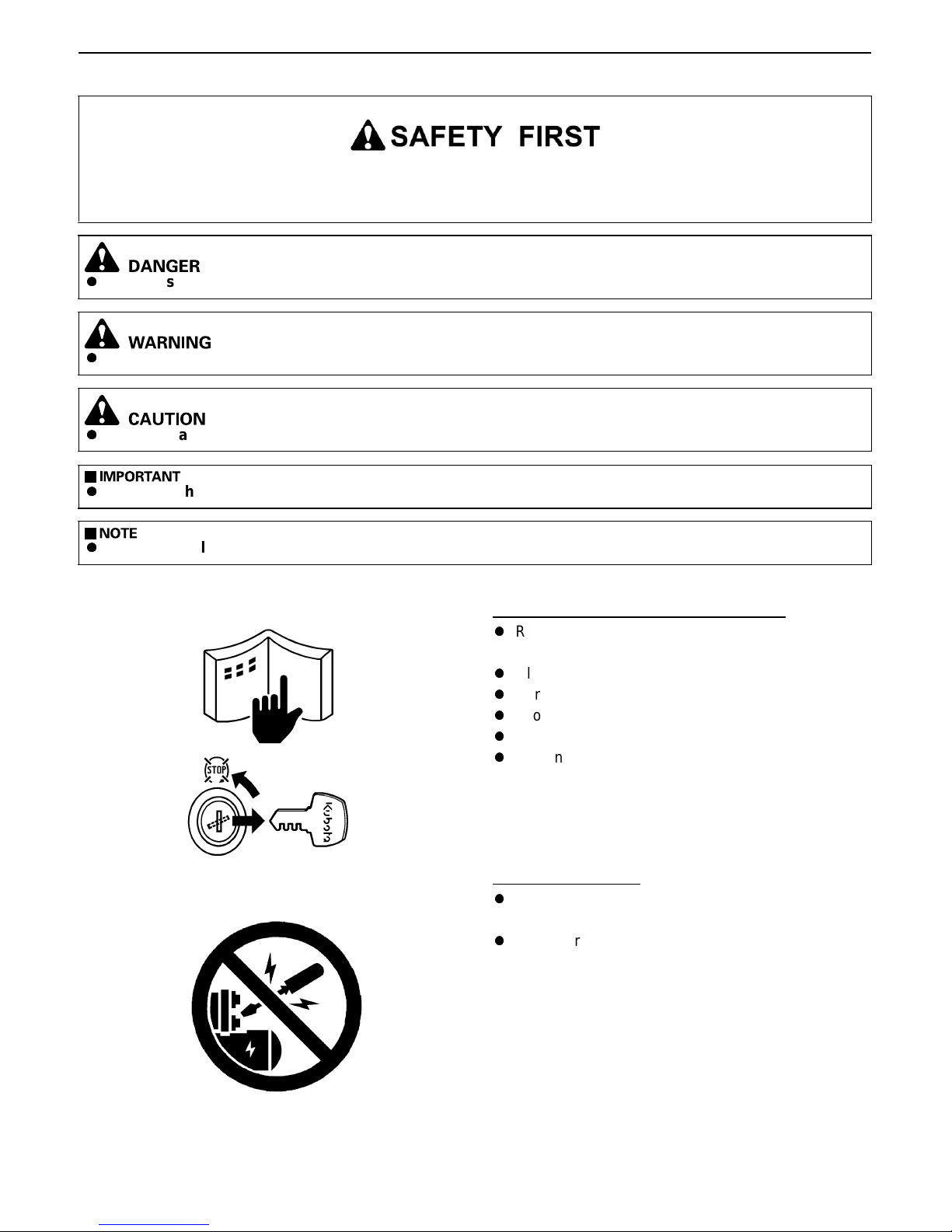

OC60-E2, OC95-E2, WSM SAFETY INSTRUCTIONS

BEFORE SERVICING AND REPAIRING

Read all instructions and safety instructions in this

manual and on your engine safety decals.

Clean the work area and engine.

Park the machine on a firm and level ground.

Allow the engine to cool before proceeding.

Stop the engine, and remove the key

Disconnect the battery negative cable

SAFETY STARTING

Do not start the engine by shorting across starter

terminals or bypassing the safety start switch.

Unauthorized modifications to the enginemay impair

the function and / or safety and affect engine life.

This symbol, the industry's "Safety Alert Symbol" is used throughout this manual and on labels on the machine

itself to warn of the possibility of personal injury. Read these instructions carefully.It is essential that you read the

instructions and safety regulations before you attempt to repair or use this unit.

Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

Indicates that equipment or property damage could result if instructions are not followed.

Gives helpful information.

0000001386E

0000001387E

0000001388E

OC60-E2, OC95-E2, WSM SAFETY INSTRUCTIONS

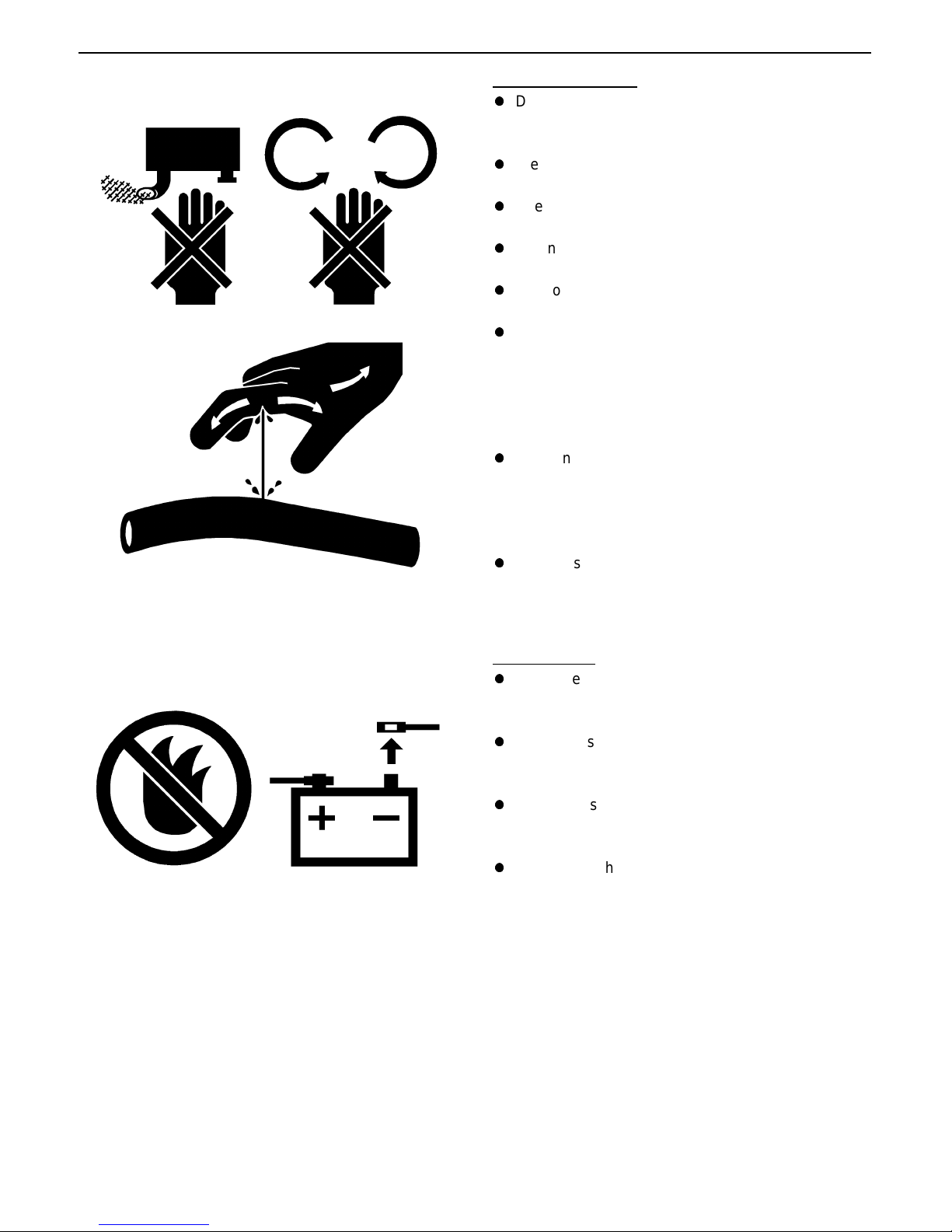

SAFETY WORKING

Do not work on the machine while under the

influence of alcohol, medication, orothersubstances

or while fatigued.

Wear close fitting clothing and safety equipment

appropriate to the job.

Use tools appropriate to the work. Makeshift tools,

parts, and procedures are not recommended.

When servicing is performed together by two or

more persons, take care to perform all work safely.

Do not touch the rotating or hot parts while the

engine is running.

Never remove the radiator cap while the engine is

running, or immediately after stopping. Otherwise,

hot water will spout out from radiator. Only remove

radiator cap when cool enough to touch with bare

hands. Slowly loosen the cap to first stop to relieve

pressure before removing completely.

Escaping fluid (fuel or hydraulic oil) under pressure

can penetrate the skin causing serious injury.

Relieve pressure before disconnecting hydraulic or

fuel lines. Tighten all connections before applying

pressure.

Wear a suitable hearing protective device such as

earmuffs or earplugs to protect againstobjectionable

or uncomfortable loud noises.

AVOID FIRES

Fuel is extremely flammable and explosive under

certain conditions. Do not smoke or allow flames or

sparks in your working area.

To avoid sparks from an accidental short circuit,

always disconnect the battery negative cable first

and connect it last.

Battery gas can explode. Keep sparks and open

flame away from the top of battery, especially when

charging the battery.

Make sure that no fuel has been spilled on the

engine.

0000001389E

0000001390E

OC60-E2, OC95-E2, WSM SAFETY INSTRUCTIONS

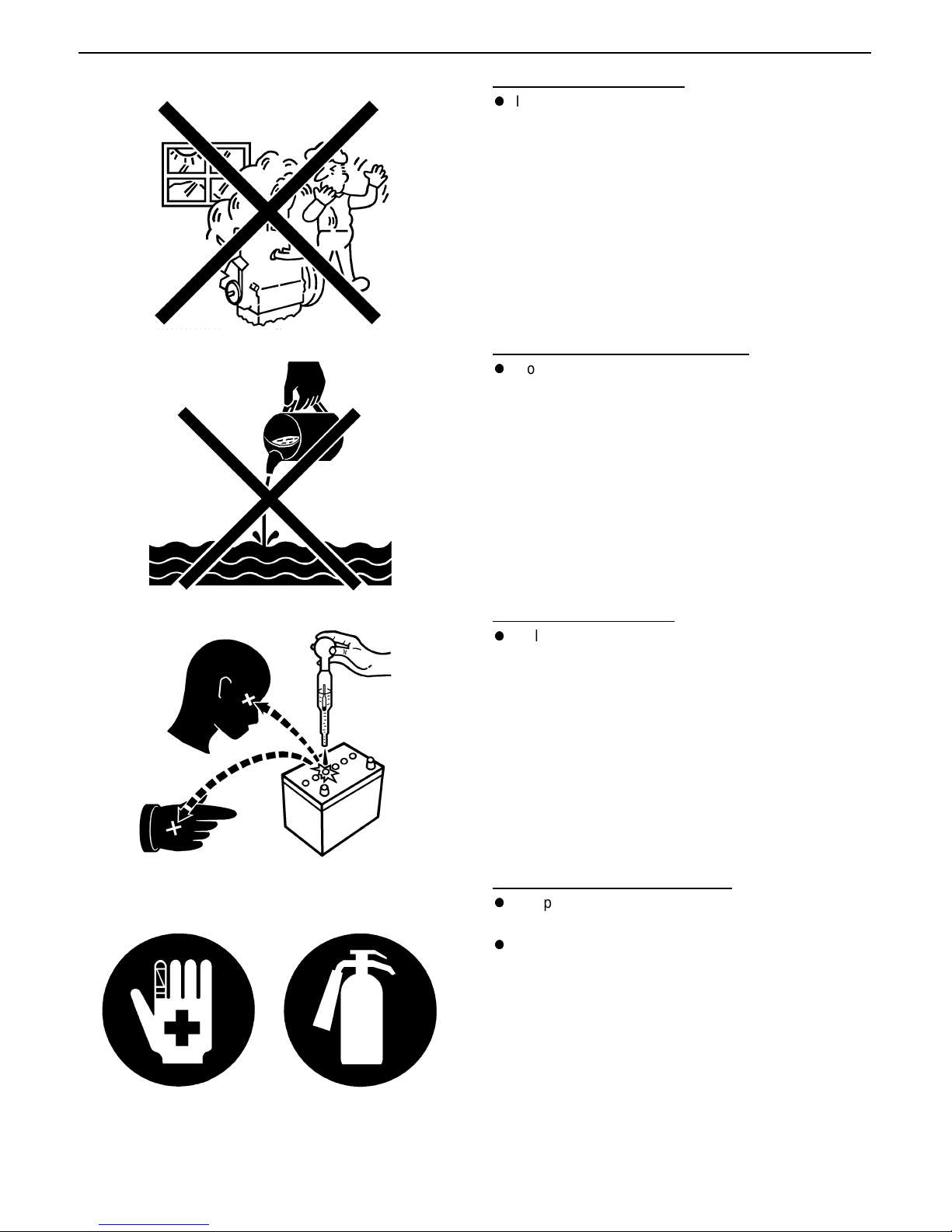

VENTILATE WORK AREA

If the engine mustbe running to do some work, make

sure the area iswell ventilated. Neverrun the engine

in a closed area. The exhaust gas contains

poisonous carbon monoxide.

DISPOSE OF FLUIDS PROPERLY

Do not pour fluids into the ground, down a drain, or

into a stream, pond, or lake. Observe relevant

environmental protection regulations when

disposing of oil, fuel, coolant, electrolyte and other

harmful waste.

PREVENT ACID BURNS

Sulfuric acid in battery electrolyte is poisonous. It is

strong enough to burn skin, clothing and cause

blindness if splashed into eyes. Keep electrolyte

away from eyes, hands and clothing. If you spill

electrolyte on yourself, flush with water, and get

medical attention immediately.

PREPARE FOR EMERGENCIES

Keep a first aid kit and fire extinguisher handy at all

times.

Keep emergency numbers for doctors, ambulance

service, hospital and fire department near your

telephone.

0000001391E

0000001393E

0000001392E

0000001394E

OC60-E2, OC95-E2, WSM SPECIFICATIONS

SPECIFICATIONS

Model OC60-E2(-X) OC60-E2(-X)-L OC95-E2(-X) OC95-E2(-X)-L

Number of Cylinders 1

Type Oil-cooled 4-cycle diesel engine

Bore x Stroke mm (in.) 72 x 68 (2.83 x 2.68) 83 x 77 (3.27 x 3.03)

TotalDisplacement (cu.in.) 276 (16.8) 276 (16.8) 416 (25.4) 416 (25.4)

ISO Net Continuous kW / (rpm)

(HP / (rpm)) 4.2 / 3600

(5.6 / 3600) 6.3 / 3600

(8.5 / 3600)

ISO / SAE Net Intermittent kW / (rpm)

(HP / (rpm)) 4.5 / 3600

(6.1 / 3600) 7.0 / 3600

(9.5 / 3600)

Maximum Bare Speed (rpm) 3800

MinimumBare Idling Speed (rpm) 1300

Combustion System TVCS (Three-vortex combustion system)

Fuel Injection Pump ND type (DENSO)

Governor Centrifugal mechanical governor

Direction of Rotation Clockwise (View from flywheel side)

Injection Nozzle DN4PD82 (DENSO)

Injection Timing (Static) 0.26 to 0.30 rad (15 to 17 )

before top dead center 0.23 to 0.26 rad (13 to 15 )

before top dead center

Injection Pressure 13.7 MPa (140 , 1987 psi)

Compression Ratio 24.5 : 1 24.0 : 1

Lubricating System Forced lubrication with trochoid pump

Lubricating Filter Oil strainer

Cooling System Oil cooling + Air cooling

Starting System Electric starting with starter

Starting Motor 12 V 1.0 kW 12 V 1.2 kW

Charging Alternator 12 V, 48 W 12 V, 150 W 12 V, 48 W 12 V, 150 W

Fuel Diesel fuel No.2-D (ASTM D975)

Fuel Tank Capacity 3.6 L (0.95 U.S.gals, 0.79 Imp.gals) 5.5 L (1.45 U.S.gals, 1.2 Imp.gals)

Lubricating Oil Quality better than API service CC class (SAE 10W-30)

Lubricating Oil Capacity 1.3 L (1.37 U.S.qts, 1.14 Imp.qts) 1.7 L (1.80 U.S.qts, 1.49 Imp.qts)

Weight (Dry) kg (lbs) 38(83.8) 55 (121.3)

0000009651E

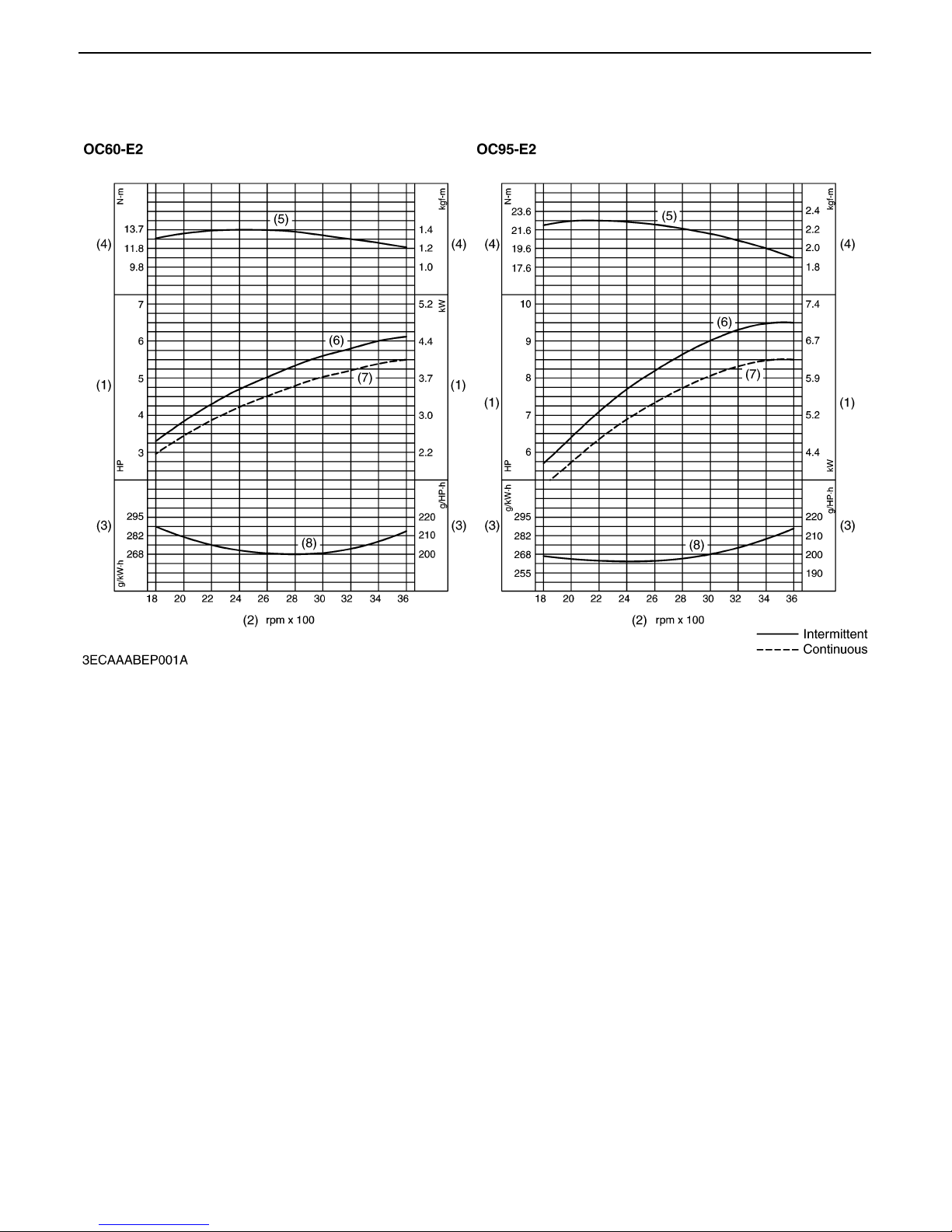

OC60-E2, OC95-E2, WSM PERFORMACE CURVES

PERFORMACE CURVES

(1) Brake Horsepower (3) Fuel Consumption (5) Net Intermittent Torque (7) Net Continuous B.H.P.

(2) Engine Speed (4) Torque (6) Net Intermittent B.H.P. (8) Net Intermittent B.S.F.C

0000009659E

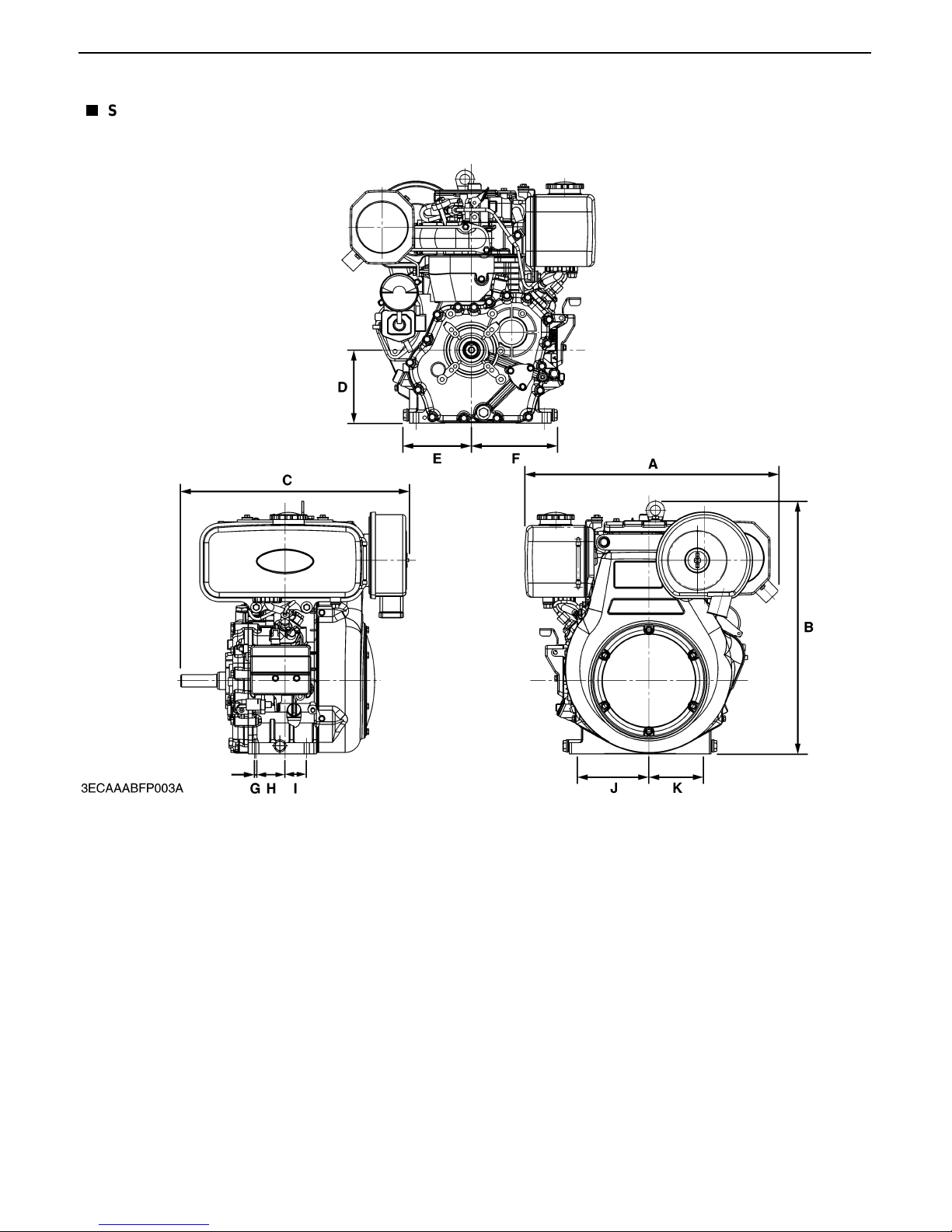

OC60-E2, OC95-E2, WSM DIMENSIONS

DIMENSIONS

STANDARD TYPE [OC60-E2]

0000009663E

OC60-E2, OC95-E2, WSM DIMENSIONS

X TYPE (WITH STOP SOLENOID) [OC60-E2]

STANDARD TYPE X TYPE

A 461 mm (18.15 in.) 461 mm (18.15 in.)

B 457.5 mm (18.02 in.) 457.5 mm (18.02 in.)

C 403 mm (15.87 in.) 403 mm (15.87 in.)

D 133.5 mm (5.26 in.) 133.5 mm (5.26 in.)

E 121 mm (4.77 in.) 121 mm (4.77 in.)

F 164 mm (6.46 in.) 164 mm (6.46 in.)

G 3 mm (0.12 in.) 3 mm (0.12 in.)

H 47 mm (1.85 in.) 47 mm (1.85 in.)

I 40 mm (1.57 in.) 40 mm (1.57 in.)

J 138 mm (5.43 in.) 138 mm (5.43 in.)

K 95 mm (3.47 in.) 95 mm (3.47 in.)

0000009664E

OC60-E2, OC95-E2, WSM DIMENSIONS

STANDARD TYPE [OC95-E2]

0000009665E
