Kramer VP-475UX User manual

VP-475UX Quick Start

P/N:

2900- 301031QS

Rev:

Scan for full manual

VP-475UX Quick Start Guide

This guide helps you install and use your VP-475UX for the first time.

Go to www.kramerav.com/downloads/VP-475UX to download the latest user manual and check if firmware

upgrades are available.

Step 1: Check what’s in the box

VP-475UX Dual Channel 12G SDI to HDMI Scaler

2 male 75Ω terminators

1 Quick start guide

1 Power cord

1 Set of rack ears

4 Rubber feet

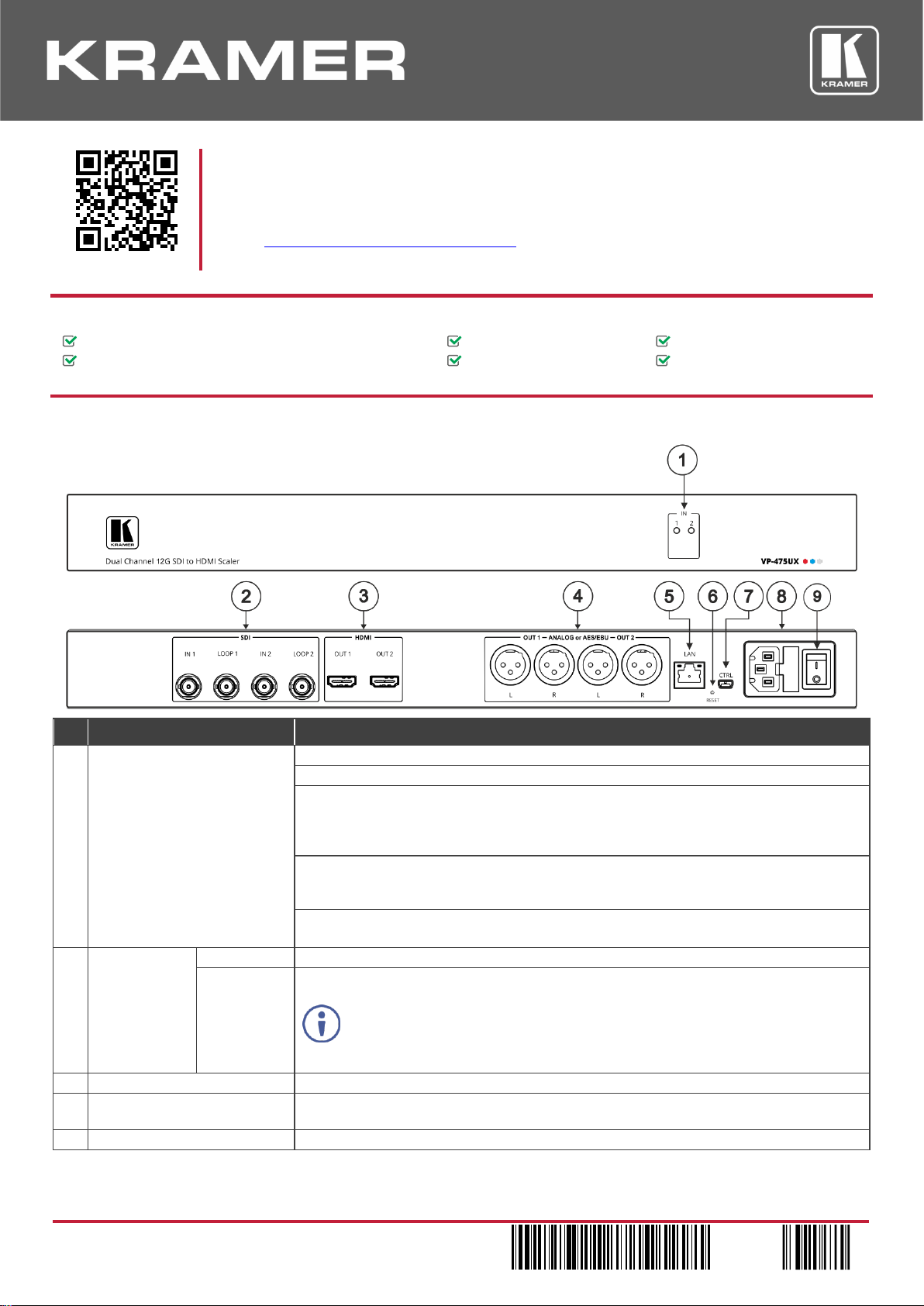

Step 2: Get to know your VP-475UX

Feature

Function

IN LEDs

Illuminate to indicate the input resolutions (1 and 2):

Off –no input signal.

Red –SDI input signal is SD:

NTSC –480i or 480p Interlaced or progressive video

formats.

PAL –576i or 576p Interlaced or progressive video

formats.

Yellow –SDI input signal is HD:

1.5G –720p progressive or 1080i interlaced video

format.

3G –1080p progressive video format.

Blue –SDI input signal is UHD:

6G –2160p30 progressive video format.

12G –2160p60 progressive video format

SDI BNC

Connectors

Connect to SDI sources (1 and 2).

LOOP

Connect to the IN connector of the next unit in the daisy chain or connect to a local display

(1 and 2).

For best results, when an input is connected and it’s corresponding LOOP is

not used, connect a 75Ω terminator (supplied) to the unused LOOP connector.

For example, if IN 1 is connected and LOOP 1 is not in use, connect a

terminator plug to LOOP 1.

HDMI OUT Connectors

Connect to HDMI acceptors (1 and 2).

ANALOG OR AES/EBU XLR

(L, R) Connectors

Connect to a balanced stereo audio acceptor or to a digital AES/EBU receiver (OUT 1 and

OUT 2).

LAN RJ-45 Connector

Connect to a browser device via LAN and also use for firmware upgrade.

Feature

Function

RESET Button

Press briefly to restart the system.

Press for ≥10 seconds to reset IP settings to factory default values.

The device powers up and loads the factory default values.

CTRL Mini USB Connector

Device control and firmware upgrade.

Power Socket

AC connector enabling power supply to the VP-475UX.

Power Switch

Switch for turning the unit ON and OFF.

Step 3: Install VP-475UX

Install VP-475UX using one of the following methods:

Remove the three screws from each side of the unit, reinsert those screws through the rack ears

and mount on a 19" rack.

Attach the rubber feet and place the unit on a flat surface.

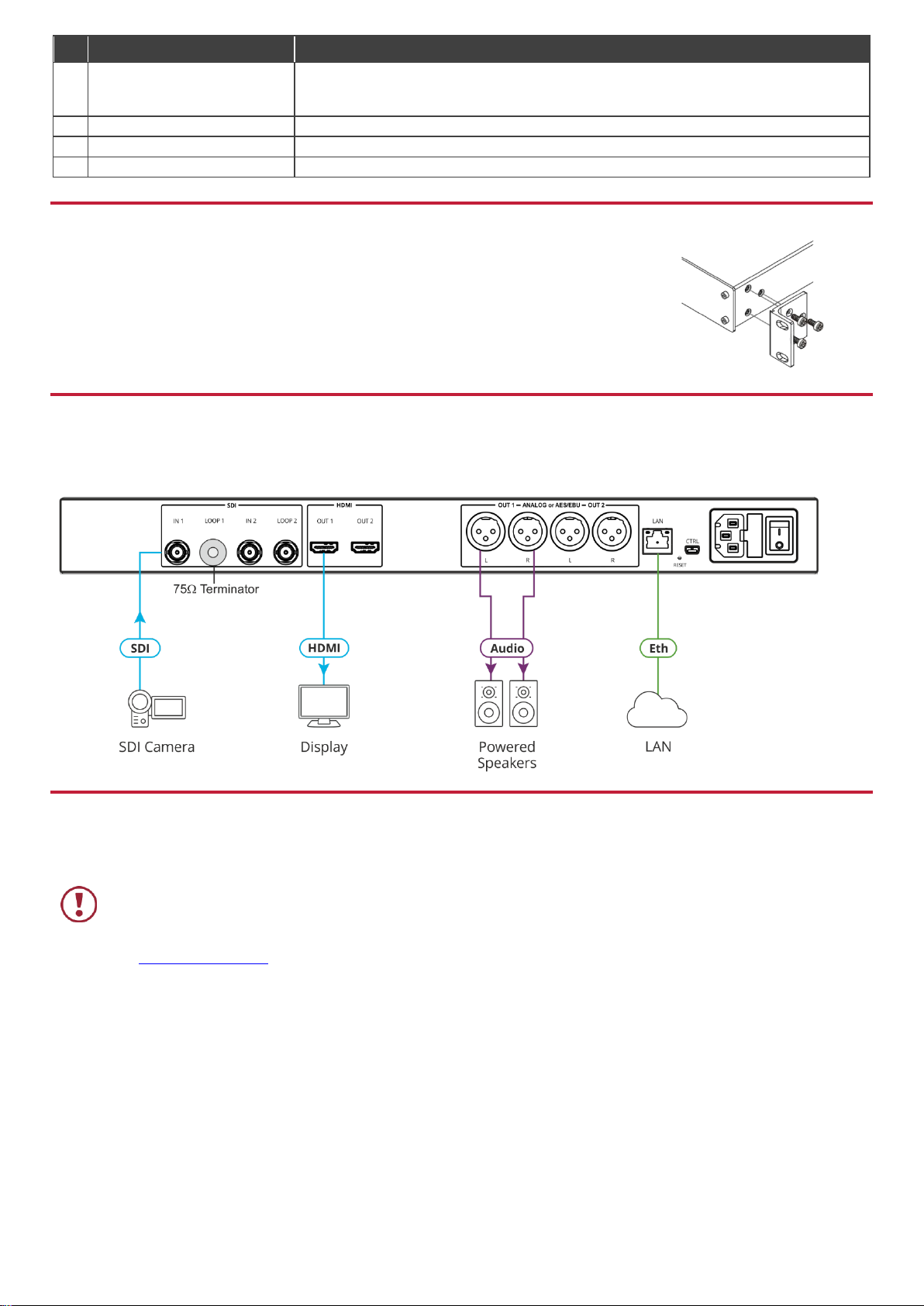

Step 4: Connect the inputs and outputs

Always switch OFF the power on each device before connecting it to your VP-475UX. For best results, we recommend that

you always use Kramer high-performance cables to connect AV equipment to the VP-475UX.

You can daisy-chain the VP-475UX by looping the LOOP source to the next machine.

Step 5: Connect the power

Connect AC power to the rear of the VP-475UX, switch on its power and then switch on the power on each device.

Safety Instructions

Caution:

There are no operator serviceable parts inside the unit.

Warning:

Use only the power cord that is supplied with the unit.

Warning:

Do not open the unit. High voltages can cause electrical shock! Servicing by qualified personnel only.

Warning:

Disconnect the power and unplug the unit from the wall before installing.

See www.KramerAV.com for updated safety information.

Step 6: Operate VP-475UX:

Operate VP-475UX remotely via:

•USB/LAN port, by

Protocol 3000 serial

commands transmitted

by laptop, or other

serial controller.

•Embedded web pages

via a browsing device

that is connected to

LAN.

RS-232

Protocol 3000

Baud Rate:

115200

Stop Bits:

Data Bits:

Parity:

None

Command format example (set pattern 13 on HDMI OUT 1):

#VID-PATTERN 1,13

TCP/IP Parameters

IP Address:

192.168.1.39

UDP Port #:

50000

Subnet Mask:

255.255.0.0

Maximum UDP Connections:

Default Gateway:

192.168.0.1

Maximum TCP Connections:

TCP Port #:

5000

Factory Settings:

DHCP disabled

Default Hostname:

VP-475UX-xxxx (xxxx = last

4 digits of serial ID)

Full Factory Reset

Web Page:

Device Settings > Upgrade.

Protocol 3000:

#FACTORY<CR>

Rear Panel Factory

RESET Button:

Press and hold RESET on power up. The device automatically

resets, loading factory default values.

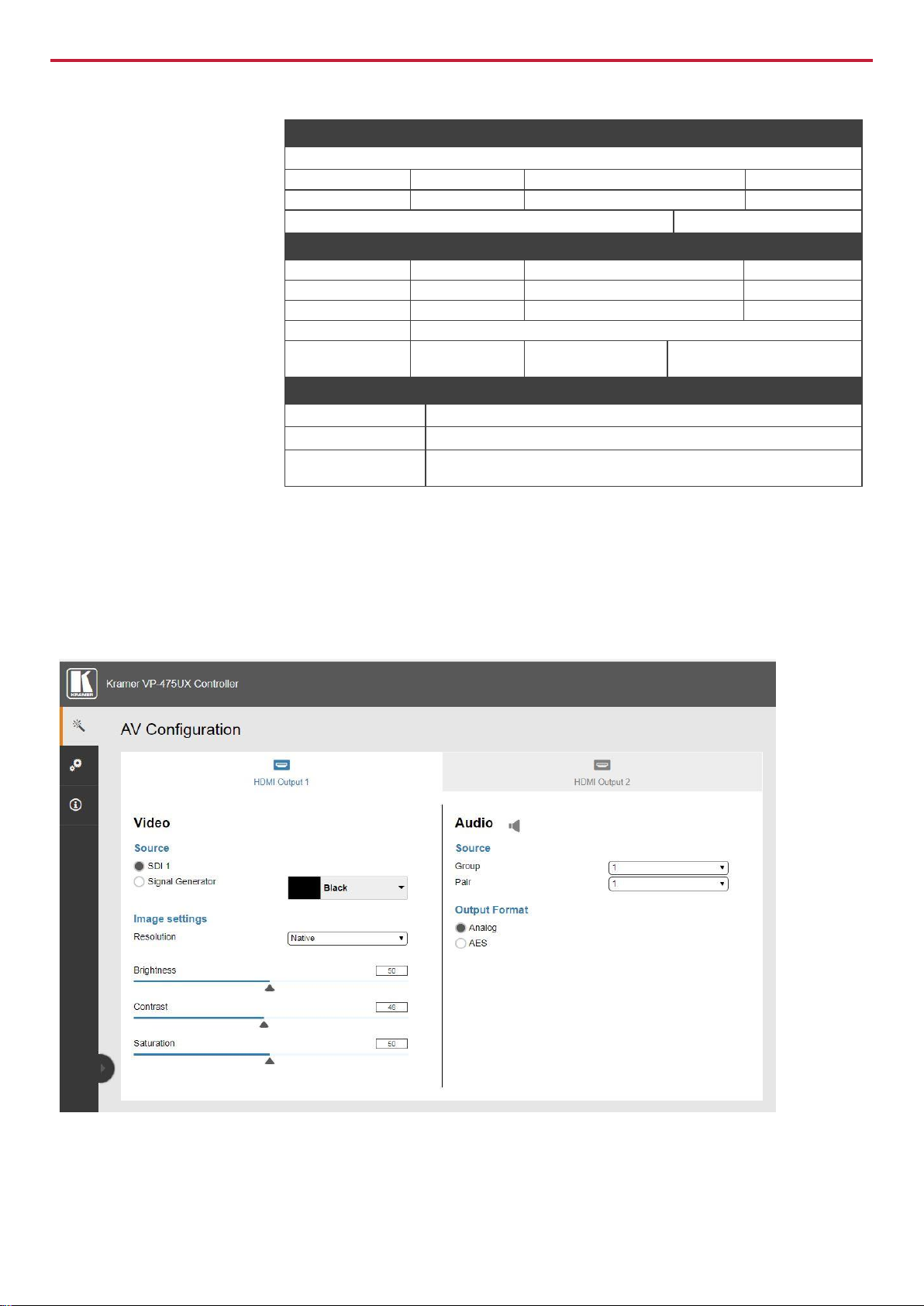

For each HDMI output configure the ports via the AV Configuration Web page:

•Define the source: SDI or a Signal Generator.

•Select the output resolution and adjust image settings.

We recommend that you have identical frame rates for both the input and the output.

•Set the SDI extracted audio output groups (4) and stereo channels per group (2).

•Define the extracted audio output format: Analog or AES.

Note that if AES is selected, keep Pair set to 1 so that all the audio channels appear on the AES outputs.

Technical Specifications

Inputs

2 SDI

Auto-sensing 12G/6G/HD-SDI/SDI video signal on 75Ω

BNC connectors

Outputs

2 HDMI

On female HDMI connectors

2 SDI (Input Loop)

On 75Ω female BNC connectors

2 XLR Balanced Stereo Audio or

AES/EBU Digital Audio

On XLR connectors

Ports

ETH

On an RJ-45 female connector

USB

On a female mini USB connector

SDI SMPTE Standard

Compliance

12G-SDI

SMPTE ST-2082-1

3G HD-SDI

SMPTE 424M

SMPTE ST-2081

HD-SDI

SMPTE 292M/344M

SDI

SMPTE 259M

Input Resolutions

Maximum Resolution

4K@60Hz (4:2:2)

Data Rate

259Mbps up to 12Gbps

SDI Cable Equalization

Maximum Reach

12G-SDI

70m (230ft)

6G and 3G HD-SDI

100m (330ft)

HD-SDI

200m (660ft)

SDI

300m (980ft)

HDMI Video

Maximum Resolution

4K@60Hz (4:4:4)

Output Resolutions

Progressive: Native, 640x480@60Hz, 720x480@60Hz,

720x576@50Hz, 800x600@60Hz, 1024x768@60Hz,

1280x720@50/60Hz, 1280x720@24/25/30/50/60Hz,

1280x768@60Hz, 1280x1024@60Hz,

1600x1200@60Hz, 1680x1050@60Hz,

1920x1080@24/25/30/50/60Hz, 1920x1200@60Hz,

3840x2160@24/25/30/50/60Hz

Conversion Latency

50ms (approx.)

Controls

Front panel

IN LEDs

Remote

Mini USB

LAN

Web UI

Power

Source

100-240V AC

Consumption

58VA max.

Environmental Conditions

Operating Temperature

0° to +40°C (32° to 104°F)

Storage Temperature

-40° to +70°C (-40° to 158°F)

Humidity

10% to 90%, RH non-condensing

Enclosure

Size

19”, 1U

Type

Aluminum

Cooling

Fan Ventilation

Regulatory Compliance

Safety

Environmental

RoHs, WEEE

General

Net Dimensions (W, D, H)

43.64cm x 18.3cm x 4.36cm (17.18" x 7.2" x 1.72")

Shipping Dimensions (W, D, H)

55cm x 27.6cm x 10.7cm (21.7" x 10.87" x 4.21")

Accessories

Included

Power cord

Specifications are subject to change without notice at www.kramerav.com
