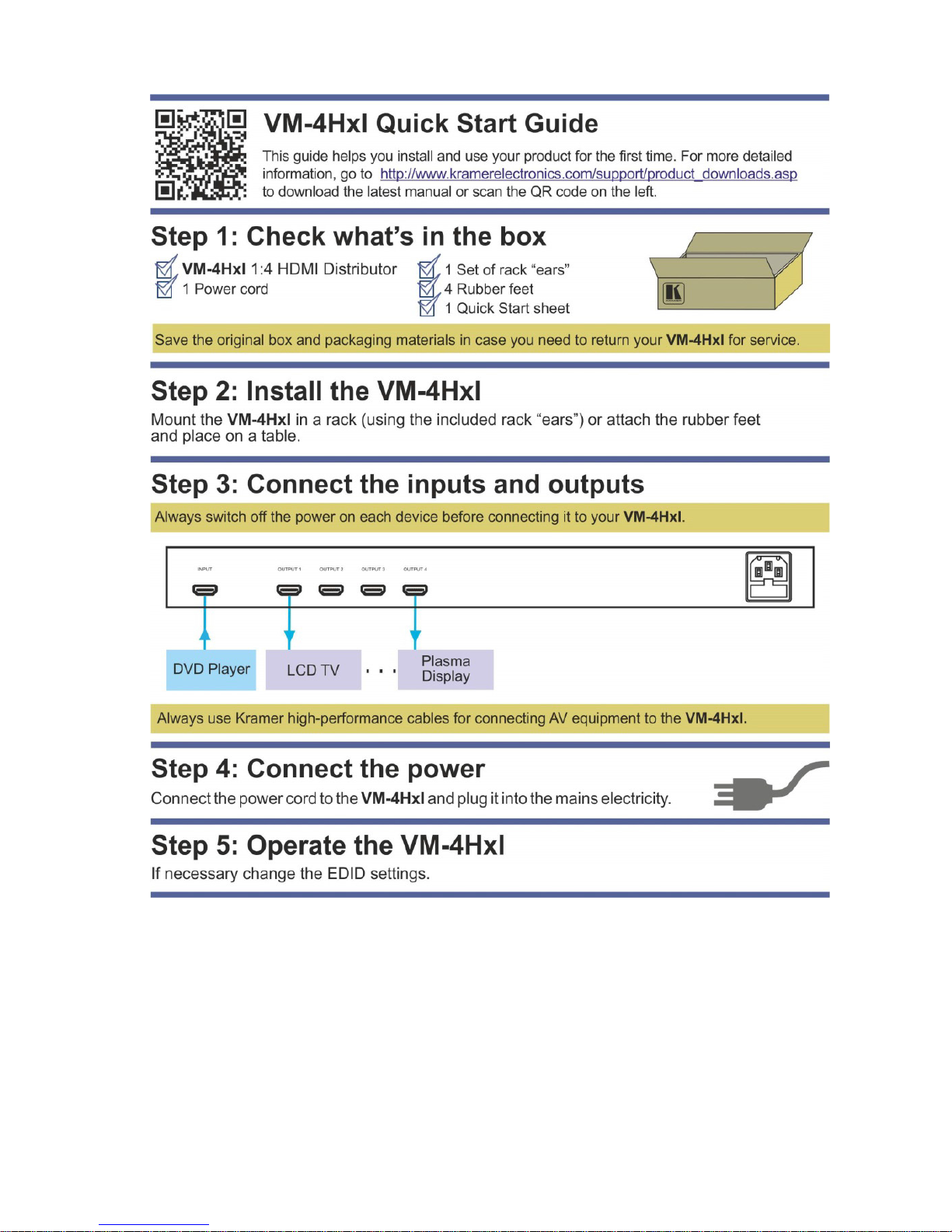

Kramer VM-4Hxl User manual

KRAMER ELECTRONICS LTD.

USER MANUAL

MODEL:

VM-4Hxl

1:4HDMI Distributor

P/N: 2900-000673 Rev 3

VM-4Hxl – Contents i

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 3

2.3 Recycling Kramer Products 3

3Overview 4

3.1 Defining the VM-4Hxl 1:4 HDMI Distributor 4

4Installing in a Rack 6

5Connecting the VM-4Hxl 7

6Acquiring an EDID 9

6.1 Acquiring the EDID from a Selected Output 9

6.2 Restoring the Default EDID 9

6.3 Acquiring the Auto EDID 10

7Technical Specifications 11

Figures

Figure 1: VM-4Hxl 1:4 HDMI Distributor Front Panel 5

Figure 2: Connecting the VM-4Hxl 1:4 HDMI Distributor 8

VM-4Hxl - Introduction 1

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront video, audio, presentation, and broadcasting professionals

on a daily basis. In recent years, we have redesigned and upgraded most of our

line, making the best even better!

Our 1,000-plus different models now appear in 11 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:

Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:

Sierra Products.

Congratulations on purchasing your Kramer VM-4Hxl 1:4 HDMI Distributor, which

is ideal for the following typical applications:

•Home theater, presentation and multimedia applications

•Rental and staging

2 VM-4Hxl - Getting Started

2 Getting Started

We recommend that you:

•Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

•Review the contents of this user manual

Go to http://www.kramerelectronics.com to check for up-to-date

user manuals, application programs, and to check if firmware

upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

•Use only good quality connection cables (we recommend Kramer high-

performance, high-resolution cables) to avoid interference, deterioration in

signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

•Do not secure the cables in tight bundles or roll the slack into tight coils

•Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

•Position your Kramer VM-4Hxl away from moisture, excessive sunlight and

dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

VM-4Hxl - Getting Started 3

2.2 Safety Instructions

Caution: There are no operator serviceable parts inside the unit

Warning: Use only the power cord that is supplied with the unit

Warning: Do not open the unit. High voltages can cause

electrical shock! Servicing by qualified personnel only

Warning: Disconnect the power and unplug the unit from the wall

before installing

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC

aims to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility. For details of Kramer’s recycling arrangements in your particular country

go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

4 VM-4Hxl - Overview

3 Overview

The Kramer VM-4Hxl is a high-quality 1:4 HDMI distributor that accepts an HDMI

input and distributes the signal to four outputs, allowing one or more of the outputs to

be connected to receiving devices, thus making it a versatile, reliable component in a

video system. The VM-4Hxl distributes signals having resolutions up to UXGA,

including all HDTV formats.

In particular, the VM-4Hxl features:

•A maximum data rate of 6.75Gbps (2.25Gbps per graphic channel)

Suitable for resolutions up to UXGA at 60Hz, and for all HD resolutions.

•Data reclocking and equalization

•A default EDID for fast and efficient connection of the unit

The default EDID feature lets you connect the VM-4Hxl without having to connect a

display to the output

•I-EDIDPro™ Kramer Intelligent EDID Processing™, an intelligent EDID

handling and processing algorithm that ensures Plug and Play operation for

HDMI systems

•3D pass-through

•HDMI support for Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed

Audio Channels, Dolby TrueHD, DTS-HD and CEC

•Five HDMI connectors, four output status LEDs and EDID read and select

buttons

The VM-4Hxl is housed in a 19" 1U rack-mountable enclosure, and is fed from a

100-240V AC universal switching power supply.

3.1 Defining the VM-4Hxl 1:4 HDMI Distributor

This section defines the VM-4Hxl.

VM-4Hxl - Overview 5

VM-4Hxl – Overview 5

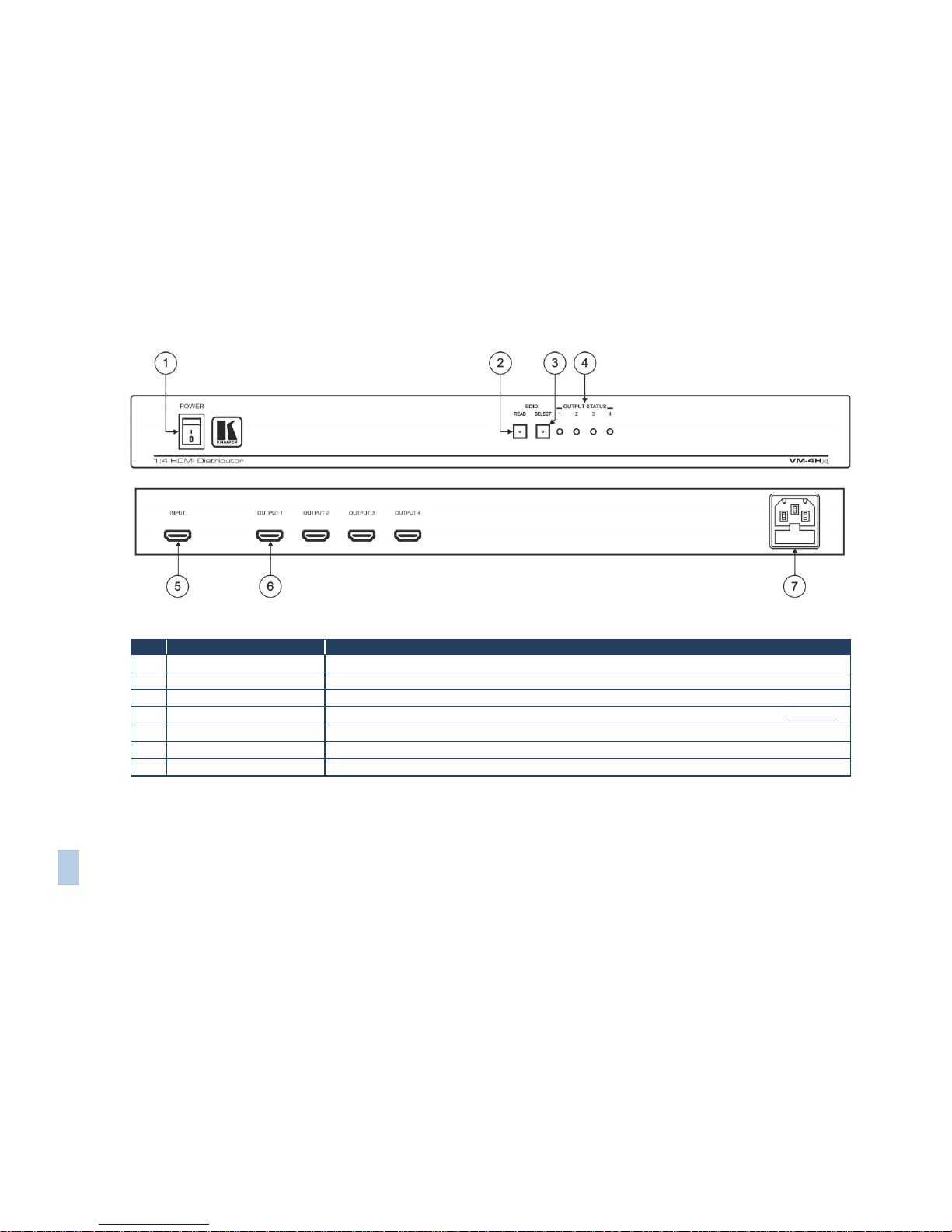

Figure 1: VM-4Hxl 1:4 HDMI Distributor Front Panel

# Feature Function

1 POWER Switch Illuminated switch for turning the unit ON or OFF

2 EDID READ Button Press to read the EDID of the selected display

3 EDID SELECT Button Select the desired display for EDID information

4 OUTPUTS LEDs LEDs light when an output(s) is connected and active; LEDs flash when selecting EDID (see Section 6)

5 INPUT HDMI Connector Connects to the HDMI source

6 OUTPUT HDMI Connectors Connect to the HDMI acceptors (from 1 to 4)

7 Power Connector with Fuse AC connector enabling power supply to the unit

6 VM-4Hxl - Installing in a Rack

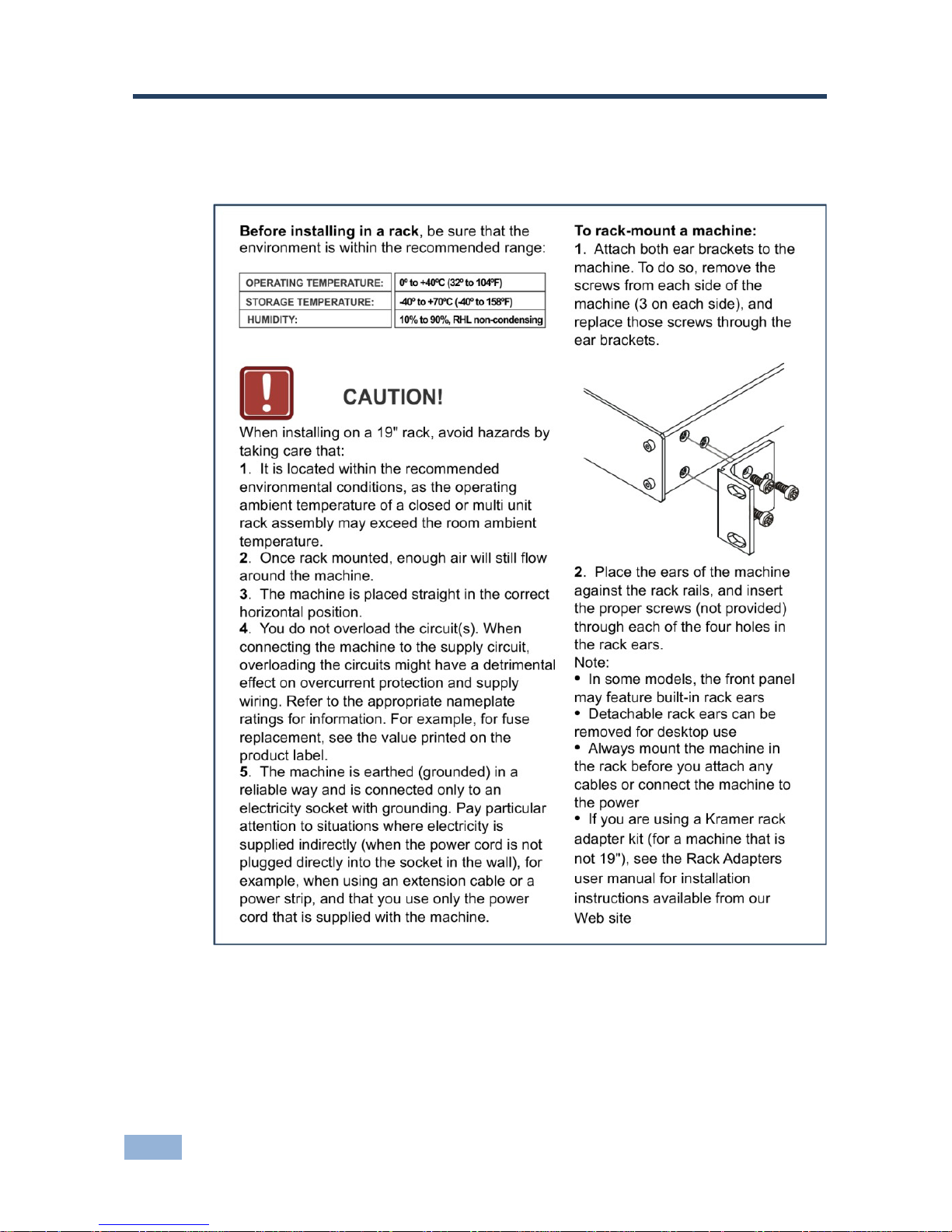

4 Installing in a Rack

This section provides instructions for rack mounting the unit.

VM-4Hxl - Connecting the VM-4Hxl 7

5 Connecting the VM-4Hxl

Always switch off the power to each device before connecting it to your

VM-4Hxl. After connecting your VM-4Hxl, connect its power and then

switch on the power to each device.

To connect the VM-4Hxl as illustrated in the example in Figure 2:

1. Connect an HDMI source (for example, a DVD player) to the INPUT

connector.

2. Connect the four OUTPUT connectors to up to four HDMI acceptors (not all

outputs need to be connected) as follows:

OUTPUT 1 connector to HDMI acceptor 1 (for example, an LCD TV)

OUTPUT 2 connector to HDMI acceptor 2 (for example, a plasma

display)

OUTPUT 3 connector to HDMI acceptor 3 (for example, a plasma

display)

OUTPUT 4 connector to HDMI acceptor 4 (for example, a plasma

display)

3. Connect the power cord to the mains electricity.

4. Turn ON the POWER.

5. Acquire EDID (see Section 6).
