Kramer VS-84HDCPxl User manual

KRAMER ELECTRONICS LTD.

USER MANUAL

MODEL:

VS-84HDCPxl

8x4 DVI Matrix Switcher

P/N: 2900-300017 Rev 7

VS-84HDCPxl – Contents i

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 3

2.3 Recycling Kramer Products 3

3Overview 4

3.1 Defining the VS-84HDCPxl 8x4 DVI Matrix Switcher 5

3.2 Using the IR Transmitter 8

4Installing in a Rack 9

5Connecting the VS-84HDCPxl 10

5.1 Connecting to the VS-84HDCPxl via RS-232 11

5.2 Operating via the Ethernet 12

6Operating the VS-84HDCPxl 8x4 DVI Matrix Switcher 15

6.1 Routing Inputs to Outputs 15

6.2 Disconnecting the Outputs 15

6.3 Storing and Recalling a Setup 15

6.4 Acquiring the EDID 17

6.5 Locking and Unlocking the Front Panel 19

6.6 Resetting the Ethernet Configuration to Default Values 19

6.7 Controlling Configuration via the Ethernet Port 19

6.8 Firmware Upgrade 19

7Technical Specifications 20

8Default Communication Parameters 21

9Kramer Protocol 2000 22

Figures

Figure 1: VS-84HDCPxl 8x4 DVI Matrix Switcher Front Panel 6

Figure 2: VS-84HDCPxl 8x4 DVI Matrix Switcher Rear Panel 7

Figure 3: Connecting to the VS-84HDCPxl Rear Panel 11

Figure 4: Local Area Connection Properties Window 13

Figure 5: Internet Protocol (TCP/IP) Properties Window 13

Figure 6: SELECTOR Buttons 16

VS-84HDCPxl - Introduction 1

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront the video, audio, presentation, and broadcasting

professional on a daily basis. In recent years, we have redesigned and upgraded

most of our line, making the best even better!

Our 1,000-plus different models now appear in 11 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:

Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:

Sierra Products.

Congratulations on purchasing your Kramer VS-84HDCPxl 8x4 DVI Matrix

Switcher, which is ideal for the following typical applications:

•Conference room presentations

•Advertising

•Rental and staging

2 VS-84HDCPxl - Getting Started

2 Getting Started

We recommend that you:

•Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

•Review the contents of this user manual

Go to http://www.kramerelectronics.com to check for up-to-date

user manuals, application programs, and to check if firmware

upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

•Use only good quality connection cables (we recommend Kramer high-

performance, high-resolution cables) to avoid interference, deterioration in

signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

•Do not secure the cables in tight bundles or roll the slack into tight coils

•Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

•Position your Kramer VS-84HDCPxl away from moisture, excessive sunlight

and dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

VS-84HDCPxl - Getting Started 3

2.2 Safety Instructions

Caution: There are no operator serviceable parts inside the unit

Warning: Use only the power cord that is supplied with the unit

Warning: Do not open the unit. High voltages can cause

electrical shock! Servicing by qualified personnel only

Warning: Disconnect the power and unplug the unit from the wall

before installing

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC

aims to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility. For details of Kramer’s recycling arrangements in your particular country

go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

4 VS-84HDCPxl - Overview

3 Overview

The high-quality Kramer VS-84HDCPxl is an HDCP compatible 4 x 8 DVI Matrix

Switcher that accepts up to four DVI inputs and routes the selected DVI input

signal to any or all of eight DVI outputs.

Note that only the digital signal (DVI-D) is available on the DVI connector.

The VS-84HDCPxl features:

•Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel)

Suitable for resolutions up to UXGA at 60Hz, and for all HD resolutions

•HDTV Compatibility

•HDCP Compliance

•HDMI Support for Deep Color, x.v.Color™, 3D Pass-Through, HDMI

Compressed Audio Channels

•Input/Output - DVI-D signals (on DVI-I connectors)

•Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal

integrity to travel longer distances

•I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID

handling & processing algorithm ensures Plug and Play operation for DVI

systems

•Fast Switching Technology - Reduces switching delay between DVI/HDMI

sources

•Output Disconnect - Each output

•Front Panel Lockout

•Memory Locations - Stores multiple switches as presets to be recalled and

executed when needed

•Worldwide Power Supply - 100-240V AC

•Standard 19-inch Rack Mount Size - 2U. Rack “ears” included

VS-84HDCPxl - Overview 5

You can control the VS-84HDCPxl using the front panel buttons or remotely via:

•RS-232 serial commands transmitted by a touch screen system, PC or other

serial controller

•The Kramer infrared remote control transmitter

•The Ethernet port

3.1 Defining the VS-84HDCPxl 8x4 DVI Matrix Switcher

This section defines the VS-84HDCPxl.

6 VS-84HDCPxl - Overview

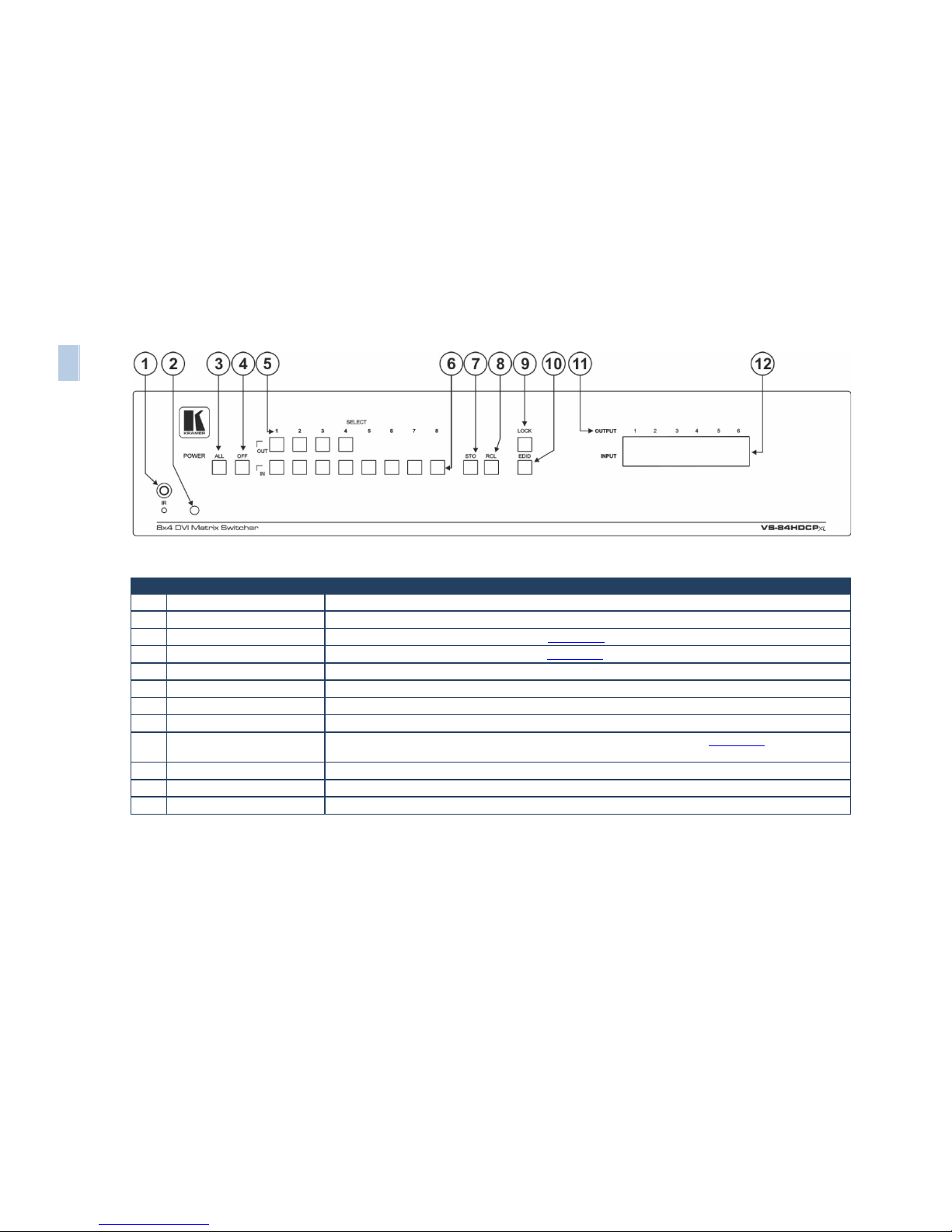

Figure 1: VS-84HDCPxl 8x4 DVI Matrix Switcher Front Panel

# Feature Function

1 IR Receiver and LED IR remote control sensor. LED lights yellow when receiving an IR signal

2 POWER LED Lights green when the unit is turned on

3 ALL Button Press to select all inputs or all outputs (see Section 6.1)

4 OFF Button Press to disconnect one or all outputs (see Section 6.2)

5 SELECT OUT Buttons Press to select an output (from 1 to 4)

6 SELECT IN Buttons Press to select an input (from 1 to 8)

7 STO Button Press to store a switching configuration

8 RCL Button Press to recall a switching configuration

9 LOCK Button Press and hold to lock the front panel buttons and to acquire the EDID (see Section 6.5). Press and

hold a second time to unlock the front panel buttons

10 EDID Button Press to acquire the EDID

11 OUTPUT 1 to 6 Indicates the output channels and their respective input selections on the 7-segment display

12 INPUT 7-segment Display Number shown on the display indicates the relevant input channel

6VS-84HDCPxl – Overview

VS-84HDCPxl - Overview 7

VS-84HDCPxl – Overview 7

Figure 2: VS-84HDCPxl 8x4 DVI Matrix Switcher Rear Panel

Feature

Function

13 INPUT DVI Connectors Connect to the DVI sources (from 1 to 8)

14 RS-232 9-pin D-sub (F) Connector Connect to a PC or the serial remote controller (see Section 8)

15 ETHERNET RJ-45 Connector Connect to a PC or other Ethernet controller via a LAN (see Section 8)

16 RESET Button Press and hold to reset the Ethernet configuration to its factory default values (see Section 8)

17 OUTPUT DVI Connectors Connect to the DVI acceptors (from 1 to 4)

18 REMOTE IR 3.5mm Mini Jack Connect to an external IR receiver unit for controlling the machine via an IR remote controller

(instead of using the front panel IR receiver)

19 Mains Power Connector with Switch

and Fuse

Connect to the AC mains supply and use the switch to turn the device on or off
