Kramer VM-3UHD User manual

USER MANUAL

MODEL:

VM-3UHD

1:3 HDMI DA

P/N: 2900-300480 Rev 1

VM-3UHD – Contents

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 2

2.3 Recycling Kramer Products 3

3Overview 4

3.1 Defining the VM-3UHD 1:3 HDMI DA 5

4Connecting the VM-3UHD 6

4.1 Acquiring an EDID 8

5Default EDID 9

6Technical Specifications 11

7Protocol 3000 12

7.1 Syntax 12

7.2 Kramer Protocol 3000 Commands 16

8Packet Protocol Structure 26

8.1 Using the Packet Protocol 26

8.2 Calculating the CRC 27

9Parameters 28

9.1 Stage 28

9.2 EDID Source 28

9.3 Signal Validation 28

9.4 HDCP Types 28

Figures

Figure 1: VM-3UHD 1:3 HDMI DA 5

Figure 2: Connecting the VM-3UHD 1:3 HDMI DA 7

VM-3UHD – Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast

range of problems that confront video, audio, presentation, and broadcasting

professionals on a daily basis. In recent years, we have redesigned and

upgraded most of our line, making the best even better!

Our 1,000-plus different models now appear in 14 groups that are clearly

defined by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers

and Routers; GROUP 3: Control Systems; GROUP 4: Format/Standards

Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty

AV Products; GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and

Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and

Rack Adapters; GROUP 11: Sierra Video Products; GROUP 12: Digital

Signage; GROUP 13: Audio; and GROUP 14: Collaboration.

Congratulations on purchasing your Kramer VM-3UHD 1:3 HDMI DA, which is

ideal for the following typical applications:

Boardrooms and meeting rooms

Presentation and multimedia applications

Home theater

Rental and staging

VM-3UHD - Getting Started

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

2.1 Achieving the Best Performance

To achieve the best performance:

Use only good quality connection cables (we recommend Kramer high-

performance, high-resolution cables) to avoid interference, deterioration in

signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

Do not secure the cables in tight bundles or roll the slack into tight coils

Avoid interference from neighbouring electrical appliances that may

adversely influence signal quality

Position your VM-3UHD away from moisture, excessive sunlight and dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

2.2 Safety Instructions

Caution:

There are no operator serviceable parts inside the unit

Warning:

Use only the Kramer Electronics power supply that is

provided with the unit

Warning:

Disconnect the power and unplug the unit from the wall

before installing

VM-3UHD – Getting Started

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC

aims to reduce the amount of WEEE sent for disposal to landfill or incineration

by requiring it to be collected and recycled. To comply with the WEEE

Directive, Kramer Electronics has made arrangements with the European

Advanced Recycling Network (EARN) and will cover any costs of treatment,

recycling and recovery of waste Kramer Electronics branded equipment on

arrival at the EARN facility. For details of Kramer’s recycling arrangements in

your particular country go to our recycling pages at

VM-3UHD - Overview

3 Overview

The Kramer TOOLS®VM-3UHD is a high-quality 1:3 HDMI distributor that takes

one HDMI input, equalizes and reclocks the signal and distributes it to three

identical outputs. The VM-3UHD distributes signals having resolutions up to

4Kx2K and including WUXGA and 1080p.

In particular, the VM-3UHD features:

A maximum data rate of 10.2Gbps (3.4Gbps per graphic channel)

HDMI support for Deep Color, x.v.Color™, Lip Sync, HDMI

Uncompressed Audio Channels, Dolby TrueHD, DTS-HD, CEC

HDCP compliance

Kramer Equalization & re-Klocking™ Technology that rebuilds the digital

signal integrity to travel longer distances

I-EDIDPro™ Kramer Intelligent EDID Processing™, an intelligent EDID

handling and processing algorithm that ensures Plug and Play operation

for HDMI systems

A default EDID for fast and efficient connection of the unit

The default EDID feature lets you connect the VM-3UHD without having to connect

a display to the output

3D pass-through

A USB port for firmware upgrading

Software support for Protocol 3000, EDID Designer and K-Upload

A compact TOOLS®enclosure with a 5V DC power source

VM-3UHD – Overview

3.1 Defining the VM-3UHD 1:3 HDMI DA

This section defines the VM-3UHD.

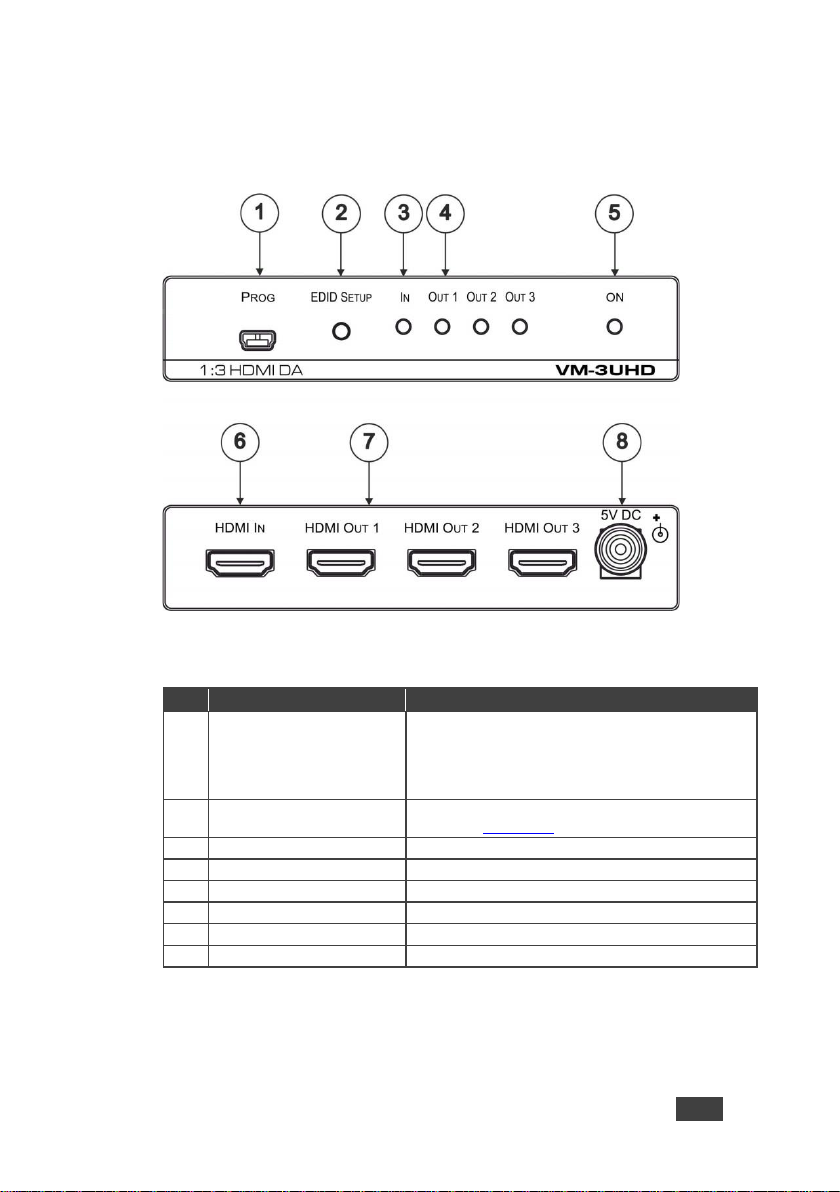

Figure 1: VM-3UHD 1:3 HDMI DA

Feature

Function

PROGRAM USB Connector

Connect to a PC to perform firmware upgrades (via

K-Upload) and work with the EDID Designer

K-Upload and EDID Designer can be downloaded

from our Web site

EDID SETUP Button

Press to capture the input EDID or select the default

EDID (see Section 4.1)

IN LED

Lights when an active input signal is detected

OUT 1-3 LEDS

Lights when an active output acceptor is detected

ON LED

Lights when the device is powered on

HDMI IN Connector

Connects to the HDMI source

HDMI OUT 1-3 Connectors

Connect to up to 3 HDMI acceptors

5V DC Connector

Connects to the 5V DC power supply

VM-3UHD - Connecting the VM-3UHD

4 Connecting the VM-3UHD

Always switch off the power to each device before connecting it to

your VM-3UHD. After connecting your VM-3UHD, connect its power

and then switch on the power to each device.

You do not have to connect all the inputs and outputs, connect only

those that are required.

Connect the VM-3UHD as illustrated in the example in Figure 2:

1. Connect an HDMI input source (for example, a DVD player) to the

HDMI IN connector.

2. Connect the three OUTPUT connectors to up to three HDMI acceptors,

as follows:

Not all outputs need to be connected.

HDMI OUT 1 connector to HDMI acceptor 1 (for example, an LCD

TV)

HDMI OUT 2 connector to HDMI acceptor 2 (for example, plasma

display 1)

HDMI OUT 3 connector to HDMI acceptor 3 (for example, plasma

display 2)

3. Connect the 5V DC power adapter to the power socket unit and then

connect the adapter to the mains electricity (not shown in Figure 2).

The ON LED lights.

VM-3UHD – Connecting the VM-3UHD

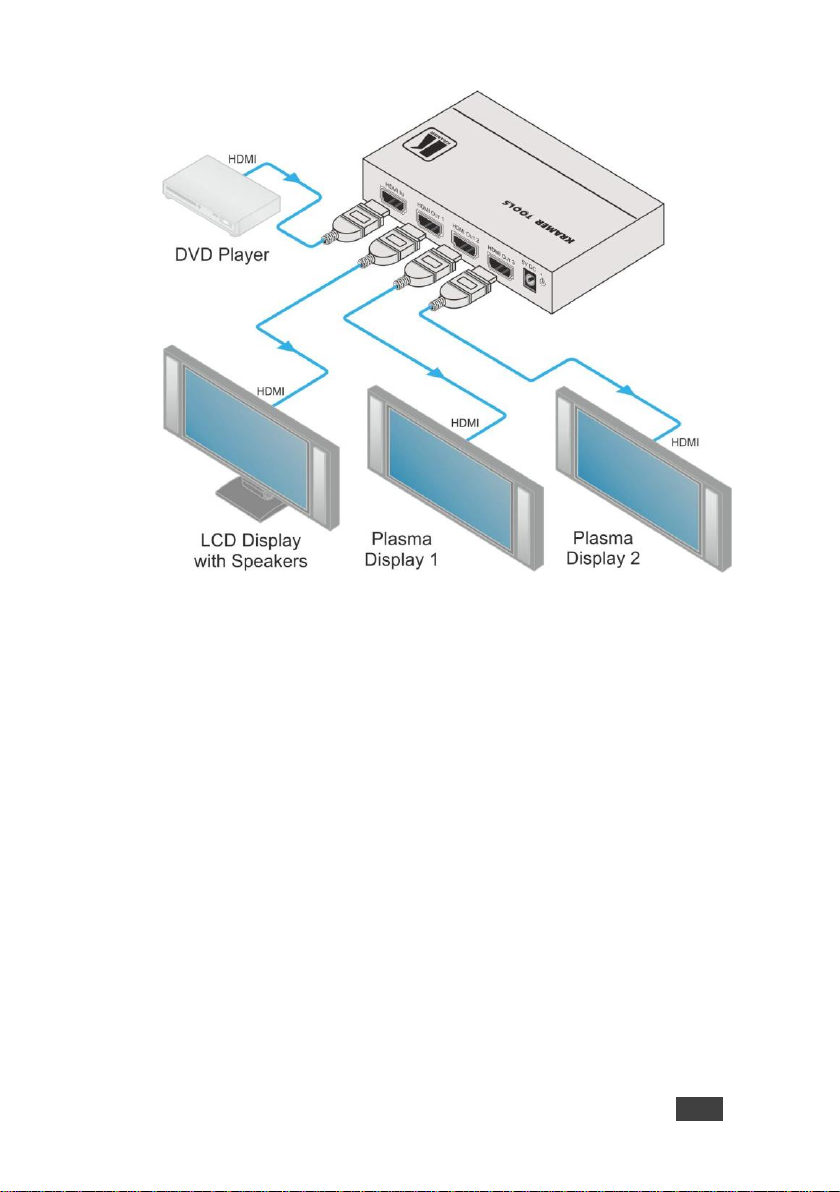

Figure 2: Connecting the VM-3UHD 1:3 HDMI DA
