Kramer TOOLS VM-2C User manual

KRAMER ELECTRONICS LTD.

USER MANUAL

MODEL:

VM-2C

1:2 Component Video DA

P/N: 2900-000112 Rev 2

VM-2C – Contents

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 3

2.3 Recycling Kramer Products 3

3Overview 4

3.1 Defining the VM-2C 1:2 Component Video DA 4

4Connecting the VM-2C 5

5Technical Specifications 6

Figures

Figure 1: VM-2C 1:2 Component Video DA 4

Figure 2: Connecting the VM-2C 1:2 Component Video DA 5

VM-2C - Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront video, audio, presentation, and broadcasting professionals

on a daily basis. In recent years, we have redesigned and upgraded most of our

line, making the best even better!

Our 1,000-plus different models now appear in 11 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:

Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:

Sierra Products.

Congratulations on purchasing your Kramer VM-2C 1:2 Component Video DA,

which is ideal for the following typical applications:

Component video signal distribution

Video duplication studios, delivering undiminished quality duplicates

VM-2C - Getting Started

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

2.1 Achieving the Best Performance

To achieve the best performance:

Use only good quality connection cables (we recommend Kramer high-

performance, high-resolution cables) to avoid interference, deterioration in

signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

Do not secure the cables in tight bundles or roll the slack into tight coils

Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

Position your Kramer VM-2C away from moisture, excessive sunlight and

dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

VM-2C - Getting Started

2.2 Safety Instructions

Caution:

There are no operator serviceable parts inside the unit

Warning:

Use only the Kramer Electronics input power wall

adapter that is provided with the unit

Warning:

Disconnect the power and unplug the unit from the wall

before installing

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC

aims to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility.

VM-2C - Overview

3 Overview

The Kramer TOOLS VM−2C is a high−performance distribution amplifier for

component video (Y, Pb/Cb, Pr/Cr) signals. It takes one input, provides correct

buffering and isolation and distributes the signal to two identical outputs on RCA

connectors.

In particular, the VM-2C features:

HDTV compatibility

A bandwidth of 500MHz

A 12V DC power supply

3.1 Defining the VM-2C 1:2 Component Video DA

This section defines the VM-2C.

Figure 1: VM-2C 1:2 Component Video DA

Feature

Function

INPUTS Y, PB/CB, PR/CRRCA Connectors

Connect to a component source

ON LED

Illuminates when receiving power

OUTPUT 1 Y, PB/CB, PR/CRRCA Connectors

Connect to component acceptor 1

OUTPUT 2 Y, PB/CB, PR/CRRCA Connectors

Connect to component acceptor 2

12V DC

+12V DC connector for powering unit

VM-2C - Connecting the VM-2C

4 Connecting the VM-2C

Always switch off the power to each device before connecting it to your

VM-2C. After connecting your VM-2C, connect its power and then

switch on the power to each device.

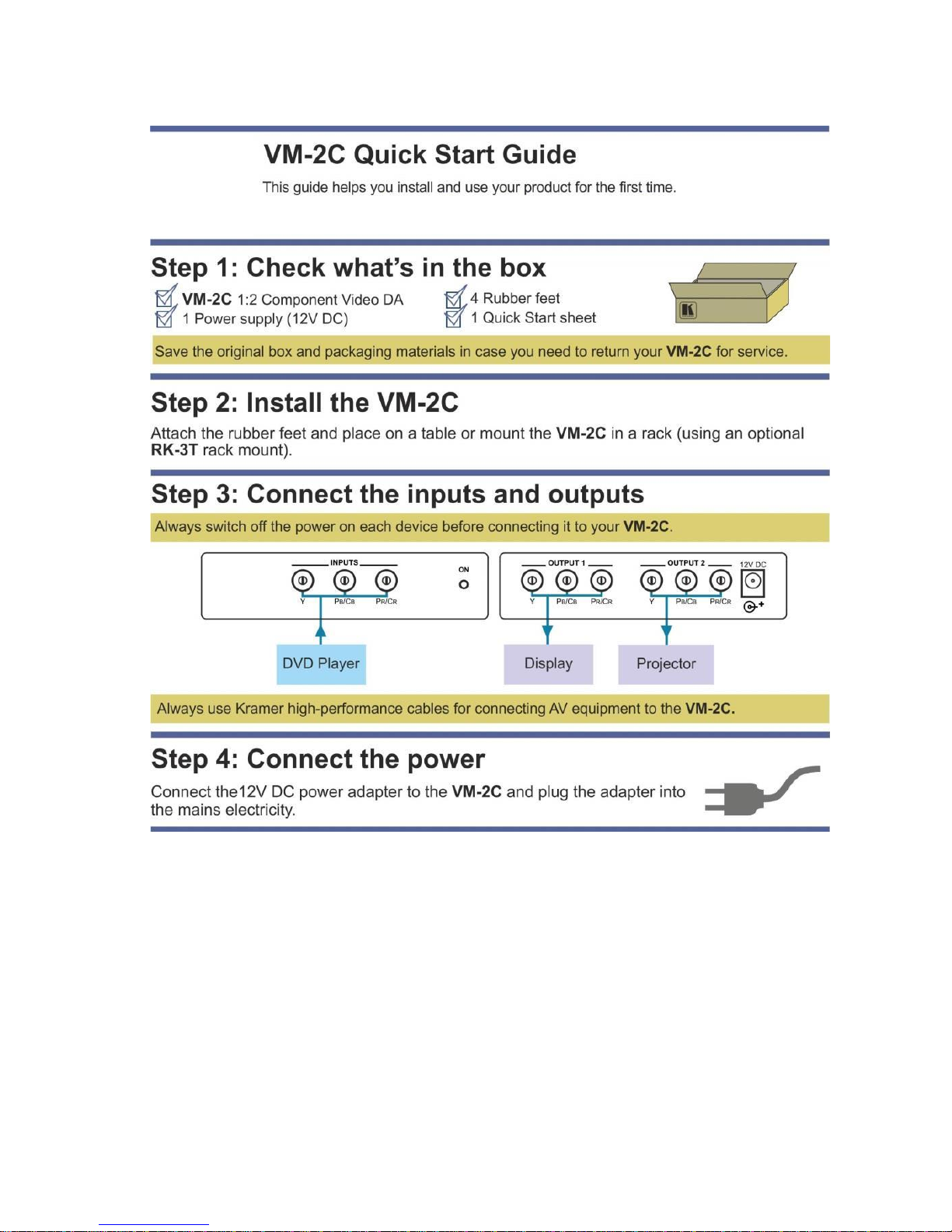

To connect the VM-2C as illustrated in the example in Figure 2:

1. Connect a component video source (for example, a DVD player) to the Y,

PB/CB,and PR/CRINPUT RCA connectors.

2. Connect the OUTPUT RCA connectors (Y, PB/CB,andPR/CR)to up to two

component video acceptors (for example, a display and a projector).

3. Connect the 12V DC power supply to the 12V DC socket and then connect

the power supply to the mains electricity (not shown in Figure 2).

Figure 2: Connecting the VM-2C 1:2 Component Video DA

VM-2C - Technical Specifications

5 Technical Specifications

INPUTS:

1 component video (Y, Pb/Cb, Pr/Cr, or Y, U, V) on RCA

connectors, 1Vpp/75

OUTPUTS:

2 component video (Y, Pb/Cb, Pr/Cr, or Y, U, V) on RCA

connectors, 1Vpp/75

MAX. OUTPUT LEVEL:

2.4Vpp

BANDWIDTH (-3dB):

510MHz

DIFF. GAIN:

0.03%

DIFF. PHASE:

0.03%

K-FACTOR:

<0.05%

S/N RATIO:

73dB weighted

CROSSTALK (all hostile):

–58dB @ 5MHz

COUPLING:

POWER CONSUMPTION:

12 VDC, 71mA

OPERATING TEMPERATURE:

0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE:

-40° to +70°C (-40° to 158°F)

HUMIDITY:

10% to 90%, RHL non-condensing

DIMENSIONS:

12cm x 7.5cm x 2.5cm (4.7" x 0.98" x 2.95"), W, D, H

WEIGHT:

0.3kg. (0.66lbs.)

ACCESSORIES:

Power supply, mounting bracket

OPTIONS:

RK-3T 19” rack adapter
