Korg TRITON Le User manual
S
S
Se
e
er
r
rv
v
vi
i
ic
c
ce
e
e
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
Triton Le
61/76/88
CONTENTS
1) Structural Diagram: Page 2-4

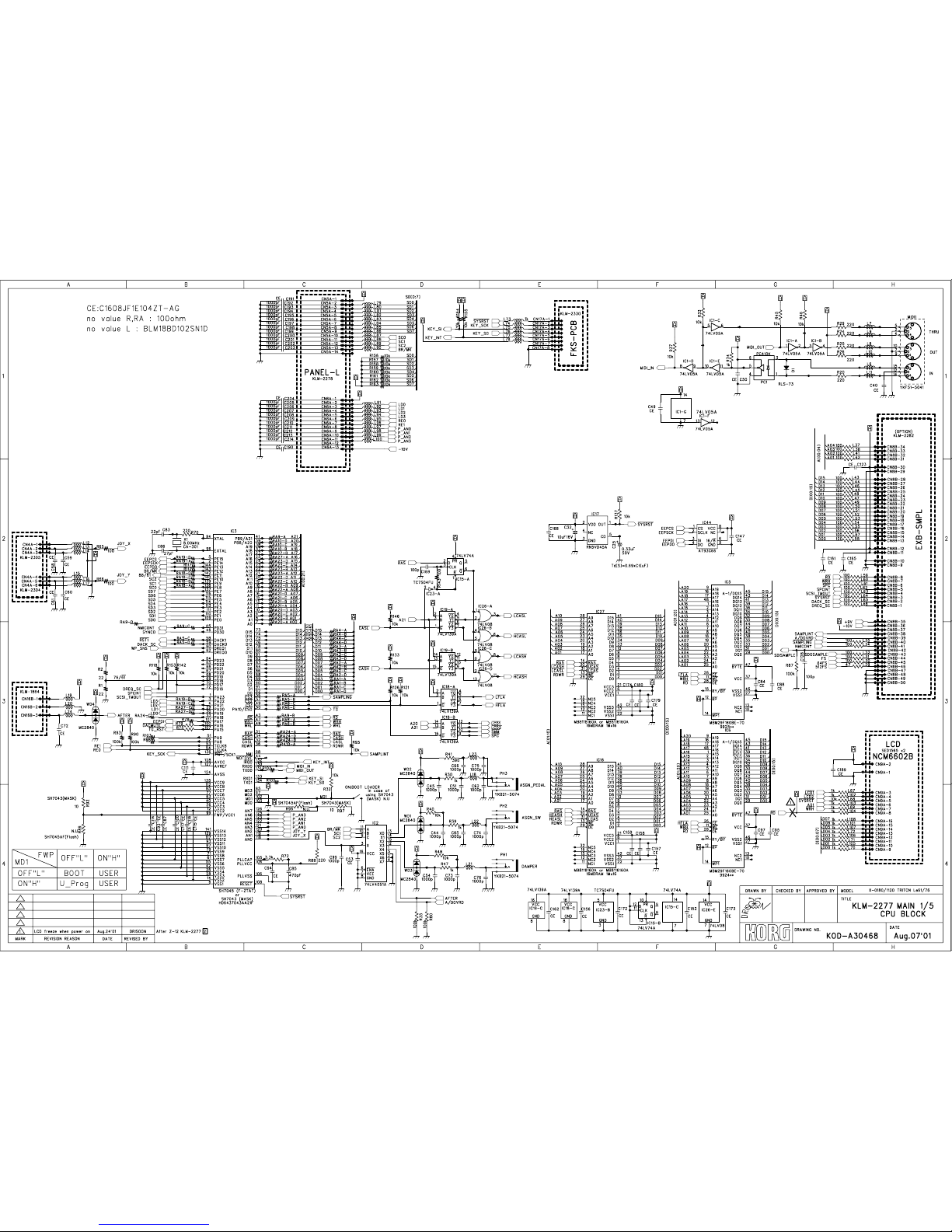

2) Circuit Diagram: Page 5-19
3) Test Mode: Page 20
4) Parts List: Page 21-32
2nd Edition
Issued date:October 21, 2002
Issued by: KORG INC.
Demensions : L= 1045.2mm
W= 302.3mm
H= 95.3mm
Weight : 7.8Kg
17
1
2
34
5
6
7
8
9
10
11 12
13
14 15
16 18
19
NO PART CODE PART NAME Q'TY
1 620024600 X-952 POWER SW KNOB 1
2 620034600 X-631 SVR KNOB (GRAY) 1
3 646079200 X-0180 KNOB BLOCK B-2 1
4 620043900 KNOB P-423-9GF 4
5 646079100 X-0180 KNOB BLOCK B-1 1
6 641041651 X-0180 REAR OP COVER 1
7 630034200 X-0180 LCD WINDOW 1
8 620034700 X-610 ENCODER KNOB (GRAY) 1
9 646078900 X-0180 KNOB BLOCK A-1 1
10 646079000 X-0180 KNOB BLOCK A-2 1
11 646078700 X-0180 SIDE PLATE L 1
12 420005800 61TP/9S+PCBBOARD+AFTERTOUCH 1
13 646078800 X-0180 SIDE PLATE R 1
14 500022500 CASE LEG FF-004 5
15 641041649 X-0180 FRONT BAR 1
16 641041653 X-0180 SIMM COVER 1
17 641041652 X-0180 OP COVER 1
18 641041650 X-0180 BOOTOM COVER 1
19 641041648 X-0180 PANEL 1
Demensions : L=1257.6mm
W= 302.3mm
H= 95.3mm
Weight : 9.2Kg
18
17
16
14 15
12
11
10
13
19
9
8
7
6
5
4
3
2
1
NO.
PART CODE
PART NAME Q'TY
1 620024600 X-952 POWER SW KNOB E40304-2 1
2 620034600 X-631 SVR KNOB(GRAY)E40239-6 1
3 646079200 X-0180 KNOB BLOCK B-2 E10191-2 1
4 620043900 KNOB P423-9GF(-0180) E40519-2 4
5 646079100 X-0180 KNOB BLOCK B-1 E10191-1 1
6 641041651 X-0180 REAR OP COVER KOC-C4122 1
7 630034200 X-0180 LCD WINDOW KOC-F40962 1
8 620034700
X-610 ENCODER KNOB(GRAY)E40466
1
9 646078900 X-0180 KNOB BLOCK A-1 E20211-1 1
10 646079000 X-0180 KNOB BLOCK A-2 E20211-2 1
NO.
PART CODE
PART NAME Q'TY
11 646078700 X-0180 SIDE PLATE L KOC-E10189 1
12 420005900 76TP/9+PCBOARD+AFTERTOUCH 1
13 646080000 X-1120 SIDE PLATE R E10190-2 1
14 500022500 CASE LEG FF-004 5
15 641041661 X-1120 FRONT BAR KOC-C41228-2 1
16 641041653 X-0180 SIMM COVER KOC-C41227 1
17 641041652 X-0180 OP COVER KOC-C41226 1
18 641041659 X-1120 BOTTOM COVER KOC-C30565 1
19 641041660 X-1120 PANEL KOC-C30564 1
