Korg Electribe ESX-1 User manual
This explains basic operation of the ESX-1. For a detailed
explanation of operation, refer to the Owner’s Manual.
Included items
[ ] Owner’s manual
[ ] AC/AC power supply
[ ] Quick Start Tutorial (this document)
1
E
Quick Start Tutorial
2

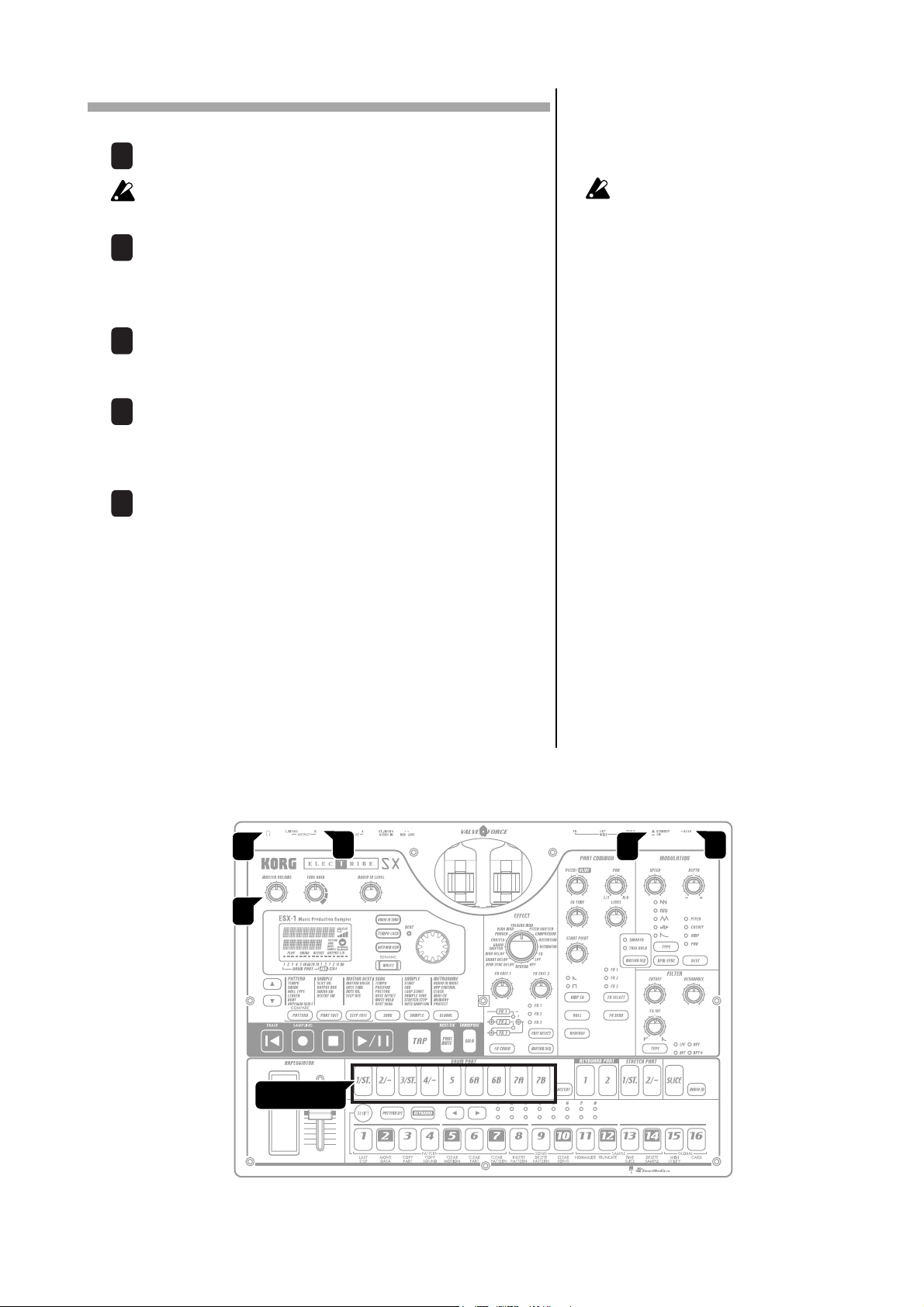

Preparations
1Connect the included AC/AC power supply to the ESX-1’s ~AC
9V connector, and plug the AC/AC power supply to an AC outlet.
You must first connect the AC/AC power supply to the ESX-1, and
then plug it into the AC outlet.
2Connect audio cables from the ESX-1’s line out jacks (L/MONO,
R) to your mixer or powered monitor system (amplified speak-
ers). If you are using a monaural connection, use the L/MONO
jack.
3If you are using headphones, plug them into the headphone jack.
Sound will still be output from the line out jacks even if head-
phones are plugged in.
4Turn on the power switch.
Slightly turn up the ESX-1’s master volume, and touch the drum
part keys to produce sound so that you can check that the connec-
tions are correct.
5Adjust the ESX-1’s master volume, and the gain and faders of your
mixer or powered monitor system to an appropriate listening level.
You must turn off the power before
making connections. Careless op-
eration can damage your speaker
system or other equipment, and
may cause malfunctions.
3 4
5
2 1
DRUM PART
3
4
STOP/CANCEL
2
3
1

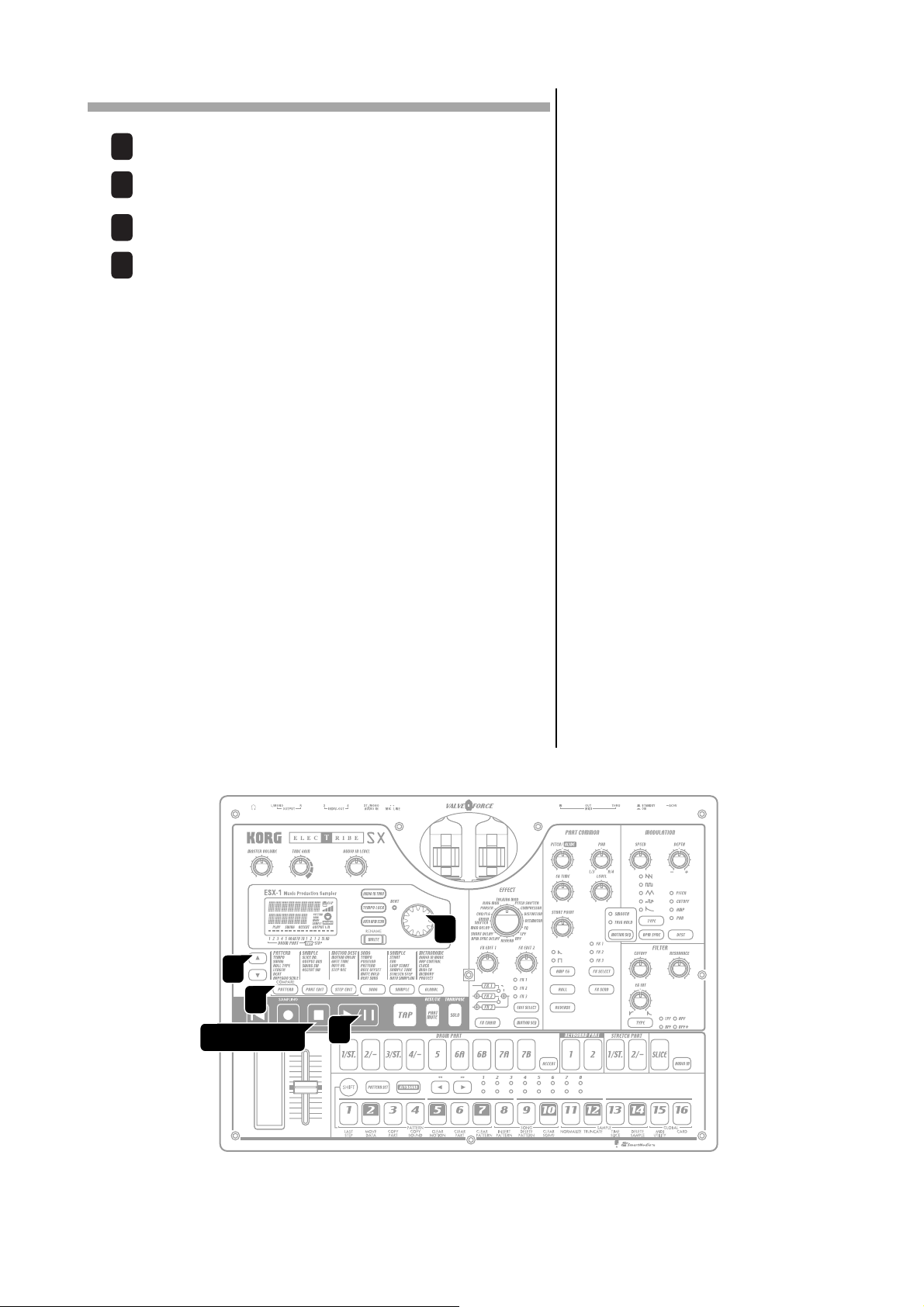

Playing a Demo song
The ESX-1 contains several demo songs. Here’s how you can listen to the demo
songs to get an idea of the ESX-1’s sound and potential.
1Press the SONG key. The SONG key will light.
2The display will show the current song name and number.
If it does not, press the SONG key a second time.
3Turn the dial to select a song.
4Press the PLAY/PAUSE key to play back the song (the key will
light).
To pause playback
Press the PLAY/PAUSE key (the key will blink).
To resume playback
Press the PLAY/PAUSE key once again (the key will light).
To stop playback
Press the STOP/CANCEL key.
Song (☞Owner’s manual: p.75)
Demo Song (☞Owner’s manual: p.18)
4
4
STOP/CANCEL
21
3
Playing a pattern
1Press the PATTERN key (the key will light).
2The display will show the current pattern name and number. If it
does not, press the PATTERN key a second time.
3Turn the dial to select a pattern (A.01—D.64)
4Press the PLAY/PAUSE key to play the pattern (the key will light).
When the pattern ends, playback will return to the beginning of
the pattern and will continue to loop.While the pattern plays, you
can use the Keyboard function to play along on the step keys, press
drum part keys, or operate the knobs and keys to modify the sound.
By using the various functions of Pattern mode as part of your
performance technique, you can create a wide range of expressive
variety.
To pause playback
Press the PLAY/PAUSE key (the key will blink).
To resume playback
Press the PLAY/PAUSE key once again (the key will light).
To stop playback
Press the STOP/CANCEL key.
Pattern (☞Owner’s manual: p.35)
5
SELECT
DRUM PART
23
1
Pressing keys to play the sound of a part
You can play the sound of a part by pressing the drum part keys, or by se-
lecting a synth part and pressing the step keys with the KEYBOARD key turned
on. The sound of each part will differ depending on the pattern. Turn the dial
to select various patterns, and try out the wide variety of sounds.
Playing the sound of a drum part
Press a drum part key 1 through 7B and you will hear the sound assigned
to each key.
Pressing the accent part key will not produce sound.
You cannot simultaneously sound drum parts 6A and 6B, nor 7A
and 7B.

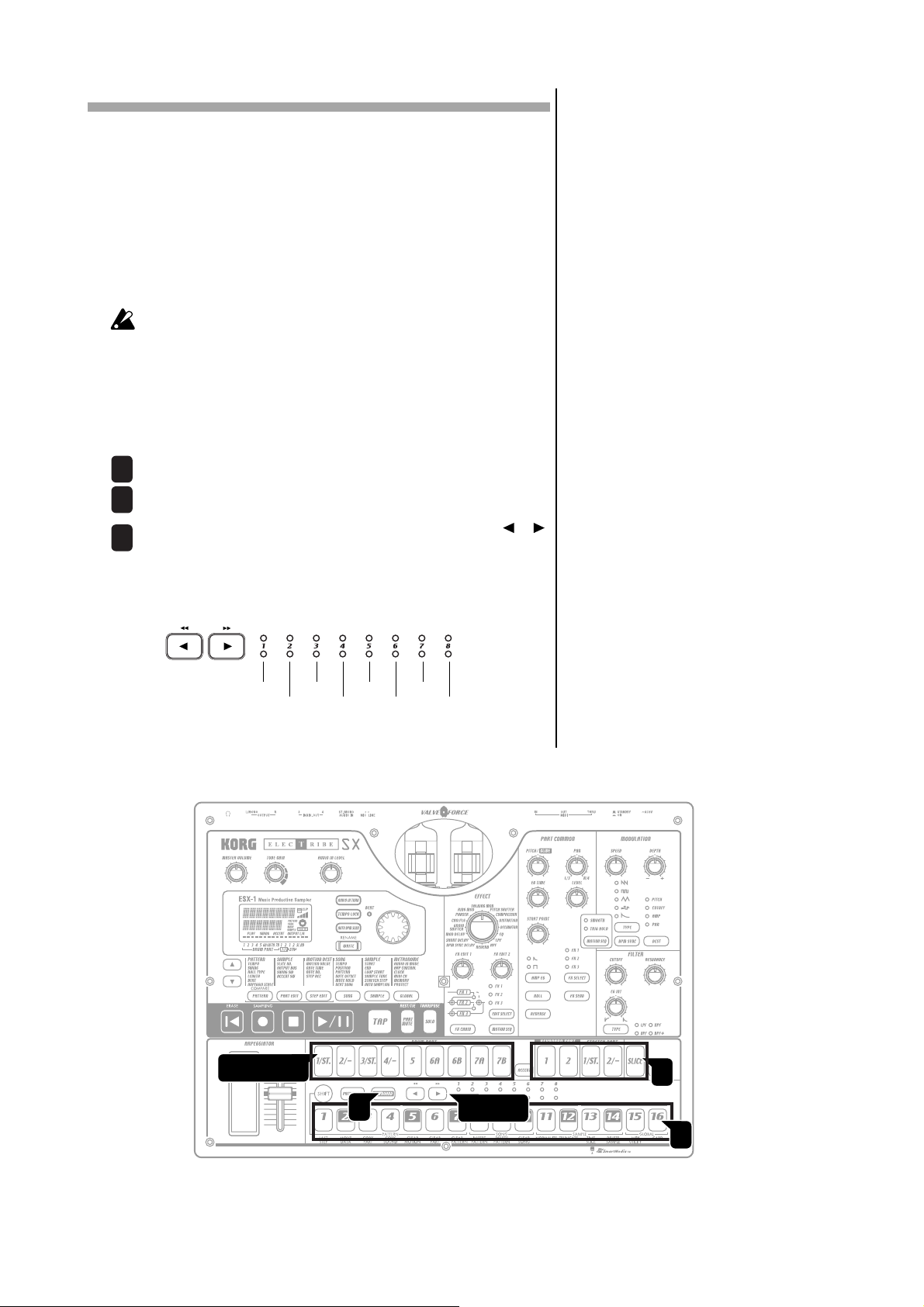

Playing the sound of a Keyboard part (the Keyboard
function)
1Press one of the Keyboard part keys 1, 2 (the key will light).
2Press the KEYBOARD key (the key will light).
3Use the step keys as a keyboard to play the part. Use the [ ]/[ ]
select keys to change the octave.
The select LEDs (lower row, red) will light to indicate the pitch
range.
A5...C7
A6...C8
A-1...C1
Pitch Range A0...C2
A1...C3
A2...C4
A3...C5
A4...C6
Part (☞Owner’s manual: p.38)
6

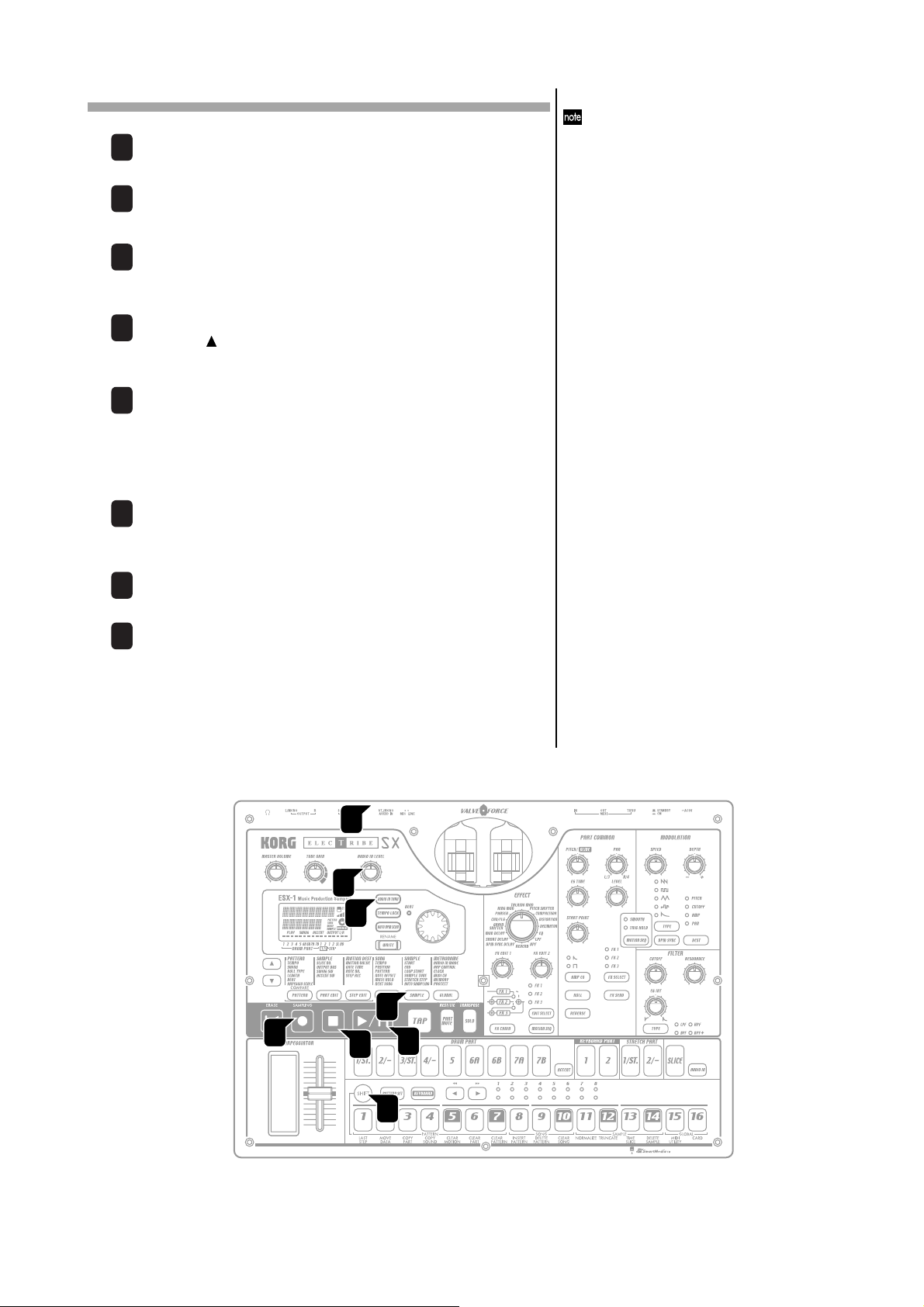

Let’s try sampling
1Connect the audio device from which you want to sample to the
ESX-1’s audio input jack (AUDIO IN).
2Turn the AUDIO IN THRU key on (the key will light), and check
the input sound.
3Adjust the output level of the external device or the AUDIO IN
LEVEL knob of the ESX-1 so that the peak icon (CLIP) does not
light even when the output of the connected device is loudest.
4Press the SAMPLE key (the key will light).
Press the [ ] cursor key to make the display read “(sample name)”
(the SAMPLE icon will light).
5Hold down the SHIFT key and press the REC key to enter sam-
pling-ready mode (the REC key and PLAY/PAUSE key will both
blink).
If you decide to cancel the procedure before you actually begin
sampling, you can press the STOP/CANCEL key at this point.
6Specify the sampling mode (the display indicates “SmplRec”).
Turn the dial to set the sampling mode to either “Stereo”(stereo)
or “Mono” (monaural) sampling.
7Press the PLAY/PAUSE key to start sampling at the desired mo-
ment (the REC key will blink, and the PLAY/PAUSE key will light).
8Sampling will end when you press the STOP/CANCEL key (the
REC key and PLAY/PAUSE keys will go dark).
You can press the PLAY/PAUSE key to hear the sample that you
just recorded.
This jack is a stereo phone plug. You can also con-
nect a monaural phone plug. Before you continue, set
the Global mode AUDIO IN MODE setting to either
monaural or stereo as appropriate (☞Owner’s manual
p.83).
32
4
5
1
7
5
8
7
5
1
2, 4
2
2
To record during playback
If a musical idea strikes you while a pattern is playing, you can start recording
immediately, without having to stop playback.
1Start the pattern playing.
2Press the REC key (it will light).
3If you want to record a drum part, press the drum part key for that
part at the desired timing.
If you want to record a synth part, press the synth part key for the
part you want to record, and with the KEYBOARD key turned on,
play the step keys as a keyboard to enter the desired pitch at the
desired time.
4When you have finished recording, press the REC key (the key
will go dark).
5If you want to save the pattern, press the Write key. (☞Owner’s Manual: p.74 “Saving a pattern”)
