Korg SP-200 User manual
SP-200
Digital Piano
Black
Rose Silver

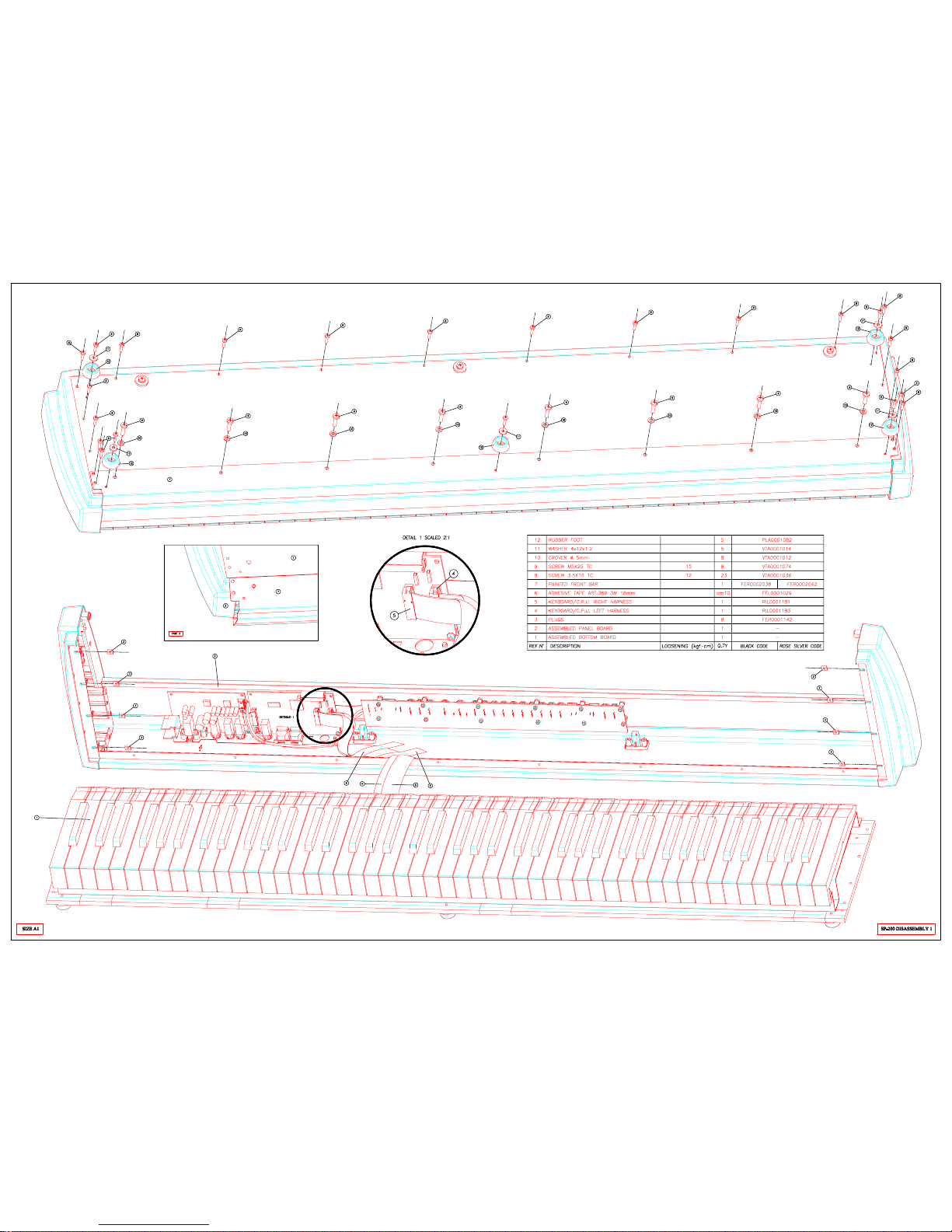

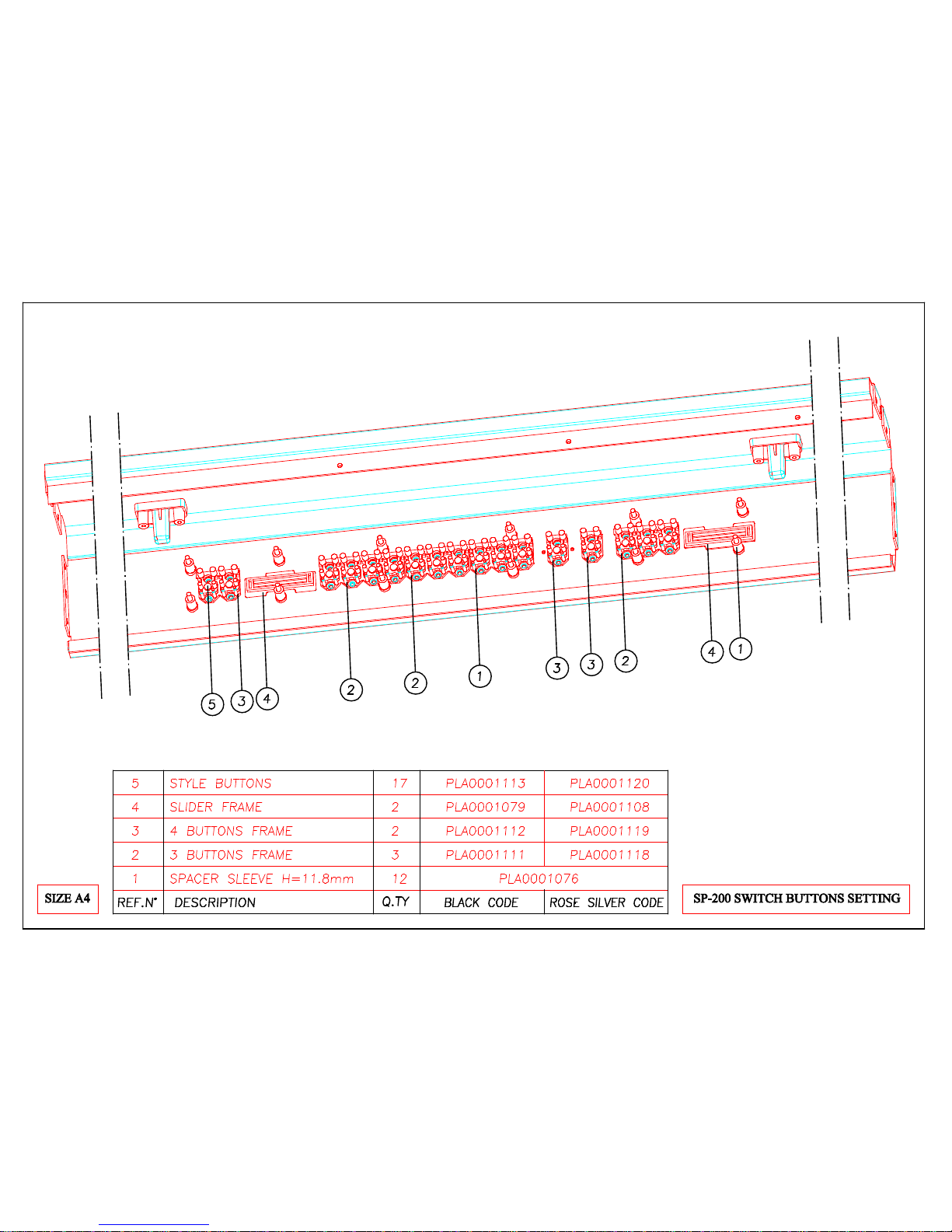

Service Manual
SP-200 Specifications
Keyboard 88 notes, velocity sensitive, with hammer-action simulation.
Touch selection Light, normal, heavy.
Tuning Transpose, fine tuning, temperament (equal, kirnberger, werckmeister).
Sound generation Stereo PCM system.
Polyphony 60 notes (max). The use of 2-oscillator sounds, the layer mode and/or the reverb or
chorus reduces the maximum number of simultaneous notes.
Sounds 30 sounds in ROM.
Effects Reverb, chorus (3 levels each).
Demo 30 incorporated demos.
Metronome Tempo, time signature, accent and volume controls.
Pedal Damper (included). Half-pedalling supported with korg DS1H (optional).
Connections Audio output (OUTPUT L/MONO, R), headphones, midi (IN, OUT), damper.
Controls Power switch, master volume, reverb, chorus, touch, transpose/function, bank,
sound selectors, tempo, metronome, demo.
Power supply DC12V, 500mA, center negative barrel, AC adapter (included).
Power consumption 5 Watt.

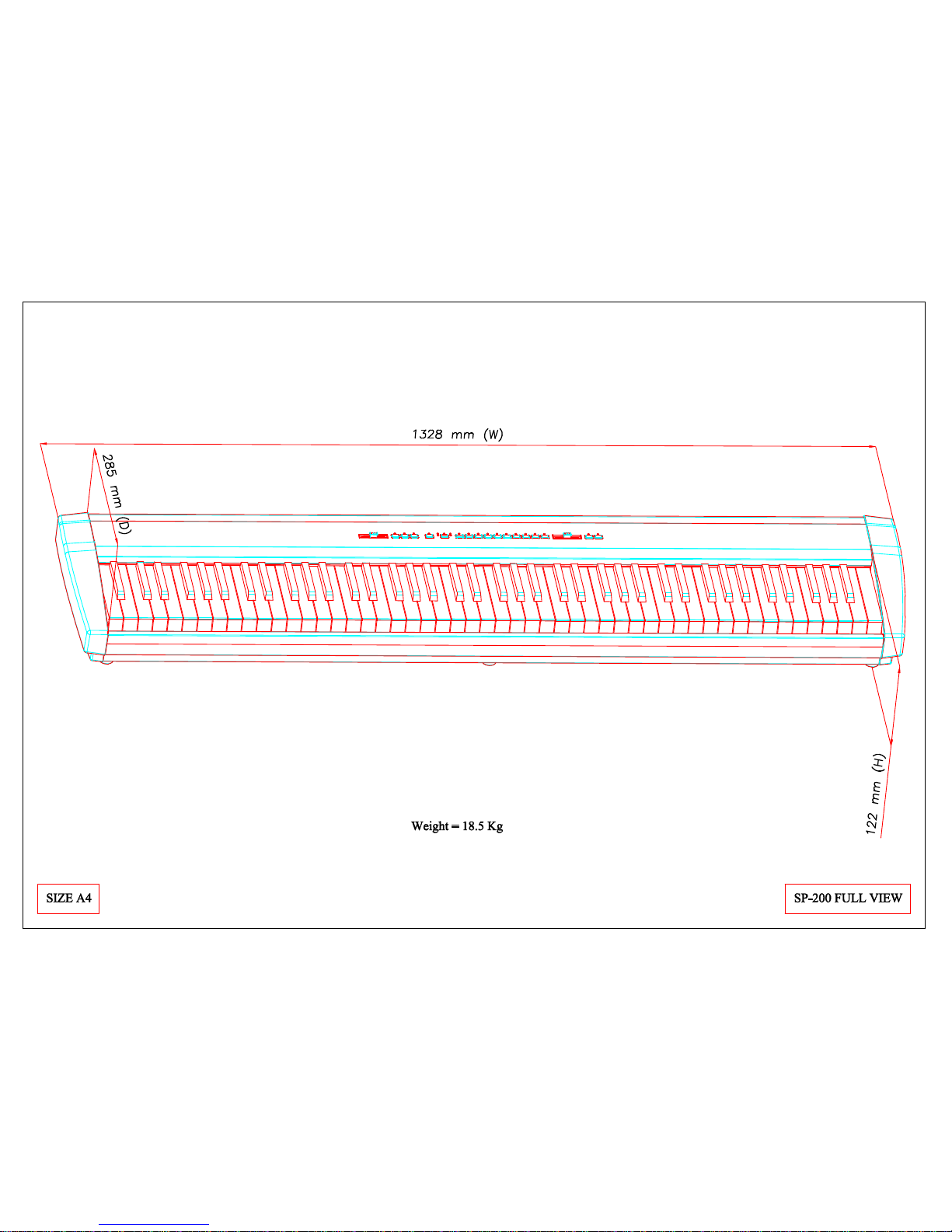

Dimensions (W x D x H) 52.3 x 11.2 x 4.8 inch (1328 x 285 x 122 mm).
Weight 40.7 lbs (18,5 kg).
Accessories DC12V, 500mA, center negative barrel, AC adapter; damper pedal; music stand (all
included).
Options DS 1H - damper pedal with half-pedal control.
Sounds processed with INFINITY™.
Korg reserves the right to change the specifications without notice.
SAM9753
SR=31.25KHz
64M (4Mx16) MASK ROM
2*74HC238
MK0-10
BR0-10
ROW0-2
KBIO
BR0-4
MK0-4
T0-7
S0-7
BR0-4
MK0-4
BR5-10
MK5-10
T0-7
CS0WR RD
X1
8MHz
24Bit DAC
PCM1716
LP
FILTER
8 CH. MUX
ADCIN
L
R
KEYBOARD
PANEL
MEDIA SELECT
32Kx16 STATIC
RAM
3V3
RESET
A0-A16
24Bit ADC
AK5353
MAIN SW
+5VA
3V3 +3.3V
REG.
+5VA
REG.
MUTE
GPIO3-4
GPIO0-1
MODEL
SELECT
MAIN BOARD
KIP2051
Level
traslator
T.C.
SELECT
TEMPO SLIDER
WHEEL
MIC. VOL.
PART1 VOL.
PART2 VOL
GPIO2
74VHC139
4-32M FLASH
A22-A23
CS0
CS1
CS
CS
Level
traslator
Fin/2
CLBD
DABDO
WSBD
DACLK
DAAD
PC CLK 1MHz
MIDI/PC
PANEL
BOARD
17 SW
19 LEDs
S03-07
BR01-4
MK01-4
TEMPO
= NOT USED
88 KEYS FATAR KEYBOARD
TP30
I
N
RS
422
I/F
GND
MIDI
PC
PEDALS
O
U
T
MIDI/PC
PC910K
Level
traslator
WA0-23
WD0-15
MASTER VOLUME
ASSEMBLED ON
PANEL BOARD
OUT
L/M
R
+5V
REG
+9V
REG
OUTPUT BOARD
DC
IN
HP
OUT
2MHz
CS1
KIP-2052
KIP-2050
CON8
CON6CON7
CON5 CON1 CON2 CON3CON9
SW1
CN5 CN6 CN2
CN3
VR5
VR1
CN1
SW1
IC1
IC2
CN4 CN2 CN3
IC4
IC18
IC14
IC6,7
IC12
IC10
IC13
IC3
IC3
IC4
SP200 BLOCK DIAGRAM
