KonNad C2000-A2-SDD6060-CAX User manual

Last updated: 2019-12-13

C2000-A2-SDD6060-CAX

User Manual

6DO ← 6AC

AC 90-275V

Remote I/O Module — AC Digital Input Module

SinoCon Co., Ltd.

Catalog

1. Hardware Description

1.1. Specifications

1.2. Apprearance

1.3. Indicators

1.4. Port Description

1.5. Product Dimensions

1.6. Installation Method

2. Package Contents

3. Warranty Policy

C2000-A2-SDD6060-CAX User Manual

2 / 11

SinoCon Co., Ltd. www.sinoconsys.com

Trademarks

The KonNaD logo is a registered trademark of SinoCon Co., Ltd. All other trademarks or registered marks in this

manual belong to their respective manufacturers.

Disclaimer

This document only provides information about KonNaD products. No license to any intellectual property rights is

granted by this document, including any intellectual property licenses, expressed or implied, or by any means.

SinoCon assumes no responsibility other than the liability stated by SinoCon in the terms and conditions of sale of

its products and SinoCon makes no warranties regarding the sale or use of KonNaD products, including the

suitability for the specific use of the products, and marketability, and SinoCon doesn't guarantee that it won't

infringe any patent, copyright or other intellectual property rights, etc.

Information in this document is subject to change without notice and does not represent a commitment on the

part of SinoCon.

SinoCon Co., Ltd.

Address: 16th Floor, Tower A, Zhongyin Building, Caitian Road, Futian District, Shenzhen, China

Web: www.sinoconsys.com

Tel: +86 0755-88865168

C2000-A2-SDD6060-CAX User Manual

3 / 11

SinoCon Co., Ltd. www.sinoconsys.com

C2000-A2-SDD6060-CAX User Manual

4 / 11

SinoCon Co., Ltd. www.sinoconsys.com

1. Hardware Description

1.1. Specifications

Classification Parameter Specification

AC Input AC Channels 6

Connector Terminal block

AC Type Wet contact

Channel-to-Channel Isolation 1500Vrms

Acquisition Frequency 1kHz

Logic Logic 0: ≤ 75VAC, Logic 1: 90~275VAC

Digital Output DO Channels 6

DO Connector Terminal block

DO Type Open-collector Output

DO Mode Logic Level

Physical Characteristics Dimensions 75*105*30mm

Installation Din-rail or wall

Environmental Limits Operating Temperature -40℃ ~ 85℃

Storage Temperature -60℃ ~ 125℃

Ambient Relative Humidity 5% ~ 95% RH, non-condensing

C2000-A2-SDD6060-CAX User Manual

5 / 11

SinoCon Co., Ltd. www.sinoconsys.com

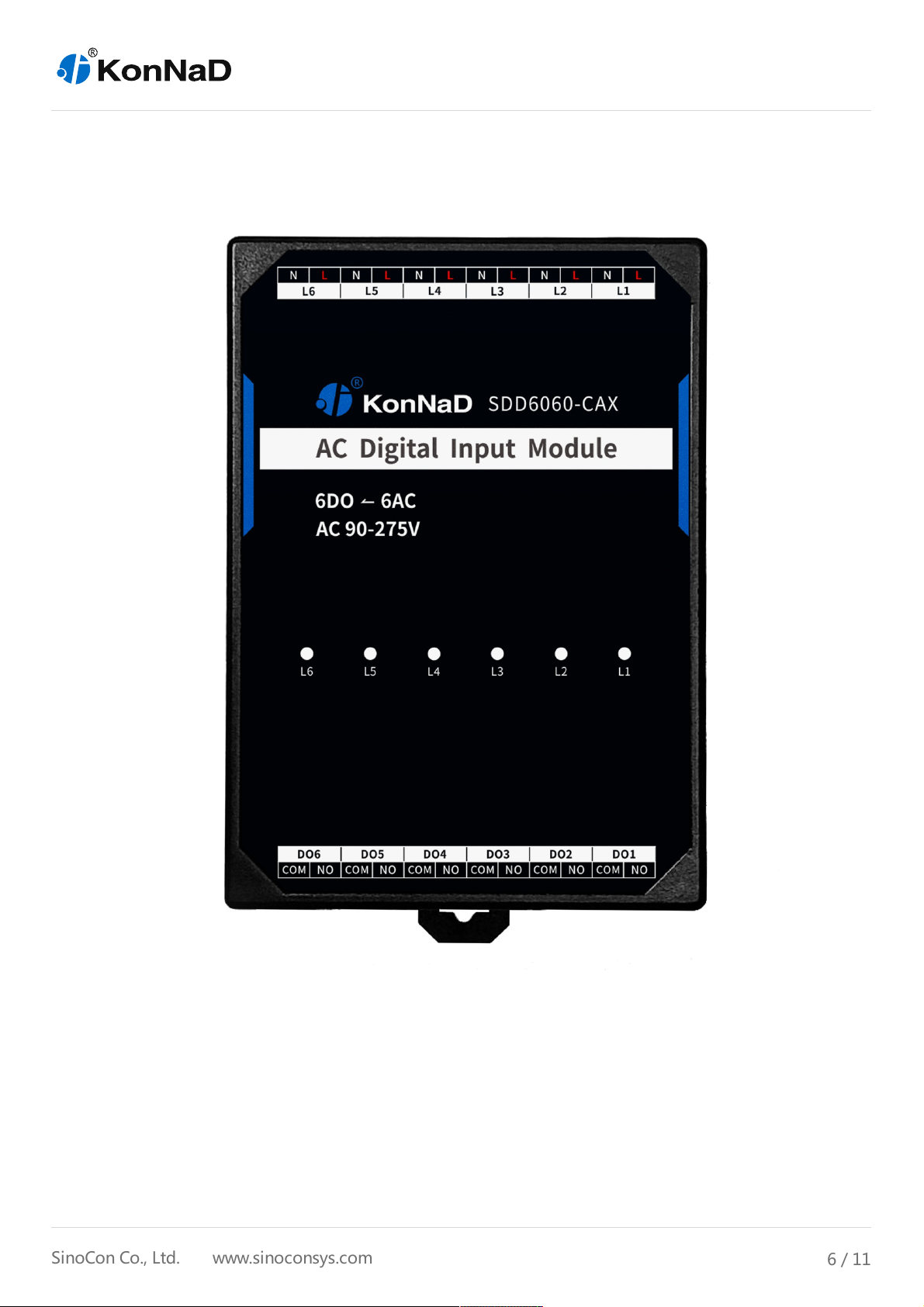

1.2. Apprearance

C2000-A2-SDD6060-CAX User Manual

6 / 11

SinoCon Co., Ltd. www.sinoconsys.com

1.3. Indicators

Classification Indicator Description Meaning

AC Input Lx AC input

indicators

Steady on：Input voltage more than the threshold voltage

(90VAC)

Off：Input voltage less than the threshold voltage

(90VAC)

C2000-A2-SDD6060-CAX User Manual

7 / 11

SinoCon Co., Ltd. www.sinoconsys.com

1.4. Port Description

Classification Port Description Recommended wiring

AC Input L、N AC live wire, AC neutral wire -

Digital Output NO Digital output normally open RVV 2*1.0

COM Digital output common RVV 2*1.0

C2000-A2-SDD6060-CAX User Manual

8 / 11

SinoCon Co., Ltd. www.sinoconsys.com

1.5. Product Dimensions

unit: mm（inch）

1.6. Installation Method

C2000-A2-SDD6060-CAX User Manual

9 / 11

SinoCon Co., Ltd. www.sinoconsys.com

2. Package Contents

No. Contents

1 Device (contain mounting kit) * 1

2 Terminal block * 1 set

3 Installation guide card * 1

C2000-A2-SDD6060-CAX User Manual

10 / 11

SinoCon Co., Ltd. www.sinoconsys.com
