Konica Minolta Q-M200 User manual
Chapter 1 Preparations
Names of Parts
察Mode select dial
拶Power button
撮Shutter button
擦Lens
札Selftimer LED
殺Active AF sensor
薩Viewfinder window
雑Flash
皐Flash adjustment sensor
鯖Mode setup buttons
捌Image quality mode button (QUALITY)
錆Selftimer button
鮫Flash mode button
皿Photo mode button (MODE)
晒Data display panel (LCD)
三Power input terminal
傘Serial port
参Video port
山 Lens cover
惨 Battery cover
撒 Battery cover lock button
散 Tripod socket hole
惨 撒 散
山
察
拶
撮
擦
札
殺
薩
雑
皐
捌
錆
鮫
皿
鯖
晒
三
傘
参
○* If foreign matter adheres to the active AF
sensor or the eye sensor, this may lead to
malfunction of the sensor.
桟 Eye sensor
燦 Viewfinder LED
珊 Card access LED

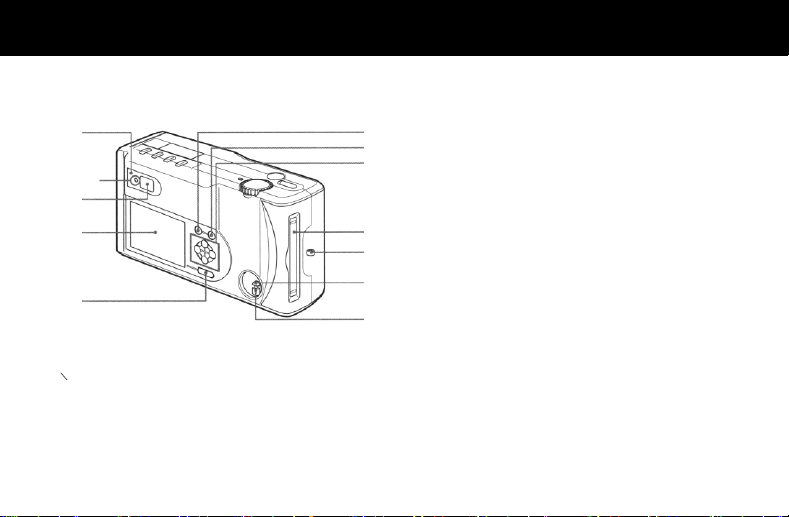

産Viewfinder eyepiece
算LCD monitor
纂 LCD monitor power button (LCD POWER)
蚕 Menu button (MENU)
讃Set/Zoom button (SET/ZOOM)
賛Select button
酸Card cover
餐Strap eyelet
斬Eject lock button
暫 Card eject button
蚕
讃
賛
酸
餐
斬
暫
桟
燦/珊
算
産
纂
Data display panel
察Photo mode indicator
Press the photo mode button (MODE) of the
mode setup buttons to switch between the
following 5 preset states of subjects:
(No icon: initial)
Sports ( ): Quick action
Infinity ( ): Long distance
Macro ( ): Extremely short distance
Text ( ): Characters (black & white)
拶 Battery indicator
The remaining voltage of the battery used to
power the camera is indicated at one of three
levels (full: ,half: , empty: ).
撮
擦
札
殺
雑
薩
皐
察 拶
撮 Image quality mode indicator
Press the image quality mode button
(OUALITY) of the mode setup buttons to switch
the mode among the following 4 choices of
image quality:
FINE (Initial setting)
SUPER FINE
BASIC
ECONOMY
擦 Sandglass indicator
Flashes to indicate an ongoing access to the
CompactFlash card (for writing shot images to
the card or transferring them to a personal
computer). Any other operation is disabled until
the mark stops flashing.
札 Remaining frame count indicator
Indicates the remaining number of frames that
can be shot.
"PC" appears when the camera is connected to
a personal computer.
殺 Card status indicator
Lights when a card is inserted and the eject
lock button is locked.
Goes off when the eject lock button is not
locked or a card is not in position.
薩 Selftimer indicator
Press the selftimer button ( ), a mode setup
button, to use the selftimer mode. The selftimer
indicator will appear on the data display panel.
雑 Flash mode indicator
Press the flash button ( ), a mode setup button,
to switch it among (1) Auto Flash ( AUTO)
(default), (2) Redeye Reduction/Auto Flash
(AUTO ), (3) Flash On ( ), (4) Redeye
Reduction/Flash On ( ) and (5) Flash Off ( ).
As the flash button is switched from one setting
to another, a corresponding mark will appear
on the data display panel.
皐 Mode setup buttons (MODE, , ,
QUALITY)
Press one of the 4 mode setup buttons to suit
the shooting environment.
When you press a mode setup button, the
corresponding mark will appear on the data
display panel.
Installing the Batteries/Special
Lithium-ion Battery and the Special
Adapter for Q-M200 (Option)
* Use of the lithium-ion battery is recommended.
First, press the camera power button and the LCD
monitor button to turn both off.
1. Open the battery cover
on the bottom by
pushing the battery
cover lock button in the
direction of the arrow
mark.
Warning
Do not perform this operation with wet hands
because there is danger of electrical shock.
2. Load the batteries.
•Ordinary AA batteries
Load 3 AA batteries with
the electrodes correctly
aligned with the indications
inside the battery
compartment.
Caution:
Incorrect polarity orientation might cause the
batteries to leak or heat, resulting in physical
injury, smear, or damage to the camera.
Note:
Two different types of batteries can be used: AA
alkaline and AA NiMH (3 each).
With Size AA alkaline batteries, the camera can
shoot about 10 pictures (if the LCD monitor is
turned on) or about 150 pictures (if the LCD
monitor is turned off) and plays recorded pictures
continuously for about 20 minutes (all under our
defined test conditions).
•Lithium-ion battery (PX-LB1)
Load the battery with the
label facing upward and
with the plus and minus
electrodes positioned as
shown in the diagram.
3. After making sure that the batteries are correctly
loaded, close the battery cover positively until it
clicks into position.
Note:
Battery replacement is indicated when only the
right half of the Battery indicator in the data
display panel is displayed. Replace all three AA
batteries at the same time. It is recommended
that spare batteries be carried on trips.
•AC adapter
(Option: PX-AC1/PX-AC2)
Connect the AC adapter
to an AC power outlet.
Next, connect the power
cable of the AC adapter to
the power input terminal of
the camera.
Handling the AC Adapter
•
Be sure to read Safety Considerations and the
instructions supplied with the AC adapter.
•
Use an AC adapter of the specified type
(PX-AC1/PX-AC2). Use of a nonstandard AC
adapter might cause the camera to fail or fire
or to develop electrical shock hazards.
Inserting/Ejecting Compact Flash
(CF) card
CF card applications and handling
●CF cards can be used to store photographic
images and to transfer data to a personal
computer (see Transferring Image Files to a
Personal Computer). Refer to CompactFlash
(CF) cards concerning handling.
Preparation
●Make sure that the lens cover is closed and that
the LCD monitor is turned off to prevent
damaging the camera and CF card when the
power is turned on.
Inserting the CF card
Position the CF card with the
Konica label facing the rear of
the camera and insert the CF
card fully by pushing in the
direction indicated by the
▲
mark on the label.
Ejecting the CF card
Hold the eject lock button
downward and slide the card
eject button to the left side.
(At Insertion/Ejection)
*The card access LED lights while shot images
are being written to the CF card. Never eject
the CF card while the lamp is on. Writing would
be interrupted, resulting in possible
malfunctioning.
(At Insertion)
*Inserting the CF card in the wrong direction
would cause damage to the connector.
(At Ejection)
*If the CF card won't eject easily when you press
the eject lock button and slide the card eject
button, push in the CF card once again and then
slide the card eject button while pressing the
eject lock button strongly.
*If you slide the card eject button with the CF
card slot facing down, the card could pop out. Be
careful not to let it drop.
*Turn the power off before inserting or ejecting a
CF card. If you press the eject lock button while
the card access LED is lighting, the access to
the CF card would be interrupted, resulting in
possible malfunctioning.
