Kohler K-470 Assembly instructions

Homeowners Guide

Fixture-Mount Bidet Faucet

K-470

Mproduct numbers are for Mexico (i.e. K-12345M)

Los números de productos seguidos de

Mcorresponden a México (Ej.

K-12345M)

Français, page“ Français-1”

Español, página“ Español-1”

116829-5-C

Thank You For Choosing Kohler Company

Thank you for choosing the Bold Look of Kohler. Kohler craftsmanship

offers you a rare combination of proven performance and graceful

sophistication that will satisfy you for years to come. The

dependability and beauty of your Kohler product will surpass your

highest expectations. We’re very proud of our products here at Kohler

and we know you will be too.

Please take a few minutes to study this Homeowners Guide. Pay

special attention to the care and cleaning instructions.

All information in this manual is based upon the latest product

information available at the time of publication. At Kohler, we

constantly strive to improve the quality of our products. We reserve

the right to make changes in product characteristics, packaging or

availability at any time without notice.

Your Kohler Bidet Faucet

Your new bidet faucet blends elegant styling and beauty with

exceptional performance and reliability. Each faucet is precision

engineered and constructed of premium quality materials to provide

trouble-free operation even under the hardest water conditions.

Your bidet faucet is used for partial bathing. The user sits on the rim of

the bowl facing the faucet. Fresh water enters the bidet in a stream

from the bidet faucet. A drain retains water in the bowl if desired.

The bidet may also be used as a footbath. It is roomy and low enough

to use easily while sitting on a chair.

Care and Cleaning

For best results, keep the following in mind when caring for your

KOHLER product:

•Use a mild detergent such as liquid dishwashing soap and warm

water for cleaning. Do not use abrasive cleaners that may scratch

or dull the surface.

•Carefully read the cleaner product label to ensure the cleaner is

safe for use on the material.

•Always test your cleaning solution on an inconspicuous area

before applying to the entire surface.

•Do not allow cleaners to sit or soak on the surface.

116829-5-C 2 Kohler Co.

Care and Cleaning (cont.)

•Wipe surfaces clean and rinse completely with water immediately

after cleaner application. Rinse and dry any overspray that lands

on nearby surfaces.

•Use a soft, dampened sponge or cloth. Never use an abrasive

material such as a brush or scouring pad to clean surfaces.

For detailed cleaning information and products to consider, visit

www.kohler.com/clean. To order Care & Cleaning information, call

1-800-456-4537 and press 1 for Kohler Products and then 3 for

Literature.

Lifetime Limited Warranty - USA and Canada

Kohler Co. warrants its faucets manufactured after January 1, 1997, to

be leak and drip free during normal residential use for as long as the

original consumer purchaser owns his/her home. *If the faucet should

leak or drip during normal use, Kohler will, free of charge, mail to the

purchaser the cartridge necessary to put the faucet in good working

condition.

Kohler also warrants all other aspects of the faucet, except gold ﬁnish,

to be free of defects in material and workmanship during normal

residential use for as long as the original consumer purchaser owns

his/her own home. If a defect is found in normal residential use,

Kohler Co. will, at its election, repair, provide a replacement part or

product, or make appropriate adjustment. Damage to a product caused

by accident, misuse, or abuse is not covered by this warranty. Proof of

purchase (original sales receipt) must be provided to Kohler with all

warranty claims. Kohler Co. is not responsible for labor charges,

installation, or other consequential costs. In no event shall the liability

of Kohler exceed the purchase price of the faucet.

If the faucet is used commercially, Kohler warrants the faucet to be free

from defects in material and workmanship for one (1) year from the

date the product is installed, with all other terms of this warranty

applying except duration.

If you believe that you have a warranty claim, contact Kohler Co.,

either through your Dealer, Plumbing Contractor, Home Center or

E-tailer, or by writing: Kohler Co., Attn.: Customer Service Department,

444 Highland Drive, Kohler, WI 53044, USA. Please be sure to provide

all pertinent information regarding your claim, including a complete

description of the problem, the product, model number, color, ﬁnish,

the date the product was purchased and from whom the product was

purchased. Also include your original invoice. For other information,

or to obtain the name and address of the service and repair facility

Kohler Co. 3 116829-5-C

Lifetime Limited Warranty - USA and Canada (cont.)

nearest you, call 1-800-4-KOHLER from within the USA, 1-800-964-5590

from within Canada and 001-877-680-1310 from within Mexico.

The foregoing warranties are in lieu of all other warranties, express

or implied, including but not limited to the implied warranties of

merchantability and ﬁtness for a particular purpose.

Seller disclaims any liability for special, incidental or consequential

damages. Some states/provinces do not allow limitations of how long

an implied warranty lasts or the exclusion or limitation of such

damages, so these limitations and exclusions may not apply to you.

This warranty gives the consumer speciﬁc legal rights. You may also

have other rights that vary from state/province to state/province. This

warranty is to the original consumer purchaser only, and excludes

product damage due to installation error, product abuse, or product

misuse, whether performed by a contractor, service company, or the

consumer.

This is our exclusive written warranty.

*Trend

faucets, MasterShowerTM Tower, polished gold ﬁnish, all items

within the ″Fixture Related″section of the KOHLER Faucets Price

Book, drains, Duostrainer

sink strainers, soap/lotion dispensers and

faucets used in commercial settings are covered by Kohler’s one-year

limited warranty.

One-Year Warranty - Mexico

For Mexico Only

KOHLER CO.

It is recommended that at the time of purchase, you verify that all

accessories and components are complete in this package.

This Kohler product is warranted to be free of defects in material and

workmanship for one (1) year from the date of purchase as shown on

the invoice or receipt.

1. Kohler Co. will only service its commercialized products through its

authorized distributors.

2. To obtain warranty service, please present the invoice and

corresponding warranty.

3. Through its authorized distributors, Kohler Co. promises to repair

the defective product or provide a new replacement or an equivalent

model (in those cases that the model has been discontinued) when the

product is beyond repair, without any charge to the consumer.

116829-5-C 4 Kohler Co.

One-Year Warranty - Mexico (cont.)

4. The time of repair will not exceed six (6) weeks commencing on the

date the product is received.

5. It is recommended that the consumer save the invoice or receipt as

additional protection, as it may substitute the warranty in the case that

there is a discrepancy in the validity of the warranty.

EXCEPTIONS AND RESTRICTIONS

The Warranty will not be valid in the following cases:

1. When the product is not operated in accordance with the

instructions concerning use and operation set forth in the owner’s

manual or installation instructions, and when the recommendations

and warnings included are not observed.

2. When the product has been modiﬁed or dismantled partially or

totally; or has been used in a negligent fashion and as a consequence

has suffered damages attributable to the consumer, individual, or

hardware not authorized by Kohler Co.

3. This warranty does not cover the damages as a result of disaster

such as ﬁre or acts of God, including ﬂooding, earthquake, or electric

storms, etc. To obtain a list of distributors in your area where you can

exercise your rights under this warranty, please call 001-877-680-1310.

KOHLER CO., KOHLER, WI 53044 U.S.A.

IMPORTER:

INTERNACIONAL DE CERÁMICA, S.A.B. DE C.V.

AV. CARLOS PACHECO NO. 7200

CHIHUAHUA, CHIH., MEXICO C.P. 31060

TEL: 52 (14) 29-11-11

Kohler Co. 5 116829-5-C

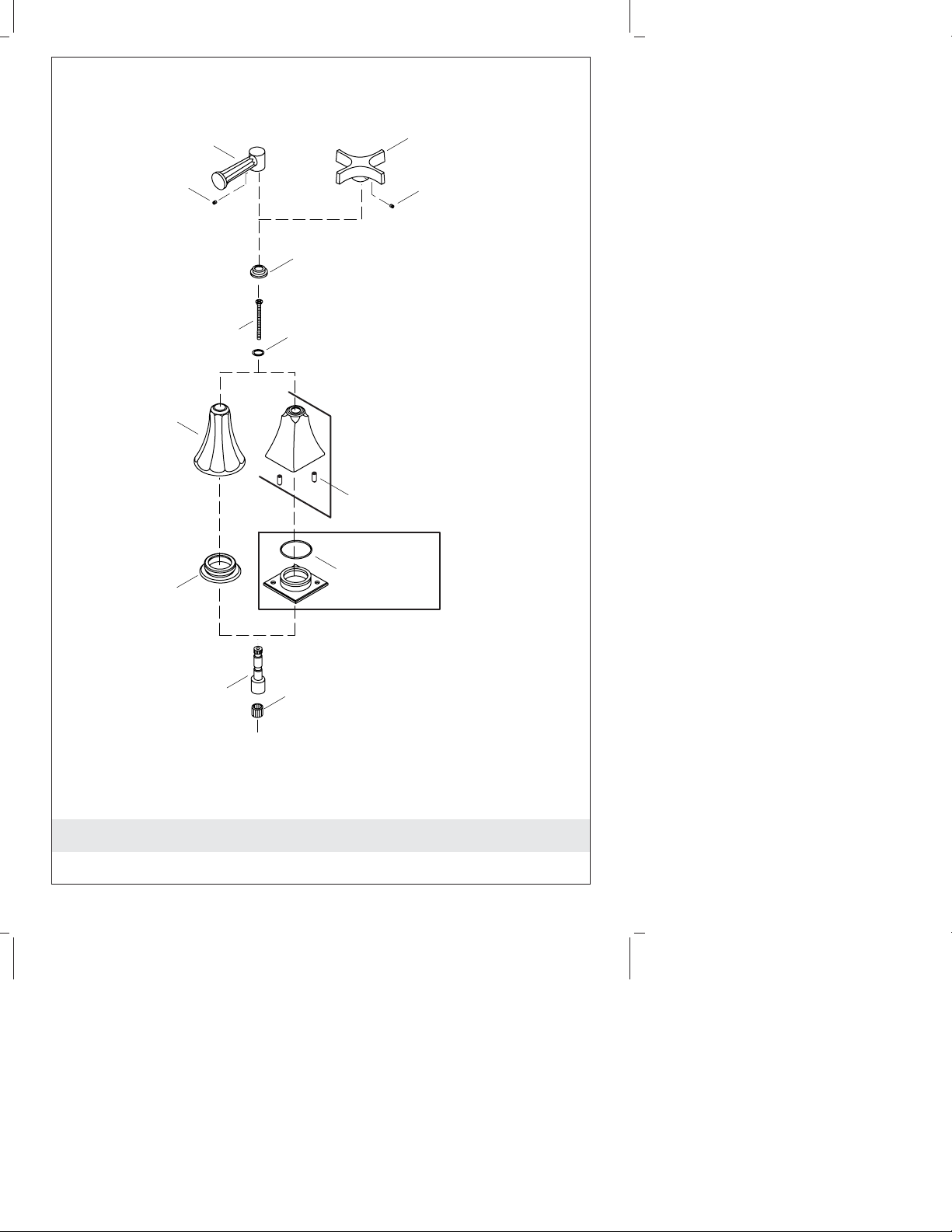

Service Parts

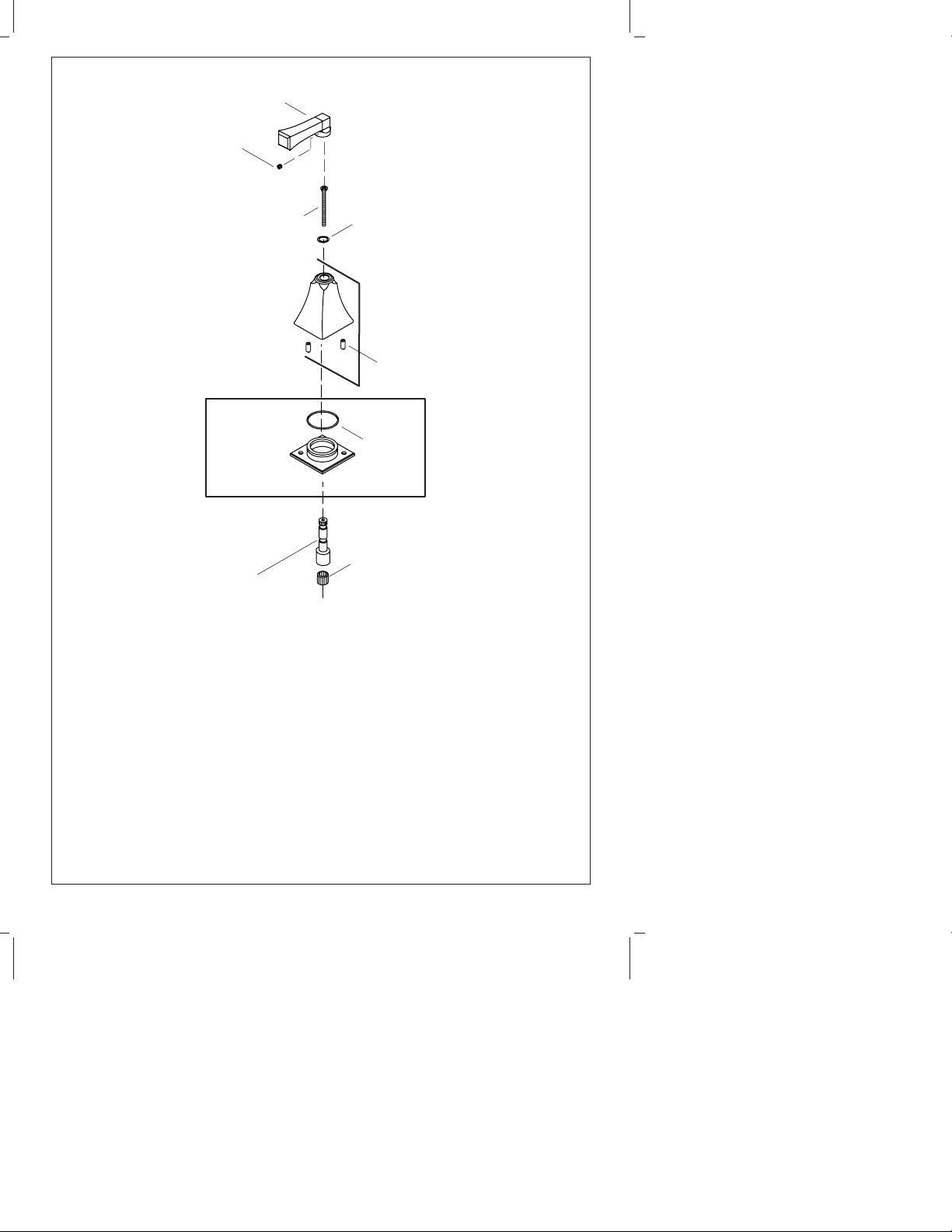

1001118**

Escutcheon

59425

78125

Spline Adapter

86679** (Use w/Square Bonnet Only)

Trim Ring

79690**

Faceted Bonnet

Square Bonnet

56173

Setscrew

87536

Screw

56173

Setscrew

75603

1011132-B (Cold)

1011132-R (Hot)

Washer

51469

O-Ring

87466

Stem Extension

1000282**

Handle w/Setscrew

1000283**

Handle w/Setscrew

Escutcheon

Nut

**Finish/color code must be specified when ordering.

57597

88018**

To Valve

116829-5-C 6 Kohler Co.

1001118**

Escutcheon

78125

Spline Adapter

1021513

Screw

75603

1023695-B (Cold)

1023695-R (Hot)

Washer

51469

O-Ring

1021514

Stem Extension

56173

Setscrew

1025208**

Handle w/Setscrew

**Finish/color code must be specified when ordering.

Square Bonnet

57597

88018**

To Valve

Kohler Co. 7 116829-5-C

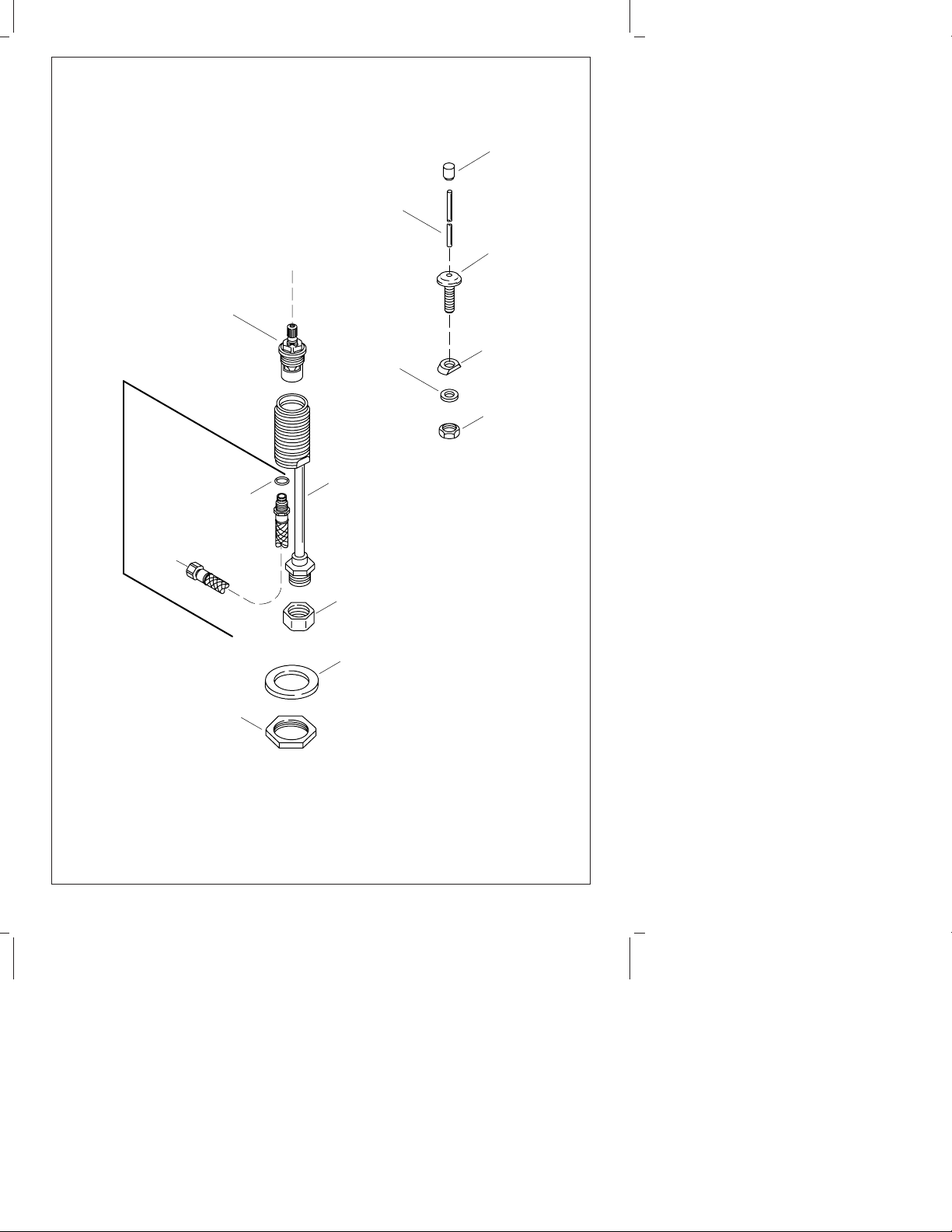

40005

Nut

40001

Washer

32751

Coupling Nut

74369

Valve Body

78824

O-Ring

74789

Hose

40620

Washer

32935

Nut

33843

Washer

59600**

Escutcheon

21220**

Lift Rod

42688**

Lift Knob

**Finish/color code must be specified when ordering.

77005** (Clockwise Close)

77006** (Counterclockwise Close)

Valve

To Tee

To Handle

116829-5-C 8 Kohler Co.

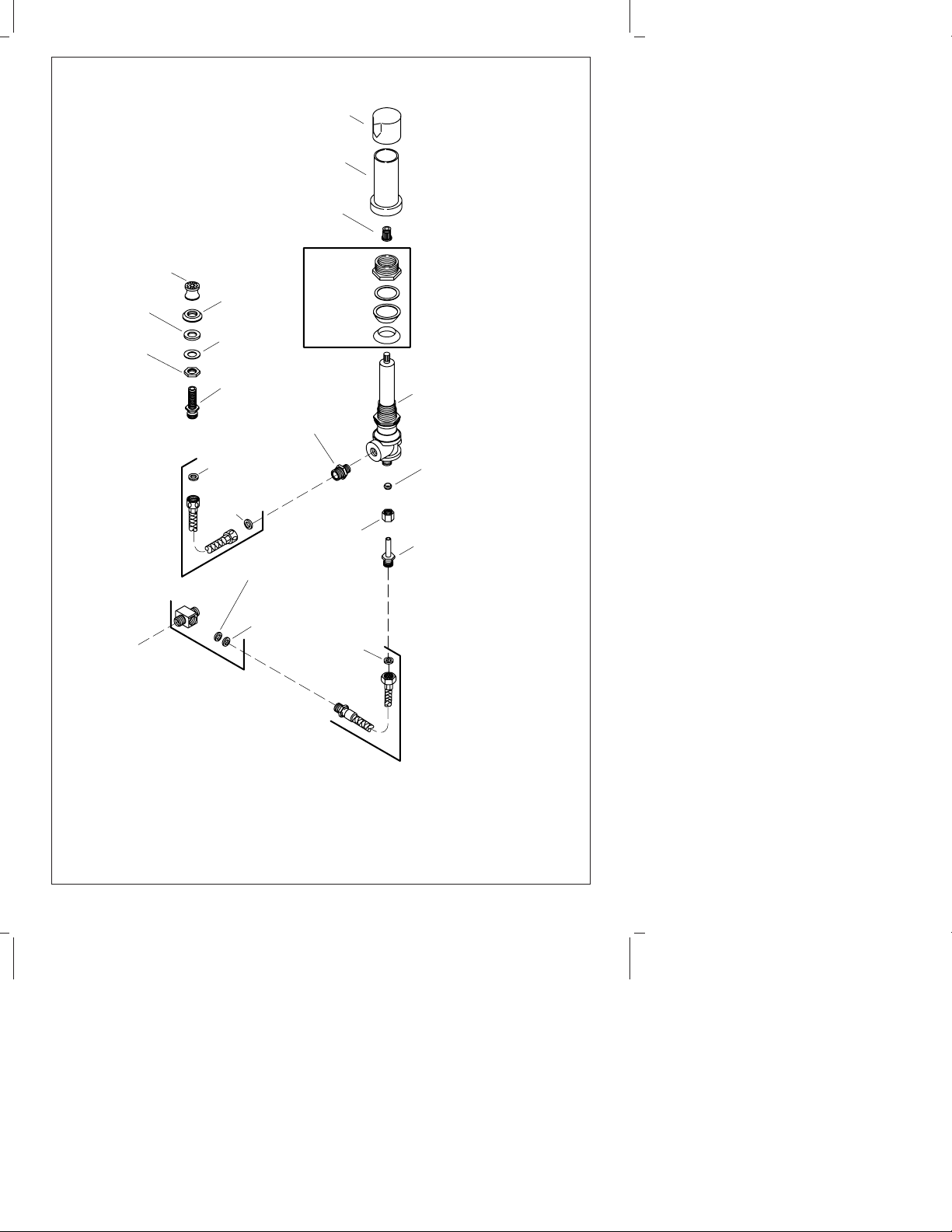

73858**

Tee

74790

Hose

76684

Washer

57937

Adapter/Flow Control

1002014 (Mexico)

32739

Nut

32738

Coupling

59707

Valve

78815

Gasket

78815

Gasket

59435

Hose

40097

Washer

56702

Shank

57936

Pipe Fitting

22325

Spline Insert

57930**

Escutcheon

57929**

Handle

59615

Hardware

48609**

Spray

48805**

Flange

48754

Washer

48755

Washer

48753

Nut

40013

Gasket

**Finish/color code must be specified when ordering.

To Hose

Kohler Co. 9 116829-5-C

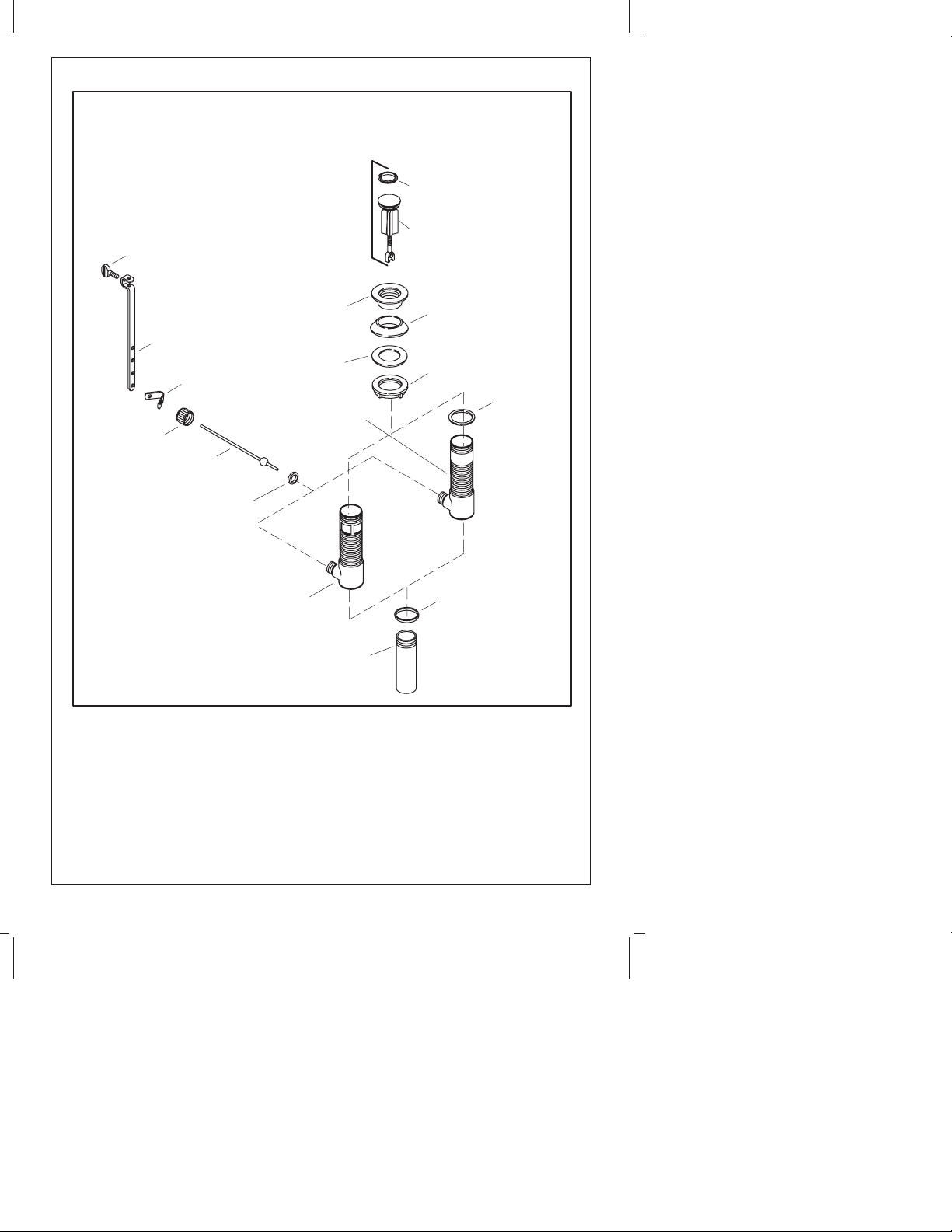

1037022**

1036932**

1037346

1035564

40228

1025645**

1037390

1025642

1036351**

1030925

1025639**

1035348**

1025678

1025650

1035350**

Stopper

Trim Ring

Screw

Link

Clip

Nut

Rod

Washer

Tailpiece

Washer

Body

Nut

Washer

Seal

Fin

(Metal stopper fins with overflow)

1037023** (Plastic stopper fins with overflow)

Drain

(Metal)

1037021** (Plastic) 1025656

O-Ring

1035351** (Metal stopper fins without overflow)

(With Overflow)

1032296**

Body (Without Overflow)

1025654

Washer

**Finish/color code must be specified when ordering.

116829-5-C 10 Kohler Co.

Other manuals for K-470

Table of contents

Other Kohler Kitchen & Bath Fixture manuals

Kohler

Kohler KALLISTA Series User manual

Kohler

Kohler Vibrant R78035-SD-VS User manual

Kohler

Kohler C3-035 User manual

Kohler

Kohler K-14616 User manual

Kohler

Kohler K-5800 Assembly instructions

Kohler

Kohler K-14616 Assembly instructions

Kohler

Kohler K-6127 User manual

Kohler

Kohler K-8002 User manual

Kohler

Kohler Stillness K-14451 Assembly instructions

Kohler

Kohler ELATE 13963T-B4 User manual

Kohler

Kohler C3-520 User manual

Kohler

Kohler K-3326 User manual

Kohler

Kohler PURIST 24982T-4 User manual

Kohler

Kohler JULY 16084T-B4 User manual

Kohler

Kohler Sterling SC2522SBG Assembly instructions

Kohler

Kohler Beitou 99856T-4 User manual

Kohler

Kohler AVID 97345T-4 User manual

Kohler

Kohler Symbol K-19774 Assembly instructions

Kohler

Kohler Refinia K-T5324 Assembly instructions

Kohler

Kohler 11623 User manual

Kohler

Kohler KUMIN 99480T-4 User manual

Kohler

Kohler MODERN LIFE K-77835T-1 Instruction Manual

Kohler

Kohler K-3199 Assembly instructions

Kohler

Kohler STRAYT 45372T-C4 User manual

Popular Kitchen & Bath Fixture manuals by other brands

Grohe

Grohe BRIDGEFORD 33 870 manual

Hans Grohe

Hans Grohe Zenio Metro 31811000 manual

Gröne

Gröne Zedra 32 555 manual

Transform

Transform QL045 owner's manual

Sanela

Sanela SLU 09PTB Instructions for use

Glacier bay

Glacier bay FP4A0052BNV Installation and care guide

Lefroy Brooks

Lefroy Brooks C1-1400 Installation, operating, & maintenance instructions

Grohe

Grohe Rapido E installation manual

Danze

Danze D302455 quick start guide

Waterworks

Waterworks CEKM30 Installation guidelines

Helvex

Helvex Omega TV-298 installation guide

Tribata.

Tribata. GEORGIAN G5393 manual

Alpha Bidet

Alpha Bidet Alpha One user manual

InSinkErator

InSinkErator H/HC3300 Installation, care & use

Clou

Clou Xo type 1 installation instructions

Grohe

Grohe Bridgeford 20 158 manual

Hans Grohe

Hans Grohe Croma Select S 180 Showerpipe EcoSmart... Instructions for use and assembly instructions

Wickes

Wickes MONO SINK MIXER instruction manual
