Kohler K-1394 Series User manual

Installation Guide

Round Bath Whirlpool

Mproduct numbers are for Mexico (i.e. K-12345M)

Los números de productos seguidos de Mcorresponden a México

(Ej. K-12345M)

Français, page “Français-1”

Español, página “Español-1”

K-1394, K-1397, K-1399

1022205-2-B

Important Information

WARNING: When using electrical products, basic precautions should always be followed, including

the following:

DANGER: Risk of electric shock. Connect only to circuits protected by Ground-Fault Circuit-

Interrupters (GFCI’s) or Earth-Leakage Circuit-Breakers (ELCB’s).

WARNING: Risk of electric shock. A licensed electrician should make all electrical connections.

WARNING: Risk of electric shock. Disconnect power before servicing.

WARNING: Risk of injury or property damage. Please read all instructions thoroughly before

beginning installation, including the following requirements.

Building materials and wiring should be routed away from the pump bodies and other heat-producing

components of the unit.

Install to permit access for servicing.

Pressure wire connectors marked “Earth/Ground” are provided within the wiring compartments. To reduce

the risk of electric shock, connect these connectors to the grounding terminals of your electric service or

supply panel with copper wire equivalent in size to the circuit conductors supplying this equipment.

Pressure wire connectors are provided on the exterior of the junction boxes or controls within this unit to

permit connection of bonding conductors between this unit and all other exposed metal in the vicinity, as

needed to comply with local requirements.

Grounding is required. The unit should be installed by a qualiﬁed service representative, and grounded.

NOTICE: Follow all local plumbing and electrical codes.

Product Information

Electrical Requirements

The installation must have two Class A Ground-Fault Circuit-Interrupters (GFCI’s) or Earth-Leakage

Circuit-Breakers (ELCB’s). The GFCI’s or ELCB’s protect against line-to-ground shock hazard. Use two

220-240 V, 20 A, 50/60 Hz dedicated services; one for the pumps and controls, and another for the heater.

Product Notices

WARNING: Unauthorized modiﬁcation may cause unsafe operation and poor performance of the

whirlpool. Do not relocate the whirlpool pumps, or make other modiﬁcations to the whirlpool system,

as this could adversely affect the performance and safe operation of the whirlpool. Kohler Co. shall not

be liable under its warranty or otherwise for personal injury or damage caused by any such

unauthorized modiﬁcation.

Features

Components include two pumps, two controls, a heater, Waterfall, Flexjets, Riverjets, chromatherapy lights

(Model H2 only), integral ﬁll valve (K-1397 only), and illuminated keypad with remote control.

Connections and Service Access

Before installation, ensure proper access to the ﬁnal connections.

1022205-2-B 2 Kohler Co.

Product Information (cont.)

NOTICE: Provide generous, unrestricted service access to the pump. You must provide a minimum 48”

(122 cm) wide x 15” (38.1 cm) high access panel for servicing the pumps and controls. The access must be

located immediately next to the pumps. Study the roughing-in information packed with the whirlpool.

Table of Contents

Important Information .............................................................. 2

Product Information ............................................................... 2

Electrical Requirements .......................................................... 2

Product Notices ................................................................ 2

Features ..................................................................... 2

Connections and Service Access ................................................... 2

Thank You For Choosing Kohler Company .............................................. 3

Before You Begin ................................................................. 4

Recommended Tools and Materials ................................................... 4

Prepare the Site ................................................................. 5

Prepare the Whirlpool ............................................................. 5

Secure the Whirlpool to the Subﬂoor .................................................. 6

Cut the Pump Banding Straps ....................................................... 7

Install the Plumbing ............................................................... 7

Make Electrical Connections ......................................................... 8

Install the Whirlpool Trim Kit ......................................................... 9

Test Run the Whirlpool ............................................................. 9

Complete the Finished Wall/Deck .................................................... 10

Complete the Concrete Installation ................................................... 10

Clean-Up After Installation ......................................................... 10

Install the Removable Pillows ....................................................... 11

Conﬁrm Proper Operation .......................................................... 12

Operating Sequence ............................................................. 13

Chromatherapy Operation ......................................................... 14

Remote Control Operation ......................................................... 14

Troubleshooting Procedures ........................................................ 14

Thank You For Choosing Kohler Company

We appreciate your commitment to Kohler quality. Please take a few minutes to review this manual before

you start installation. If you encounter any installation or performance problems, please don’t hesitate to

Company.

Kohler Co. 3 1022205-2-B

Before You Begin

CAUTION: Risk of product damage. Do not lift the whirlpool by the piping or pump, or use the

piping or pump for structural support of the whirlpool.

We recommend this whirlpool for drop-in or ﬂush installation.

Inspect the whirlpool for damage before you begin installation.

You must install this whirlpool to an adequately supported, level subﬂoor.

Model K-1397 features an integral ﬁll system using dual ﬁll ports at both sides of the Waterfall, and

preinstalled valving.

Model K-1399 allows you to use the ﬁll valving of your choice - you can use the pre-installed dual

ﬁll ports or a separate ﬁll spout if you desire. Conﬁrm adequate support for a rim-mounted faucet,

if used; large faucets that may be inadvertently used as a means of support are not appropriate or

safe for this installation.

Consult local and national codes.

Recommended Tools and Materials

Plus:

• Conventional woodworking tools and materials

• Drop Cloth

• Cement, mortar or construction adhesive

• 2 x 4's

Silicone Sealant Measuring Tape Pencil Tin Snips Level

Safety Glasses Pipe Wrench

1022205-2-B 4 Kohler Co.

1. Prepare the Site

NOTICE: Adequate ﬂoor support must be provided. Consult the roughing-in sheet packed with your

whirlpool for speciﬁc ﬂoor loading requirements.

CAUTION: Risk of product damage. Do not support the whirlpool by the rim.

Make sure the ﬂooring offers adequate support for your whirlpool, and verify that the subﬂoor is

ﬂat and level.

The whirlpool should be installed in a drop-in or ﬂush installation. Construct 2x4 stud framing or

concrete or brick support designed for your particular installation. Frame the ﬂoor, or construct a

frame or support for a raised installation in accordance with the roughing-in information packed

with the whirlpool.

Use the template packed with the whirlpool to carefully lay out and cut the rough deck material.

For ﬂush-mount installation, allow for the thickness of the planned deck material.

Position the plumbing according to the roughing-in information packed. Cap the supplies, and

check for leaks.

2. Prepare the Whirlpool

Install the drain to the whirlpool according to the drain manufacturer’s instructions. Do not connect

the trap at this time.

Position a clean drop cloth or similar material in the bottom of the whirlpool. Be careful not to

scratch the surface of the whirlpool.

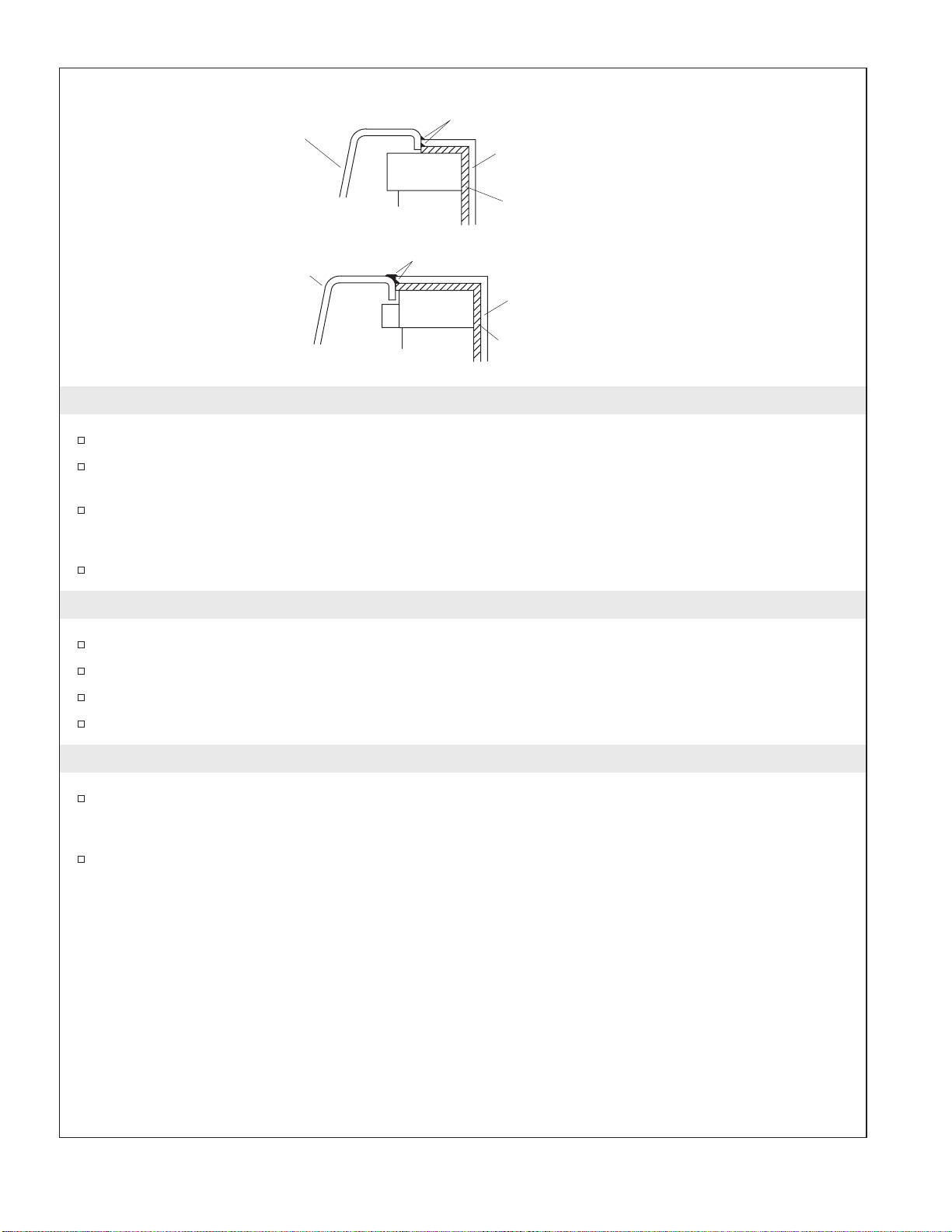

Drop-In Installation

Whirlpool

Rim

Do not support

the whirlpool

by the rim.

Use the roughing-in

information to

construct the stud

framing.

Allow for the thickness of

the planned deck material.

Wood

Batten

Whirlpool

Rim

Flush Installation

Kohler Co. 5 1022205-2-B

3. Secure the Whirlpool to the Subﬂoor

CAUTION: Risk of product damage. Do not lift the whirlpool by the piping or pumps, or use the

piping or pumps for structural support of the whirlpool.

Choose the installation option that best applies to your particular installation. Follow the

appropriate instructions.

If the subﬂoor is not level, shim the whirlpool support blocks as necessary.

Option for Using a Cement or Mortar Bed

Spread a 2” (5 cm) thick layer of cement or mortar on the subﬂoor where the whirlpool will be set.

This will help secure, level, and support the unit. Clear all the material away from the pump

controls and support block locations.

NOTE: Do not use gypsum cement or drywall compound for this application, as they will not provide an

acceptable, durable bond.

NOTE: The pump controls (when the pump banding straps are cut) and support blocks must rest

directly on the subﬂoor.

Position a piece of plastic drop cloth material on top of the cement or mortar bed. With help,

carefully lift the whirlpool into place, and make sure the pump controls and support blocks do not

rest in the bed material.

Insert the drain tailpiece into the trap. Make sure the whirlpool is level and resting on all support

blocks.

Option for Using Construction Adhesive

Apply a generous amount of high-quality construction adhesive to the bottom of the support blocks.

With help, carefully lift the whirlpool into position.

Insert the drain tailpiece into the trap. Make sure the whirlpool is level and resting on all support

blocks.

Option for Using Silicone Sealant

With help, carefully lift the whirlpool into position.

Insert the drain tailpiece into the trap. Make sure the whirlpool is level and resting on all support

blocks.

Apply a continuous bead of high-quality silicone sealant around the entire rim of the whirlpool.

Clear spaces

for support

blocks.

Apply a bead of

silicone sealant

around the entire rim

Apply construction

adhesive to the

support blocks.

Spread a 2" (5 cm)

layer of cement or

mortar bed material.

Clear space for

pump.

1022205-2-B 6 Kohler Co.

4. Cut the Pump Banding Straps

IMPORTANT! This step is necessary to make your Kohler whirlpool operate more quietly.

Use tin snips to cut the two pump banding straps from each whirlpool pump.

NOTE: Do not raise the pumps higher than they were before you cut the pump banding straps. If the

pumps are raised too high, they will not prime properly. Make sure the rubber isolation feet are in place.

To minimize whirlpool noise and vibration, be sure the pumps are not in direct contact with the

whirlpool after the pump banding straps are cut. The pump controls contain rubber isolation feet to

reduce pump noise.

5. Install the Plumbing

CAUTION: Risk of property damage. Ensure a watertight seal on the whirlpool drain.

Connect the drain to the trap according to the drain manufacturer’s instructions.

NOTICE: An access panel will simplify future maintenance.

K-1397 only: Connect the hot and cold water supply lines to the integral ﬁll valves according to

local codes. An additional hole is pre-drilled in the bath shell for the handshower. Install the

handshower at this time. Connect the end of the handshower hose to the open port of the transfer

valve (beneath the bath rim). Make sure the transfer valve stem is rotated fully clockwise. The

transfer valve includes an integral vacuum breaker that protects both the ﬁll spouts and the

handshower from water backﬂow.

K-1399 only: Install the faucet valving according to the faucet manufacturer’s instructions. Connect

the valving to the whirlpool ﬁll ports (spouts) according to local codes.

All models: Do not install the faucet trim until instructed. Open the hot and cold water supplies,

and check the supply connections for leakage.

Run water into the whirlpool, and check the drain connections for leakage.

Rotate the transfer valve stem, and check the handshower connections for leakage.

Heater

Junction

Box

Pump

Wiring Harness

Rubber Isolation

Feet

Control

Cut the pump

banding straps.

Kohler Co. 7 1022205-2-B

6. Make Electrical Connections

NOTE: The whirlpool model number is printed on a label near the whirlpool pumps. This label also

identiﬁes the electrical rating of the whirlpool. These whirlpools come equipped with two wiring

junction boxes and will only operate at 220-240 V and at 50/60 Hz.

WARNING: Risk of electric shock. To reduce the risk of electric shock, connect the pumps and heater

to properly grounded Ground-Fault Circuit-Interrupters (GFCI’s) or Earth-Leakage Circuit-Breakers

(ELCB’s). This will provide additional protection against line-to-ground shock hazard. Two 220-240 V,

20 A, 50/60 Hz dedicated circuits are required.

WARNING: Risk of electric shock. Make sure the power has been disconnected before performing the

following procedures.

The whirlpool controls and system have been prewired at the factory. A licensed electrician should

make routine service connections to the junction boxes.

Connect service to the junction boxes. The junction boxes contains blue, brown and green with a

yellow stripe colored wires and ground lugs. Use one service for the pump controls, and another for

the heater. A communication cord from the heater to the primary control has been prewired at the

factory.

Provide separate equipment earthing conductors for the earth lugs located inside the junction boxes.

The earthing conductors must not be connected to any current-carrying conductors. Follow local

electrical codes.

Bond in accordance with national and local codes.

Wiring harnesses have been prewired at the factory. They allow communication between the

keypad, all features, and the controls. No additional wiring is required, but ensure that all wires are

securely fastened.

NOTE: Each wiring harness includes an antenna for the remote control. Do not alter or damage this

antenna during installation.

Ground (Green with

Yellow Stripe)

Blue

Supply 60 Hz 50 Hz From Control or Heater

L1 L1 Brown

L2 N Blue

Electrician to

provide suitable

strain relief.

Both junction boxes should be wired as

shown.Each should have a separate supply.

Bond in accordance with

national and local codes.

Wire

Connectors

From Control

or Heater

Brown

Heater (models may vary) inline

(shown) or T-style (not shown)

Heater

Electrical

Cord

Heater

Junction

Box

Wiring

Harness

Junction Box

Control Pump

Electrical Cord

1022205-2-B 8 Kohler Co.

7. Install the Whirlpool Trim Kit

Install the whirlpool trim kit (if not factory installed) according to the instructions packed with the

trim kit. Pay particular attention to the jet installation steps below - they are very important and are

included here to help you obtain smooth, trouble-free jet operation.

NOTE: The jet O-ring must be correctly positioned, must be lubricated, and must be in good condition to

permit easy rotation and proper operation of the jet.

Install the O-ring onto the ﬁrst shoulder of the jet. Lubricate the O-ring with silicone lubricant to

prevent noisy operation of the jet.

Carefully insert the jet into the housing, and lightly push and rotate the jet until it snaps into

position. Do not force the jet.

NOTE: When installed correctly, the jet should turn smoothly both clockwise and counterclockwise.

8. Test Run the Whirlpool

Check all electrical connections.

Make sure all union connections to the pumps and heater are securely hand tightened.

Verify that both sets of pump banding straps have been cut, and that the pump controls are resting

directly on the subﬂoor. Ensure that the rubber isolation feet are in place.

Turn electrical power to the whirlpool on.

Fill the whirlpool to a level above the Riverjet water level sensors located on either side of the

Riverjets.

Operate the whirlpool for 5 minutes (refer to the ″Operating Sequence″section) and check all

whirlpool piping connections, on the back side, for leaks.

Turn on the each of the whirlpool features and verify proper function. Check for any water leakage

on the whirlpool’s back side.

If equipped, turn on the chromatherapy cycle and allow it to sequence through all eight colors;

white, violet, indigo blue, aqua blue, green, yellow, orange and red. It takes approximately 1 minute

to cycle through all eight colors.

Verify functions using the remote control. Refer to the ″Remote Control Operation″section.

For additional information on whirlpool operation, see ″Conﬁrm Proper Operation″section.

Slide the O-Ring

onto the first

shoulder of the jet.

Inspect and

lubricate the

O-Ring.

Insert the jet into the housing,

and lightly push and rotate

until it snaps in position.

Housing

Kohler Co. 9 1022205-2-B

9. Complete the Finished Wall/Deck

If you have not already done so, carefully remove the protective tape from the whirlpool rim.

Cover the framing with water-resistant wall material. Seal the joints between the whirlpool rim edge

and the water-resistant wall material with silicone sealant.

Tape and mud the water-resistant wall material. Install the ﬁnished wall to the water-resistant wall

material so it is 1/16” (2 mm) above the enameled surface. Seal the joints between the whirlpool rim

and the ﬁnished wall material with silicone sealant.

Install the faucet trim according to the instructions packed with the trim.

10. Complete the Concrete Installation

If you have not already done so, carefully remove the protective tape from the whirlpool rim.

Apply mortar and tile to the wall, deck and surround material as needed.

Apply a bead of sealant where the tile meets the whirlpool surface.

Install the faucet trim according to the instructions packed with the trim.

11. Clean-Up After Installation

When cleaning up after installation, do not use abrasive cleansers, as they may scratch and dull the

whirlpool surface. If necessary, use warm water and a liquid detergent to clean the surface of the

whirlpool, user keypad and remote control.

Remove stubborn stains, paint, or tar with turpentine or paint thinner. Do not allow cleaners

containing petroleum distillates to remain in contact with any whirlpool surfaces for long periods

of time. Remove plaster by carefully scraping with a wood edge. Do not use metal scrapers, wire

brushes, or other metal tools. Use a powder-type detergent on a damp cloth to provide mild

abrasive action to any residual plaster.

Apply silicone sealant to the water-resistant

wall material and the finished wall.

Install the finished

wall material.

First install water-

resistant wall material.

Apply silicone sealant to the water-resistant

wall material and the finished wall.

Install the finished wall

material.

First install water-

resistant wall material.

Drop-In Installation

Flush Installation

Whirlpool

1022205-2-B 10 Kohler Co.

Other manuals for K-1394 Series

This manual suits for next models

Table of contents

Languages:

Other Kohler Bathtub manuals

Kohler

Kohler Mariposa K-1242-LA Quick start guide

Kohler

Kohler K-1106 User manual

Kohler

Kohler K-1106 User manual

Kohler

Kohler K-1160 Quick start guide

Kohler

Kohler K-1418-GCR User manual

Kohler

Kohler K-1122-XHGLA-7 Assembly instructions

Kohler

Kohler K-12105 User manual

Kohler

Kohler K-1209-CB Quick start guide

Kohler

Kohler K-1111-H2 Assembly instructions

Kohler

Kohler Mariposa K-1257-W1 User manual

Kohler

Kohler K-1969-G Quick start guide

Kohler

Kohler K-11344 Assembly instructions

Kohler

Kohler K-97260X Assembly instructions

Kohler

Kohler K-1257 Quick start guide

Kohler

Kohler Underscore K-1167-RH2-33 Assembly instructions

Kohler

Kohler K-1114 Quick start guide

Kohler

Kohler K-1112P User manual

Kohler

Kohler K-870 Assembly instructions

Kohler

Kohler K-812-N1 Assembly instructions

Kohler

Kohler K-1227 Quick start guide

Kohler

Kohler K-1800 Assembly instructions

Kohler

Kohler K-1166 User manual

Kohler

Kohler K-1201-HB Quick start guide

Kohler

Kohler K-1375-CT Assembly instructions

Popular Bathtub manuals by other brands

Agua

Agua BARTOLI-66 quick start guide

PAA

PAA PRELUDE owner's manual

BETTE

BETTE SILHOUETTE installation guide

American Standard

American Standard Whirlpool/Bathing Pool 2748.XXXW installation instructions

Oliveri

Oliveri Naples installation instructions

Lyons

Lyons Elite ETLxx663219 Series manual

Woodbridge

Woodbridge BJ500 Installation and care guide

Whirlpool

Whirlpool Ariel ARL-702 installation manual

TEIKO

TEIKO EXCELLENT DUO user manual

American Standard

American Standard Colony 5-1/2' x 32" Specification sheet

American Standard

American Standard 3052OD.X0X Installation instructions and owner's manual

agape

agape MARSIGLIA AVAS1075 Assembly instructions

Kallista

Kallista P50045-G5 Homeowner's guide

Ariel

Ariel AM Series user manual

Agua

Agua BAHLI-60 quick start guide

DURAVIT

DURAVIT XViu 700443 Mounting instructions

American Standard

American Standard Colony 2740 Series installation instructions

Rapsel

Rapsel OFURO Fixing instructions
