Koblenz WD-6K User manual
WET DRY VACUUM CLEANER
MODEL:
WD-6K
WD-9K
WD-12K
WD-16K
KOBLENZ ELECTRICA S.A. DE C.V.
E-mail: thorne_s sm@koblenz-ele tri . om LP-LPWD6-201308
-1- Elaborated: August.2013.
SERVICE MANUAL
SERVICE
INDEX
I. OPERATING SYSTEM 3
II. REPLACEMENT PROCEDURES 3
III. USE WITH DISPOSABLE VACUUM BAG 12 AND 16 GAL. 6
IV. TROUBLE SHOOTING. 7
V. SCHEMATIC DRAWING FOR 6 AND 9 GALLON VACS. 8
VI. VACUUM PARTS LIST 6 AND 9 GALLON. 9
VII. SCHEMATIC DRAWING FOR 12 AND 16 GALLON VACS. 10
VIII. VACUUM PARTS LIST 12 AND 16 GALLON. 11
-2- Elaborated: August.2013.
I. OPERATING SYSTEM
MODEL VOLTS AMPERES Hz.
WD-6K 120V 7 60
WD-9K 120V 9 60
WD-12K 120V 10 60
WD-16K 120 V 11 60
T ere s ould be no abnormal noise or vibration, t e carbon brus es spark s ould be small and uniform, and t e com-
mutator must ave a dark brown and uniform strip.
II. REPLACEMENT PROCEDURES
1. TO REPLACE FILTER (6 AND 9 GAL)
-3- Elaborated: August.2013.
2. Pla e the filter retainer.
3. S rew the filter nut to hold the filter in position.
1. Push it down until the filter tou hes the va uum
leaner’s head.
2. TO REPLACE FILTER (12 AND 16 GAL)
The filter should be hanged often to maintain peak performan e.
Note: This filter is made of high quality materials designed to stop very small parti les of dust. Handle the
filter arefully when removing it to be leaned or installed.
1. Slide the filter over the age until the filter stops against the
lid.
-4- Elaborated: August.2013.
4.-Assemble the motor head, and the va uum leaner is now ready to
use.
2. Assemble the motor head, and the va uum leaner is now ready to
use.
3. TO REPLACE THE MOTOR
3.1 Push release tab outward, at the same time pull over up
3.2 Remove the four s rews
3.3 Remove the over
3.4 Dis onne t the line ord
3.5 Remove the motor assembly
3.6 Repla e the motor, re onne t and reassemble
NOTE: DO NOT attempt to repair the motor, send for servi e
4. TO REPLACE THE ON-OFF SWITCH
4.1 Follow steps 1.10 to 1.3
4.2 Dis onne t the two leads from the swit h
4.3 Remove the over top (remove 4 s rews) and repla e the on-off swit h, re onne t and reassemble
5. TO REPLACE THE LINE CORD
5.1 Follow steps 1.1 to 1.3
5.2 Remove and repla e the new line ord and reassemble as initially pla ed
6. TO REPLACE THE FLOAT
6.1 Follow step 1.1
6.2 Push release tab inward and remove the age
6.3 Remove and repla e the float
-5- Elaborated: August.2013.
III. USE WITH DISPOSABLE VACUUM BAG 12 AND 16 GAL
-6- Elaborated: August.2013.
1. Remove pleated filter.
2. Move bag over su tion inlet. The bag has a plasti border that must
move over the small plasti nubs, all the way to the end.
3. Assemble the motor head, and the va uum leaner is now ready
to use.
IV. TROUBLE SHOOTING CHART
FAIL RE CA SE CORRECTION
DAMAGED
MOTOR OR
WRONG WORKS
NOT FIRMLY PLUGGED OR
DAMAGED.
CHECK ATTACHMENT PLUG OR
CHANGE THE LINE CORD.
NO POWER IN THE OUTLET. VERIFY CURRENT LINE.
ON-OFF SWITCH IS DAMAGED
OR THERE IS A POOR
CONTACT.
CORRECT POOR CONTACT.
BROKEN LINE CORD. CHECK AND REPLACE.
NOISY MOTOR. REPLACE MOTOR.
EXCESIVE SPARKS IN MOTOR. REPLACE MOTOR.
LOW SUCTION.
TANK IS FULLED EMPTY TANK.
DIRTY FILTER. CLEAN OR WASH THE FILTER.
DAMAGED FILTER. REPLACE FILTER.
DISPOSABLE BAG IS FULLED. REPLACE WITH A NEW BAG.
MOTOR SLOW.
CHECK CARBON
BRUSHES/REPLACE IF
NECESSARY.
IMPROPERLY PLACED HEAD IN
TANK.
INSURANCE BE IN CLOSED
POSITION.
FLEXIBLE HOSE OR WAND
CLOGGED REMOVE THE OBSTRUCTION.
TURBINE ASSY LOOSE OR
DIRTY.
VERIFY TURBINE NUT OR
REMOVE DEBRIS.
-7- Elaborated: August.2013.
V. SCHEMATIC DRAWING FOR 6 AND 9 GALLON VACS.
-8- Elaborated: August.2013.
VI. PARTS LIST 6 AND 9 GALLONS
ITEM PART
NUMBER. DESCRIPTION. WD-6 K
00- 43 -3
WD-9 K
00- 436-1
152-0128-07-5 Handle 6 and 9 Gal. 1 1
249-5952-02-0 Plastic button 6 and 9 Gal. 1 1
349-5952-01-2 Switc 6 and 9 Gal. 1 1
449-5952-07-9 Engine cover 6 and 9 Gal. 1 1
549-5952-03-8 Engine 6 Gal. 1 --
549-5952-18-6 Engine 9 Gal. -- 1
649-5952-11-1 Turbine Bus ing 6 and 9 Gal. 1 1
749-5952-08-7 Turbine 6 Gal. 1 --
749-5952-04-6 Turbine 9 Gal. -- 1
849-5952-10-3 Turbine Was er 6 and 9 Gal. 1 1
949-5952-09-5 Turbine Nut 6 and 9 Gal. 1 1
10 52-0127-03-6 Float. 1 1
11 52-0127-02-8 Cage. 1 1
12 45-0845-3 Pleated Filter 6 and 9 Gal. 1 1
13 52-0128-06-7 Seal pleated filter. 1 1
14 52-0127-00-2 Tank 6 Gal. 1 --
14 52-0128-01-8 Tank 9 Gal. -- 1
15 19-0797-00-1 User Manual. 1 1
16 49-5952-20-2 W eel Base. 4 4
17 49-5952-21-0 W eel. 4 4
18 52-0127-07-7 Telescopic Wands. 2 2
19 52-0127-10-1 Combination Tool. 1 1
20 52-0127-08-5 Crevice Tool. 1 1
21 46-3736-00-9 Hose Assy. 1 1
22 49-5952-05-3 Line Cord. 1 1
23 52-0127-09-3 Car Accessory. 1 1
24 18-1316-00-1 Packing Box. 1 --
24 18-1317-00-9 Packing Box. -- 1
25 52-0128-02-6 Drainage Cap. -- 1
26 52-0128-03-4 Drainage Cap 9 Gal. -- 1
-9- Elaborated: August.2013.

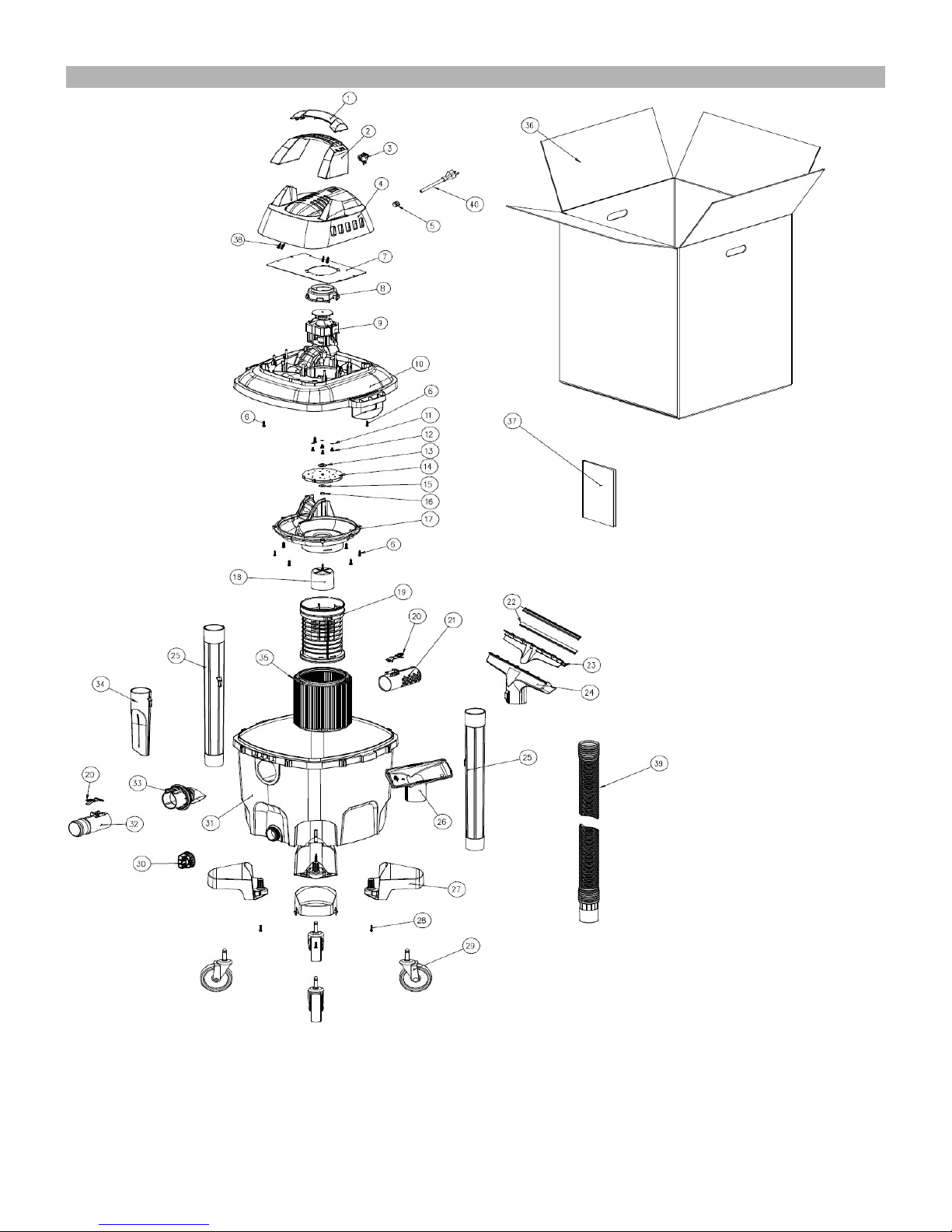

VII. SCHEMATIC DRAWING FOR 12 AND 16 GALLON VACS.
Hose assy in ludes items 39, 32 and 20
-10- Elaborated: August.2013.
