Kobalt KPC 2040-06 User manual
SM20336
Español p. 16
RENAELCREWOPDLEHDNAHSSELDROCV04
ITEM #2735850/ 2737923
MODEL #KPC 2040-06/ KPC 7040-06
Questions, problems, missing parts? Before returning to your retailer,
call our customer service department at 1-888-3KOBALT (1-888-356-2258),
8 a.m. - 8 p.m., EST, Monday - Sunday. You could also contact us at
Purchase DateSerial Number
ATTACH YOUR RECEIPT HERE
1
KOBALT and K & Design are trademarks
or registered trademarks of LF, LLC. All rights reserved.
2
TABLE OF CONTENTS
PRODUCT SPECIFICATIONS
SPECIFICATIONS
Voltage 40 V
Max. Pounds Per Square Inch Pressure 600 PSI
Max. Gallons Per Minute 0.8 GPM
Maximum Inlet Water Temperature 104°F (40°C)
Cleaning Units 360 C.U.
Net Weight 2.76 kg (6.08 lb)
Product Specications..........................................................................................................2
Package Contents.................................................................................................................3
Safety Information.................................................................................................................4
Assembly Instructions ....................................................................................................... 6
Operating Instructions..........................................................................................................8
Care and Maintenance......................................................................................................12
Troubleshooting........................................................................................................................13
Warranty................................................................................................................................14
Replacement Parts List......................................................................................................15
THE RECOMMENDED AMBIENT TEMPERATURE RANGE
Power Cleaner storage temperature range 32 ˚F (0 ˚C) ~ 113 ˚F (45 ˚C)
Power Cleaner operation temperature range 32 ˚F (0 ˚C) ~ 113 ˚F (45 ˚C)
Battery charging temperature range 39 ˚F (4 °C) ~ 104 ˚F (40 ˚C)
Charger operation temperature range 39 ˚F (4 °C) ~ 104 ˚F (40 ˚C)
Battery discharging temperature range 32 °F (0 °C) ~ 113 ˚F (45 ˚C)
Battery storage temperature range 32 °F (0 °C) ~ 113 °F (45 °C)
3
PART DESCRIPTION QUANTITY
A 5 in 1 Spray nozzle 1
BSpray wand 1
C Front handle 1
D Water inlet 1
EBattery compartment 1
F Trigger 1
PACKAGE CONTENTS
F
E D C
BA
4
General Use
• Read all the instructions before using the product.
• To reduce the risk of injury, close supervision is necessary when a product is used near children.
• Know how to stop the product and bleed pressure quickly. Be thoroughly familiar with the controls.
• Stay alert – watch what you are doing.
• Do not operate the product when fatigued or under the inuence of alcohol or drugs.
• Keep operating area clear of all persons.
• Do not overreach or stand on unstable support. Keep good footing and balance at all times.
• Follow the maintenance instructions specied in the manual.
• Risk of Injection or Injury– DO NOT DIRECT DISCHARGE STREAM AT PERSONS.
• Read all safety warnings and instructions. Failure to follow the warnings and instructions may
result in electric shock, re and/or serious injury.
• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to battery
pack, picking up or carrying the appliance. Carrying the appliance with your nger on the switch or
energizing appliance that have the switch on invites accidents.
• Disconnect the battery pack from the appliance before making any adjustments, changing
accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the
appliance accidentally.
• For use only with KB 240C-06 battery.
• For use only with KRC 40-06 charger.
• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects, that can make a connection from one terminal to
another. Shorting the battery terminals together may cause burns or a re.
• Do not use a battery pack or appliance that is damaged or modied. Damaged or modied
batteries may exhibit unpredictable behavior resulting in re, explosion or risk of injury.
• Do not expose a battery pack or appliance to re or excessive temperature. Exposure to re or
temperature above 265°F may cause explosion.
• Follow all charging instructions and do not charge the battery pack or appliance outside of the
temperature range specied in the instructions. Charging improperly or at temperatures outside of
the specied range may damage the battery and increase the risk of re.
• Have servicing performed by a qualied repair person using only identical replacement parts .This
will ensure that the safety of the product is maintained.
• Do not modify or attempt to repair the appliance or the battery pack (as applicable) except as
indicated in the instructions for use and care.
SAFETY INFORMATION
WARNING
5
WARNING PROPOSITION 65
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities
contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples
of these chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks and cement and other masonry products
• Arsenic and chromium from chemically treated lumber
Your risk from these exposures varies, depending on how often you do this type of work.
To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved
safety equipment, such as those dust masks that are specially designed to lter out microscopic
particles.
PREPARATION
Before beginning installation of product, make sure all parts are present. Compare parts with
package contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble, install or operate the product.
Estimated Assembly Time: 1-2 minutes.
SAFETY INFORMATION
6
ASSEMBLY INSTRUCTIONS
1 . INSTALL THE SPRAY WAND
• Push the end of the spray wand (B) into the gun handle
(C).
• Turn the spray wand (B) clockwise until the tabs lock
into position.
2 . INSTALL THE SPRAY NOZZLE
• Pull back the quick-connect collar on the spray wand
(B).
• Insert the spray tip (A) onto the spray wand (B).
• Release the quick-connect collar to attach the spray tip
(A).
• Pull on spray tip (A) to ensure it is properly installed
and does not pull out.
3. INSTALL THE SELF-SIPHON HOSE
• Insert one end of the self-siphon hose (G) into the water
intake (D).
A
2
12
3
B
3
G
D
1
C
B
7
ASSEMBLY INSTRUCTIONS
4. INSTALL THE BATTERY PACK
• Pull back on the hinge lock lever (I).
• Unhook the hinge (I) from the battery door (J).
• Open the battery door (J).
• Align the lift ribs on the battery pack (K) with the
grooves in the battery compartment.
• Push the battery pack (K) into the battery compartment
until the battery pack (K) locks into place.
• When you hear a click, the battery pack is installed.
• Close the battery door (J) and lock the hinge (I).
5. REMOVE THE BATTERY PACK
• Pull back on the hinge lock lever (I).
• Unhook the hinge (I) from the battery door (J).
• Open the battery door (J).
• Push and hold the battery release button (L).
• Remove the battery pack (K) from the machine.
J
I
K
4
I
J
I
K
5
L
8
OPERATING INSTRUCTIONS
1. USE THE SPRAY GUN
For safe control, keep your hands on the gun at all times.
• Keep pressing the lock-out button (M), pull and hold
the spray gun trigger (F) to start the machine.
• Release the lock-out button (M) and spray gun trigger
(F) to stop water ow through the spray tip.
2. ADJUST THE SPRAY NOZZLE
Before you adjust the spray nozzle:
• Pull the spray gun trigger to release water pressure.
• Stop the machine.
Do not point the spray wand at your face or others’.
1. Rotate the spray nozzle to adjust the spray setting
(A).
WARNING
WARNING
WARNING
2
A
1
M
F
9
OPERATING INSTRUCTIONS
NOZZLE TYPE
SPRAY
SETTING
APPLICATION
0O
The 0-degree tip provides a straight line of spray. It provides the highest amount of
pressure. It is best used for removing hard, stuck-on grime or dirt.
15
O
The tip provides high versatility with its 15-degree angle tip. Referred to as the
washing tip, because it provides adequate pressure to remove dirt from surfaces, but
is designed to not damage many surfaces. This pressure washer tip is designed for
“sweeping” foliage or debris given its wide angle. This tip is versatile due to its wide
area of cleaning and strong pressure application.
25
O
The tip provides high versatility with its 25-degree angle tip. Referred to as the
washing tip, because it provides adequate pressure to remove dirt from surfaces, but
is designed to not damage many surfaces. This pressure washer tip is designed for
“sweeping” foliage or debris given its wide angle. This tip is versatile due to its wide
area of cleaning and strong pressure application.
40
O
The 40-degree tip, referred to as the “fan” tip creates the widest area of cleaning
with relatively low pressure. This pressure washer tip is best used for light or delicate
cleaning applications. It is recommended for light cleaning on wood decks and other
soft or delicate surfaces.
SHOWER
The shower spray tip is used for shower application. Shower is applied under low
pressure high volume for optimum performance. Shower cannot be applied under high
pressure with this machine.
10
OPERATING INSTRUCTIONS
APPLICATIONS
You may use this product for the purposes listed below:
• Cleaning boats, cars, trucks, motorcycles, outdoor furniture, grills, house siding, driveways, patios
and decks.
3. DETERGENT ADDING AND USE
Use only detergents designed for pressure washers; household detergents, acids, alkaline,
bleaches,
amage spray nozzle. Many detergents may
require mixing prior to use. Prepare cleaning solution as instructed on the solution bottle.
SOAP APPLICATION
Soap is applied under low pressure high volume for optimum performance.
TO ADD DETERGENT:
• Pour detergent in the detergent tank (N).

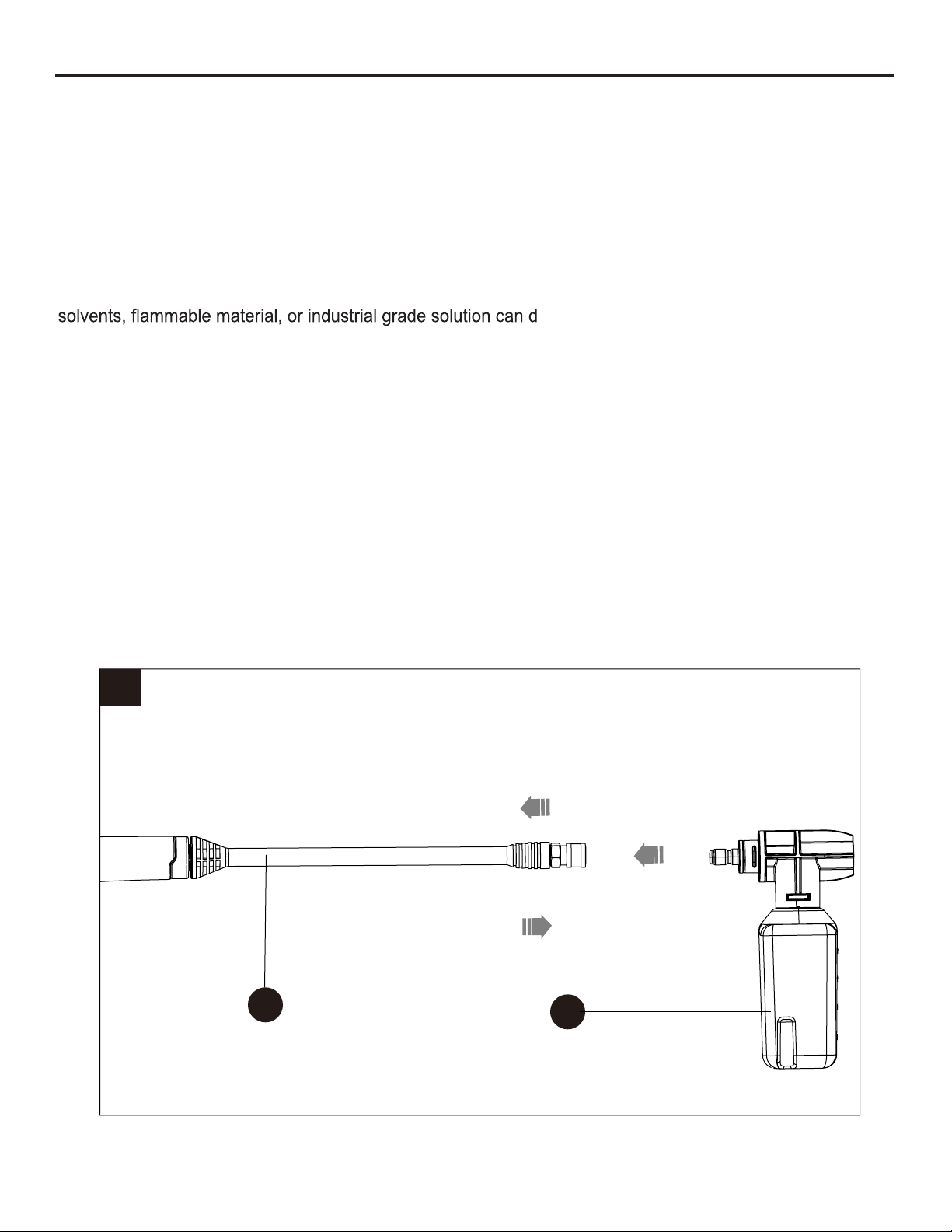

• Install the soap tank (N) to the spray wand (B).
• Start the pressure washer and spray the detergent on a dry surface using long, even, overlapping
strokes. To prevent streaking, do not allow detergent to dry on the surface.
3
1
2
3
BN
