KoamTac KPCC User manual
®
Visit our website for more information.
Protective Charging
Case (KPCC)
Mini Guide
Additional KPCC Accessories:
• 1-Slot Charging Cradle
• 4-Slot Charging Cradle
• Spare External Battery
2. Slide the phone into the General Universal SmartSled. (B)
2
1

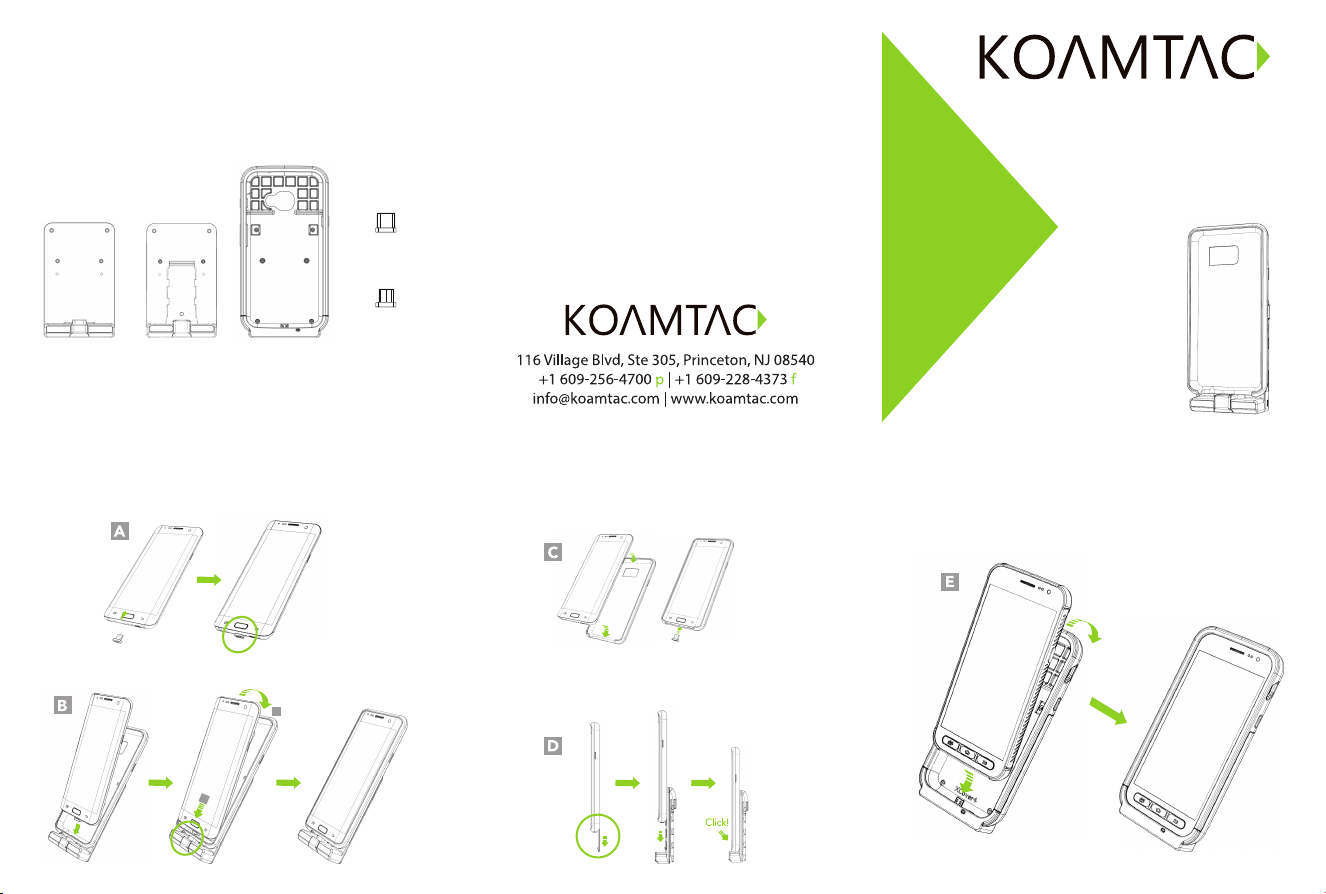

1. Attach the correct USB connect head to the phone. (A)
Device Installation (GUA)
1. Install your phone in the uniVERSE case and install the
appropriate USB Connect Head for your phone. (C)
2. Remove the Removable Accent Plate from the back of the
uniVERSE Case. Align the case with the KPCC Adaptor
and slide down until you hear a click. (D)
Device Installation (OUA) Device Installation (Charging Case)
1. Bend top of SmartSled Charging Case back and Slide
device in to case toward connecter. (E)
What’s in the Box?
Type C USB
Connect Head
Micro 5pin USB
Connect Head
• 1 x General Universal Adaptor (GUA) with Case or
1 x OtterBox uniVERSE Adaptor (OUA) with Case or
1 x Integrated Charging Case
•
1x Magnetic USB Connect Head (Type C or Micro
USB) for GUA and OUA
General Universal
Adaptor (GUA)
OtterBox uniVERSE
Adaptor (OUA)
Integrated Case
IN NO EVENT WILL THE MANUFACTURER, DISTRIBUTOR OR
OTTER PRODUCTS, LLC BE LIABLE FOR ANY INCIDENTAL,
DIRECT, INDIRECT, SPECIAL, PUNITIVE OR CONSEQUENTIAL
DAMAGES (SUCH AS, BUT NOT LIMITED TO, DAMAGES FOR
LOSS OF PROFITS, BUSINESS, SAVINGS, DATA OR RECORDS)
RELATED TO THIS PRODUCT. EXCEPT AS STATED HEREIN,
NO OTHER WARRANTIES WILL APPLY.
Otter Products, LLC, and its related persons and entities, is
not responsible for the operation of this product or its
compliance with safety and regulatory standards. This
product has been designed for use with certain OtterBox
branded products and has been certified by the manufacturer
to meet OtterBox performance standards.
Disclaimer
Warranty Statement
KOAMTAC KDC470/475 OtterBox uniVERSE Case Adaptor
Built for OtterBox uniVERSE
Explore at Business.OtterProducts.com
Using a Charging Cradle
Place the charging terminals and holes on the bottom
of the KPCC (J) on the cradle in accordance with the
pogopin and projection shapes of the charging cradle. (K)
Copper connectors for charging
2. Remove the phone from KPCC SmartSled Case
by peeling off the top edge of the SmartSled Case
slide the phone up and pull it out. (H)
Removing Phone (Charging Case)
1
23

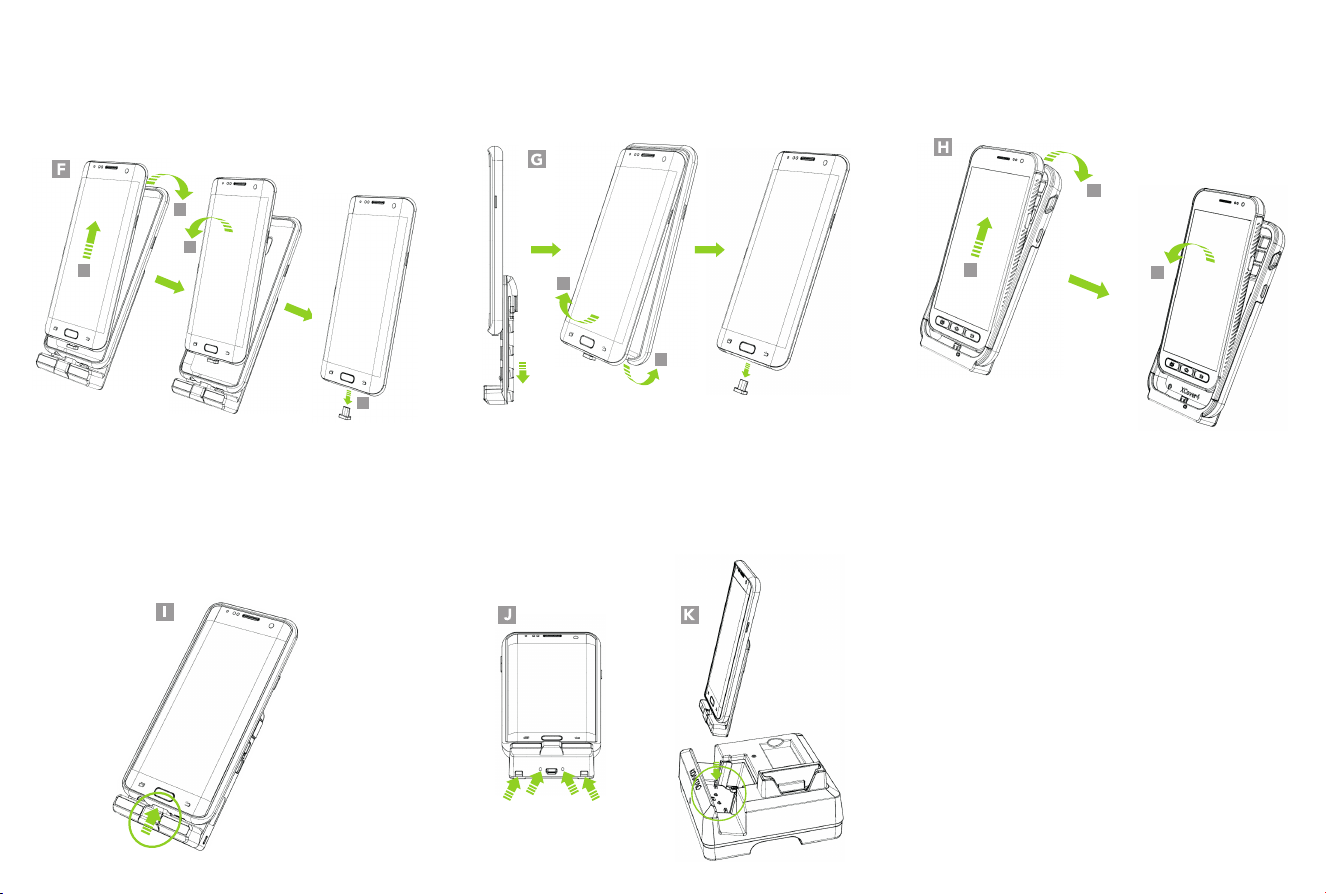

Remove the phone from the case by peeling off the top
edge of the General Universal Smartsled. Carefully slide
the phone up and pull the phone toward you. Remove the
USB Connect Head from the bottom of the phone. (F)
Removing Phone (GUA)
Slide down and remove KPCC Adaptor from the uniVERSE
Case. Remove the phone from
uniVERSE Case
by peeling
off the bottom edge of the
uniVERSE Case.
Remove the
USB Connnect Head from the phone. (G)
Removing Phone (OUA)
1
2
1
2
3
4
Checking Connection (GUA and OUA)
To test the connection between the GUA/OUA and the
installed USB Connect Head, attempt to charge your device
via USB or Charging Cradle. A succesful connection will
indicate charging on your device. (I)
MG_KPCC_20190923
Other KoamTac Cell Phone Accessories manuals
