KitchenAid KEWS145SPA02 User manual

CONTROL, DOOR AND DRAWER PARTS

For Models: KEWS145SSS02,KEWS145SPA02

(Stainless) (Panel Ready)

4−08 Litho in U.S.A. (amd) (psw) Part No. W10201556 Rev. A

24" ELECTRIC

BUILT−IN

WARMING DRAWER

CONTROL, DOOR AND DRAWER PARTS

For Models: KEWS145SSS02,KEWS145SPA02

(Stainless) (Panel Ready)

W10201556

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10064720

Tech Sheet

W10162186

Use & Care Guide

9763140 Installation

Instructions

2 8273277 Rack, Warming

W10162376

Slide, Vent

W10162372

Panel, Front

5 9762313 Gasket, Drawer

6 9763127 Drawer Assembly

7 4449743 Screw

W10139503

Door Panel

9761573SS

Handle, Drawer

8304603SS

Badge

11 4455984 Knob, Thermostat

W10080130

Light, Indicator

13 Lens, Light

4456314 Stainless

4456314 Custom Wood,

Panel Only

W10139492

Rail, Pan (2)

15 9763125 Grip, Vent

W10035910

Magnet

17 3196537 Screw (2)

18 4456861 Spacer, Lens

19 4456862 Clip, Lens

Retainer

INTERNAL WARMING DRAWER PARTS

For Models: KEWS145SSS02,KEWS145SPA02

(Stainless) (Panel Ready)

W10201556

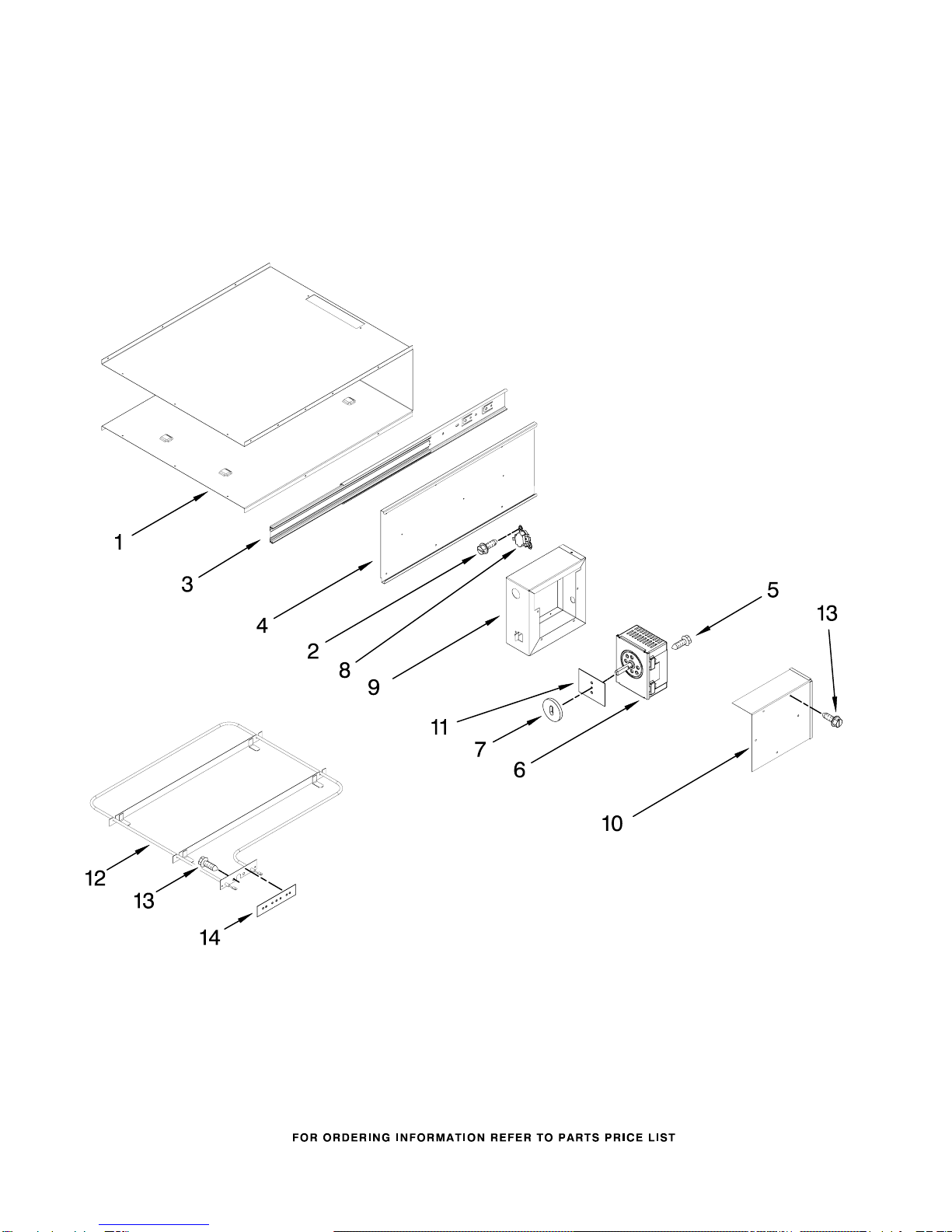

INTERNAL WARMING DRAWER PARTS

For Models: KEWS145SSS02,KEWS145SPA02

(Stainless) (Panel Ready)

W10201556

Illus. Part

No. No. DESCRIPTION

1 9762303 Wrapper

2 313806 Screw (1)

3 9762346 Slide Assembly

4 Wall

9762307 Right

9762308 Left

5 311865 Screw

W10121337

Control

W10117362

Gasket, Control

8 9763126 Thermal Fuse

9 9763122 Enclosure,

Electric

10 9763121 Cover, Enclosure

W10118113

Seal, Switch

12 9762343 Element, Heating

13 3196537 Screw

W10118049

Seal, Heating

Element

FOLLOWING PARTS

NOT ILLUSTRATED

WIRING HARNESS PARTS

W10129043

Harness, Main

W10129023

Power Cord

W10131847

Sensor, Sealed

4452601 Strain Relief
