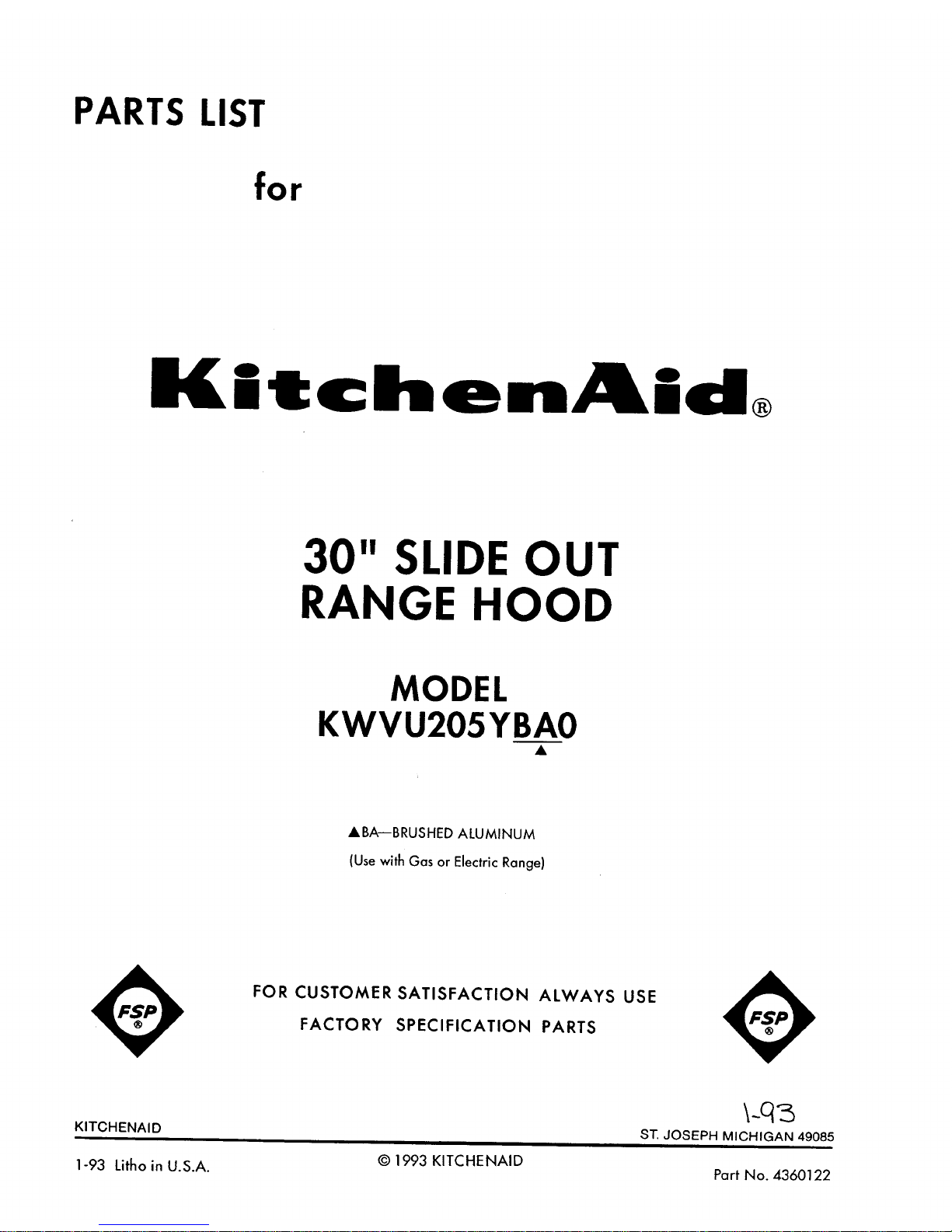

KitchenAid KWVU205YBAO User manual

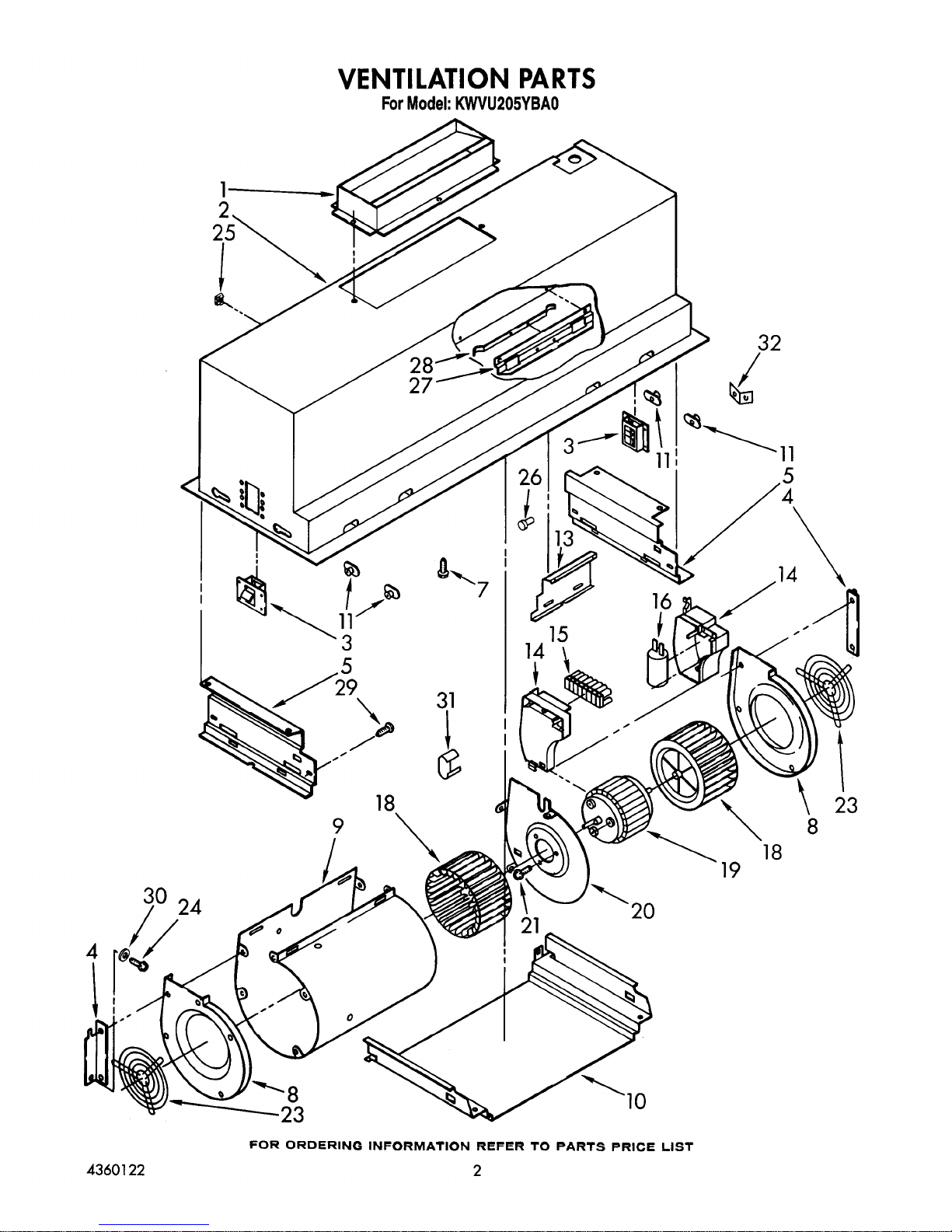

1 4360001 Damper Canopy

2 Canopy, Non-serviceable

3 4360002 Support Canopy (2)

4 Bracket Blower

4360003 Left Side

4360054 Right Side

5 Support Blower Housing

4360004 Left Side

4360087 Right Side

7 4360006 Screw 5 x 1/2 (3)

8 Endcap Blower

4360007 Left

4360053 Right

9 4360008 Housing Blower

10 4360075 Support Housing

11 4360063 Bushing (4)

13 4360088 Plate Mount

14 Cover Terminal

4360060 Left Side

4360056 Right Side

15 4360057 Terminal

16 4360058 Capacitor

18 Blower Wheel

4360049 Left Side

4360055 Right Side

19 4360040 Motor

20 4360052 Plate Motor

21 4360050 Screw4x8(6)

23 4360064 Grille Blower (2)

24 4360067 Screw6x10(2)

25 4360074 Clip (2)

26 4360048 Pin, Filter (2)

27 4360071 Bracket Filer

28 4360072 Spring Filter (2)

29 4360089 Screw (4)

30 4360095 Washer (2)

31 4360119 Clamp (2)

32 4360120 Bracket, Support (6)

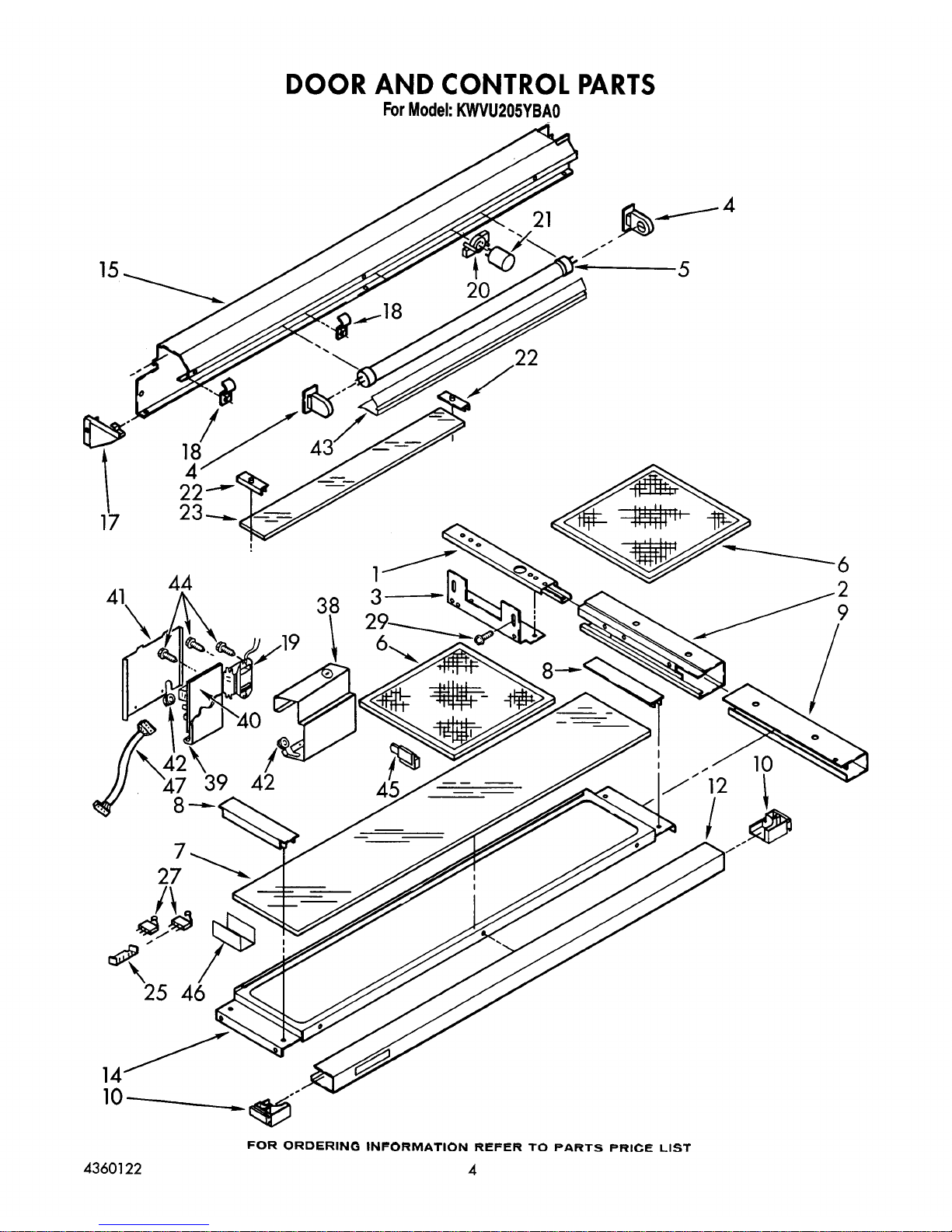

1 4360010 Guide Door (2)

2 Housing Guide

4360104 Left Side

4360105 Right Side

3 4360012 Support, Guide (2)

4 4360013 Socket Lamp (2)

5 4360097 Lamp

6 4360015 Filter

7 4360076 Glass Door

8 4360017 Brace Glass (2)

9 Frame Door

4360018 Left Side

4360024 Right Side

10 End Cap Door

4360069 Left Side

4360070 Right Side

12 4360112 Handle

14 4360077 Baffle Door

15 4360096 Support, Light

17 Bracket Light

4360100 Left Side

4360103 Right Side

18 4360044 Clamp Wiring

19 4360045 Ballast Lamp

20 4360047 Receptacle

21 4360046 Starter

22 4360041 Brace Glass (2)

23 4360099 Lens Light

25 4360102 Base Switch

27 4360035 Switch (2)

29 4360073 Screw

38 4360090 Frame, Controls

39 4360091 Plate, Board Mtg.

40 4360092 Board, Microcomputer

41 4360093 Shield, Microcomputer

42 4360094 Grommet (2)

43 4360098 Support, Light (Front)

44 4360114 Screw

45 4360115 Guide, Cable

46 4360116 Bracket, Guide

47 4360121 Harness

LITERATURE PARTS

LIT4360084 Installation Instructions

LIT4360122 Parts List

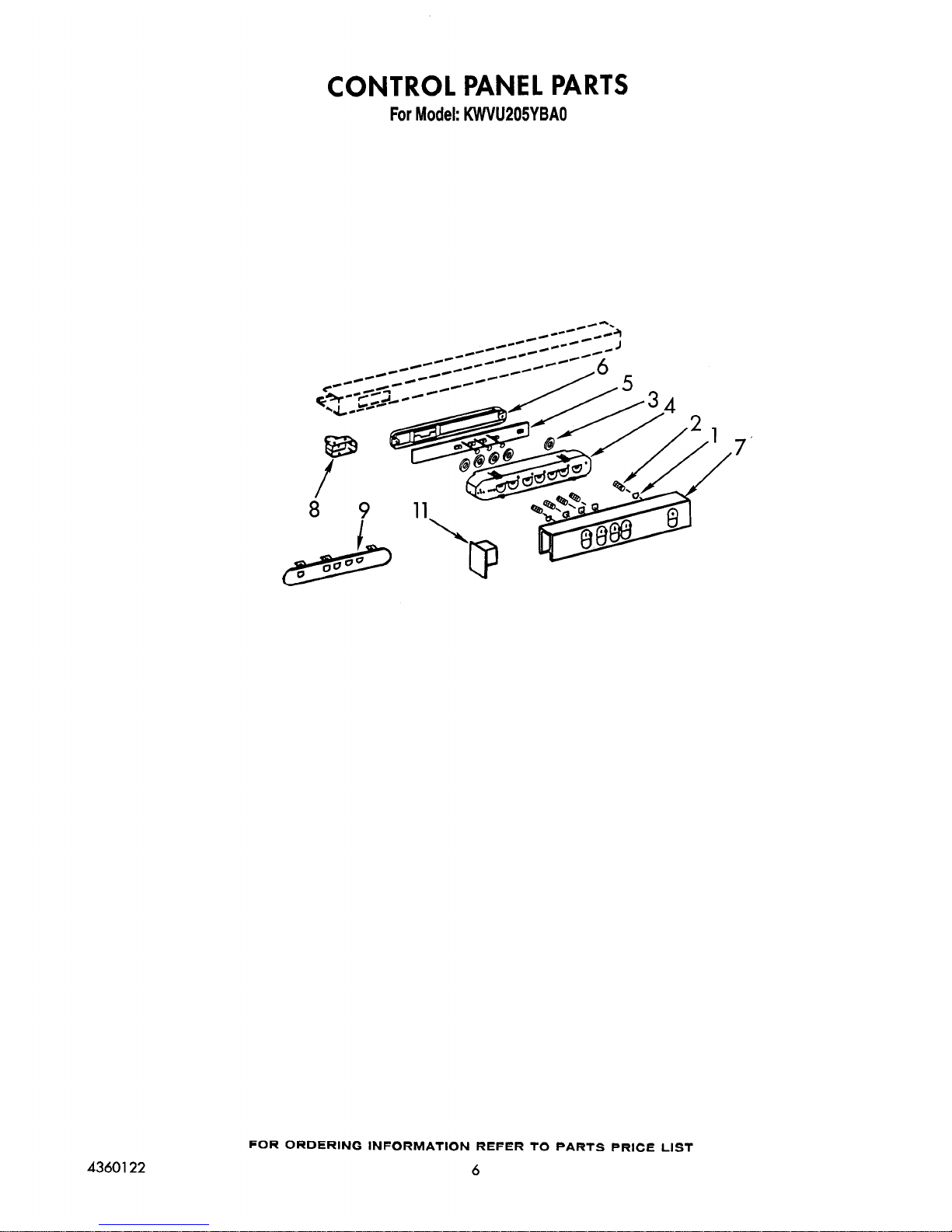

1 4360106 Button, Control (5)

2 4360107 Spring, Button (5)

3 4360108 Washer (5)

4 4360109 Housing, Control

5 4360110 Panel, Touch

6 4360111 Cover, Control

7 4360113 Frame, Control Panel

8 4360117 Connector

9 4360118 Escutcheon

11 End Cap, Handle

4360020 Left Side

4360022 Right Side

OPTIONAL PARTS NOT INCLUDED

4360201 Trim Kit (White)

4360203 Trim Kit (Black)
