KitchenAid KWCU360JSS1 User manual

HOOD PARTS

For Model:

KWCU360JSS1

(Stainless)

11−05 Litho in U.S.A. (jac) Part No. 8191107

36" PROFESSIONAL HOOD

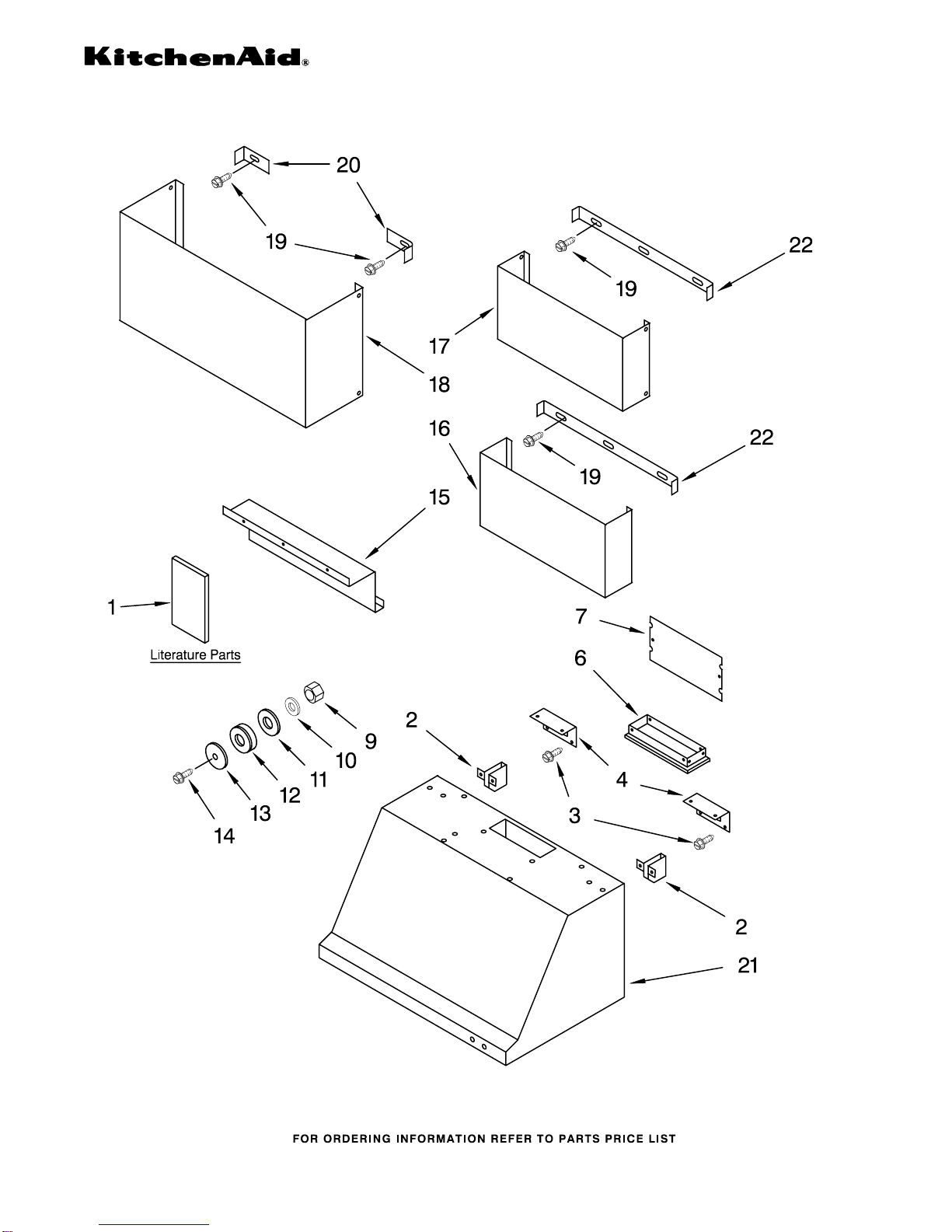

HOOD PARTS

For Model:

KWCU360JSS1

(Stainless)

8191107

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

9763385 Use & Care Guide

8189631 Wiring Diagram

2 8189612 Bracket, Hood

3 8189611 Screw

4 8189610 Bracket, Mounting

5 4360318 Grommet

6 4360001 Damper

7 4360190 Cover, Exhaust

8 4360062 Relief, Strain

9 8189600 Nut

10 4360158 Washer

11 8189601 Plate (Rubber)

12 8189602 Transformer, 120V

13 8189603 Plate (Nylon)

14 4360310 Screw

15 8189604 Support, Back

16 8189605 Chimney, Lower

17 8189606 Chimney, Upper

18 8189607 Chimney, 36"

19 4360320 Screw

20 8189608 Bracket, Chimney

21 8189613 Hood

22 8189609 Bracket, Upper

VENTILATION PARTS

For Model:

KWCU360JSS1

(Stainless)

8191107

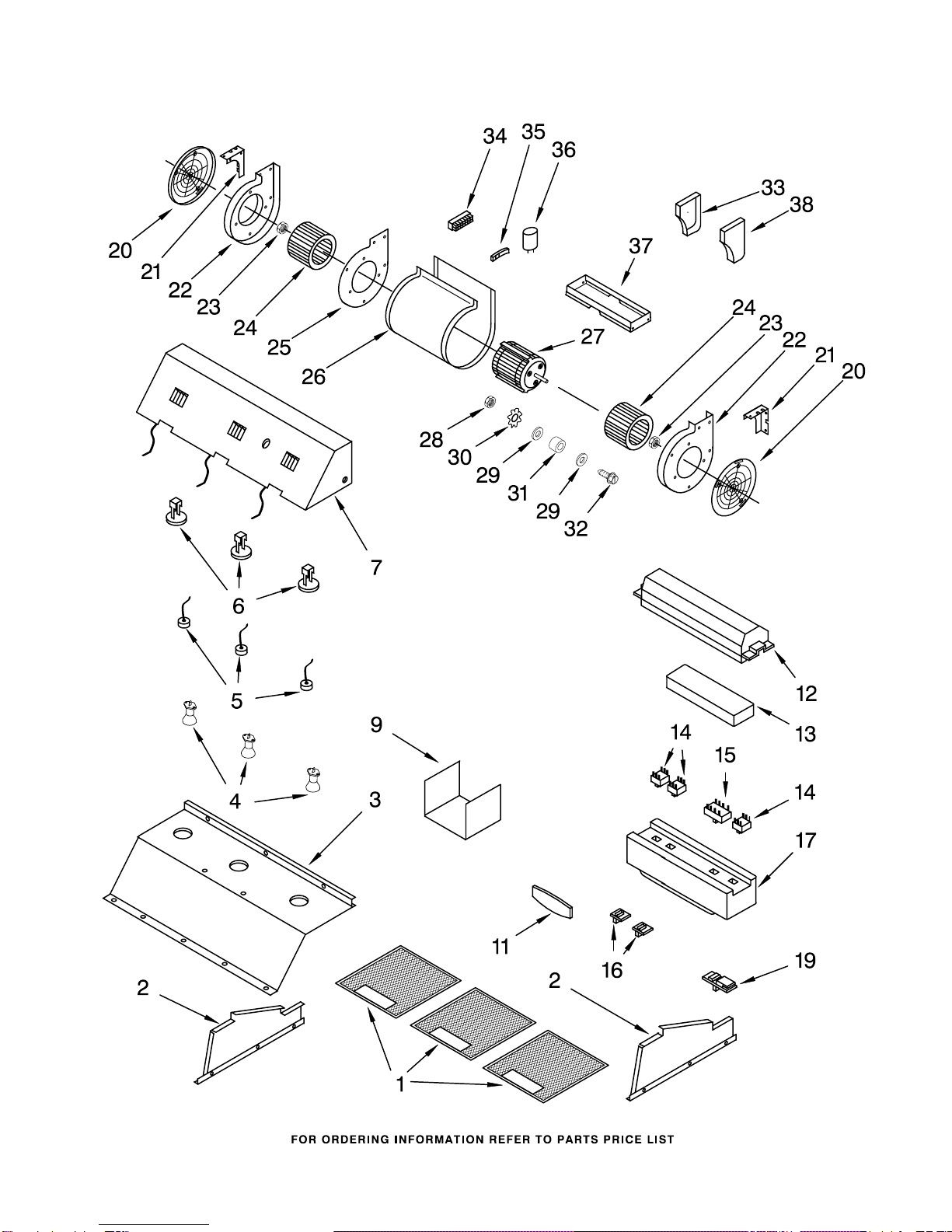

VENTILATION PARTS

For Model:

KWCU360JSS1

(Stainless)

8191107

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8189594 Filter, Grease

2 Support. Side

8189595 Left

8189617 Right

3 8189596 Support, Light

4 8189593 Bulb, Halogen

5 8189597 Holder, Bulb

6 8189598 Support, Bulb

7 8189599 Cover, Light

8 4360062 Relief, Strain

9 8189614 Cover, Inlet

10 8189615 Spacer

11 8189616 Nameplate

12 8189624 Cover, Switch

13 8189623 Support, Switch

14 8189621 Switch, On/Off

15 8189622 Switch, Motor

16 8189618 Button, On/Off

17 8189619 Box, Control

18 4360028 Lens, Indicator

19 8189620 Button, Mtr Speed

20 4360257 Support, Filter

21 Bracket, Diffuser

8189628 Left

8189625 Right

22 Cover, Blower

4360188 Left

4360179 Right

23 4360180 Nut, Locking

24 Impeller, Blower

4360187 Left

4360181 Right

25 4360185 Plate, Mtr Mount

26 4360184 Housing, Fan

27 8189627 Motor, Blower

28 8189626 Nut, Motor

29 4360345 Washer

30 4360344 Washer, Star

31 4360342 Spacer, Motor

32 4360347 Screw, Mtr Mount

33 4360056 Box, Capacitor

34 8189629 Block, Terminal

35 4360059 Bracket, Capacitor

36 4360175 Capacitor

37 4360255 Extension, Blower

38 4360060 Cover, Box

ACCESSORY PARTS

8284756 Backsplash

4378616 Wire Racks

4378617 Rack Hanger Kits

Utensil Bars

4378618 Side

4378619 Rear
