KitchenAid KPEC992M User instructions

17-3/4"

(45.1 cm) 23-1/4"

(59.1 cm)

7-1/4"

(18.4 cm)

PRODUCT MODEL NUMBERS OVERALL DIMENSIONS

VENTING REQUIREMENTS

KPEC992M

Electrical: 120-volt, 60-Hz, AC-only, 15-amp.

electrical supply. Use copper wire only. A time-

delay fuse or circuit breaker and separate circuit

is recommended.

900 cfm Exterior Blower

Because Whirlpool Corporation policy includes a continuous commitment to improve

our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation

Instructions packed with product. Specifications subject to change without notice.

Ref. 8285494

10-20-04

®

Maximum length of vent system Determine the length of vent system

you need

90° elbow =

5 ft. (1.5 m)

1 ft. round =

1 ft. (0.3 m) 45° elbow =

2.5 ft. (0.8 m)

Recommended standard

10" (25.4 cm) fittings

Vent Length

10" (25.4 cm) round 55 ft. (16.8 m)

It is recommended that you use round vent

instead of rectangular vent, especially if

elbows are required. If rectangular vent is

required, if should be transitioned to 10"

(25.4 cm) round vent as soon as possible.

For best performance, use no more than

three 90° elbows. If more than one elbow

is used, make sure that there is a

minimum of 24 inches (61 cm) of straight

vent between any two elbows. Do not

install two elbows together.

To calculate the length of system you

need, add the equivalent feet (meters)

from chart below for each vent piece that

will be needed.

install this side of the fan facing an

unoccupied space.

Other manuals for KPEC992M

2

Other KitchenAid Ventilation Hood manuals

KitchenAid

KitchenAid KWVU205Y User instructions

KitchenAid

KitchenAid KIRD801XSS2 User manual

KitchenAid

KitchenAid KXW9748YSS0 Product information sheet

KitchenAid

KitchenAid 42 Manual

KitchenAid

KitchenAid KIRD807HSS0 and Manual

KitchenAid

KitchenAid KVUC606J55 Product information sheet

KitchenAid

KitchenAid KCDP 9010/I User manual

KitchenAid

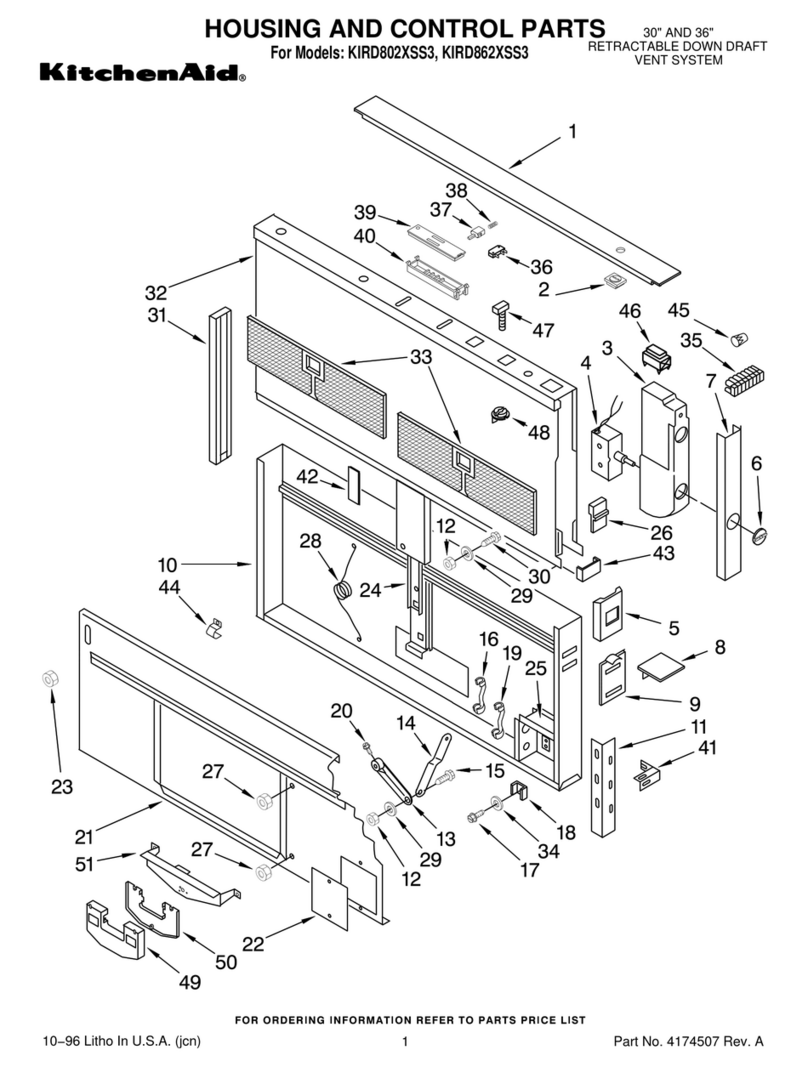

KitchenAid KIRD802XSS3 User manual
