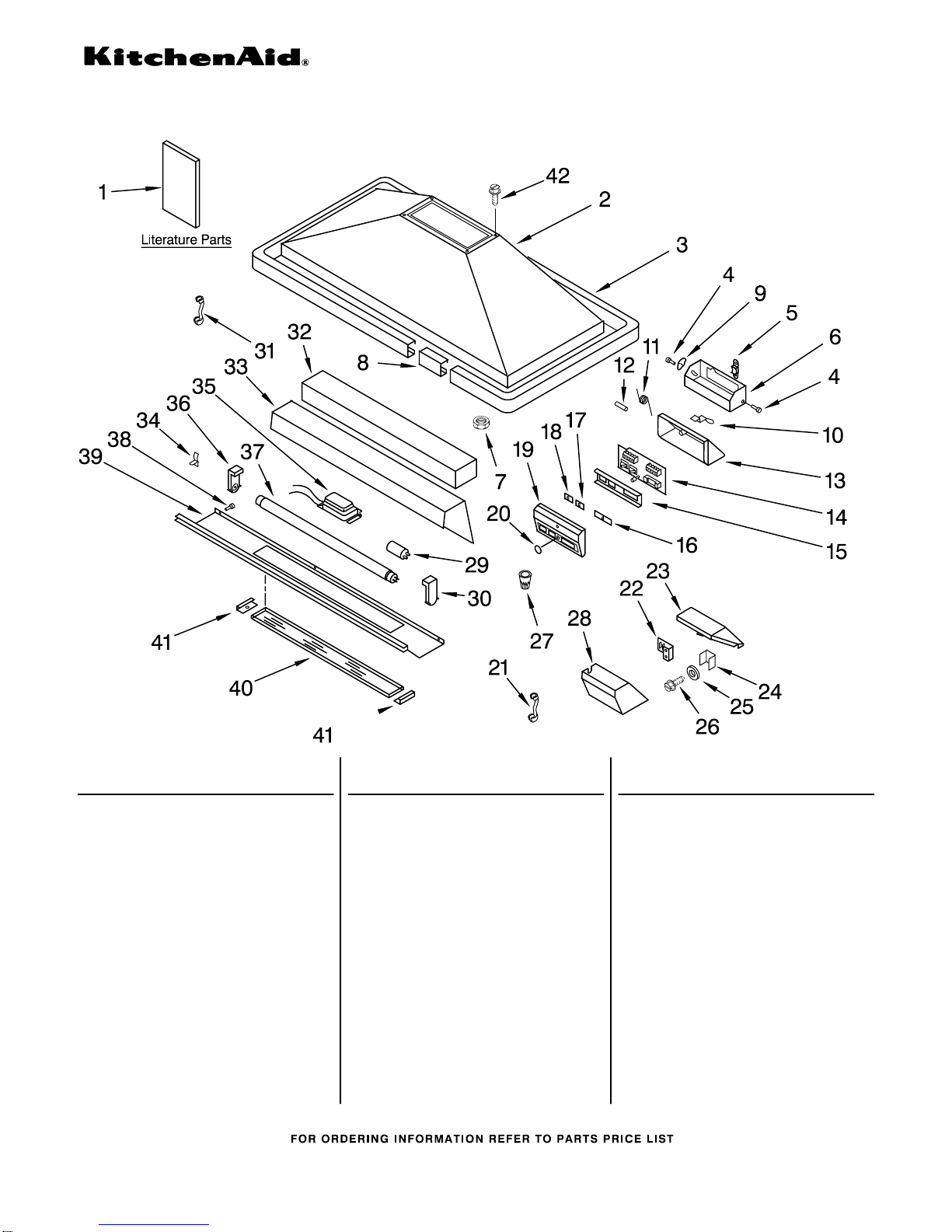

HOOD PARTS

For Models: KICU265HWH1, KICU265HBT1, KICU265HSS1

(White) (Biscuit) (Stainless)

11−05 Litho In U.S.A. (jac) Part No. 8191102

36" ISLAND HOOD

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

9763387 Use & Care Guide/

Install Instructs

4360232 Wiring Diagram

2 Hood, Canopy

(Not Serviced)

3 Trim

4360235 White Model

4360402 Biscuit Model

4360278 Stainless Model

4 4360238 Pin

5 4360239 Clamp, Cable

6 4360240 Housing, Control

7 4360074 Nut

8 Trim, Connector

4360233 White Model

4360401 Biscuit Model

4360276 Stainless Model

9 4360241 Lever

10 4360242 Clamp, Cable

11 4360243 Spring

12 4360244 Pin

13 4360245 Control Box

14 4360246 Board, Control

15 4360247 Support, Actuators

16 4360248 Actuator, 1−2−3

17 4360249 Actuator, Motor

18 4360250 Actuator, Lights

19 4360251 Cover, Box

20 4360028 Cover, Lamp

21 4360147 Strain Relief

22 4360391 Control, Speed

23 4360253 Box, Distribution

24 4360146 Ground Guide

25 4360005 Washer

26 4360006 Screw

27 4360211 Nut, Wire (8)

28 4360254 Cover, Box

29 4360260 Starter

30 4360261 Holder

31 4360062 Strain Relief

32 4360258 Protection, Wiring

33 4360259 Support Neon

34 4360044 Clamp, Cable

35 4360045 Ballast

36 4360266 Lampholder

37 4360014 Light

38 4360048 Pin, Grille

39 Support, Filter

4360267 White Model

4360405 Biscuit Model

4360281 Stainless Model

40 4360264 Glass, Light

41 4360263 Lighting, Side

42 4360236 Screw

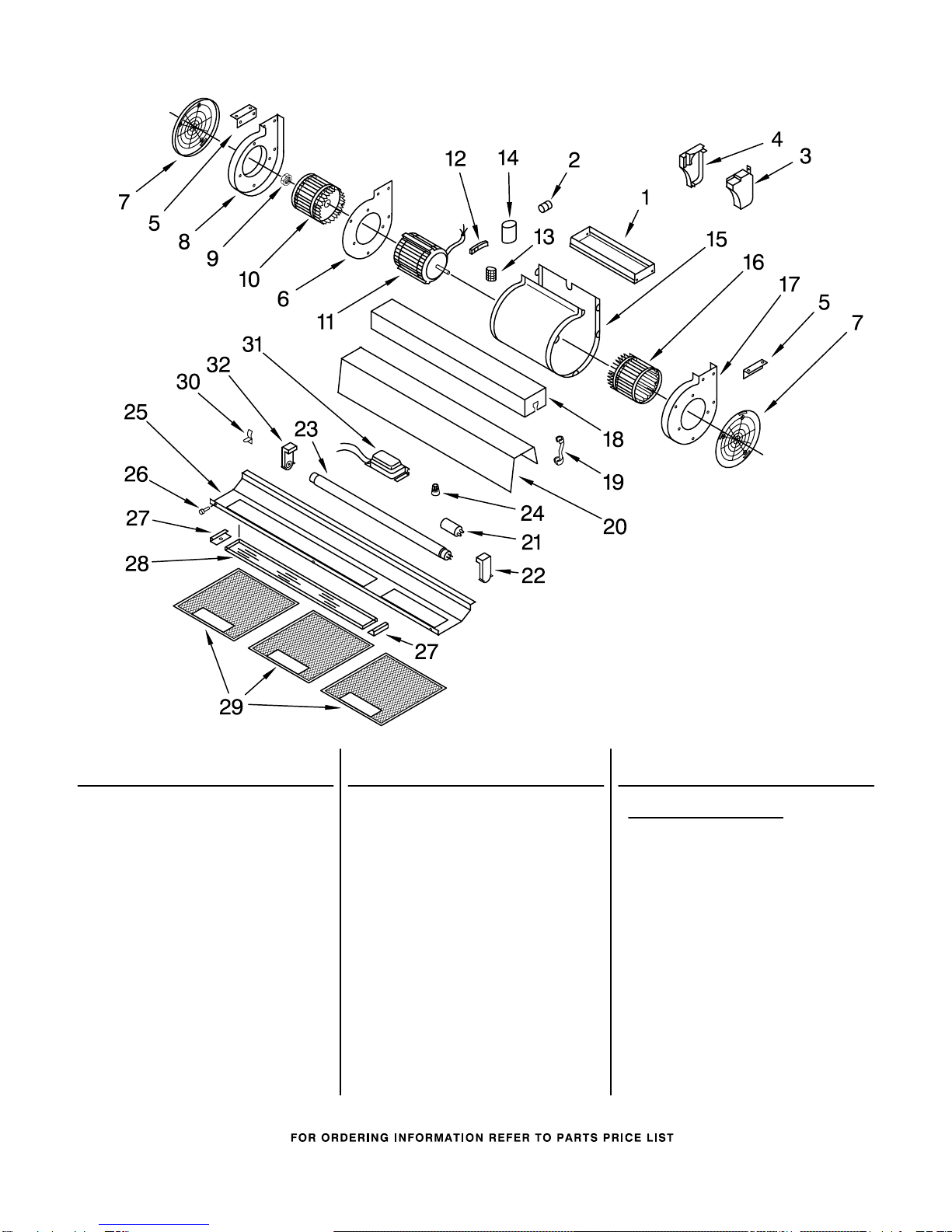

VENTILATION PARTS

For Models: KICU265HWH1, KICU265HBT1, KICU265HSS1

(White) (Biscuit) (Stainless)

8191102

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4360255 Extention, Diffuser

2 4360094 Grommet

3 4360056 Cover, Board

4 4360060 Board, Electric Box

5 4360256 Bracket, Diffuser

6 4360185 Motor Mount

7 4360257 Support, Filter

8 4360188 Cover, Blower

(Left Side)

9 4360180 Nut

10 4360187 Impeller, Left

11 4360212 Motor

12 4360059 Block, Capacitor

13 4360176 Terminal

14 4360175 Capacitor

15 4360184 Housing, Blower

16 4360181 Impeller, Right

17 4360179 Cover, Blower

(Right Side)

18 4360258 Protection, Wiring

19 4360062 Strain Relief

20 4360259 Support

21 4360260 Starter

22 4360261 Holder

23 4360014 Light

24 4360211 Nut, Wire

25 Support, Lighting

4360262 White Model

4360404 Biscuit Model

4360280 Stainless Model

26 4360048 Pin, Grille

27 4360263 Lighting, Side

28 4360264 Glass, Light

29 4360265 Filter (3)

30 4360044 Clamp, Cable

31 4360045 Ballast

32 4360266 Lampholder

ACCESSORY PARTS

4378615 Backsplash

4378616 Wire Racks

4378617 Rack Hanger Kits

Utensil Bars

4378618 Side

4378619 Rear

4378623 Filters (2−Pak)

Ductless Kit

4378626 White Model

8171292 Biscuit Model

4378625 Stainless Model

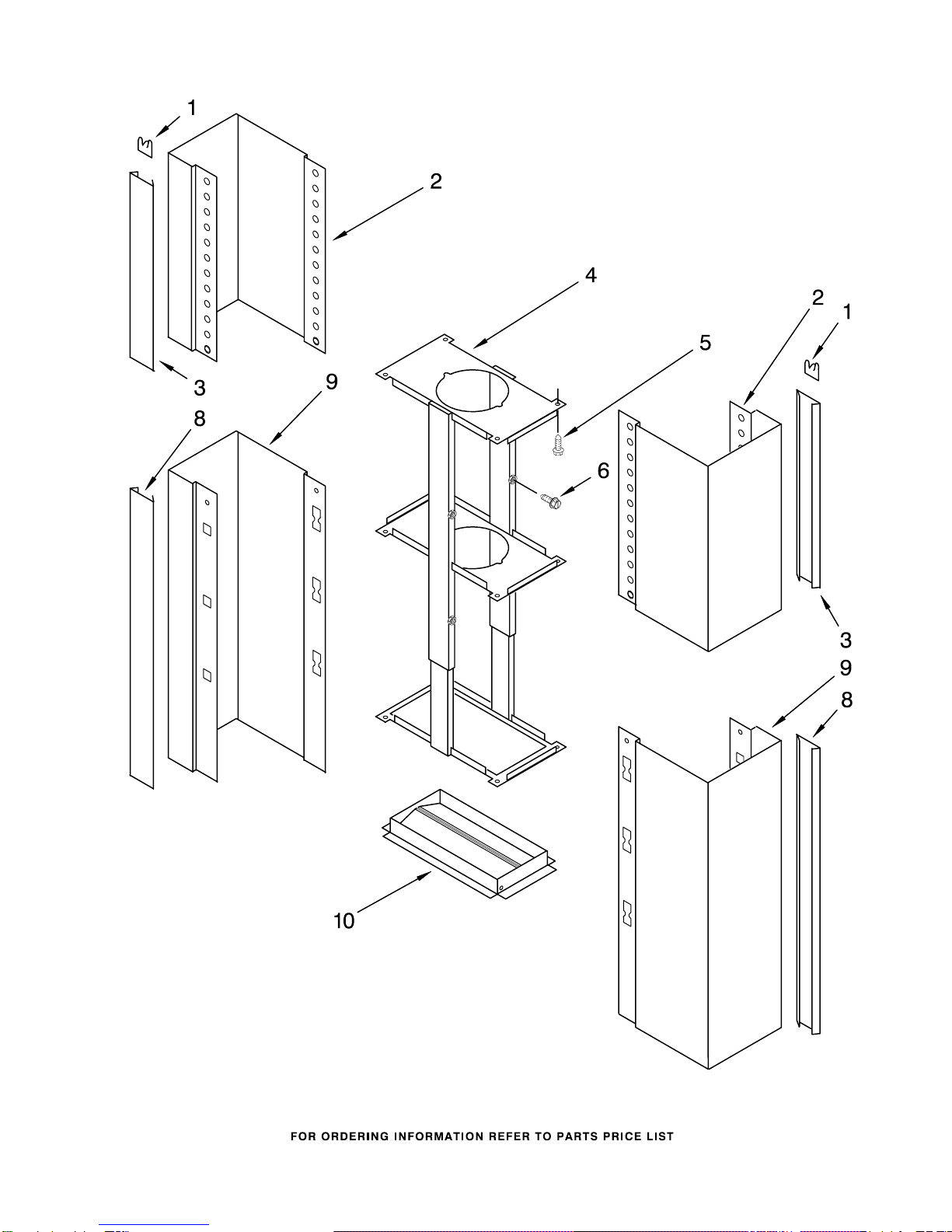

CHIMNEY PARTS

For Models: KICU265HWH1, KICU265HBT1, KICU265HSS1

(White) (Biscuit) (Stainless)

8191102

CHIMNEY PARTS

For Models: KICU265HWH1, KICU265HBT1, KICU265HSS1

(White) (Biscuit) (Stainless)

8191102

Illus. Part

No. No. DESCRIPTION

1 4360272 Spring, Moulding

2 Upper Chimney

4360271 White Model

4360407 Biscuit Model

4360282 Stainless Model

3 Moulding, Upper

4360273 White Model

4360408 Biscuit Model

4360283 Stainless Model

4 4360269 Frame, Telescopic

5 4360268 Screw

6 4360270 Screw

8 Moulding, Lower

4360274 White Model

4360409 Biscuit Model

4360284 Stainless Model

9 Lower Chimney

4360275 White Model

4360410 Biscuit Model

4360285 Stainless Model

10 4360178 Damper

FOLLOWING PARTS

NOT ILLUSTRATED

814380 Kit, Motor Mount
