1

HOOD & VENTILATION PARTS

For Model: KHLU182MSS0

(Stainless)

48" HOOD LINER

1−04 Litho in U.S.A. (jac) Part No. 8190592

2

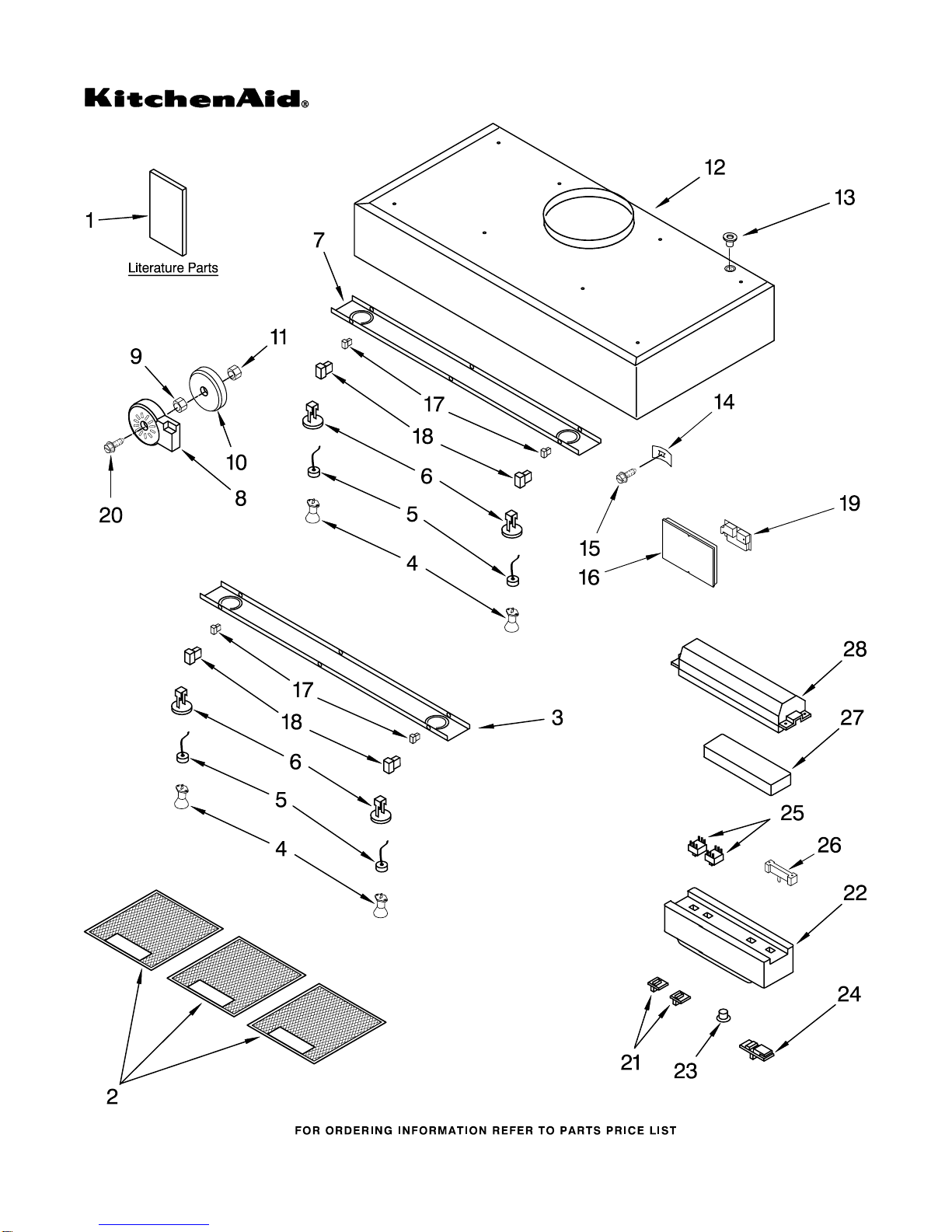

Illus. Part

No. No. DESCRIPTION

HOOD & VENTILATION PARTS

For Model: KHLU182MSS0

(Stainless)

8190592

1 Literature Parts

2 8190541 Filter, Grease

3 8190543 Support, Light

4 8189593 Bulb, Halogen (6)

5 8190542 Holder, Bulb (6)

6 8189598 Support, Bulb (6)

7 8190544 Support, Light

8 8190545 Blower

9 8190411 Nut

10 8189602 Transformer

11 8190414 Nut

12 8190546 Hoodliner

13 4360147 Relief, Strain

14 4360146 Nut

15 4360006 Screw

16 4360303 Cover, Dist Box

17 4360161 Connector, Male

18 4360162 Connector, Female

19 4360252 Control, Motor

20 8190403 Screw

21 8189618 Button, On/Off

22 8190547 Box, Control

23 4360028 Lens, Light

24 8189620 Button, Mtr Speed

25 8189621 Switch, On/Off

26 8190548 Switch, Mtr Speed

27 8189623 Support

28 8189624 Cover, Switch

LIT 8285495 Instructions,

Installation/

Use & Care Guide

LIT 8190540 Wiring Diagram
