KitchenAid KEBS276XBL2 User manual

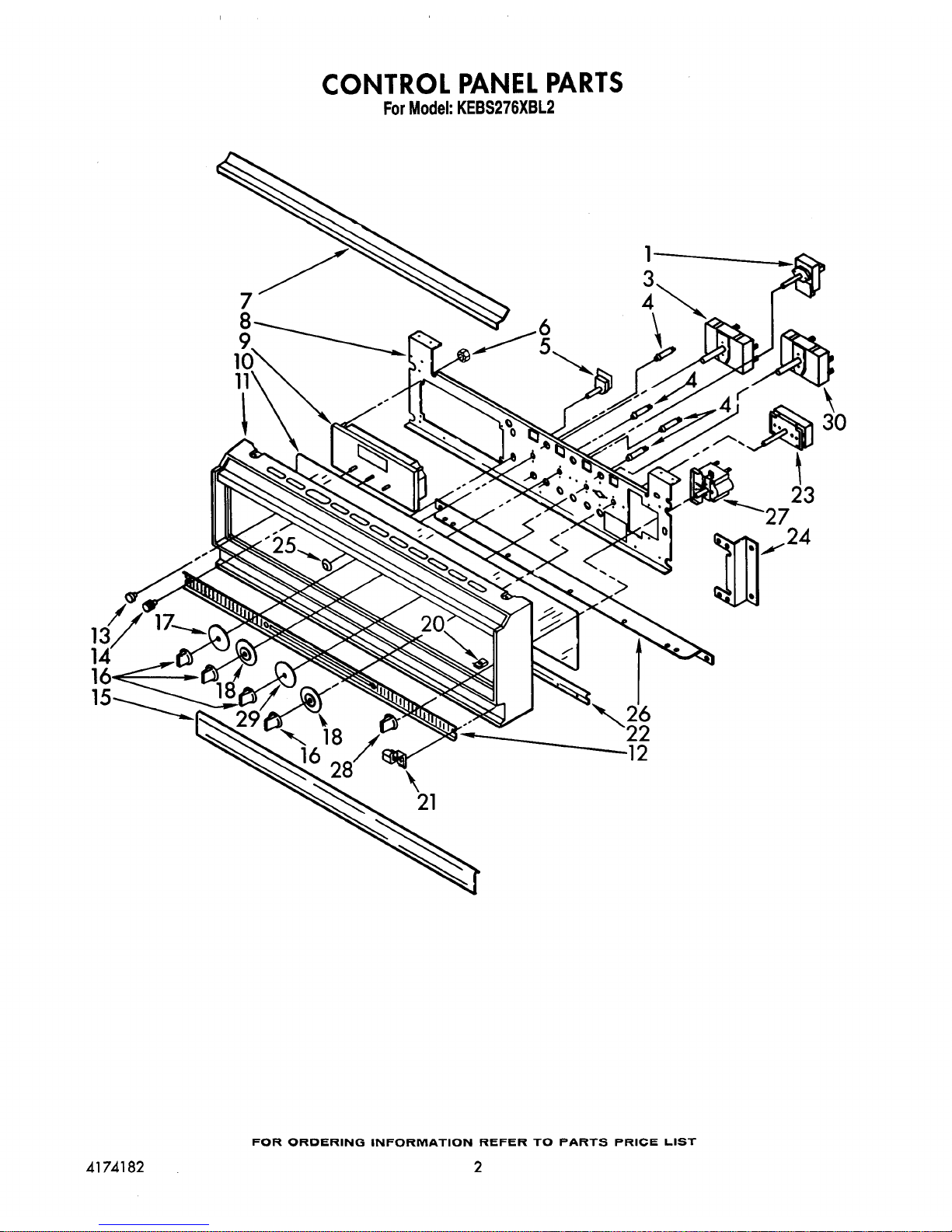

NOTE: The screws and nuts required to attach a part are listed immediately
following that part.
1 3178273 Thermostat Upper Oven
155023 Screw (2)
3 3178233 Switch, Selector Upper Oven
155023 Screw (2)
4 4168598 Light, Indicator
5 3179891 Switch, Oven Light
6 98788 Nut, Timer (4)
7 4173385 Insert, Top
8 3177804 Bracket, Control
9 3148111 Timer, Electronic
10 3181282 Glass, Control Panel
11 3177760 Frame, Control Panel
12 3179916 Insert, Vent
3179847 Screw (4)
13 3179704 Knob, Timer (2)
14 3179705 Knob, Timer
15 3177972 Door, Latch Handle
16 3178400 Knob, Control (4)
17 3178262 Disc, Selector Lower Oven
18 3178477 Disc, Thermostat Upper & Lower Oven
20 4168838 Nut (3)
21 3177971 Hinge, Door (2)
3179847 Screw (2)
22 4167590 Retainer, Glass
4159456 Screw (6)
23 3178274 Thermostat Lower Oven
155023 Screw (2)
24 3177747 Bracket, Control Panel
3177991 Screw(2)
25 4169372 Bezel, Switch
26 3177650 Support, Frame
3177991 Screw(2)
27 3180156 Indicator, Meat Probe
254225 Screw (2)
28 4163840 Knob, Meat Probe
29 3178264 Disc. Selector Upper Oven
30 3178234 Switch, Selector Lower Oven
155023 Screw (2)
LITERATURE PARTS
LIT4174182 Repair Parts List
LIT3185200 Tech Sheet
LIT3178195 Installation Instructions
LIT3181351 Use & Care Guide
NOTE: The screws and nuts required to attach a part are listed immediately
following that part.
2 3177545 Bracket, Mounting
3 3177623 Cabinet, Back
300890 Screw (14)
6 3178136 Cabinet, Top
300890 Screw (5)
7 3177436 Top, Module
300890 Screw (8)
8 Side, Cabinet
3177440 Left Hand
3177438 Right Hand
300890 Screw (18)
9 3181699 Tube, Vent
3179117 Screw (3)
10 3150505 Oven Light Assy.
12 311255 Bulb, Oven Light
13 313382 Clip, Thermostat Bulb
14 3177682 Frame, Front
15 3179813 Seal, Door
16 3179848 Clip, Oven Seal
17 3177681 Bracket, Switch
18 3177923 Insulator, Switch
19 3177621 Bottom, Module
20 3179220 Rail, Support (2)
300890 Screw (4)
21 3181733 Insert, Middle Vent Trim
300890 Screw (8)
22 3177434 Support, Oven
300890 Screw (2)
23 3178612 Shield, Radiation
300890 Screw (2)
24 3177433 Bracket, Hinge
3179795 Screw (6)
300890 Screw (2)
25 3177572 Side, Module (R.H. & L.H.)
300890 Screw (4)
26 3177556 Back, Module
300890 Screw (8)
27 3180828 Liner, Oven
28 3178298 Hinge, Door (2)
3178000 Screw (4)
31 4173553 Switch, Door
4159117 Nut (2)
313489 Screw (2)
33 3179587 Retainer, Seal
4159450 Screw (2)
3179776 Screw (4)
34 3181965 Vent, Middle Trim
3180022 Screw (6)
4168863 Screw (6)
35 3179922 Vent, Tube (Upper, Female)
36 3180891 Vent, Tube (Upper, Male)
37 3180890 Shield, Vent
300890 Screw (2)
38 3178132 Extension, Shelf
3177991 Screw (8)
39 4168203 Cover, Cap Tube
4159445 Screw
40 4167518 Plate, Cover
4168874 Screw
41 4167469 Plate, Mounting Rotisserie
42 4163836 Motor, Rotisserie
4159334 Screw (3)
4159501 Washer, Lock Tooth
FOLLOWING PARTS NOT ILLUSTRATED
INSULATION
3177862 Insulation, Wrap
3177872 Insulation, Back
NOTE: The screws and nuts required to attach a part are listed immediately
following that part.
3 3177436 Top, Module
300890 Screw (8)
4 3181699 Tube, Vent
3179117 Screw (3)
5 3180828 Liner, Oven
6 3177572 Side, Module (R.H. & L.H.)
300890 Screw (4)
7 311255 Bulb, Oven Light
9 3150505 Oven Light Assy.
10 313382 Clip, Bulb (2)
12 3177684 Frame, Front
13 3179813 Seal, Door
14 3177681 Bracket, Switch
3177991 Screw (2)
15 3177923 Insulator, Switch
16 3177551 Bottom, Oven
17 3179220 Rail, Support (2)
300890 Screw (4)
18 3177433 Bracket Hinge (2)
3179795 Screw (6)
300890 Screw (2)
19 3177621 Bottom, Module
20 3178612 Shield, Radiation
3179795 Screw (6)
300890 Screw (2)
21 3177434 Support, Oven
300890 Screw (2)
22 3177556 Back, Module
300890 Screw (8)
24 3179848 Clip, Seal (3)
25 3178298 Hinge, Door (2)
3178000 Screw (4)
26 3185109 Button, Plug
27 3185108 Button, Plug
28 3179945 Tube, Vent (Male)
300890 Screw (3)
29 3181964 Tube, Vent (Female)
30 4173553 Switch, Door
4159117 Nut (2)
313489 Screw (2)
32 3179587 Retainer, Seal
4159450 Screw (2)
3179776 Screw (4)
33 4168203 Cover, Cap Tube
4159445 Screw
34 3177787 Trim, Lower Vent
35 4167518 Plate, Cover
4168874 Screw
FOLLOWING PARTS NOT ILLUSTRATED
INSULATION
3177862 Insulation, Wrap
3177872 Insulation, Back
NOTE: The screws and nuts required to attach a part are listed immediately
following that part.
1 3177599 Liner, Door
4168863 Screw (6)
3178001 Screw, Black (2)
2 3178584 Gasket, Window
3 3179693 Spacer, Window
4 3177831 Latch, Strike
300890 Screw (2)
5 3177718 Insulation Retainer
300890 Screw (4)
6 Clip, Channel
3179506 Bottom (2)
3179507 Top (2)
300890 Screw (4)
7 3181548 Glass, Door
8 4164243 Glass, Reflective
9 3181402 Frame, Door
10 3178646 Handle, Door
3181637 Screw (2)
11 3178740 Spacer (2)
13 4164235 Window Pack
14 3180094 Insulation, Door
15 3181651 Bushing, Door Handle
16 3181701 Bumper, Door Glass
