KitchenAid KEBC247KBL05 User manual

OVEN PARTS

For Models: KEBC247KBL05, KEBC247KWH05, KEBC247KSS05

(Black) (White) (S.Steel)

11−05 Litho in U.S.A. (lwp) Part No. 8186448

30" BUILT−IN ELECTRIC

DOUBLE OVEN

SELF−CLEAN

OVEN PARTS

For Models: KEBC247KBL05, KEBC247KWH05, KEBC247KSS05

(Black) (White) (S.Steel)

8186448

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8300656 Installation

Instructions

8304062 Owners Manual

8302066 Tech Sheet

4449264 Easy Set Guide

3191638 Safer Cooking Tips

9759133 Safer Cooking Tips

4457288 Install Instrctn

(Bottom Trim)

2 Trim, Side

4455426 RH Black

4455375 RH White

4452081 RH S.Steel

4455427 LH Black

4455374 LH White

4452082 LH S.Steel

3 Hinge Receiver

4455605 Left Hand

4455606 Right Hand

4 4448520 Bumper, Door

5 4452490 Spacer, Foam

6 8302347 Divider, Vent

7 4455863 Top Chassis

8 4455807 Deflector, Vent

Box

9 4452158 Tube, Vent

10 4452163 Lens, Light

11 4448972 Oven Light Assy

12 4452164 Bulb, Light

13 8300825 Insulation,

Bottom Vent

14 4455610 Frame, Front

15 4455380 Gasket, Door

16 8281236 Screw

17 4449743 Screw

18 3196176 Screw

19 4451476 Support, Insulation

20 4451605 Cap, Spacer

21 Rail, Side

4450581 Right Side

4450582 Left Side

22 9760888 Latch, Motorized

23 4449040 Screw

24 4448444 Grommet

25 4455641 Side, Chassis

(R.H. & L.H.)

26 4452232 Back, Chassis

27 Liner, Oven

(Not serviceable)

28 4452152 Brckt, Mounting

29 4455636 Sensor

30 4449154 Screw

33 9760675 Deflector, Vent

34 4452265 Vent, Center

37 9759242 Thermostat (TOD)

43 4450525 Base, Chassis

44 4449809 Screw

49 4448933 Retainer, Gasket

50 4451747 Cover, Back

51 Trim, Bottom

4456812 White

4456811 Black

8302587 S.Steel

52 3400832 Screw

53 4449845 Support, Bracket

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

4449314 Insulation, Wrap

4450363 Insulation, Back

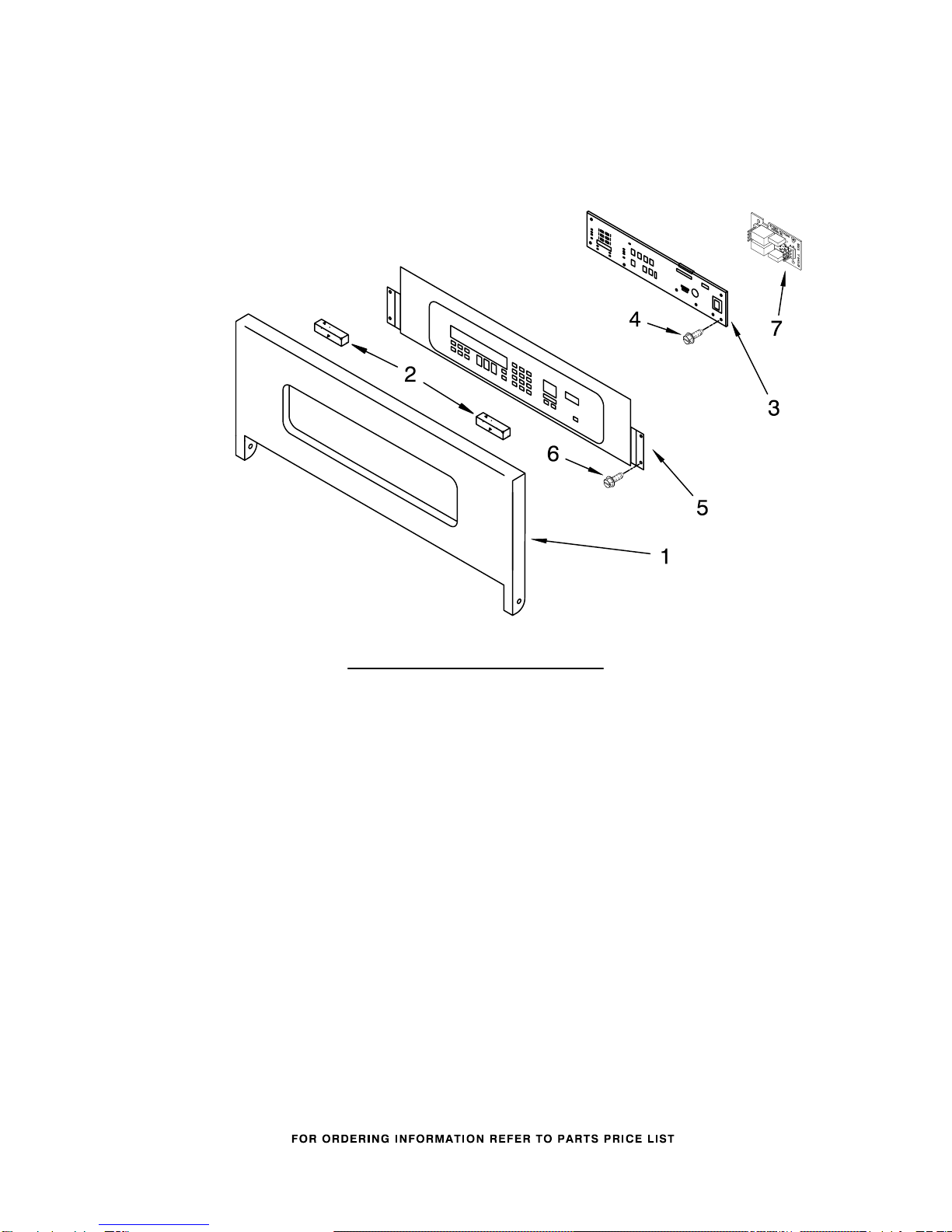

CONTROL PANEL PARTS

For Models: KEBC247KBL05, KEBC247KWH05, KEBC247KSS05

(Black) (White) (S.Steel)

8186448

Illus. Part

No. No. DESCRIPTION

1 Panel, Control

8300815 Black

8300816 White

8302364 S.Steel

2 4452260 Spacer, Foam

3 8302305 Cntrl−Electronic

4 4449745 Screw

5 Assy, Membrane

8302743 Black

8302746 White

8302770 S.Steel

6 3400832 Screw

7 8301848 Latch, Sister

Board

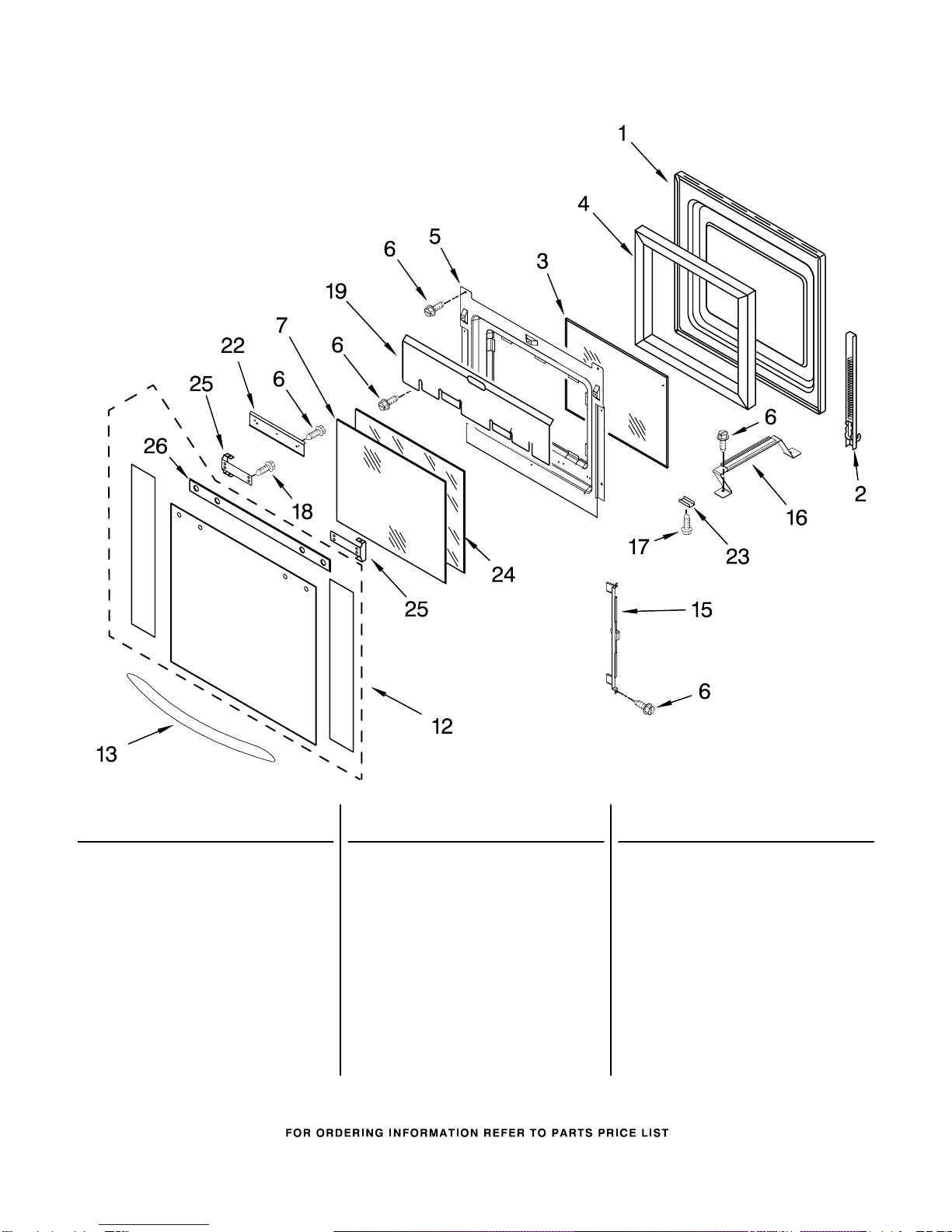

OVEN DOOR PARTS

For Models: KEBC247KBL05, KEBC247KWH05, KEBC247KSS05

(Black) (White) (S.Steel)

8186448

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8303698 Door Liner

2 Hinge, Door

9760569 R.Side (Green)

9760570 L.Side (Green)

(Below hinges are

used on S.Steel

models only)

9760571 R.Side (White)

9760572 L.Side (White)

3 4449247 Glass, Inner

4 4451720 Insulation, Door

5 4457130 Retainer, Glass

6 4449809 Screw

7 9759223 Glass, Inner

12 Door Glass, Assy

8300836 Black Model

8300837 White Model

8302467 S.Steel Model

13 Door Handle

4452498 Black

4452499 White

8301255 S.Steel

15 9759229 Bracket(2nd Glass)

16 9759230 Bracket(3rd Glass)

17 3400832 Screw

18 3196184 Screw

19 4457101 Shield, Heat

22 4457112 Shield, Heat (Btm)

23 Retainer, Clip

4450863 Black

4450864 White

4451432 Stainless Steel

24 9759226 Glass, Inner

25 Bracket, Handle

4455803 Right Hand

4455804 Left Hand

26 8300853 Seal, Door

INTERNAL OVEN PARTS

For Models: KEBC247KBL05, KEBC247KWH05, KEBC247KSS05

(Black) (White) (S.Steel)

8186448

Illus. Part

No. No. DESCRIPTION

1 4456104 Element, Broil

2 4457277 Grill, Broiler

3 4457276 Pan, Broiler

4 4448716 Rack, Oven

5 4452155 Element, Bake

6 4455035 Tray, Hidden Bake

7 4450039 Cover, Bake Tray

8 4449809 Screw

9 4449154 Screw

10 4451583 Motor, Convection

11 4452226 Blade, Fan

12 4452227 Nut

13 4448418 Cover, Fan

14 4452157 Element, Convctn

15 4451355 Jack, Meat Probe

16 4448881 Nut, Hex

17 4448948 Probe, Meat

18 3181534 Rack, Roasting

TOP VENTING PARTS

For Models: KEBC247KBL05, KEBC247KWH05, KEBC247KSS05

(Black) (White) (S.Steel)

8186448

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4451758 Foam, Block

2 4451759 Vent, Exhaust

3 Blower

6610168 Lower Oven 45MM

4457289 Upper Oven 65MM

4 9760588 Transformer,

(Lights)

5 4449809 Screw

6 8302390 Bracket, Support

(Air Stop)

7 8300642 Transformer

8 4455178 Elbow, Vent−Top

9 4455177 Elbow, Vent−Bottom

11 4449868 Block, Terminal

12 3400080 Screw

13 4448547 Vent, Control

Panel

14 Side, Control Top

4451597 Right

4451598 Left

15 9759135 Back, Control

16 4450549 Cover, Top Rear

17 4448664 Clamp

18 4452365 Cover, Top Front

19 4451985 Suppressor

OPTIONAL PARTS

For Models: KEBC247KBL05, KEBC247KWH05, KEBC247KSS05

(Black) (White) (S.Steel)

8186448

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

261869 Cord Brown

72032 Black

PAINT, SPRAY

350930 White

261900 Citrine White

830864 Black

ADHESIVE

591014 Adhesive

Loctite (1/3 oz.)

482338 Sealer, Silastic

(3 oz.)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire (12 Ga.

150 c Black)

242820 Wire (14 Ga.

150 c Black)

242821 Wire (14 Ga.

150 c Blue)

242822 Wire (14 Ga.

150 c Brown)

242830 Wire (14 Ga.

200 c Brown)

242823 Wire (14 Ga.

150 c Green)

242824 Wire (14 Ga.

150 c Orange)

242825 Wire (14 Ga.

150 c Red)

242831 Wire (14 Ga.

200 c Red)

242827 Wire (14 Ga.

150 c Yellow)

WIRING HARNESS PARTS

8301909 Harness, Wire

(Latch)

4449809 Screw

8301872 Harness, Wire

(Main)

4450953 Conduit, Double

4450800 Screw

4448664 Clamp

4449809 Screw

112432 Nut

4452400 Lead, Ground

4452222 Spacer, Harness

4454835 Tie, Cable

4451761 Support, Wiring

4454842 Tie, Cable

313438 Clip, Harness

4455191 Plate, Blwr Serv

Miscellaneous

814381 Pin Hinge Kit

4448950 Screw, Install (4)

Door, Complete

9759297 Black

9759298 White

9759299 S.Steel
