KitchenAid KHMS1850SBL0 User manual

CONTROL PANEL PARTS

For Models: KHMS1850SWH0, KHMS1850SBL0, KHMS1850SSS0

(WHITE) (BLACK) (STAINLESS)

10−06 Litho in U.S.A. (lwp) Part No. 8188459

Microwave Hood Combination

1.8 Cu. Ft.

Illus. Part

No. No. DESCRIPTION

1 Literature

W10117796

Inst. Instructions

8206647 U & C Guide

8206648 Tech Sheet

8206649 Cook Guide Label

2 Panel Asy, Control

Includes Lens and

Membrane Switch

W10117923

White

W10117925

Black

W10117924

Stainless

W10117927

Bracket, Control

W10117928

Microcomputer

DOOR PARTS

For Models: KHMS1850SWH0, KHMS1850SBL0, KHMS1850SSS0

(WHITE) (BLACK) (STAINLESS)

8188459

Illus. Part

No. No. DESCRIPTION

1 8184922 Pivot, Door

2 Handle, Door

8206501 White

W10116265

Black

W10110267

Stainless

W10114254

Lower Hinge

4 8169479 Screw

5 8204690 Screw

6 8204691 Washer

W10114255

Upper Hinge

8 Complete Door

W10117920

White

W10117922

Black

W10117921

Stainless

INTERIOR AND VENTILATION PARTS

For Models: KHMS1850SWH0, KHMS1850SBL0, KHMS1850SSS0

(WHITE) (BLACK) (STAINLESS)

8188459

INTERIOR AND VENTILATION PARTS

For Models: KHMS1850SWH0, KHMS1850SBL0, KHMS1850SSS0

(WHITE) (BLACK) (STAINLESS)

8188459

Illus. Part

No. No. DESCRIPTION

1 8205096 Reflector, Lamp

W10112515

Lamp

3 8205578 TC0, Brkt. Assy.

W10113040

Filter, Grease

5 8205366 Plate, Bottom

6 8184141 Glass, Lamp

7 8184889 Holder, Glass

8 8206345 Switch, Micro

Primary/Secondary

9 8205152 Resistor

10 8206352 Switch, Micro

11 8169438 Spring, Interlock

12 8183824 Plate, Cam

W10117909

Support, Interlock

14 8205362 Fan, DC 12 Volt

15 8205364 Housing, Fan

W10117906

Shield,Wtr.Spill.

17 8205357 Diffuser, Housing

W10117907

Tube,Watershoot

19 8185190 Rod−Locking Link

W10117910

Plate, Cam

W10117911

Spring, Interlock

22 8206455 Plate, Side

W10117912

Piston Assembly

24 8206347 Switch, Micro

25 8184202 Cover, Terminal

26 8184091 Motor, Capacitor

W10117908

Holder, Fuse

28 4393308 Fuse

29 8184199 Screw

30 4393835 Screw

31 8184200 Screw

32 8169477 Screw

33 8169539 Holder, Lamp

W10112514

Filter, Charcoal

35 8206456 Transformer, H.V.

36 8206457 Bracket, Capacitor

W10117913

Capacitor, H.V.

38 8205361 Diode, H.V.

W10117914

Chassis

AIR FLOW PARTS

For Models: KHMS1850SWH0, KHMS1850SBL0, KHMS1850SSS0

(WHITE) (BLACK) (STAINLESS)

8188459

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8205350 Deflector, Air

W10117848

Cover, Lamp

3 8205368 Duct, Air

5 8183703 Thrmst, Exh.Fan

6 8204676 Cover

7 8183993 Lamp

8 8205354 Air Guide, Back

W10117942

Motor, Fan Assy

10 8206460 Shield (Left)

11 8183999 Thrmst, Cavity

W10117915

Shield (Middle)

W10117916

Shield (Right)

14 8169474 Screw

15 Air Guide

8205367 Left

8205352 Right

16 8206446 Humidity, Sensor

17 8206624 Filter

18 8169539 Holder, Lamp

19 8205351 Base Plate,

Air Guide

W10117846

Socket, Motor Wire

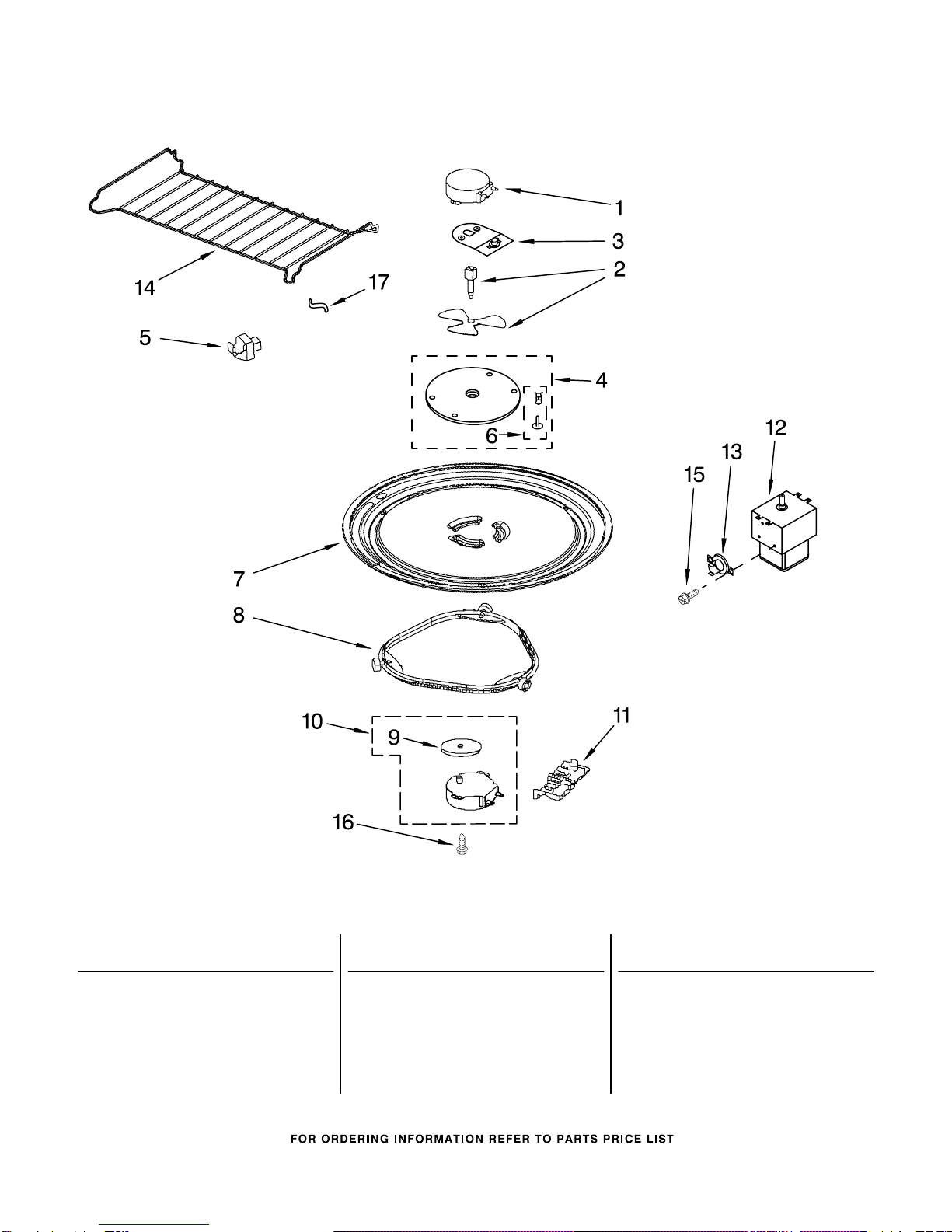

MAGNETRON AND TURNTABLE PARTS

For Models: KHMS1850SWH0, KHMS1850SBL0, KHMS1850SSS0

(WHITE) (BLACK) (STAINLESS)

8188459

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8205044 Motor, Stirrer

2 8205202 Stirrer

Shaft/Blade

3 8206454 Thermostat/Bracket

4 8184476 Cover, Inlet

Includes Nails

and Bushings

5 8206118 Hook, Rack (4)

6 8184549 Nails/Bushings

(4 of each)

7 4393799 Turntable

8 8206227 Ring, Turntable

W10107780

Spacer, Waterproof

10 8183953 Motor, Turntable

W10110598

Cover, Terminal

12 8205363 Magnetron

13 8184951 Thermostat

14 8205549 Rack

15 4393838 Screw

16 4393832 Screw

W10117929

Spacer (4)

CABINET AND INSTALLATION PARTS

For Models: KHMS1850SWH0, KHMS1850SBL0, KHMS1850SSS0

(WHITE) (BLACK) (STAINLESS)

8188459

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8206315 Plate, Mounting

2 8206442 Damper Assembly

3 8205808 Cord, Power

4 Case, Outer

W10117844

White

W10117845

Black

5 Grille, Vent

W10117917

White

W10117918

Black

W10117919

Stainless Steel

6 4393836 Screw

7 4393472 Screw

8 8206452 Plate, Damper

FOLLOWING PARTS

NOT ILLUSTRATED

Miscellaneous

8205948 Installation,

Hardware

8184731 Template, Upper

8169704 Screw, Top Mountng

8205696 Ground Wire

W10117932

H.V. Wire Assembly

W10117930

Main Wire Assy

W10117931

Lamp/TT Wire Assy.

w10117933

Therm. Harns−Wire

W10117934

Wire−Grnd, AC Line
