KitchenAid KFP715BW0 User manual

c2007 KITCHENAID

6−07 Litho In U.S.A. (skr) Part No. W10139214 Rev. A

KFP715WH0 (White)

KFP715ER0 (Empire Red)

KFP715OB0 (Onyx Black)

KFP715BW0 (Blue Willow)

7−CUP FOOD PROCESSOR

MODELS:

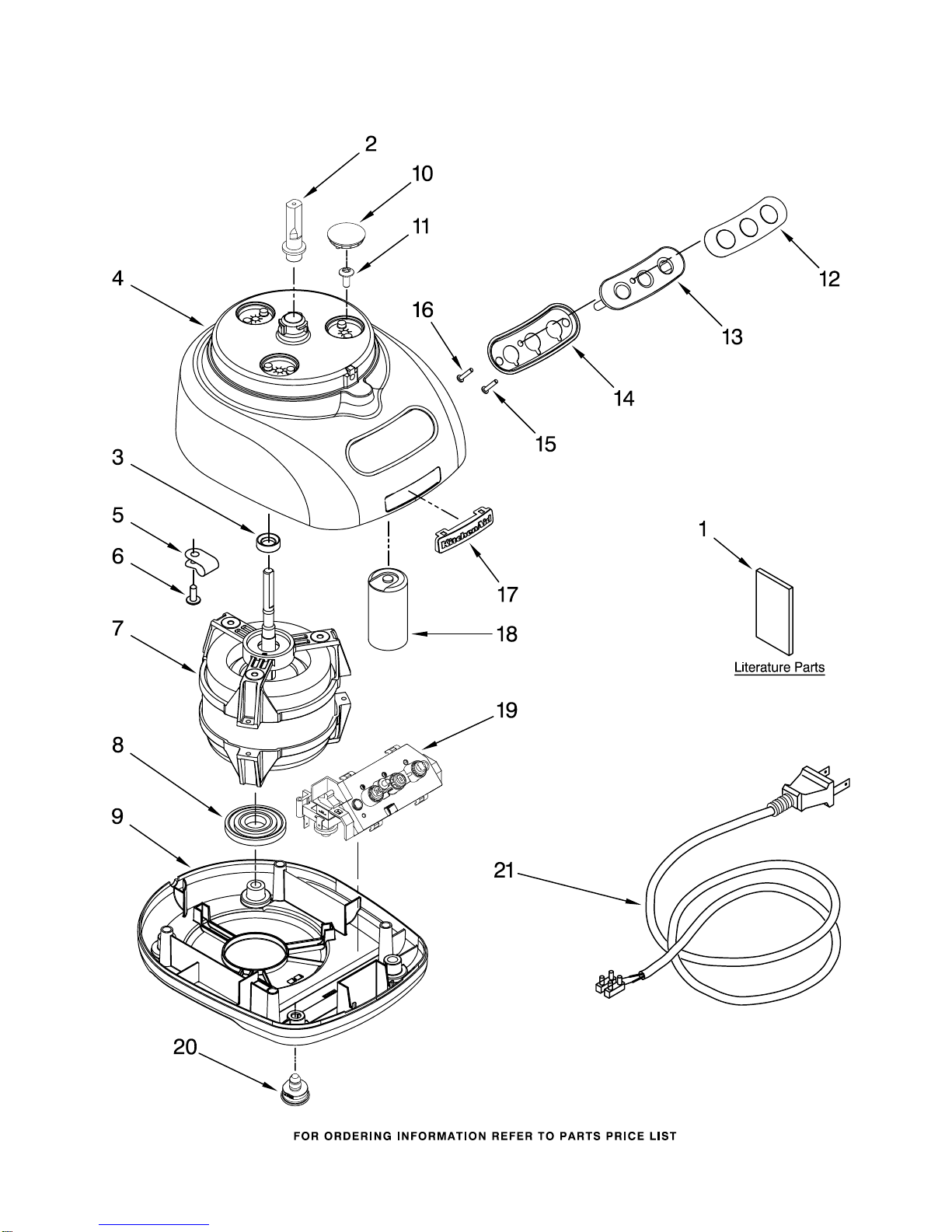

MOTOR AND HOUSING PARTS

2

FOR MODELS: KFP715__0

W10139214

MOTOR AND HOUSING PARTS

3

FOR MODELS: KFP715__0

W10139214

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8212299 Use & Care Guide

Trilingual

W10139214

Repair Parts List

2 8211816 Sleeve, Motor

Shaft

3 8211817 Seal, Oil

4 Housing, Motor

8211805 White

8211807 Empire Red

8211809 Onyx Black

8212297 Blue Willow

5 8211610 Clamp, Cable

6 8211871 Screw, Clamp

7 8212318 Motor

8 8212319 Grommet, Motor

9 Base, Housing

8211801 White

8211802 Empire Red

8211804 Onyx Black

8212296 Blue Willow

10 Cover, Screw

8212298 White

8212311 Empire Red

8212313 Onyx Black

8212310 Blue Willow

11 8211811 Screw, Motor

Locking

12 8211878 Cover, Switch

13 8211884 Bezel, Switch

Panel

14 8211887 Seal, Switch Panel

15 8211870 Screw, Torx

16 8211812 Screw, Switch

Panel

17 8211876 Nameplate

18 8211608 Capacitor

19 8211879 Relay & Switch

Assembly

20 8211772 Foot, Black

21 Cord, Power

8211885 Black

8211886 White

ATTACHMENT PARTS

4

FOR MODELS: KFP715__0

W10139214

Illus. Part

No. No. DESCRIPTION

1 8211760 Spatula

2 8211897 Disc,Slicing 2mm

& Grating 4mm

3 Pusher, Food

8211892 White

8211893 Empire Red

8211894 Onyx Black

8212315 Blue Willow

4 8211891 Cover, Work Bowl

5 8211903 Blade, Multi

6 Bowl, Work

8211906 White

8211907 Empire Red

8211908 Onyx Black

8212314 Blue Willow

7 8211900 Adapter, Shaft &

Disc

This manual suits for next models
