KitchenAid KGCP482KSS03 User manual

COOKTOP, BURNER AND GRATE PARTS

For Model: KGCP482KSS03

(Stainless Steel)

8−05 Litho in U.S.A. (cre) Part No.8186335

48" Stainless Steel

Professional Cooktop

(with grill)

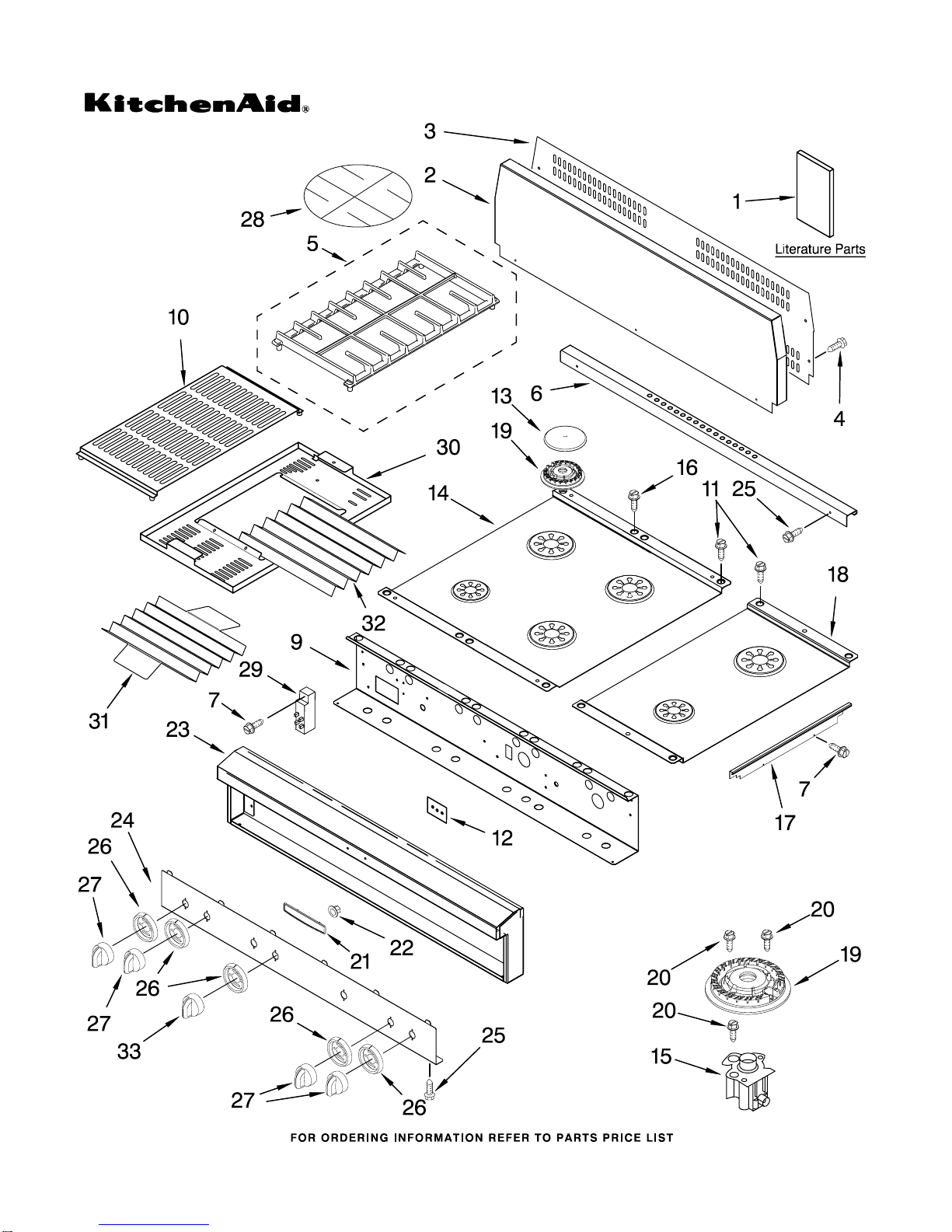

COOKTOP, BURNER AND GRATE PARTS

For Model: KGCP482KSS03

(Stainless Steel)

8186335

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8285497 Wiring Diagram

8285588 Use & Care Guide

8285479 Installation

Instructions

9759442 Instructions,

LP Conversion

2 8284730 Backsplash

3 8284760 Support,Backsplash

4 3196537 Screw, 8−18 x 3/8

5 4457149 Grate, Burner

6 8284852 Trim, Island

7 3400843 Screw, 8−18 x 1/4

9 8285486 Support, Control

Panel

10 4457151 Grate, Grill

11 4449040 Screw

12 3192439 Seal

13 Cap, Burner

4455243 14K (2)

8284669 6K (2)

14 8284739 Cooktop (24")

15 Holder, Orifice

Includes Orifice

4456622 Turbo (4)

4456920 Auxillary (2)

16 4449743 Screw

17 Trim, Side

4457296 Right Hand

4457297 Left Hand

18 8284812 Cooktop (12")

19 Burner Head 14K

4455849 Turbo (2)

4455979 Auxillary (2)

20 3368921 Screw, 7−18 x 3/4

21 2005292 Nameplate

22 2004333 Palnut

23 8284939 Control Frame

24 4457158 Panel, Control

25 3196176 Screw, 8−18 x 1/2

26 4455192 Bezel, Knob

27 4454970 Knob, Burner

28 4455109 Plate, Simmer

29 8522424 Module, Spark

30 8284918 Frame, Wave Tray

31 8284919 Plate, Wave

32 8284917 Plate, Wave tray

3177991 Screw

33 8284742 Knob, Grill

BURNER BOX, GAS VALVES, AND SWITCHES

For Model: KGCP482KSS03

(Stainless Steel)

8186335

BURNER BOX, GAS VALVES, AND SWITCHES

For Model: KGCP482KSS03

(Stainless Steel)

8186335

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4455040 Tubing, Gas

Burner − RF

2 4455041 Tubing, Gas

Burner − RR

3 4455151 Tubing, Gas

Burner − CF

4 4455152 Tubing, Gas

5 4455153 Tubing, Gas

Burner − CR

Burner − LF

6 4455154 Tubing, Gas

Burner − LR

7 8284737 Manifold

(Includes Items

#9 & #30)

8 4456816 Valve, Burner

Small (2)

9 8523704 Bolt, Valve

10 4456907 Burner Switch &

Harness Assembly

11 9759091 Regulator,Pressure

12 4457095 Burner Box

13 9760835 Bracket, Grill

Valve

14 8284858 Valve, Grill

15 Side, Burner Box

8285487 Right Hand

8285488 Left Hand

16 9759137 Support, Rear

17 488130 Hex Nut

18 3192811 Bracket, Burner

19 3177991 Screw, 8−18 x 1/4

20 4456818 Valve, Burner

Turbi (4)

21 8284680 Cover Shelf

22 8284722 Bushing, Cover

Shelf

23 4449845 Bracket, Support

24 8285361 Cover, Panel

25 8285031 Box, Burner

Lower

26 8284960 Guard, Rear Spill

27 3400843 Screw

28 4456768 Tube, Grill

29 4456819 Valve, Gas Grill

30 8284796 Plug, Manifold

31 4457185 Harness, Switch

Grill

32 8284787 Module, Grill

33 8284968 Bracket, Ignitor

34 8284941 Ignitor, Grill

35 3400855 Screw

36 8285052 Log Burner, Grill

37 8284900 Deflector

38 8284791 Tray, Drip

39 8285030 Guard, Spill

40 3191387 Seal, Switch

OPTIONAL PARTS NOT ILLUSTRATED

Illus. Part

No. No. DESCRIPTION

For Model: KGCP482KSS03

(Stainless Steel)

8186335

WIRING HARNESS PARTS

8285527 Power Cord

FE02349 Bushing

4456627 Harness, Ignitor

"28"

4456628 Harness, Ignitor

"42"

Miscellaneous

8284782 L.P. Orifice Spud

Pack
