KitchenAid KGCP462KSS02 User manual

COOKTOP, BURNER AND GRATE PARTS

For Model: KGCP462KSS02

(Stainless Steel)

11−03 Litho in U.S.A. (cre) Part No.8186160

36" Stainless Steel

Professional Cooktop

COOKTOP, BURNER AND GRATE PARTS

For Model: KGCP462KSS02

(Stainless Steel)

8186160

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT8285586

Wiring Diagram

LIT8285588

Use & Care Guide

LIT8285479

Installation

Instructions

LIT8285589

Instructions,

LP Conversion

2 4454960 Backsplash

3 8284712 Support,Backsplash

4 3196537 Screw, 8−18 x 3/8

5 4454963 Grate, Burner

6 8284851 Trim, Island

7 3400843 Screw, 8−18 x 1/4

9 8285478 Support, Control

Panel

10 8284741 Grate, Grill

12 8285005 Bracket, Spark

4455243 14K (2)

13 Cap, Burner

15 Holder, Orifice

8284669 6K (2)

4456622 Turbo (2)

4456920 Auxillary (2)

Includes Orifice

16 4454974 Support Rail

17 Trim, Side

8285161 Right Hand

8285162 Left Hand

18 8284812 Cooktop, Black

4449040 Screw (4)

19 Burner Head 14K

4455849 Turbo (2)

4455979 Auxillary (2)

20 3368921 Screw, 7−18 x 3/4

21 2005292 Nameplate

22 2004333 Palnut

23 4455217 Control Frame

24 8284748 Panel, Control

25 3196176 Screw, 8−18 x 1/2

26 4455192 Bezel, Knob

27 4454970 Knob, Burner

28 4455109 Plate, Simmer

29 8522423 Module, Spark

4−Burner

30 8284918 Frame, Wave Tray

31 8284919 Plate, Wave

32 8284917 Plate, Wave tray

3177991 Screw

33 8284742 Knob, Grill

BURNER BOX, GAS VALVES, AND SWITCHES

For Model: KGCP462KSS02

(Stainless Steel)

8186160

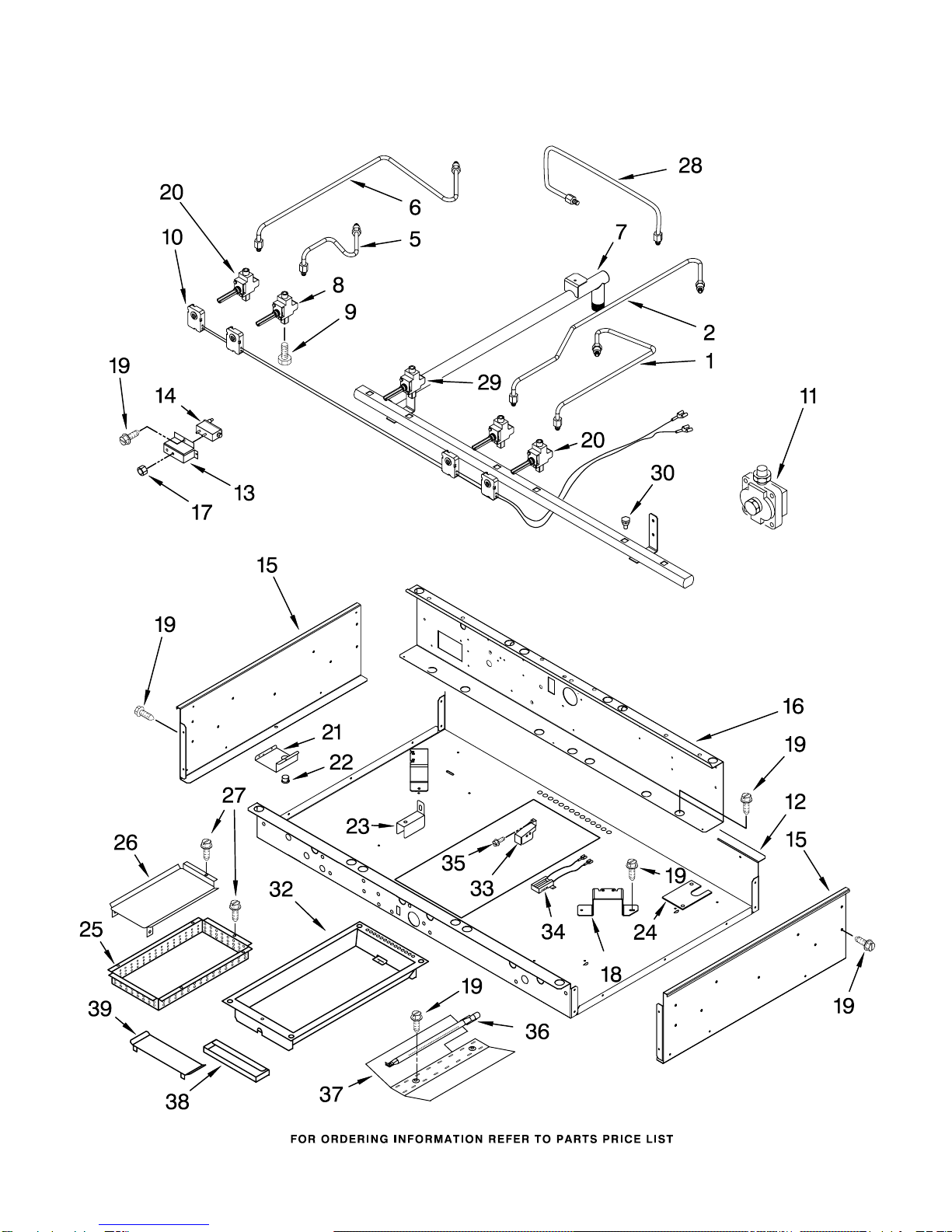

BURNER BOX, GAS VALVES, AND SWITCHES

PARTS NOT ILLUSTRATED

For Model: KGCP462KSS02

(Stainless Steel)

8186160

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4455040 Tubing, Gas

Burner − RF

2 4455041 Tubing, Gas

Burner − RR

5 4455153 Tubing, Gas

Burner − LF

6 4455154 Tubing, Gas

Burner − LR

7 8284749 Manifold

(Includes Items

#9 & #30)

8 4456818 Valve, Burner

(Turbo)

9 8523704 Bolt, Valve

10 4456911 Burner Switch &

Harness Assembly

3192439 Seal, Switch

11 4455157 Regulator,Pressure

12 4457093 Burner Box

13 8284795 Bracket, Grill

Valve

14 8284858 Valve, Grill

15 Side, Burner Box

8285607 Right Hand

8285606 Left Hand

16 8285358 Support, Rear

17 488130 Hex Nut

18 3192811 Bracket, Burner

19 3177991 Screw, 8−18 x 1/4

20 4456816 Valve, Burner

Auxillary

21 8284680 Cover Shelf

22 8284722 Bushing, Cover

Shelf

23 4449845 Bracket, Support

24 8285361 Cover, Panel

25 8285031 Box, Burner

Lower

26 8284960 Guard, Rear Spill

27 3400843 Screw

28 8284790 Tube, Grill

29 8284922 Valve, Gas Grill

30 8284796 Plug, Manifold

32 8284787 Module, Grill

Grill

33 8284968 Bracket, Ignitor

34 8284941 Ignitor, Grill

35 3400855 Screw

36 8285052 Log Burner, Grill

37 8284900 Deflector

38 8284791 Tray, Drip

PARTS NOT ILLUSTRATED

39 8285030 Guard, Spill

Illus. Part

No. No. DESCRIPTION

WIRING HARNESS PARTS

3192231 Power Cord

4456627 Harness, Wire

4173634 Bushing, Electric

1129449 Bushing

4456628 Harness, Wire

Jumper

4456909 Harness, Grille

Switch

Miscellaneous

8284782 L.P. Orifice Spud

Miscellaneous

8284663 L.P. Orifice Spud
