KitchenAid KGCC505HBL0 User manual

COOKTOP, BURNER AND GRATE PARTS

For Models: KGCC505HBL0, KGCC505HWH0, KGCC505HBT0

(Black) (White) (Biscuit)

1−00 Litho in U.S.A. (RS) Part No.8177410

30" GAS GLASS SURFACE COOKTOP

COOKTOP, BURNER AND GRATE PARTS

For Models: KGCC505HBL0, KGCC505HWH0, KGCC505HBT0

(Black) (White) (Biscuit)

8177410

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Cooktop, Glass

3193007 White

3193005 Black

3193008 Honeycomb

2 Grommet, Glass

3180081 White

3180079 Black

3180080 Almond

3191817 Biscuit

3 Bezel, Cooktop

(RF)

9753601GS

Mouse Gray

9753601GB

Black

4 Bezel, Cooktop

(LF)

9753600GS

Mouse Gray

9753600GB

Black

5 Bezel, Cooktop

(LR,RR)

9753602GS

Mouse Gray

9753602GB

Black

6 Cap, (RF)

3191729 Mouse Gray

3191728 Black

3191730 Moleskin

8 Cap, (RR)(LR)

3191735 Mouse Gray

3191734 Black

3191736 Moleskin

9 Cap, (LF)

3191738 Mouse Gray

3191737 Black

3191739 Moleskin

10 Grate, Burner RH

3193017 Mouse Gray

3193016 Black

3193018 Moleskin

11 Grate, Filler

3193020 Mouse Gray

3193019 Black

3193021 Moleskin

12 Knob, Control (4)

3191923 White

3191922 Black

3191925 Biscuit

13 3192527 Ignitor

14 Orifice

3192528 RF

3192523 LR

3192524 RR

3192525 LF

15 Holder, Orifice

9754182 RF −6K

9754194 LR −9K

9754187 RR −12K

9754188 LF −14K

16 Head, Burner

8273216 RF

8273214 LR −RR

9754181 LF

18 4449809 Screw

20 3368921 Screw, 7−18 X 3/4

21 Grate, Burner LH

3193014 Mouse Gray

3193013 Black

3193015 Moleskin

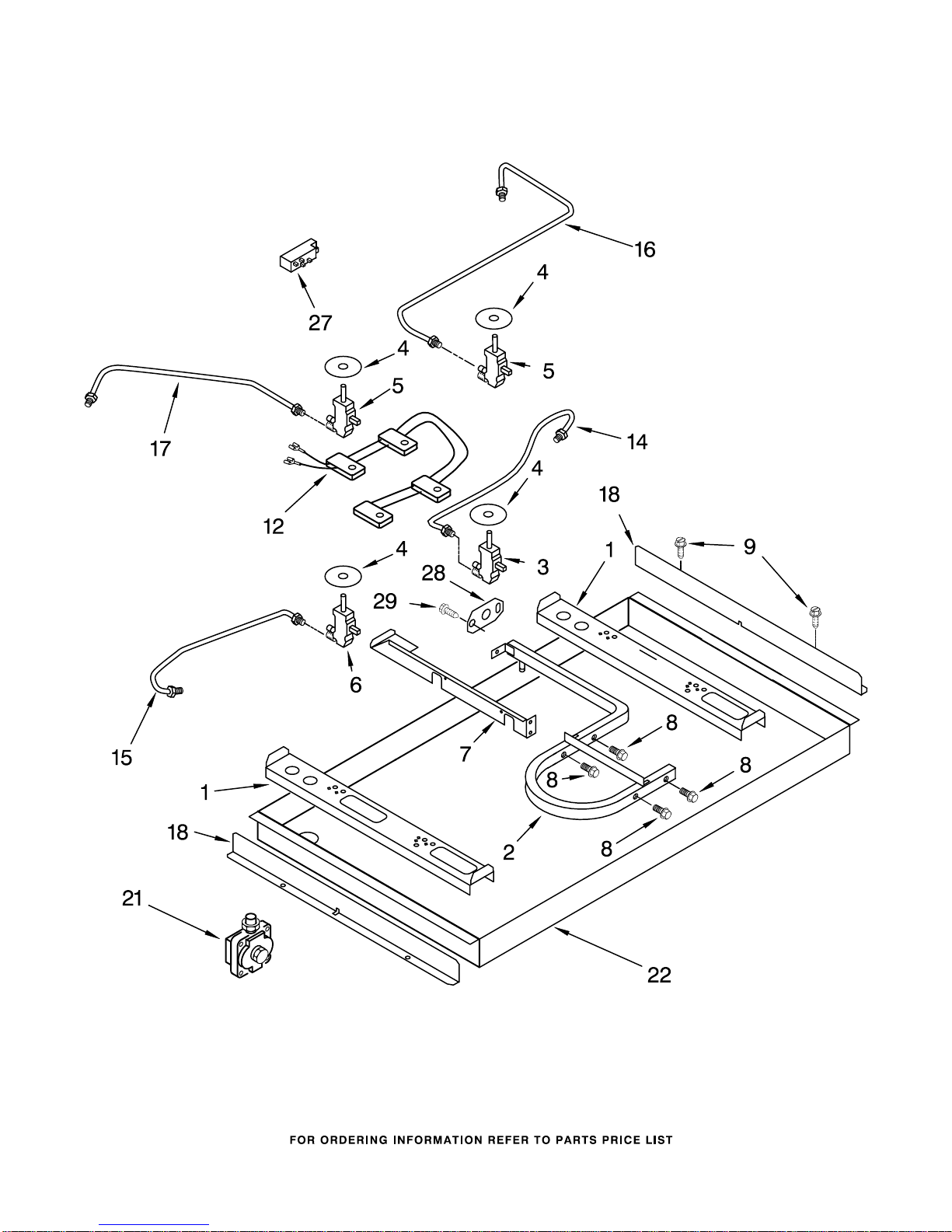

BURNER BOX, GAS VALVES, AND SWITCHES

For Models: KGCC505HBL0, KGCC505HWH0, KGCC505HBT0

(Black) (White) (Biscuit)

8177410

BURNER BOX, GAS VALVES, AND SWITCHES

PARTS NOT ILLUSTRATED

For Models: KGCC505HBL0, KGCC505HWH0, KGCC505HBT0

(Black) (White) (Biscuit)

8177410

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3191557 Rail, Burner

2 3191315 Pipe, Manifold

3 3191292 Valve, Gas Burner

Burner, (RF)

4 3191387 Seal, Shaft

5 3191293 Valve, Gas Burner

(RR & LR)

6 3192157 Valve, Gas

Burner (LF)

7 3192819 Rail, Center

8 307630 Bolt, Gas Valve

9 3177991 Screw

12 3191334 Harness & Switches

14 3191324 Tubing, Gas

Burner (RF)

15 3191326 Tubing, Gas

Burner (LF)

16 3191325 Tubing, Gas

Burner (RR)

17 3191327 Tubing, Gas

Burner (LR)

18 3191462 Shield, Heat (2)

21 3177120 Regulator, Pressure

22 3192574 Burner Box

27 8053421 Module Spark

28 3192491 Bracket, Support

29 3196160 Screw, 8−18 x 1/4

LITERATURE PARTS

LIT3191827

Installation

Instructions

LIT3193071

Use & Care Guide

LIT3192098

Wiring Diagram

LIT3192742

Conversion

Instructions

Illus. Part

No. No. DESCRIPTION

Following Parts Not Illustrated

3192231 Cord, Power

4173634 Bushing

3177991 Screw

3183401 Bracket

4167077 Tinnerman Nut

Miscellaneous

3188310 Hardware, Mounting

3192741 Conversion Kit

Natural Gas To L.P.

WIRING HARNESS PARTS

3192229 Harness,

Ignitor 15" (2)

3192230 Harness,

Ignitor 28" (2)

3191239 Seal, Foam−Cooktop
