KitchenAid KERA205PBL4 User manual

COOKTOP PARTS

For Models: KERA205PWH4, KERA205PBL4, KERA205PBT4, KERA205PSS4

(White) (Black) (Biscuit) (Stainless Steel)

6−06 Litho In U.S.A. (cre) Part No. 8188316

30" ELECTRIC CERAN

FREE STANDING RANGE

CONVECTION OVEN

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

9758377 Installation

Instructions

Anti−Tip Template

9757142 English/Spanish

9757143 English/French

W10017760

Owners Manual

9758315 Tech Sheet

9762761 Safer Cooking Tips

9757645 Guide, Easy Set

2 3149191 Spring, Locator

3 3196170 Screw

4 Cooktop

9756979 White

9758348 Black

9756980 Biscuit

9756981 Stainless

5 8523739 Light, Indicator

(Hot Surface)

6 8523741 Bracket, Ind Light

7 Element, Surface

9757027 2500/1000 W − LF

8273994 1200 W − LR

8273993 1800 W − RF

9757031 1800/800 W − RR

9757028 100 W − CR

9 Bracket, Element

8272791 (2)

8273720 (1)

10 3196169 Screw

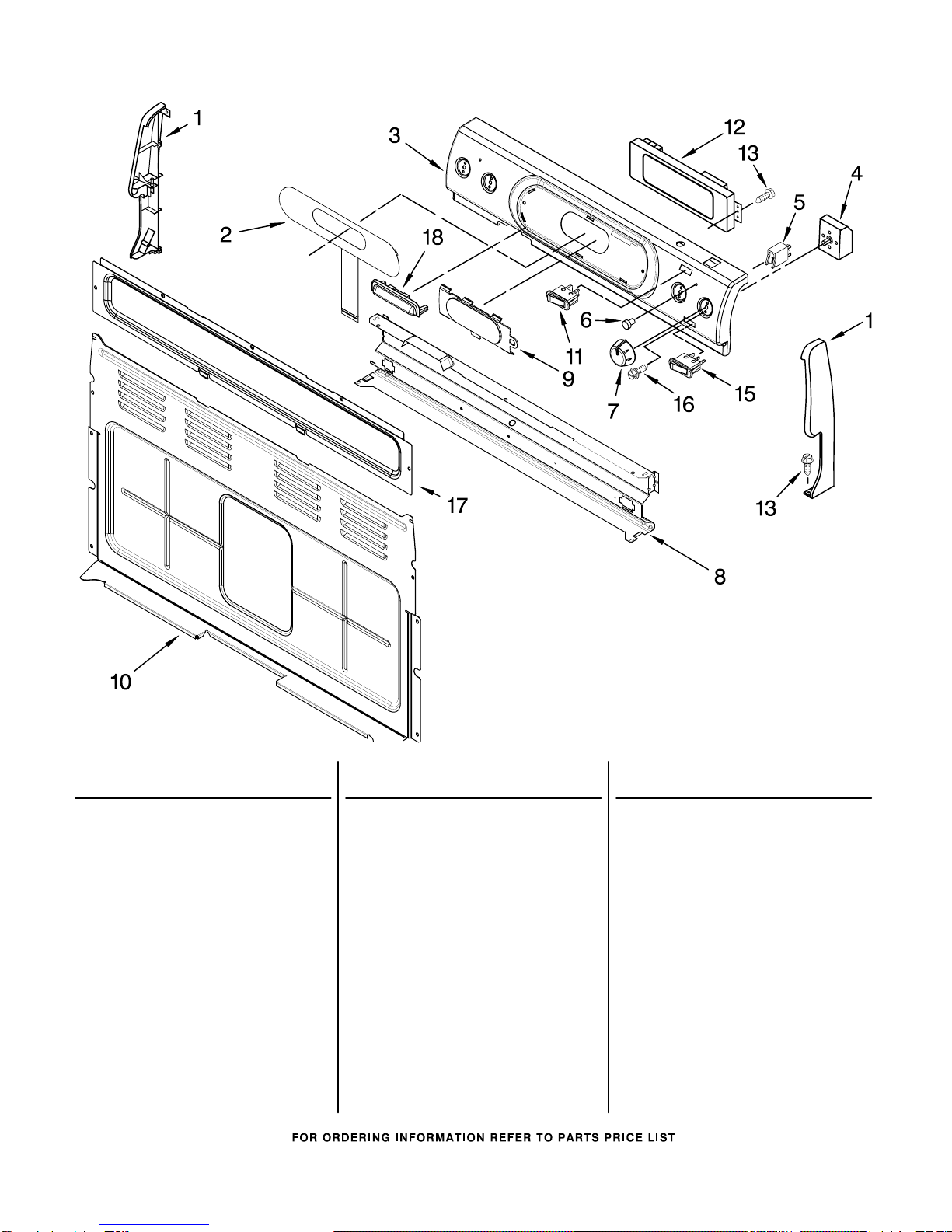

CONTROL PANEL PARTS

For Models: KERA205PWH2, KERA205PBL2, KERA205PBT2, KERA205PSS2

(White) (Black) (Biscuit) (Stainless Steel)

8188178

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Endcap

9756959 White Left Hand

9756958 White Right Hand

9756961 Black Left Hand

9756960 Black Right Hand

9756963 Biscuit Left Hand

9756962 Biscuit Right Hand

2 Membrane Switch

9762104 White

9762101 Black

9762102 Biscuit

9762103 Stainless Steel

3 Panel, Backguard

9756730 White

9756727 Black

9756728 Biscuit

9756729 Stainless Steel

4 Switch, Infinite

9757030 LF (Dual)

3148953 RF/RR (Green)

3148952 LR (Yellow)

5 8523266 Light, Indicator

6 3196068 Lens, Light (2)

7 Knob (4)

9756941 White

9756943 Black

9756942 Biscuit

9756944 Cashmere Metalic

8 9756934 Shield, Heat

9 9761078 Membrane Insert

10 9756999 Cover, Rear

11 Switch, Simmer

9758366WH

White

9758366BL

Black

9758366BT

Biscuit

9758366CM

Cashmere Metalic

12 9761590 Control, Range

13 4449809 Screw

15 Switch, Warming

9757406WH

White

9757406BL

Black

9757406BT

Biscuit

9757406CM

Cashmere Metalic

16 3400882 Screw

17 9758319 Cover, Rear

(Console)

18 Cover, Vent

9758352 White

9758354 Black

9758353 Biscuit

9758355 Cashmere Metalic

CHASSIS PARTS

For Models: KERA205PWH2, KERA205PBL2, KERA205PBT2, KERA205PSS2

(White) (Black) (Biscuit) (Stainless Steel)

8188178

CHASSIS PARTS

For Models: KERA205PWH2, KERA205PBL2, KERA205PBT2, KERA205PSS2

(White) (Black) (Biscuit) (Stainless Steel)

8188178

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 9757972 Cover, Box

2 8273905 Support, Corner LR

3 Panel, Side (2)

8053830 White−Textured

8053832 Black−Textured

8272519 Biscuit−Textured

4 9761013 Latch, Door

5 3196961 Rod, Latch

6 9757241 Latch Asm, Rear

7 3195737 Seal, Oven Flange

8 9758518 Element, Broil

9 9755770 Element, Bake

Hidden

10 8522416 Seal, Oven Door

11 9758701 Spacer, Door

12 9757262 Switch, Door

14 3196037 Foot, Front (2)

15 9758224 Frame, Front

16 8054068 Tray, Insulation

17 3196576 Clip, Panel (6)

18 9760314 Rail, Base (2)

19 9761935 Foot, Rear (2)

20 3196091 Shield, Outer (2)

21 3196092 Shield, Inner (2)

22 8523803 Retainer, Side (2)

23 8273902 Sensor, Oven

24 3195736 Support, Front (2)

25 3195987 Support, Corner RR

26 3196548 Fuse, Thermal

27 9758525 Element,

Convection

28 3186116 Support, Oven (2)

29 3186034 Bracket, Service

30 9761958 Block, Terminal

112432 Nut (3)

31 9757029 Back, Main

32 9755769 Tray, Hidden

Bake Element

33 9761498 Vent Tube Asm

34 3196701 Light Socket Assy

35 311255 Bulb, Oven Light

36 9755771 Cover, Tray

38 3196165 Screw

39 3196168 Screw

40 3196178 Screw

41 3196174 Screw

42 3196179 Screw

43 3196177 Screw

44 3196176 Screw

45 3196172 Screw

46 3400016 Screw

47 3196566 Screw

49 3196169 Screw

50 9758925 Fan Motor,

Convection

51 4452226 Fan Blade

52 4452227 Nut

53 9755776 Cover, Convection

Fan

54 9759689 Card, Insulator

55 9757088 Baffle, Convection

56 9756518 Transformer

57 9761222 Appliance Manager

58 9757970 Cover

59 9757239 Rod − Dr Switch

60 9761301 Screen − Catalyst

61 3196560 Screw(2)

62 8533930 Screw

63 4449809 Screw

INSULATION

8272616 Insulation, Wrap

9755772 Insulation, Back

8272613 Insulation, Vent

9757974 Insulation, GOC

DOOR PARTS

For Models: KERA205PWH2, KERA205PBL2, KERA205PBT2, KERA205PSS2

(White) (Black) (Biscuit) (Stainless Steel)

8188178

DOOR PARTS

For Models: KERA205PWH2, KERA205PBL2, KERA205PBT2, KERA205PSS2

(White) (Black) (Biscuit) (Stainless Steel)

8188178

Illus. Part

No. No. DESCRIPTION

1 Trim, Door Top

9756965 White

9756967 Black

9756966 Biscuit

9756969 Cashmere Metalic

2 8534065 Screw

3 Handle, Door

9758293 White

9758294 Black

9758295 Biscuit

9782649 Stainless Steel

4 3186292 Liner, Door

5 8522414 Seal, Window

6 9758162 Glass, Inner (2)

7 3186289 Frame, Glass

8 8272618 Insulation, Door

9 3186297 Retainer, Insul.

10 Hinge, Door

8053807 White, Black And

Biscuit Models

8272822 Stainless Model

11 Glass, Outer Door

9762127 White

9762129 Black

9762128 Biscuit

9756435 Stainless Steel

12 Trim, Side

8523172 White Left Hand

8523166 White Right Hand

8523171 Black Left Hand

8523165 Black Right Hand

8523173 Biscuit Left Hand

8523167 Biscuit Right Hand

9758358 Cashmere Metalic,

Left Hand

9758357 Cashmere Metalic,

Right Hand

13 3196160 Screw

14 Trim, Lower

8523175 White

8523177 Black

8523178 Biscuit

8523180 Stainless Steel

15 3196025 Clip, Glass (4)

18 3196161 Screw

19 3196925 Clip, Door Stop

20 3196165 Screw

22 3196794 Bracket, Window(2)

DRAWER & BROILER PARTS

For Models: KERA205PWH2, KERA205PBL2, KERA205PBT2, KERA205PSS2

(White) (Black) (Biscuit) (Stainless Steel)

8188178

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3195710 Rack, Oven (3)

2 3195996 Grill, Broiler

3 3196076 Pan, Broiler

4 8272605 Drawer, Storage

5 9758200 Bracket, Drawer(2)

6 Rivet, Push (2)

3196814 White

3196813 Black

3196815 Biscuit

7 Panel, Drawer Frnt

9756325 White

9756327 Black

9756326 Biscuit

9756328 Stainless Steel

8 Handle, Drawer

9756952WH

White

9756952BL

Black

9756952BT

Biscuit

9756952CM

Cashmere Metalic

9 3181534 Rack, Roasting

10 3196168 Screw

11 8522669 Spacer, Glide

12 9756711 Heat Shield

Drawer

13 Rail, Drawer

8274190 Left Hand

8274191 Right Hand

14 487939 Nut(2)

OPTIONAL PARTS

For Models: KERA205PWH2, KERA205PBL2, KERA205PBT2, KERA205PSS2

(White) (Black) (Biscuit) (Stainless Steel)

8188178

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Following Parts Not Illustrated

SPLICING WIRES−−25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 c

242821 Wire, Blue

14 Ga. 150 c

242822 Wire, Brown

14 Ga. 150 c

242830 Wire, Brown

14 Ga. 200 c

242823 Wire, Green

14 Ga. 150 c

242824 Wire, Orange

14 Ga. 150 c

242825 Wire, Red

14 Ga. 150 c

242831 Wire, Red

14 Ga. 200 c

242827 Wire, Yellow

14 Ga. 150 c

REFINISHING MATERIAL

799832 Kit, Porcelain

Repair (White)

242756 Touch−Up

Self−Clean(1/2 Pt)

261582 Grease

INSULATION

261514 Insulation,

Fiberglass (1−1/2"

x 24" x 120")

240132 Insulation,

Fiberglass (2−1/2"

313660 Clip, Ground Wire

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

72017 White

4392899 Biscuit

511873 White Porcelain

(2 Oz.)

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

4392901 Biscuit

285006 Superior Black

206922 Primer (White)

PAINT, BULK (1 qt.)

799344 White (Uncut)

4392900 Biscuit (Uncut)

ACCESSORY PARTS

241430 Foil, Aluminum

Oven (18" x 25’)

4456147 Cleaner, Glass

2261590 Cleaner

(Stainless Steel)

ANTI−TIP KIT

9757976 Anti−Tip Kit

WIRING HARNESS PARTS

9758191 Harness,

(Sensor/Dr Switch)

9756707 Harness, Oven

9761466 Harness, Cooktop

(Left w/Dual)

9761465 Harness, Cooktop

(Right w/ wm)

9757315 Harness, Console

9756550 Harness, Bake

Element (Hidden)

8524132 Shield, Wiring (2)

8523279 Wire, Ground

313660 Clip, Ground Wire

3196173 Screw

3196154 Screw, Ground

Miscellaneous

3196897 Pin Kit−Dr Removal
