KitchenAid KECC562GBL1 User manual

COOKTOP PARTS

For Models: KECC562GBL1, KECC562GWH1, KECC562GBT1

(Black) (White) (Biscuit)

36" ELECTRIC

BUILT−IN

COOKTOP

11−99 Litho in U.S.A. (RS)Part No. 8177481

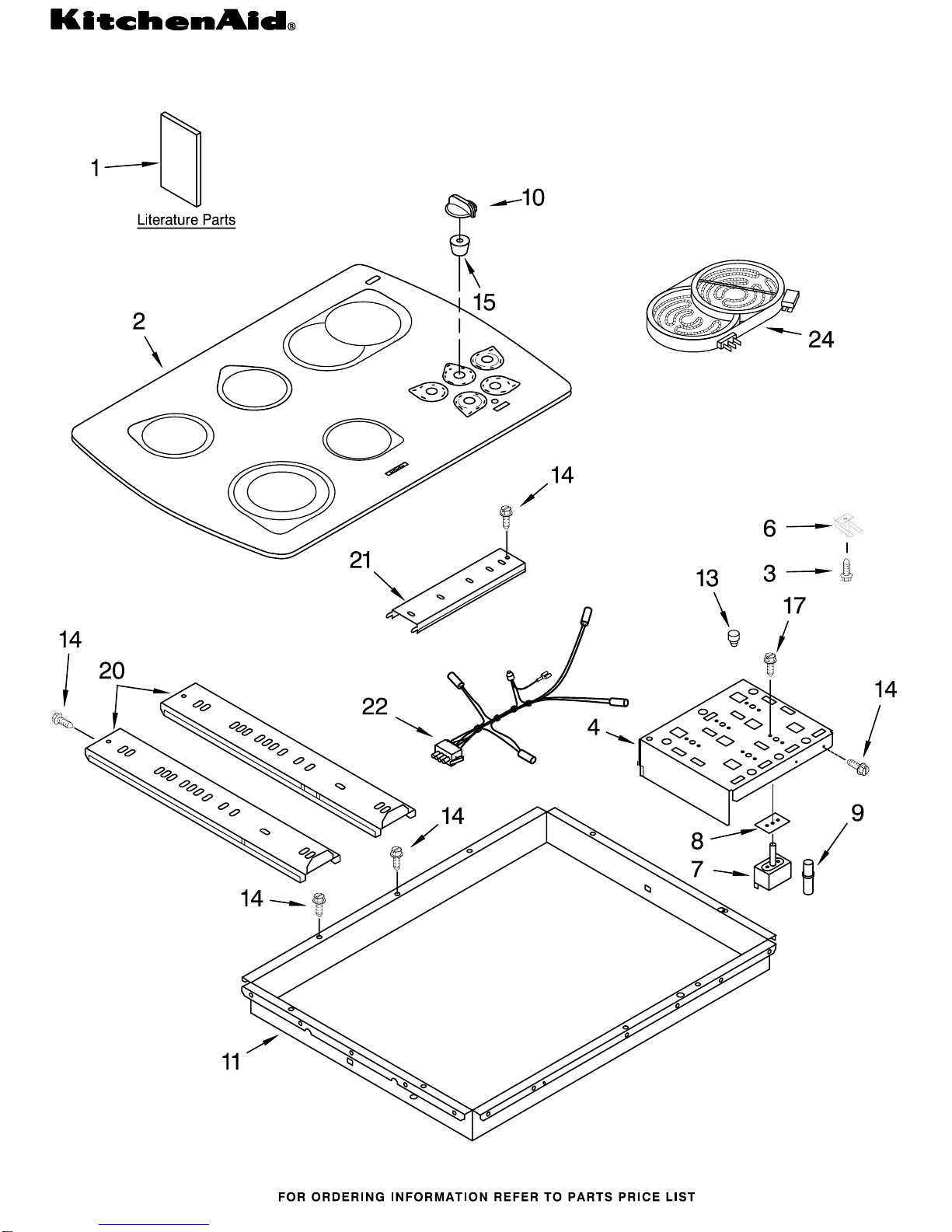

COOKTOP PARTS

For Models: KECC562GBL1, KECC562GWH1, KECC562GBT1

(Black) (White) (Biscuit)

8177481

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT3191771

Installation

Instructions

LIT3191796

Wiring Diagram

LIT3191524

Use & Care Guide

LIT3191638

Brochure,

Tips−Safe Cooking

2 Cooktop, Glass

4455307 Black

4455308 White

4455306 Biscuit

3 246119 Screw

4 4455420 Bracket, Switch

3183956 Seal, Switch

Bracket

Mounting

6 3191791 Spring Locator(10)

246119 Screw (8)

7 Switch, Infinite

3191049 LR −CR −RF

3188516 RR −LF

8 3192439 Seal, Switch Shaft

311865 Screw

9 3191945 Light, Indicator

10 Knob, Control (5)

9750372FF

Black

9750372FW

White

9750372FC

Biscuit

11 4455423 Box, Burner

13 3192477 Bumper, Rubber

14 3196537 Screw

15 3182435 Seal, Switch (5)

17 311865 Screw

20 3191515 Rail, Element (2)

21 3192269 Rail, Element (1)

22 3192222 Lamp, Hot

Surface Indicator

24 Element, Surface

(Includes # 16)

8272563 1000/2400W −LF

8272567 1200W −RF

8272564 1500W −LR & CR

4452741 1000/1800W −RR

MISCELLANEOUS PARTS

For Models: KECC562GBL1, KECC562GWH1, KECC562GBT1

(Black) (White) (Biscuit)

8177481

Illus. Part

No. No. DESCRIPTION

FOLLOWING PARTS

NOT ILLUSTRATED

Miscellaneous

3172515 Mtg. Hardware Kit

3191948 Seal, Burner Box

SPLICING WIRES−−25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 C

242820 Wire, Black

14 Ga. 150 C

242822 Wire, Blue

14 Ga. 150 C

242830 Wire, Brown

14 Ga. 200 C

242823 Wire, Green

14 Ga. 150 C

242824 Wire, Orange

14 Ga. 150 C

242829 Wire, Red

12 Ga. 150 C

242825 Wire, Red

14 Ga. 150 C

242831 Wire, Red

14 Ga. 200 C

242826 Wire, White

14 Ga. 150 C

242827 Wire, Yellow

14 Ga. 150 C

242832 Wire, Yellow

14 Ga. 200 C

CLEANER, COOKTOP

3191048 Cleaner, Glass

WIRING HARNESS PARTS

4455274 Harness, Main

313438 Clip, Harness

3400015 Screw, Ground

3192221 Conduit
