KitchenAid PRO LINE 4KPES100ER1 User manual

c2005 KITCHENAID

PRO LINE ESPRESSO MAKER

MODELS:

6−06 Litho in U.S.A. (skr) Part No. 8212135

KPES100PM1 (Pearl Metallic)

KPES100ER1 (Empire Red)

KPES100NP1 (Nickel Pearl)

4KPES100PM1 (Pearl Metallic)

4KPES100ER1 (Empire Red)

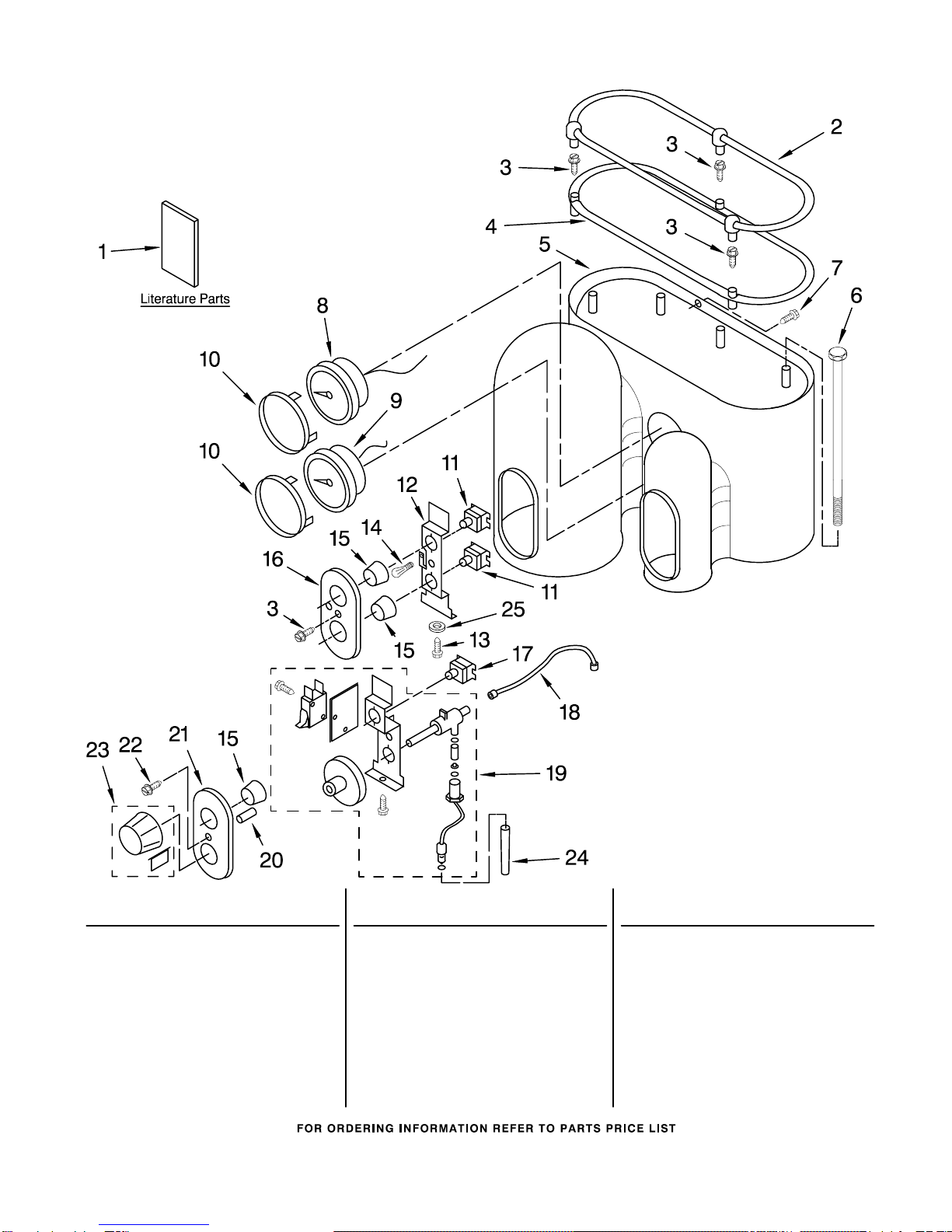

UPPER HOUSING AND CONTROLS

For Models: KPES100_ _1, 4KPES100_ _1

8212135

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

6 4176408 Rod

7 4176409 Screw

8 8211629 Gauge, Coffee

9 8211630 Gauge, Steam

10 4176410 Ring, Trim Gauge

11 4176411 Switch − On/Off

12 4176412 Bracket, Switch

13 4176413 Screw

14 4176414 Light & Wire Assy

15 4176420 Button, Switch

16 4176416 Bezel, Coffee

17 4176415 Switch

18 4176418 Pipe Assembly

19 4176419 Steam Group Assy

20 4176421 Spacer, Knob

21 4176422 Bezel, Steam

22 4176423 Screw

23 4176424 Knob & Clip Assy

24 4176425 Tip, Frothing

25 4176434 Washer

1 Literature Parts

8204574 Guide, Use & Care

8204577 Wiring Diagram

8204575 Service Manual

2 4176403 Cup Guard Assembly

3 4176404 Screw

4 4176405 Lid, Tank

5 Cabinet − Upper

4176406 Pearl Metallic

4176407 Empire Red

8212159 Nickel Pearl

8212135 Repair Parts List

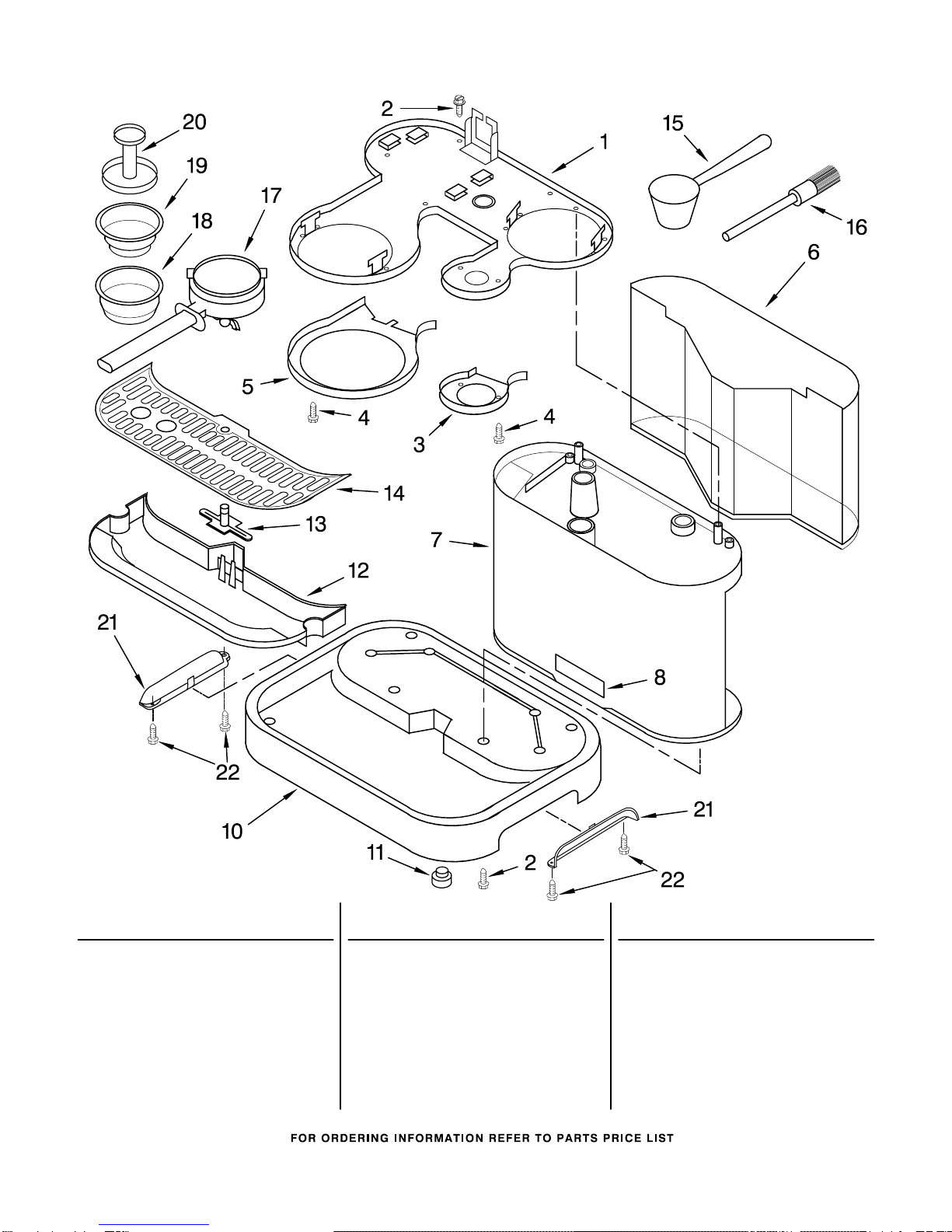

LOWER HOUSING AND BASE PARTS

For Models: KPES100_ _1, 4KPES100_ _1

8212135

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4176426 Plate, Cabinet

2 4176404 Screw

3 4176428 Trim, Steam Pod

4 4176427 Screw

5 4176429 Trim, Coffee

6 4176430 Tank, Water

7 Body, Cabinet

4176431 Pearl Metallic

4176432 Empire Red

8212161 Nickel Pearl

8 4176433 Nameplate

10 4176435 Base Assembly

(Includes Feet)

11 4176436 Foot

12 4176437 Tray, Drip

13 4176438 Floater, Red

14 4176439 Grid

15 4176440 Scoop, Coffee

16 4176441 Brush, Cleaning

17 4176442 Holder, Filter

18 4176443 Filter, 2−Cup

19 4176444 Filter, 1−Cup

20 4176445 Tamper, Coffee

21 8212222 Handle

22 8212223 Screw

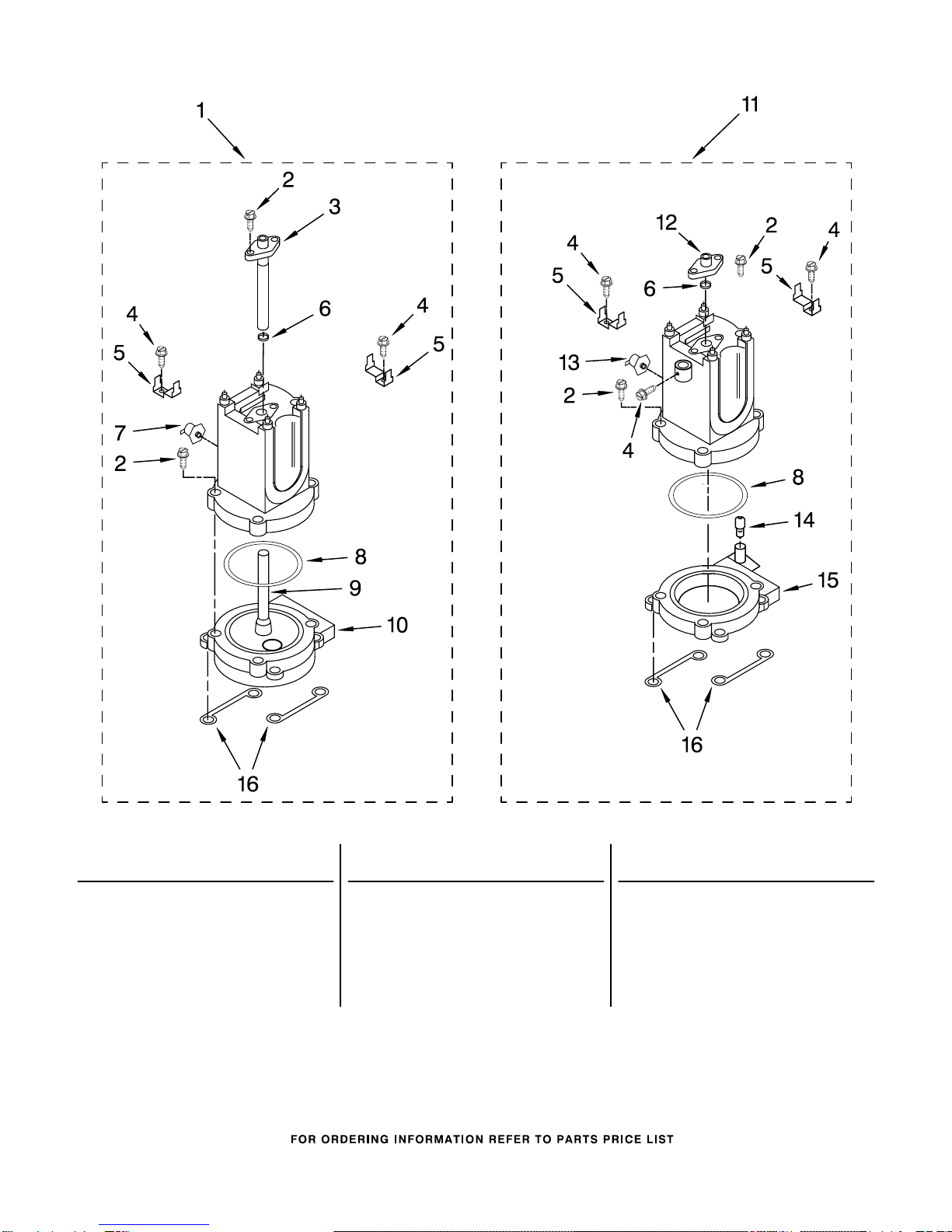

BOILER ASSEMBLIES

For Models: KPES100_ _1, 4KPES100_ _1

8212135

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4176446 Boiler − Coffee

2 8211631 Screw

3 8211632 Support, Gauge

Sensor

4 8211633 Screw

5 8211634 Clamp, Thermo Fuse

6 8211635 Gasket

7 8211636 Thermostat, Coffee

8 8211637 Gasket

9 8211638 Pipe, Copper

10 8211639 Body, Unit

11 4176448 Boiler, Espresso

12 8211640 Body, Steam Pipe

13 8211641 Thermostat, Steam

14 8211642 Fitting

15 8211643 Flange, Steam

Boiler

16 8211644 Gasket, Insulating

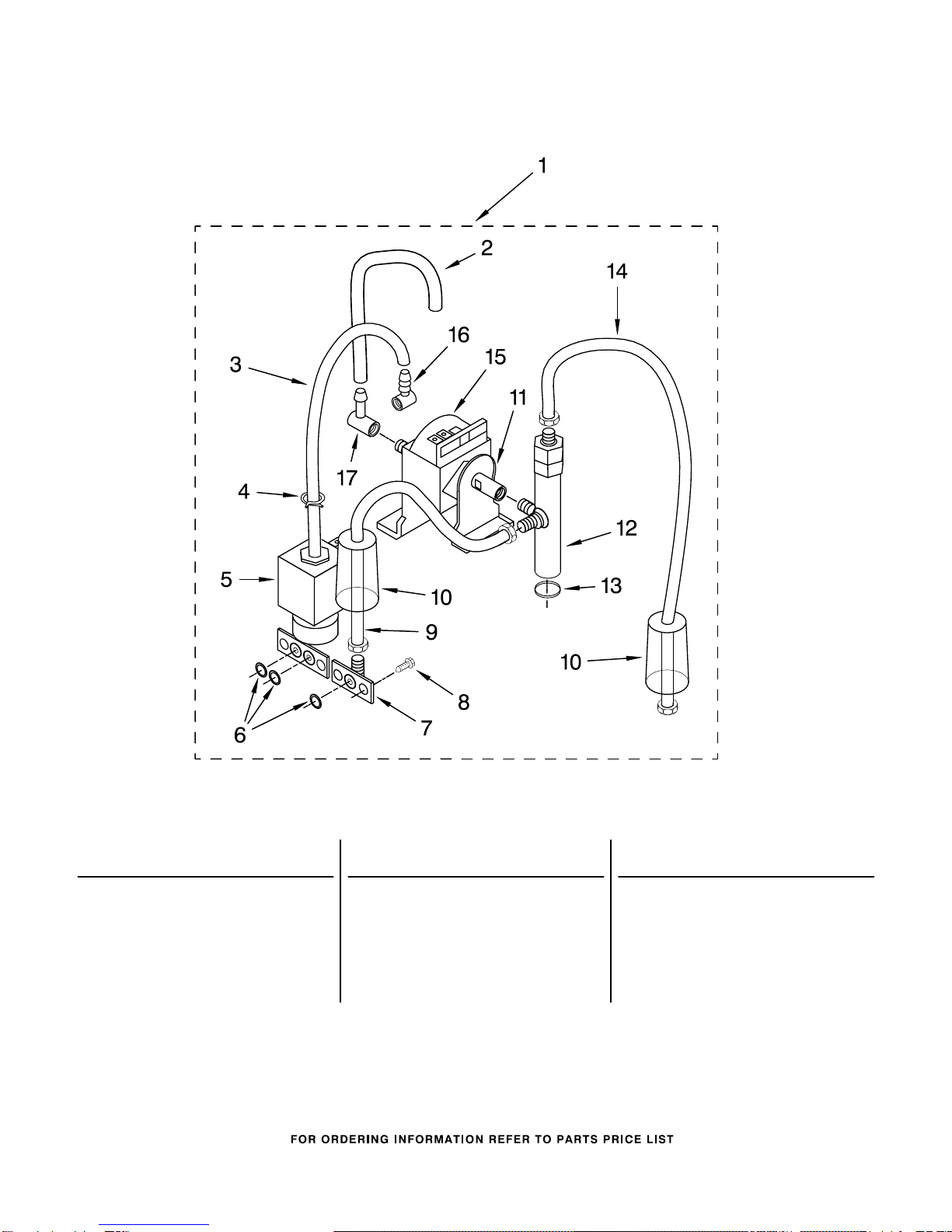

PUMP ASSEMBLY

For Models: KPES100_ _1, 4KPES100_ _1

8212135

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8211480 Pump Assembly

2 8211645 Pipe, Suction

3 8211646 Pipe SL

4 8211647 Clamp, Hose

5 8211482 Valve, Solenoid

(3−Way)

6 8211649 Gasket

7 8211650 Fitting, Input

8 8211651 Screw, M 5 x 12

9 8211652 Pipe Assembly

10 8211653 Protector, Pipe

11 8211654 Support, Pump

(Eaton)

12 8211655 Valve Assembly

13 8211656 Gasket, Valve

14 8211657 Pipe Assembly

15 8211658 Pump, w/Thermostat

16 8211659 Fitting, "T"

17 8211664 Connector, Pump

Suction

ELECTRICAL PARTS

For Models: KPES100_ _1, 4KPES100_ _1

8212135

Illus. Part

No. No. DESCRIPTION

1 8211648 Solenoid, 2−Way

Valve

2 8211649 Gasket

3 8211666 Valve, Steam

4 8211651 Screw

5 8211667 Valve, Exhaust

Pipe

6 8211481 Relay, 120V

7 8211668 Screw

8 8211483 Plug

9 8211699 Cord, Power

10 4176427 Screw

11 4176454 Gasket

12 4176455 Shower Disc Assy.

13 4176456 Screw

14 4176457 Disc, Shower

15 4176458 Screw

16 8211670 MOV Board, 120V

FOLLOWING PARTS

NOT ILLUSTRATED

4176459 Milk Jug

Stainless Steel

This manual suits for next models
