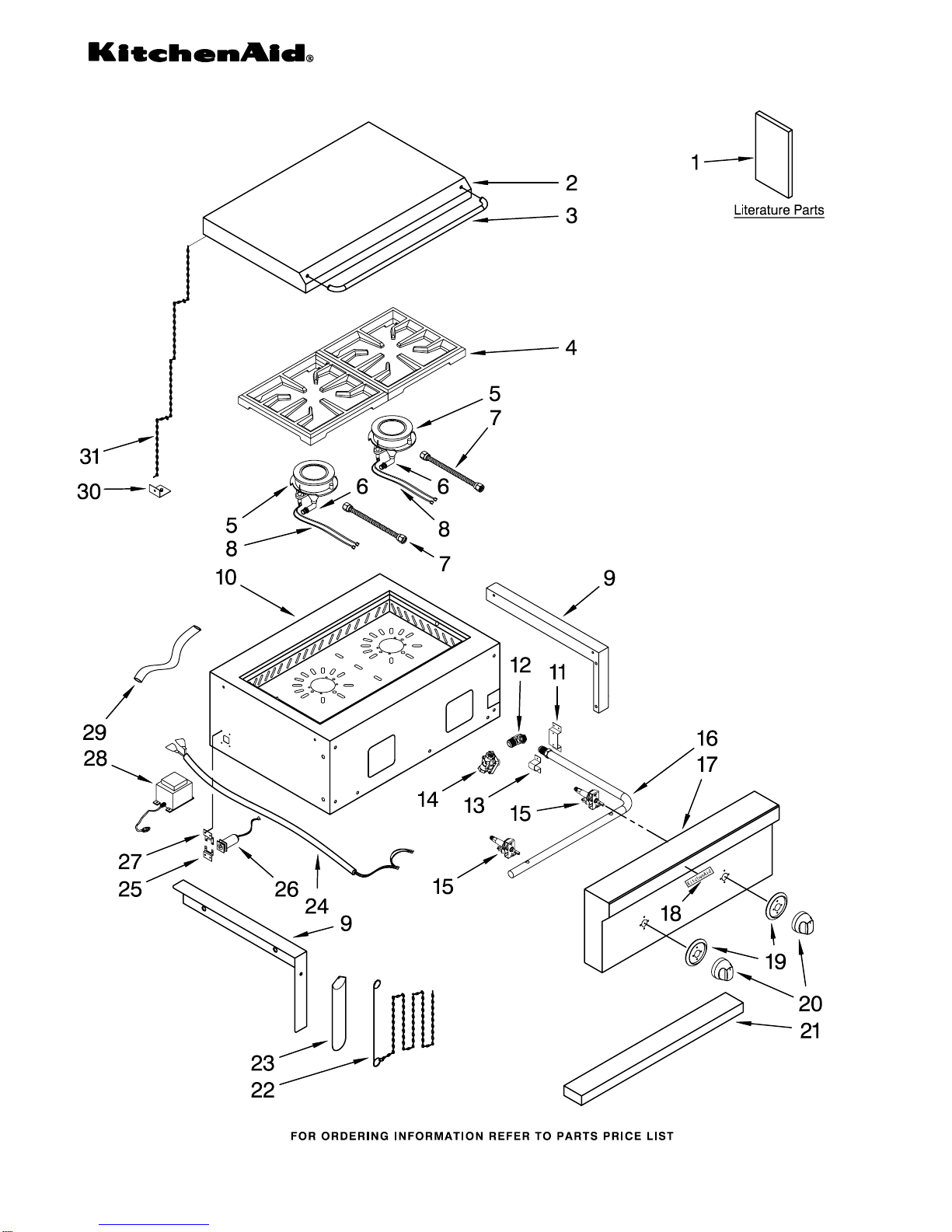

SIDE BURNER PARTS
For Model: KBZU242TSS00
(STAINLESS)
8−07 Litho In U.S.A. (cre) Part No. W10153481 Rev.A
BUILT−IN SIDE BURNER
2
SIDE BURNER PARTS
For Model: KBZU242TSS00
(STAINLESS)
W10153481
Illus. Part
No. No. DESCRIPTION
1 Literature
W10110732
U & C Guide /
Instructions,
Installation
2
W10141341
Cover, Burner
3
W10141342
Bar, Tool
4
W10137737
Grate, Burner
5
W10137743
Burner
6
W10137922
Orifice, Burner
Elbow
7
W10141343
Tubing
8
W10141344
Ignitor, Surface
9 Flange
W10141345
Right
W10141351
Left
10
W10141346
Box, Burner
11
W10128749
Base, Manifold
12
W10140747
Connector, Brass
13
W10128747
Fitting, Manifold
14
W10140748
Regulator (NG)
15
W10128764
Valve, Burner
16
W10141347
Manifold
17
W10141348
Panel, Control
18
W10128751
Nameplate
19
W10140753
Bezel, Knob
20
W10141176
Knob
21
W10141349
Panel, Front
22
W10141181
Rod, Lighting
23
W10128703
Bag, Ltg rod
24
W10141183
Harness, Wire
25
W10132694
Bracket, Trnsfrmr
26
W10133869
Outlet, Trnsfrmr
27
W10132695
Bracket, Transfrmr
28
W10141184
Transformer
29
W10141185
Tube, Drain
30
W10137088
Stator, Chain
31
W10137089
Chain
